| Model | Bobcat S160 Skid-Steer Loader |
| Machine Type | Medium-duty skid-steer loader |
| Operating Weight | Approx. 2,730 – 2,775 kg |
| Rated Operating Load | Approx. 725 – 726 kg |
| Tipping Load | Approx. 1,450 – 1,497 kg |
| Bucket Capacity | Approx. 0.33-0.4 m³ |










Used Loader

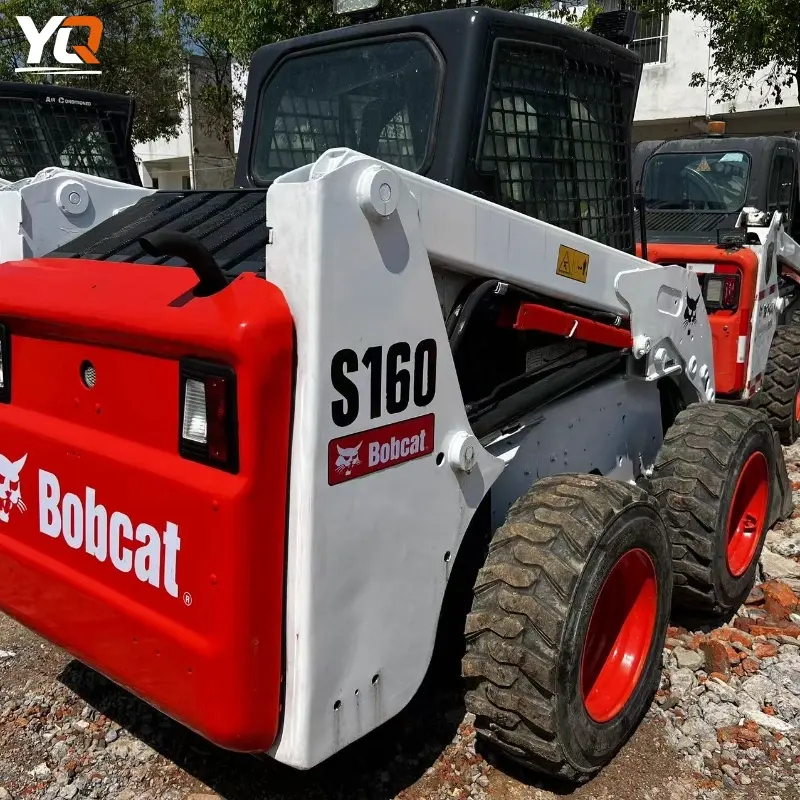

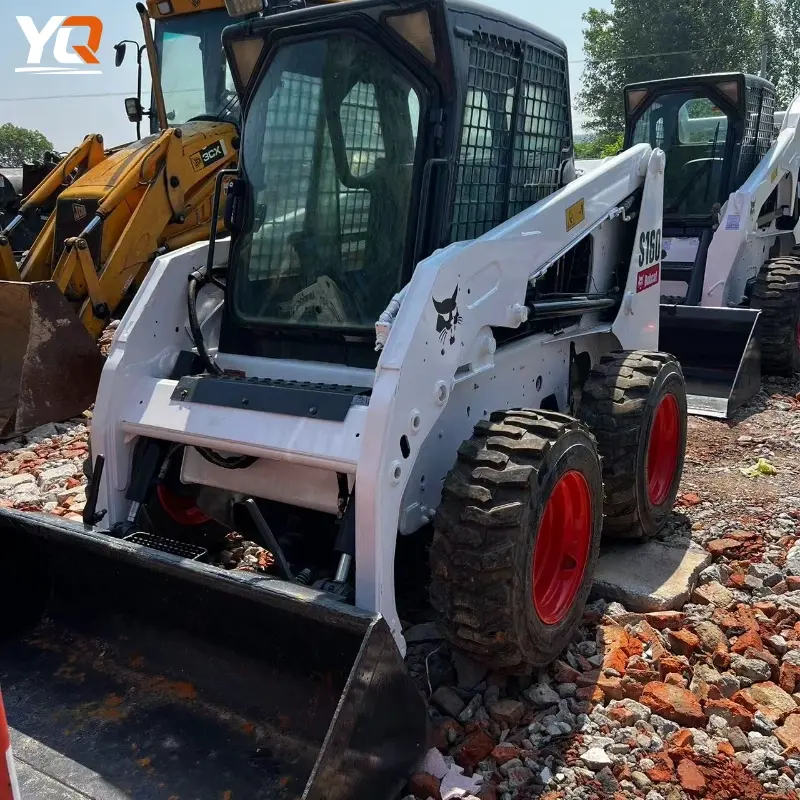

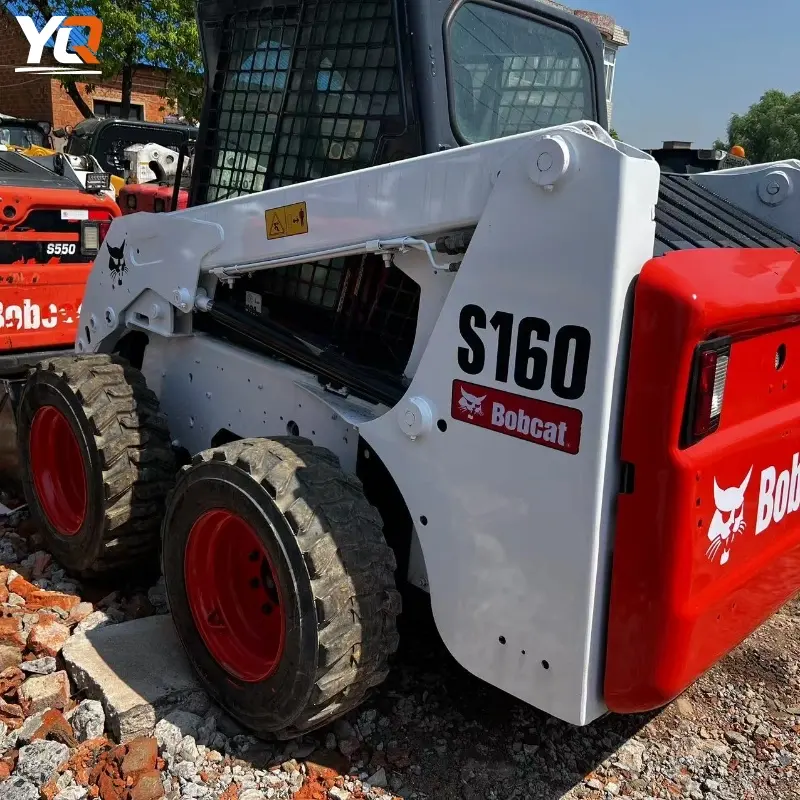

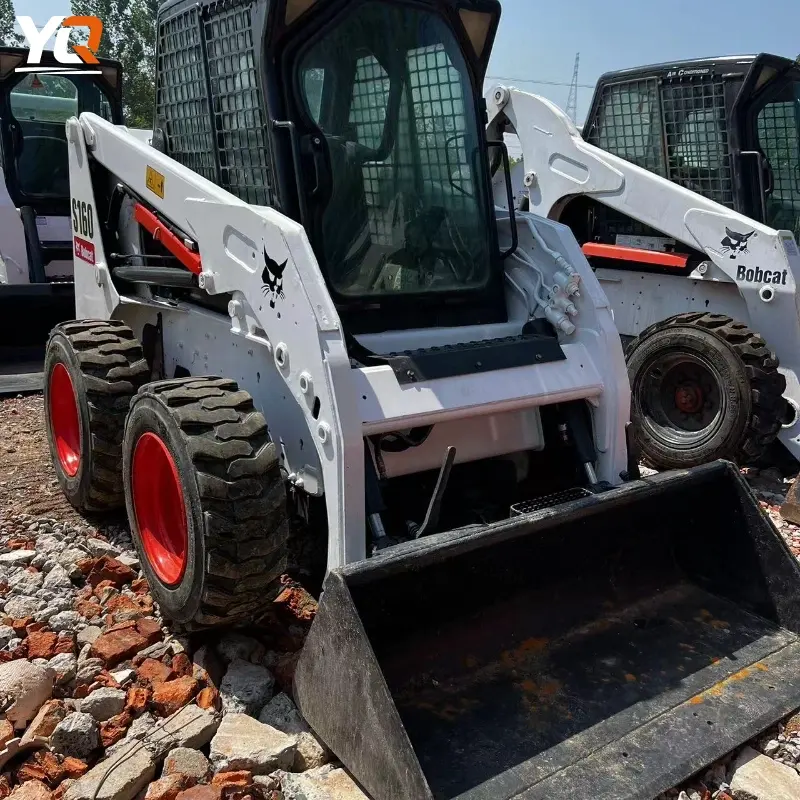

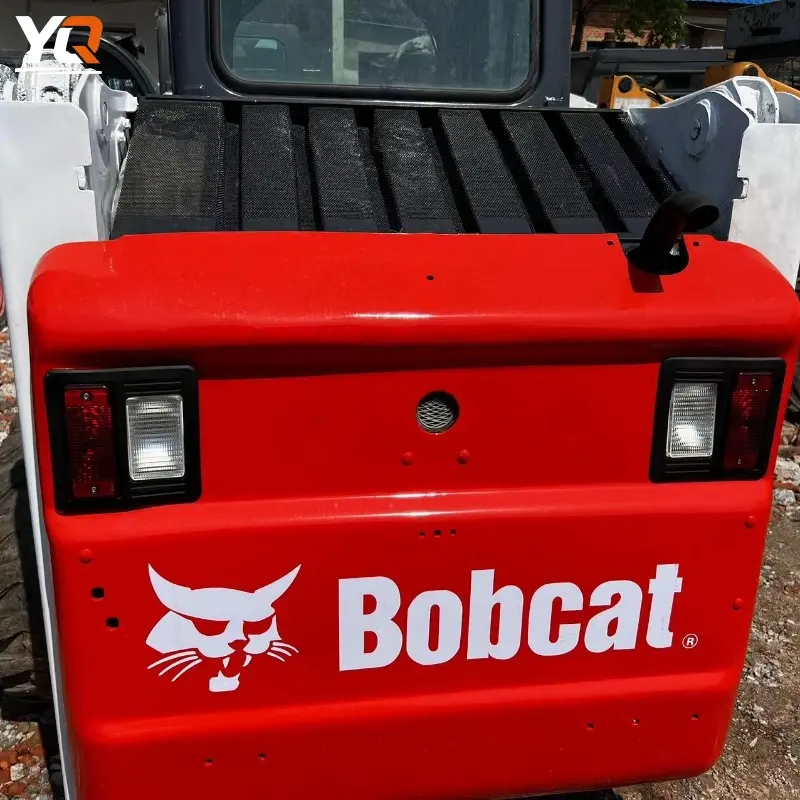

Used Bobcat S160 Skid Steer Loader Powerful Output for Construction Jobs
Fob Price: $13000~$16000
- Detailed description
Description
Basic Specifications
Model: Bobcat S160 Skid-Steer Loader
Machine Type: Medium-duty skid-steer loader, suitable for general construction, earthmoving, site clearing, and other multi-scenario operations.
⚙️ Engine and Power
Engine Brand/Model: Kubota V2003-M-DI-T / Similar water-cooled diesel engine (4 cylinders)
Rated Power: Approx. 56 HP / ~42 kW @ 2800 rpm (Net/Gross power varies depending on model year)
Displacement: Approx. 2.0 L (122 cu in / 2000 cm³)
Fuel Tank Capacity: Approx. 87 – 91 L (Approx. 24 gal)
⚖️ Weight and Load
Operating Weight: Approx. 2,730 – 2,775 kg (≈ 6,020 – 6,115 lbs)
Rated Operating Load (ISO 14397-1 / SAE): Approx. 725 – 726 kg (≈ 1,600 lbs)
Tipping Load: Approx. 1,450 – 1,497 kg (≈ 3,200 – 3,300 lbs)
Bucket Capacity: Approx. 0.33-0.4 m³ (≈ 0.5 yd³)
🚗 Travel and Performance
Maximum Travel Speed: Approx. 11.7 km/h (7.3 mph) (High-speed package not available)
Maximum Speed (Optional Dual-Speed): Approx. 17.9 km/h (≈ 11.1 mph) (High-speed option available)
Drive Type: Hydraulic Continuously Variable Transmission (Dual Piston Pump + Dual Hydraulic Motors)
🛞 Hydraulic System
Standard Hydraulic Pump Flow Rate: Approx. 64 L/min (≈ 16.9 gal/min)
High-Flow Optional Pump: Approx. 100 L/min (≈ 26.4 gal/min)
System Pressure (Quick Coupler): Approx. 22.4-23.1 MPa (≈ 3,250-3,350 psi
📏 Structural Dimensions
Item Value
Length (with bucket) ≈ 3,310 mm (≈ 10.86 ft)
Width (tire edge) ≈ 1,676 mm (≈ 5.5 ft)
Height (cab roof) ≈ 1,938 mm (≈ 6.36 ft)
Wheelbase ≈ 1,030 mm
Minimum ground clearance ≈ 190-231 mm (depending on measurement location)
🏗️ Lifting and Working Capacity
Maximum Hinge Pin Height: Approx. 2,905 mm / 114.5 in
Dump Height: Approx. 2,195 mm / 86.5 in
Dump Reach: Approx. 460-460 mm / 18.1 in
