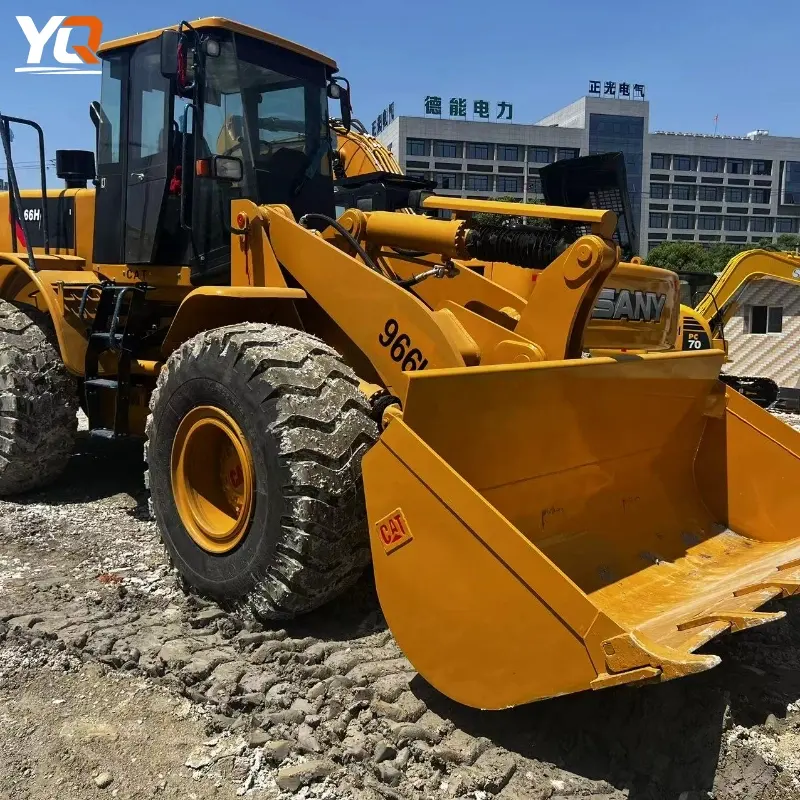

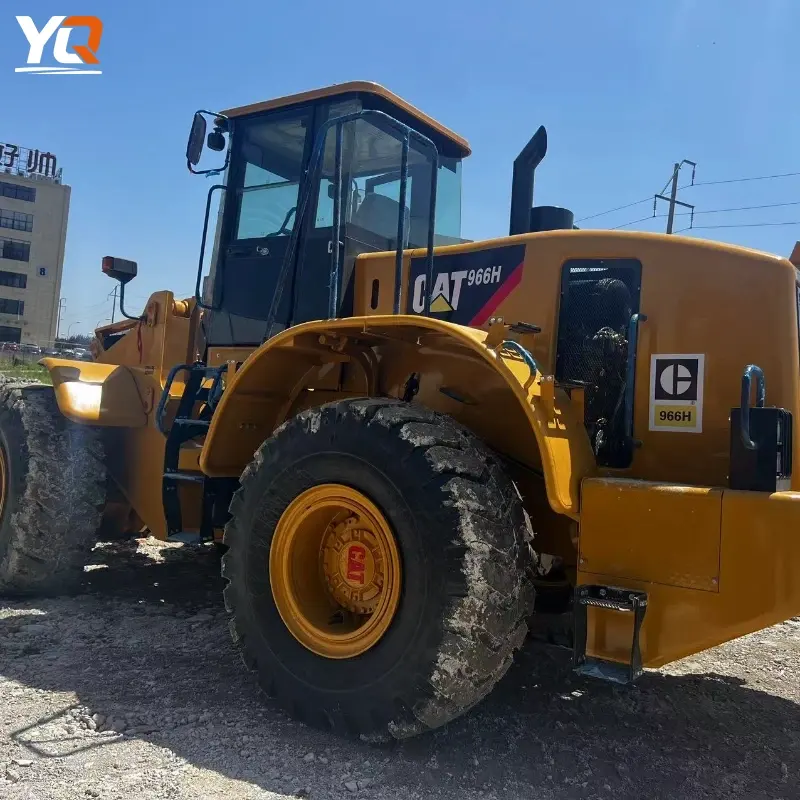

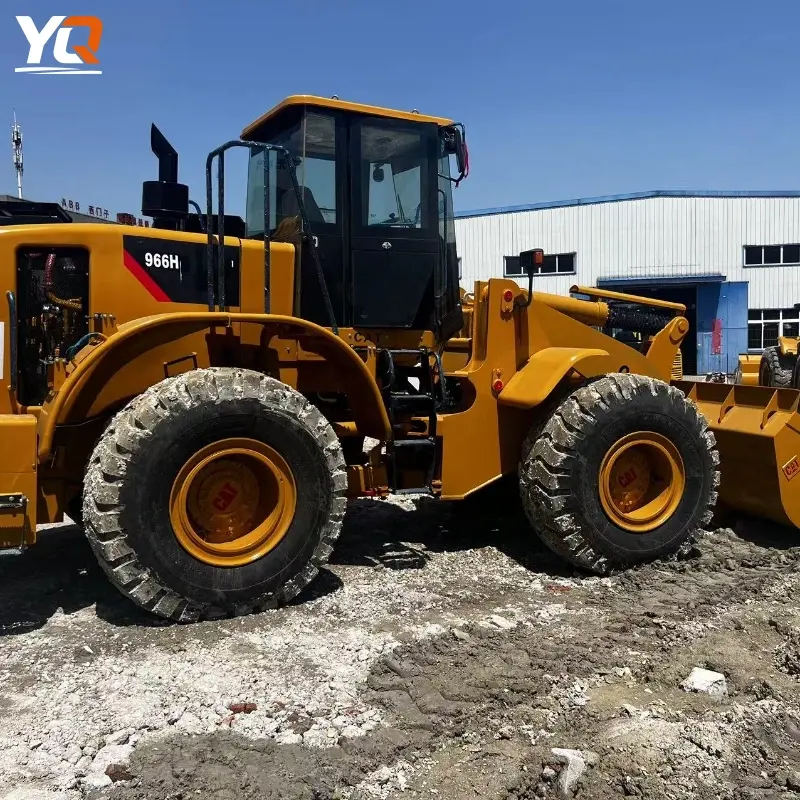

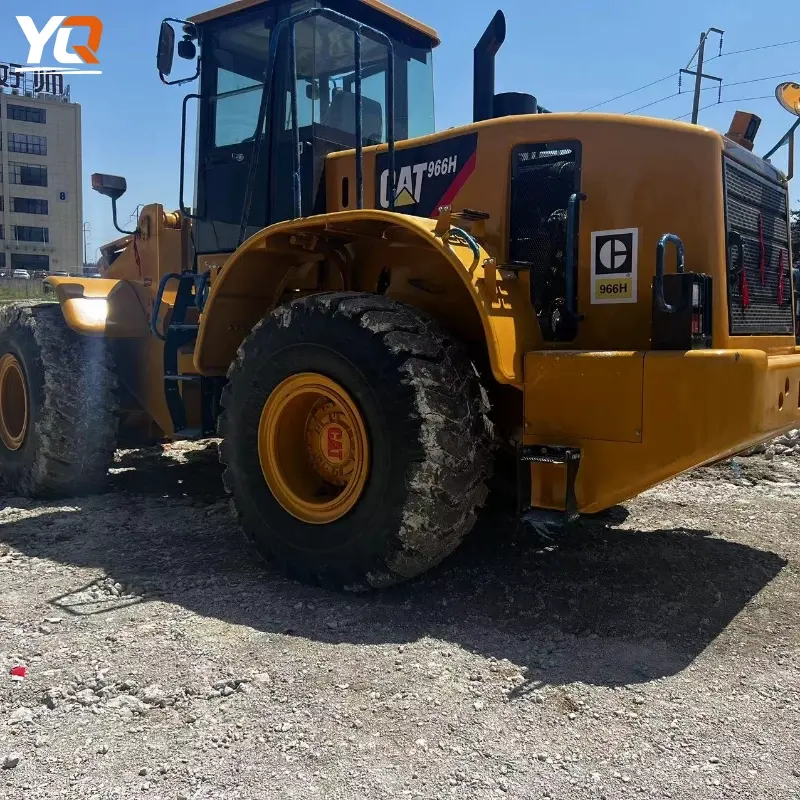

Used Caterpillar 966 Wheel Loader Heavy Duty Construction Equipment

Basic Technical Specifications

🚜 Engine

Engine Model: Cat® C11 ACERT™ (Turbocharged Diesel Engine)

Net Power (ISO 9249): Approx. 195 kW / 262 hp @ 1800 rpm

Maximum Torque: Approx. 1215 N·m @ 1400 rpm

Displacement: Approx. 11.1 L

Number of Cylinders: 6

⚖️ Weight and Load

Operating Weight: Approx. 23,698 ～ 23,994 kg

Static Full-Spin Tilting Load: Approx. 15,400 kg (varies slightly depending on the standard)

Breakout Force: Approx. 188 – 191 kN

🪣 Bucket Capacity and Dimensions

Standard Bucket Capacity: Approx. 3.4 – 4.2 m³ (some versions can reach ~4.6 m³)

Unloading Height: Approx. 3005 mm mm (Maximum Bucket Angle)

Minimum Ground Clearance: Approx. 496 mm

Length (with Bucket): Approx. 8855 mm

Wheel Track Width: Approx. 2956 mm

Wheelbase: Approx. 3450 mm

Maximum Hinge Pin Height: Approx. 4224 mm

⚙️ Transmission and Travel

Transmission: 4-speed forward + 4-speed reverse Powershift transmission

Travel Speed:

1st Gear: Approx. 6.7 km/h

2nd Gear: Approx. 12.6 km/h

3rd Gear: Approx. 22.1 km/h

4th Gear: Approx. 37.4 km/h (forward/reverse)

Turning Radius: Approx. 7367 mm

💧 Hydraulics and Capacity

Hydraulic Pump Flow Rate: Approx. 305 L/min

Lift/Unload/Lower Time (Empty Bucket):

Lift: Approx. 5.9 s

Unload: Approx. 1.6 s

Lower: Approx. 2.4 s

Total cycle: Approx. 9.9 s

Fuel tank capacity: Approx. 380 L

Hydraulic oil tank: Approx. 110 L

Coolant: Approx. 39 L
