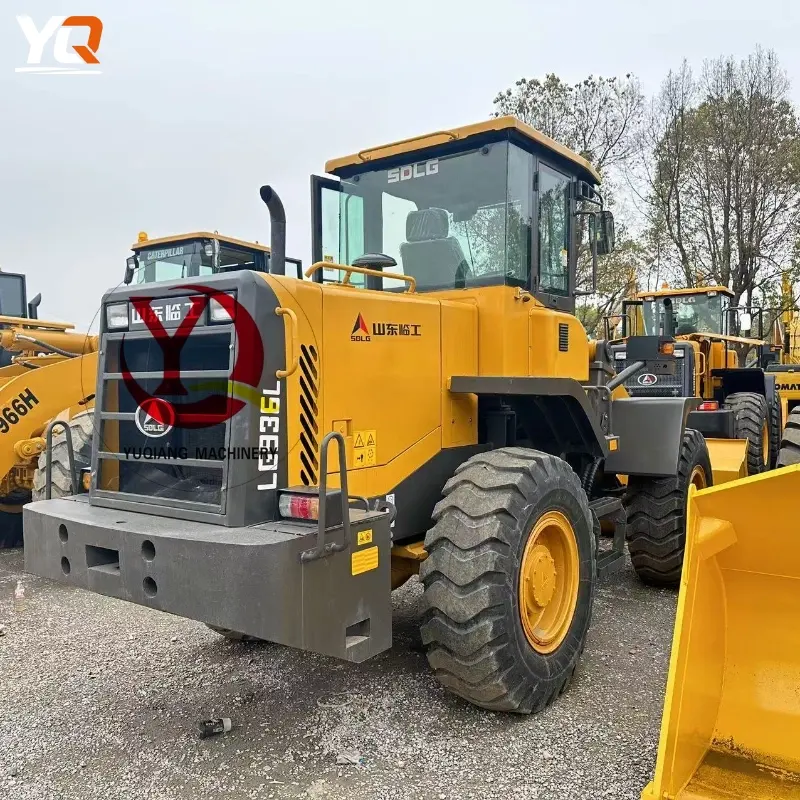

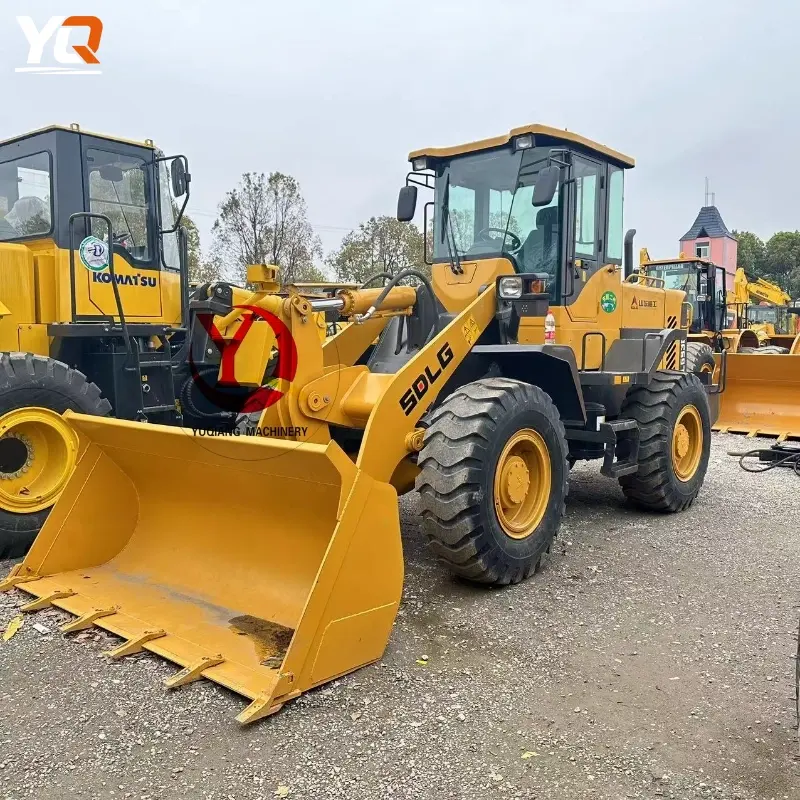

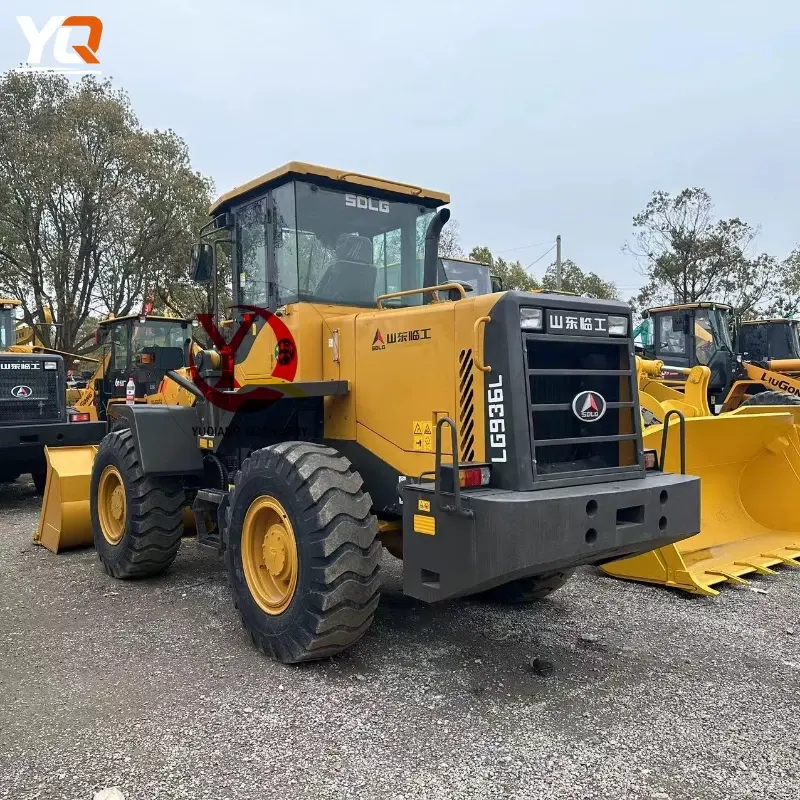

SDLG 936 Used Wheel Loader Reliable Performance for Engineering Projects

Basic Performance Parameters

Equipment Model: L936 / LG936 / L936H (3-ton class wheel loader)
Rated Payload: ≈ 3000 kg (3-ton class)
Operating Weight: ≈ 10,550 – 10,780 kg (Slight variations depending on data source)
Tonnage Range: 3 – 4 ton class general purpose

🛞 Bucket and Operating Performance

Bucket Capacity: Approx. 1.5 – 3.0 m³ (Commonly ~1.8 m³)
Maximum Breaking Force: ≈ ≥ 96 kN (Slight variations depending on working conditions)
Maximum Traction Force: ≈ ≥ 100 – 105 kN

⚙️ Power and Transmission

Engine: Weichai or Yuchai brands (e.g., WP6G125E332 / YC6J125-T300); Four-cylinder inline water-cooled, direct injection design
Rated Power: Approx. 92 kW (≈ 124 hp) @ 2200 rpm
Maximum Torque: Approx. 500 N·m
Transmission: Planetary power shift (SDLG transmission in some versions)
Hydraulic System Pressure: Approx. 16 MPa

🚗 Driving and Operation

Driving Speed ​​(Examples of some versions):

1st Gear Forward/Reverse: 0 – 13 / 0 – 17 km/h

2nd Gear Forward/Reverse: 0 – 38 km/h (maximum)

Steering System: Load-sensing fully hydraulic articulated steering

📏 Dimensions and Geometry

Overall Dimensions (L×W×H): Approx. 7,100 × 2,520 × 3,170 mm
Wheelbase: ≈ 2,850 mm
Track Width: ≈ 1,865 mm
Minimum Ground Clearance: ≈ 370 mm
Unloading Height (45°): ≈ 2,950 mm
Unloading Distance (45°): ≈ 1,050 mm
Steering Angle: ≈ 37 – 38°
Minimum Turning Radius: ≈ 5,381 mm

🛠️ Braking and Other Features

Braking System: Air-hydraulic disc brakes; Electronic parking brake (some models)
Tire Size: Typically 17.5-25
Fuel Tank Capacity: Approx. 140 L (some versions)
Hydraulic Fluid Capacity: Approx. 128 L
