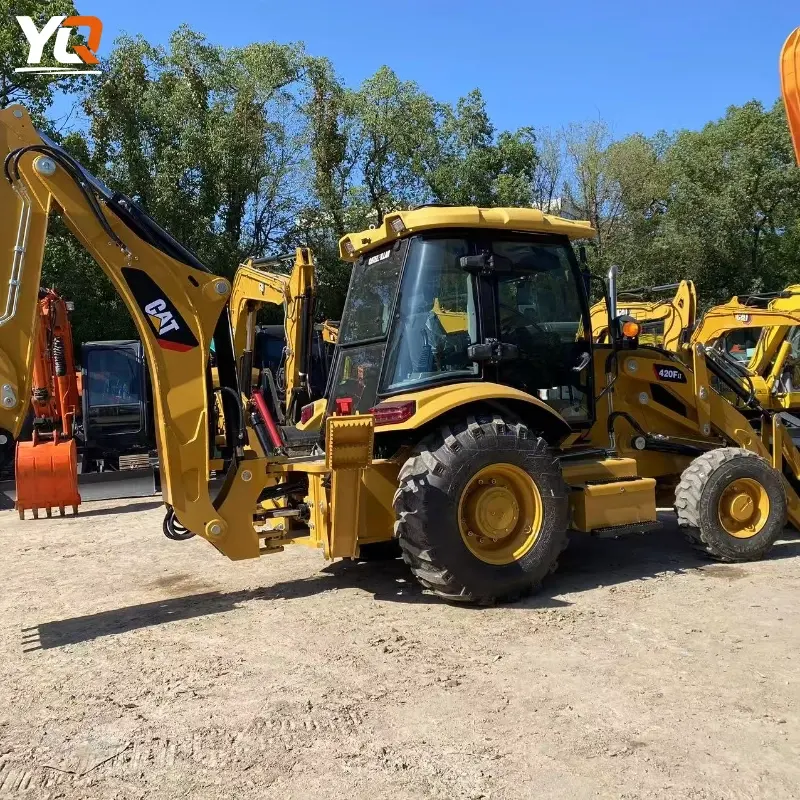

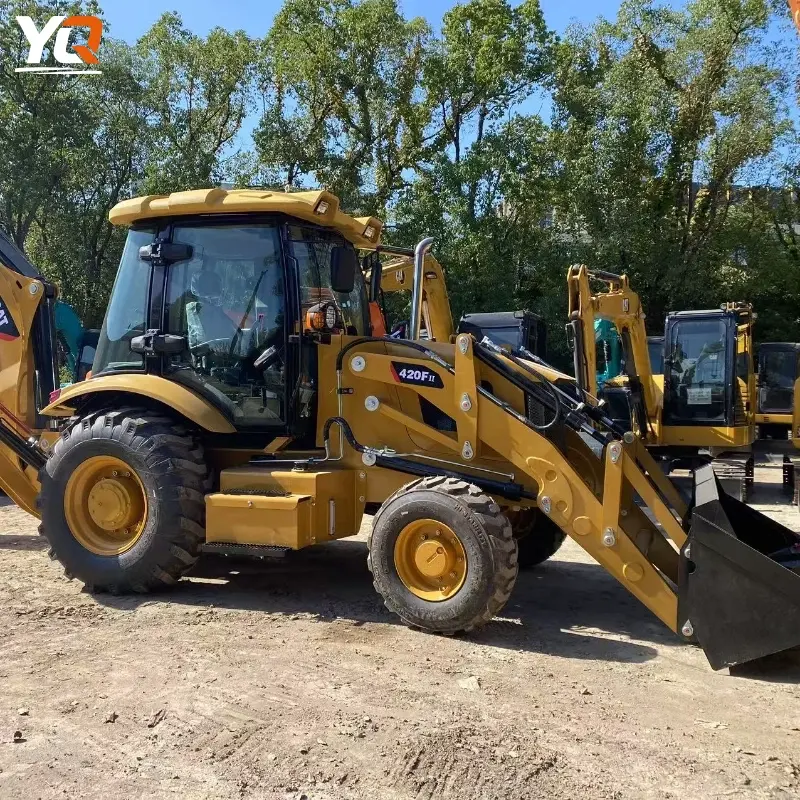

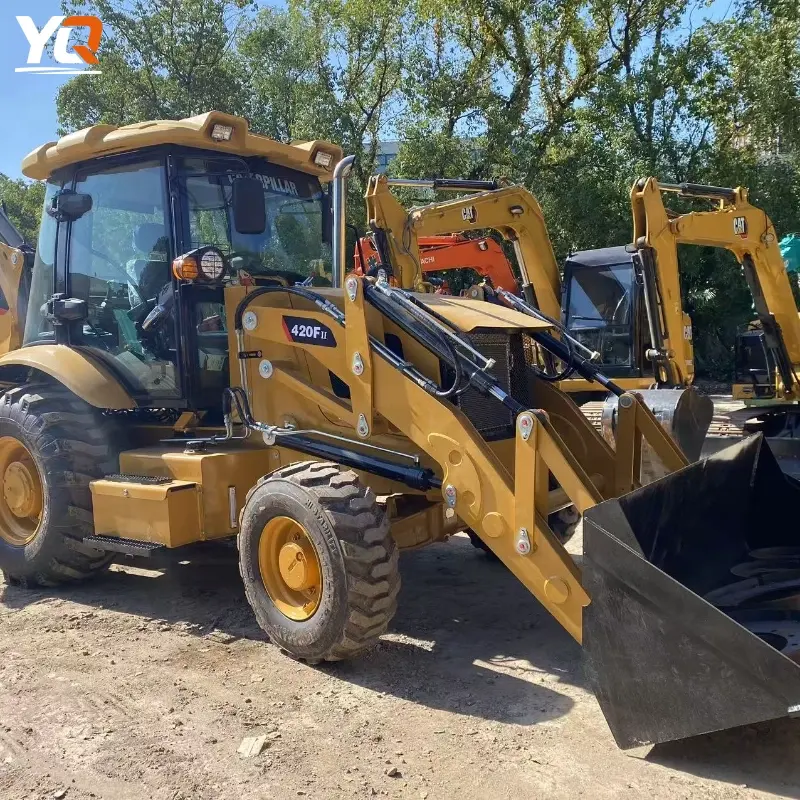

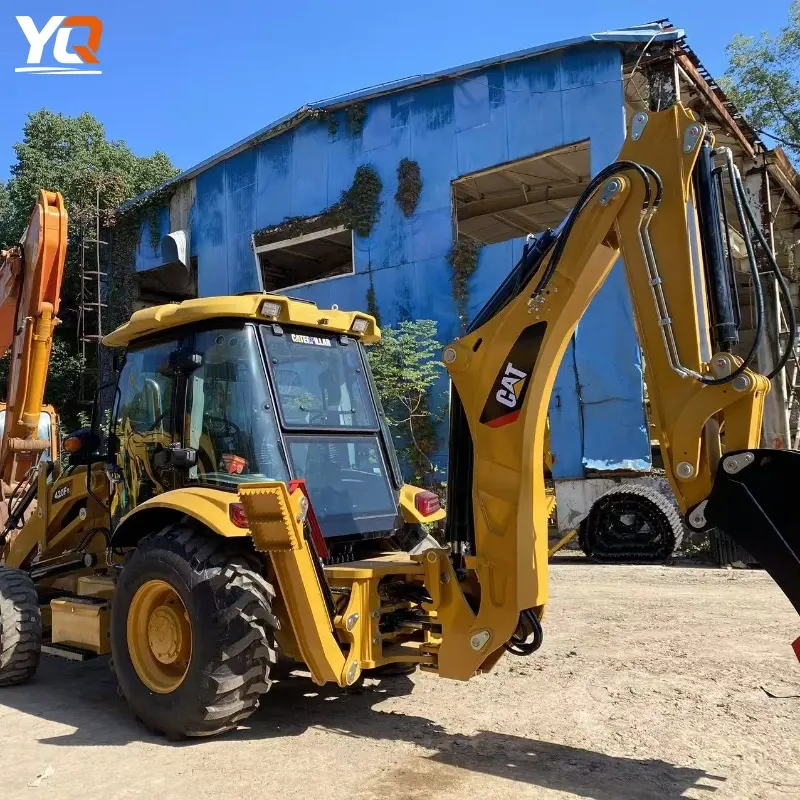

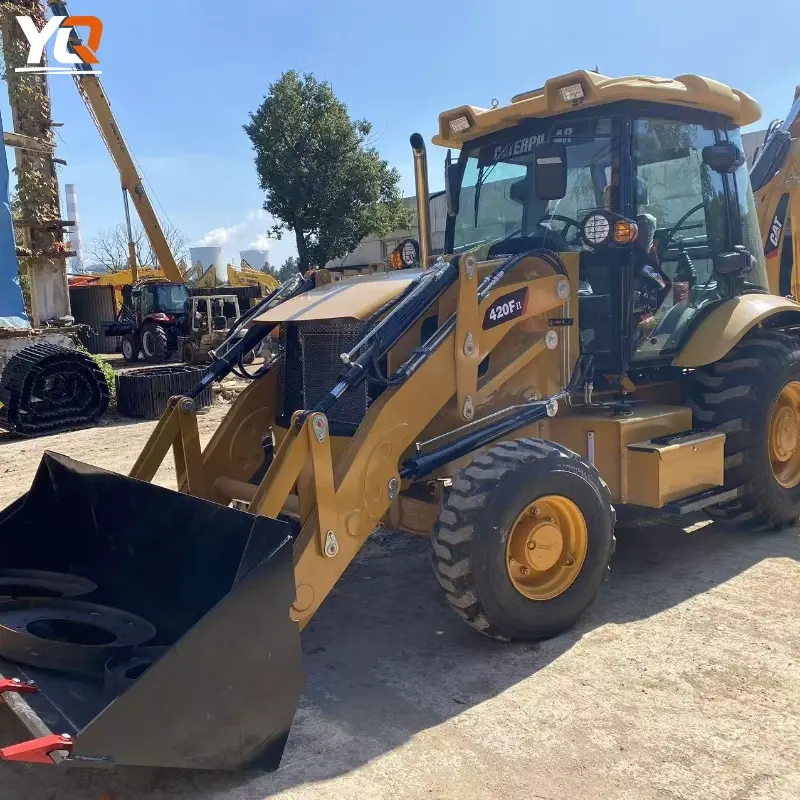

High-Quality Used CAT 420F Backhoe Loader USA Brand For Sale

I. Basic Overview

Item Parameters
Model Caterpillar 420F / 420F IT
Type: Backhoe Loader
Year of Manufacture Continuous production since 2012 (currently some market versions)

II. Engine and Power System

Item Data
Engine Model C4.4 ACERT (Caterpillar’s own diesel engine)
Displacement: ~4.4 L (268.6 cu in)
Net Power Approx. 92.6 hp (≈ 69 kW)
Gross Power Approx. 102 hp (≈ 76 kW)
Peak Torque ~438 Nm (approx. 323 lb-ft)
Rated Speed: ​​2200 rpm (power point measured)

III. Working Performance

Backhoe
Specifications Values
Standard Digging Depth: ~4.36 m (14.3 ft)
Maximum Horizontal Extension: ~5.61 m (18.4 ft)
Rear Shovel Tear Force: ~62.66 kN (approx. 14,080 lbf) Sub-item (Lectura Table)

Front Loader
Specifications Data
Bucket Capacity: ~0.96 m³ (254 gal)
Bucket Width ~2.26 m (≈ 89 in)
Breakout Force ~5,118–5,079 kg (11,283–11,197 lbs)
Maximum Lifting Load: ~3,283–3,691 kg (~7,238–8,137 lbs)

IV. Weight and Dimensions
Item Parameters
Standard Operating Weight: ~6,983 kg (15,395 lbs)
Maximum Operating Weight (4WD Version): ~11,000 kg (24,251 lbs)
Transport Length: ~7.17 m (23.5–23.8 ft)
Transport width ~2.32 m (7.6–7.7 ft)
Transport height: ~3.58 m (11.7 ft)
Wheelbase/track approx. 2 m/2.2 m (depending on specific version)

V. Hydraulic and Circulation System

Item Value
Hydraulic Pump Type: Variable Flow Axial Piston Pump
Pump Flow Rate ~43 gal/min (163 L/min)
Fuel Tank Capacity: ~43.6–44 gal (≈ 165–167 L)
Hydraulic System Fluid Volume ~25.1 gal (≈ 95 L)
Coolant Capacity: ~5.8–5.9 gal (≈ 22 L)

VI. Transmission and Driving

Item Parameter
Transmission System Power Shuttle/Automatic Shift Optional (depending on version configuration)
Drive Type: 2WD or 4WD (optional) Maximum speed: Approximately 40 km/h (25 mph)
