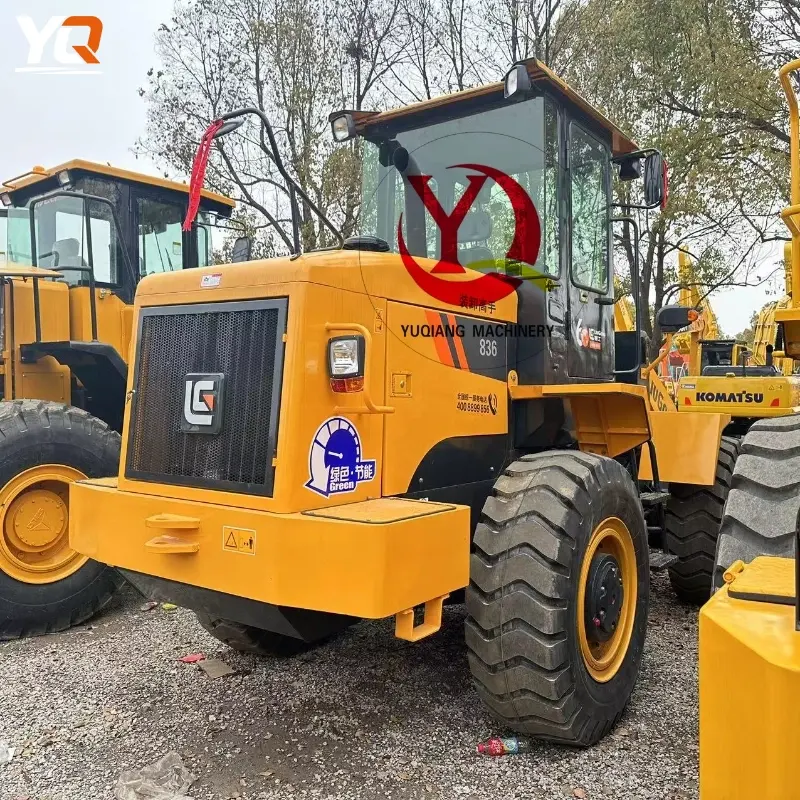

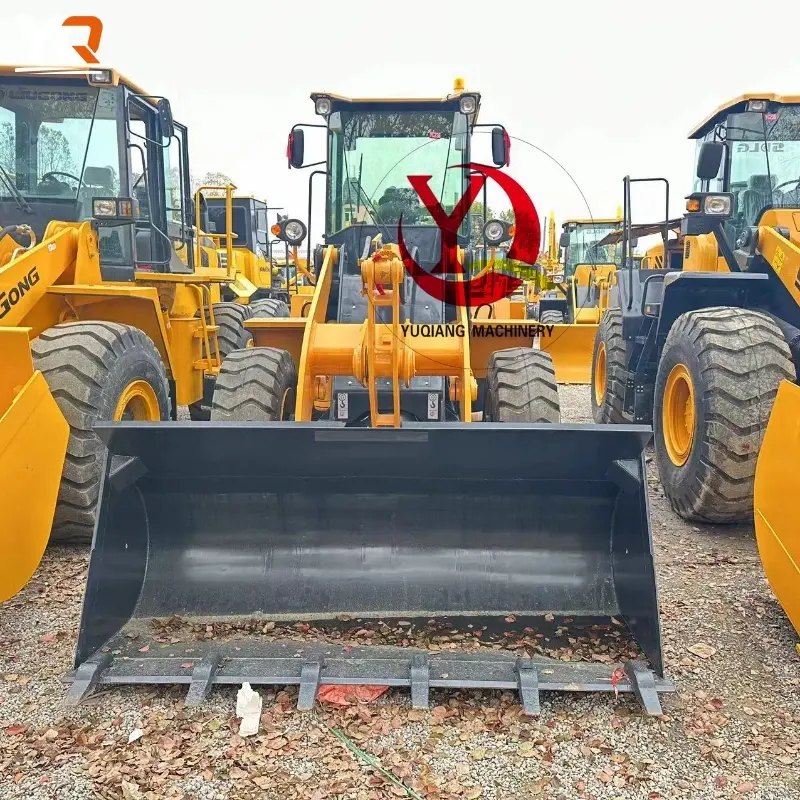

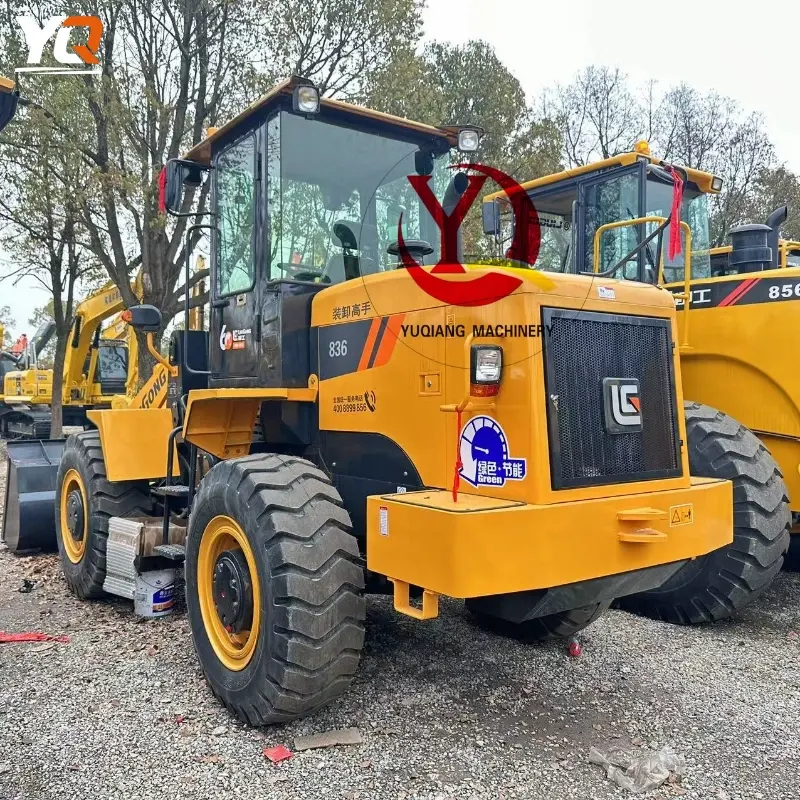

Used LiuGong 836 Wheel Loader Strong Power for Construction Applications

Description

Basic Performance

Equipment Model: LiuGong CLG836 / 836 Wheel Loader (3-ton class)

Rated Payload: ≈ 3000 kg

Operating Weight: Approx. 10,300 – 10,600 kg

Standard Bucket Capacity: Approx. 1.7 m³, with optional lighter buckets offering larger capacities (e.g., 2.5 – 3.0 m³)

⚙️ Engine and Power

Engine Brand/Model: Weichai / Weichai WP6G125E310 / WP6G125E22 (6-cylinder turbocharged)

Rated Power: ≈ 92 kW (~125 hp) @ 2200 rpm

Peak Torque: ≈ 515 N·m

Emission Standard: EPA Tier 2 / EU Stage II (some export versions)

🏗️ Operational Performance

Static Full-Spin Tilting Load: ≈ 6,500 – 6,628 kg

Maximum Crushing Force (Turning Force): ≈ 100 kN

Unloading Height (45°): ≈ 2,910 mm

Unloading Distance (45°): ≈ 1,072 mm

🚗 Transmission and Speed

Gearbox: Planetary Gear Hydraulic Automatic Shift (Power Shift)

Travel Speed:

Forward Maximum: Approx. 35 km/h

Reverse: Approx. 14.5 km/h

📏 Structural Dimensions

Overall Length (with bucket): ≈ 6,780 – 6,880 mm

Overall Width: ≈ 2,295 – 2,460 mm (including tires and bucket)

Overall Height: ≈ 3,297 mm

Wheelbase: ≈ 2,870 mm

Minimum Turning Radius: ≈ 5,173 – 5,394 mm (outer wheel)

Minimum Ground Clearance: ≈ 322 mm
