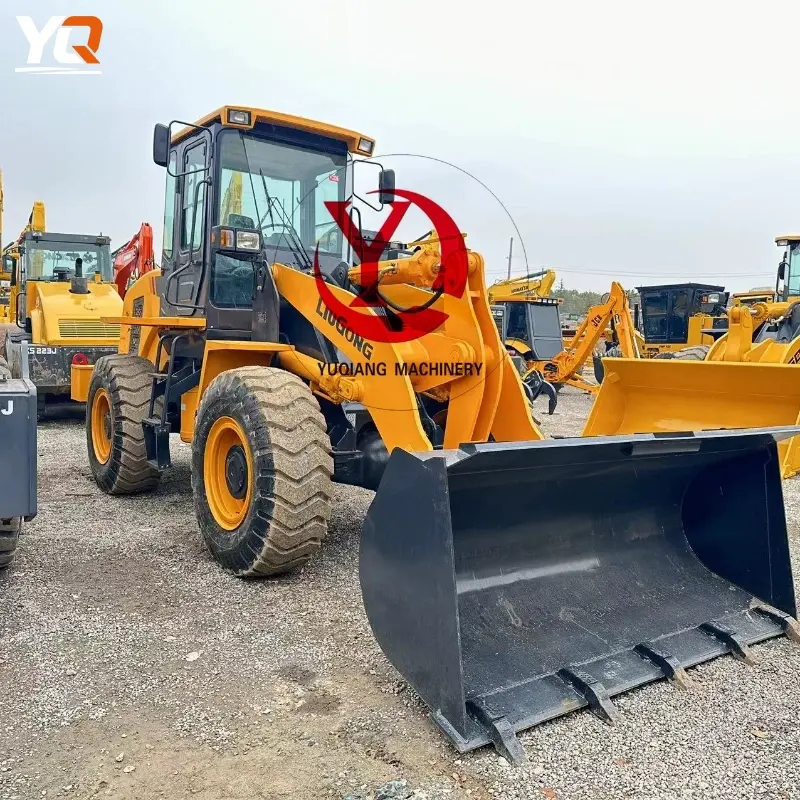

LiuGong 835 Pre-Owned Wheel Loader Durable Design Stable Operation

Basic Information

Model: LiuGong 835 / 835H / CLG835 Series (3-ton medium-duty wheel loader)

Class: ≈ 3-ton loader (rated payload approx. 3000 kg)

🛠️ Engine and Power

Standard 835

Engine Brand: Cummins / DCEC diesel engine (some Yuchai versions also available)

Displacement: ≈ 5.9 L (standard model)

Power: Approx. 97 kW (130 hp) @ 2,200 rpm (Net power ≈ 87 kW / 117 hp)

Peak Torque: Approx. 580 N·m @ 1,400 rpm

835H (Updated/China IV/Stage V version)

Engine: Cummins B4.5 (4-cylinder turbocharged)

Net Power: Approx. 106 kW (142 hp) @ ~2,200 rpm (depending on market configuration)

⚙️ Drivetrain and Travel

Transmission: Planetary Power Shift / Automatic Transmission

Torque Converter: Two-stage or Single-stage (depending on version)

Travel Speed

Maximum Forward Speed: ~36 km/h (Standard)

Maximum Reverse Speed: ~15 km/h

⚖️ Weight and Load

Complete Weight (Operating Weight): ≈ 10,600 – 11,500 kg (Standard 835 Configuration)

Rated Payload: Approx. 3,000 kg

Maximum Traction / Breaking Force: ≈ 93.5 – 100 kN (Crushing Force)

🪣 Operating Performance

Reference Bucket Capacity: ≈ 1.7 – 1.9 m³ (General Purpose Bucket)

Unloading Height: ≈ 2,900 – 3,000 mm (Full Bucket Height)

Unloading Distance: ≈ 1,050 – 1,080 mm

Maximum hinge pin height: Approx. 3,720 mm

Three-cycle work time: ≈ 9.3 – 9.6 s (loading, unloading, lowering)

📏 Structural Dimensions (Typical)

Length (with bucket): ≈ 6,760 – 7,115 mm

Width (tire): ≈ 2,300 mm

Wheelbase: ≈ 2,870 mm

Minimum ground clearance: ≈ 310 – 315 mm

Minimum turning radius (outer tire): ≈ 5,140 mm
