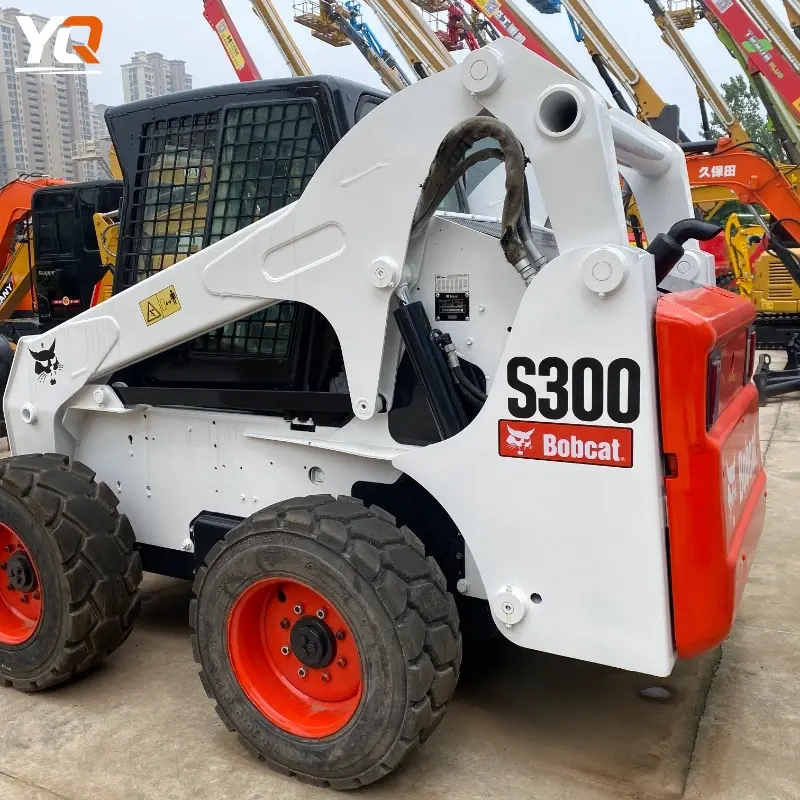

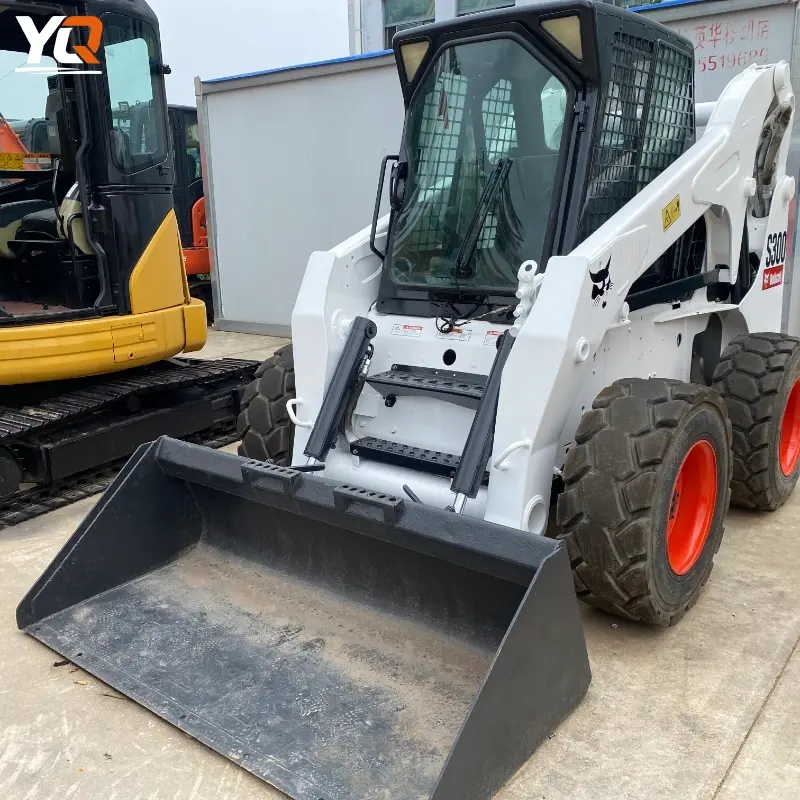

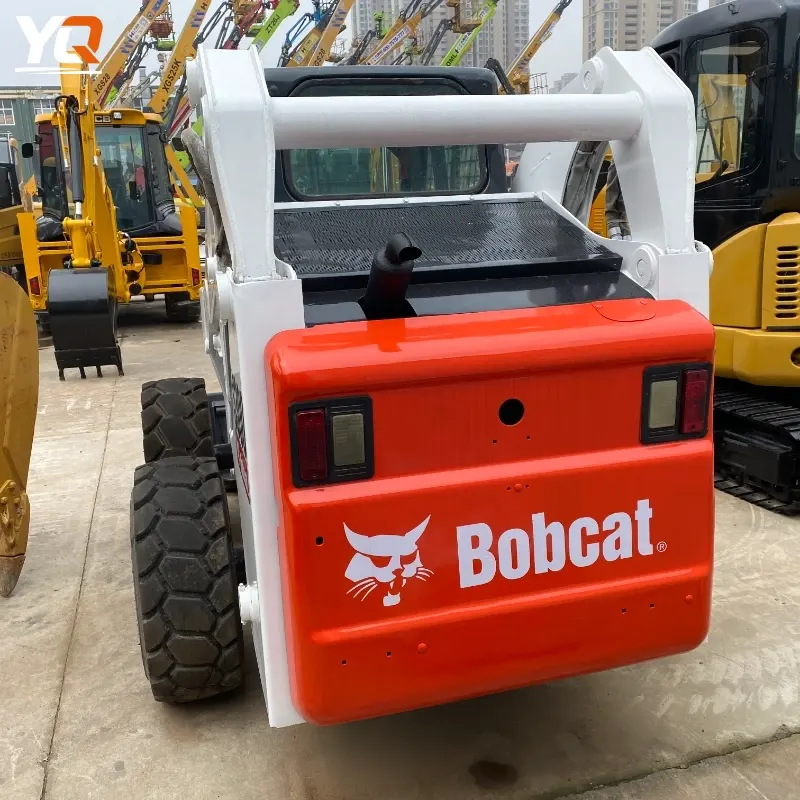

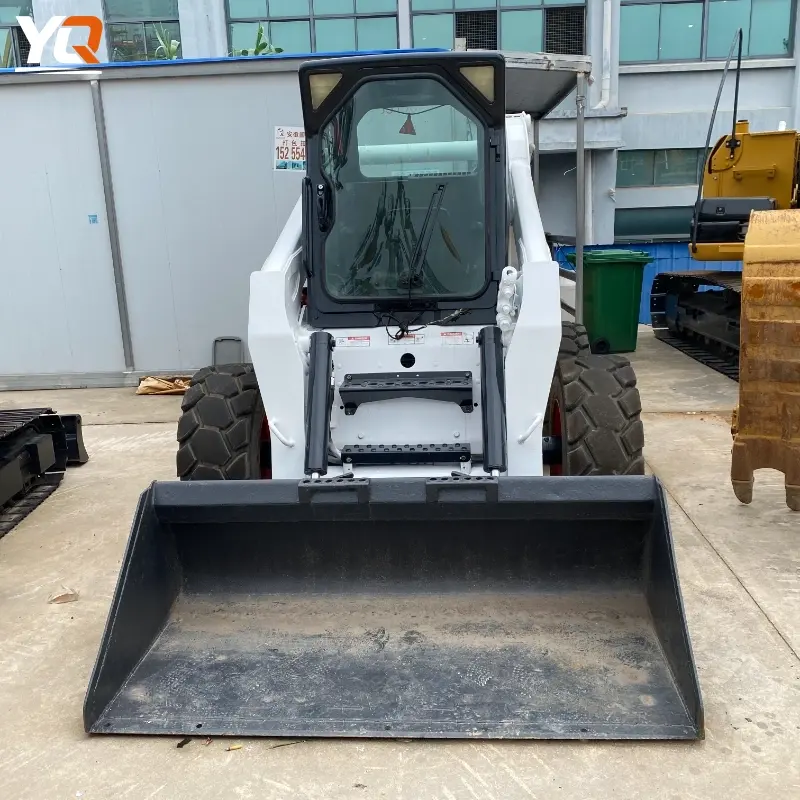

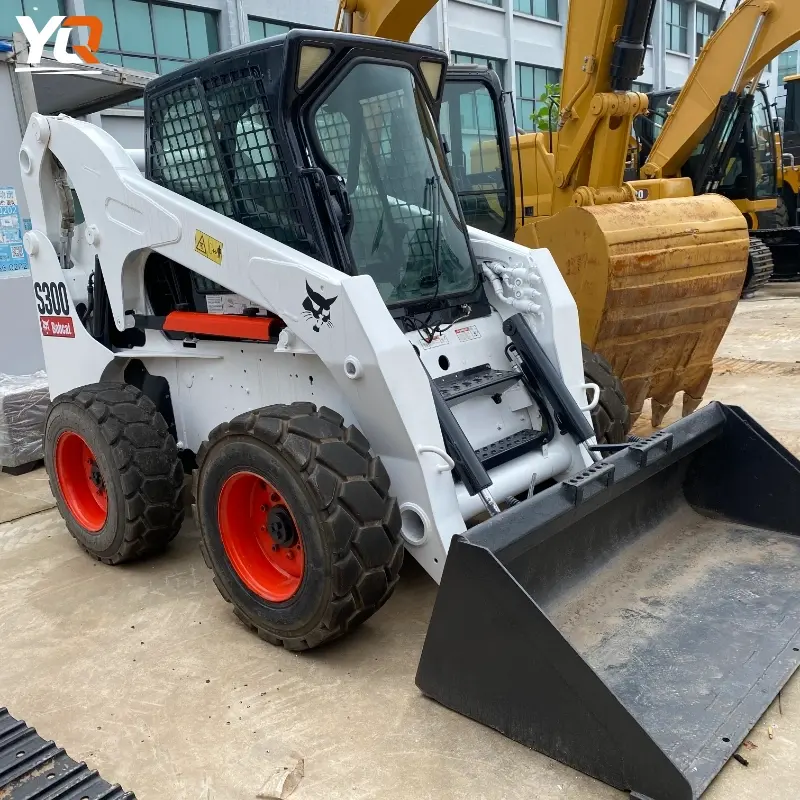

Bobcat S300 Second Hand Skid Steer Loader Durable Structure High Productivity

Basic Performance Parameters

Model: Bobcat S300 Skid Steer Loader (Vertical Lift)

Working Years Range: Approximately 2002 – 2010 (Specific production years may vary slightly)

Rated Working Load (50% Overturn): Approximately 3,000 lb ≈ 1360 kg

Rated Operating Load (35% Overturn): Approximately 2,100 lb ≈ 952 kg

Overturn Load: Approximately 6,111 lb ≈ 2,770 – 2,800 kg

Operating Weight: Approximately 8,268 – 8,448 lb ≈ 3,750 – 3,830 kg

Lifting Mechanism Type: Vertical Lift

⚙️ Engine and Power

Engine Brand / Model: Kubota V3800-DI-TE3 / V3300-DI-T Turbocharged Diesel Engine (4-cylinder, water-cooled)

Rated Power: Approx. 81 HP ≈ 60 – 60.5 kW @ 2,400 rpm

Displacement: Approx. 3.7 L (3769 cc) or some sources list it as approx. 3.3 L (depending on model year/market)

Fuel Tank Capacity: Approx. 87 L (23 gal)

🏗️ Performance

Bug Capacity (Standard Bucket): Approx. 0.5 m³ (0.6 yd³)

Crushing/Lifting Force: Approx. 5,300 – 5,350 lb ≈ 2,400 – 2,425 kg

Maximum Speed:

Standard: ≈ 11.1 km/h (≈ 6.9 mph)

Optional Two-Speed: Approx. 19.3 km/h (≈ 12 mph)

🚗 Driveline and Hydraulic System

Drive Type: Hydrostatic Continuously Variable Transmission

Hydraulic Pump Flow Rate: ≈ 20.7 GPM ≈ 78.4 L/min

Rated System Pressure: ≈ 3,300 psi ≈ 227 bar

High-Flow Optional: ≈ 36.7 GPM ≈ 138.9 L/min (Optional High-Flow)

📏 Dimensions and Geometry

Length (with bucket): ≈ 3,630 mm

Length (without bucket): ≈ 2,908 mm

Width (tire edge): ≈ 1,829 mm

Height (cab roof): ≈ 2,055 mm

Wheelbase: Approx. 1,227 mm

Front Turning Radius (with bucket): ≈ 2,139 mm

Minimum Ground Clearance: ≈ 213 mm (approx. 8.4 in)
