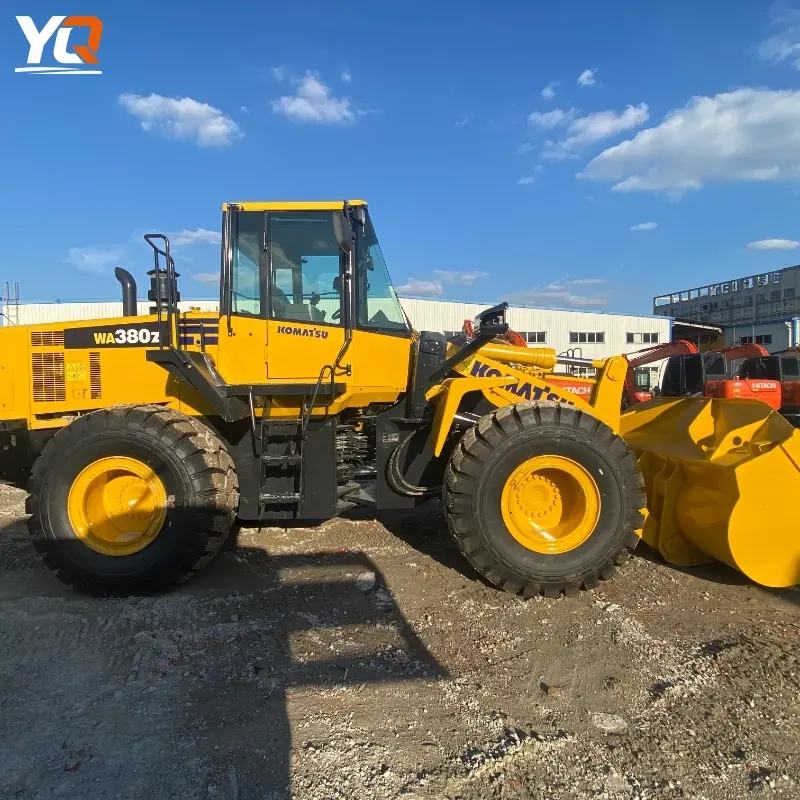

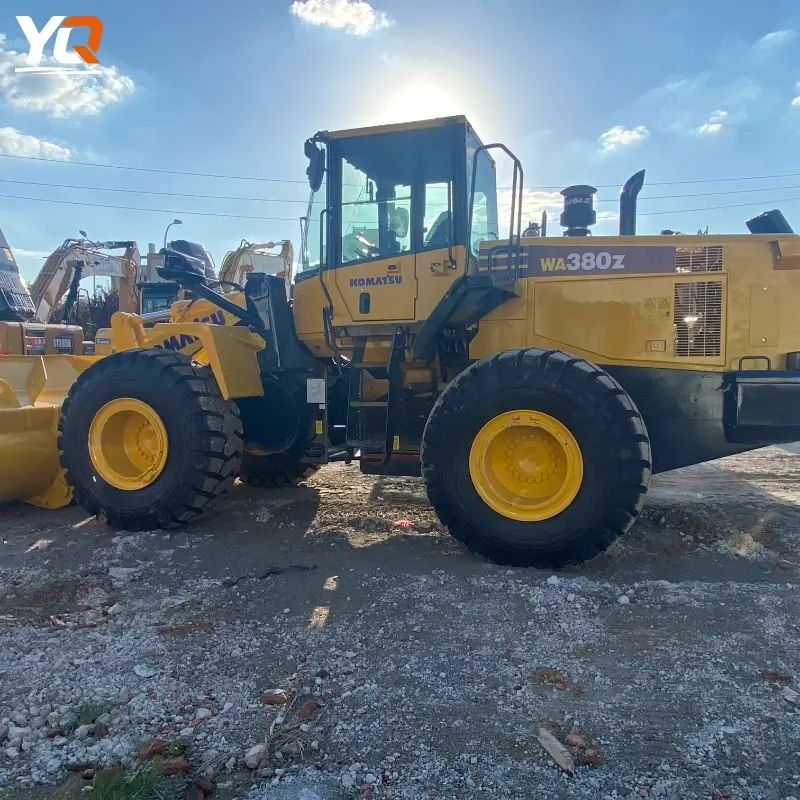

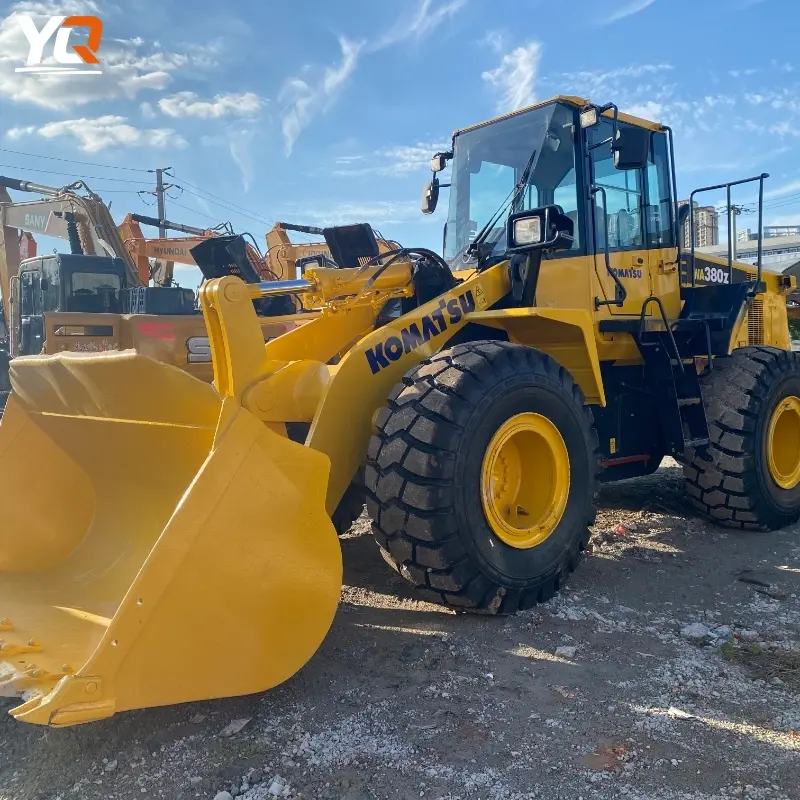

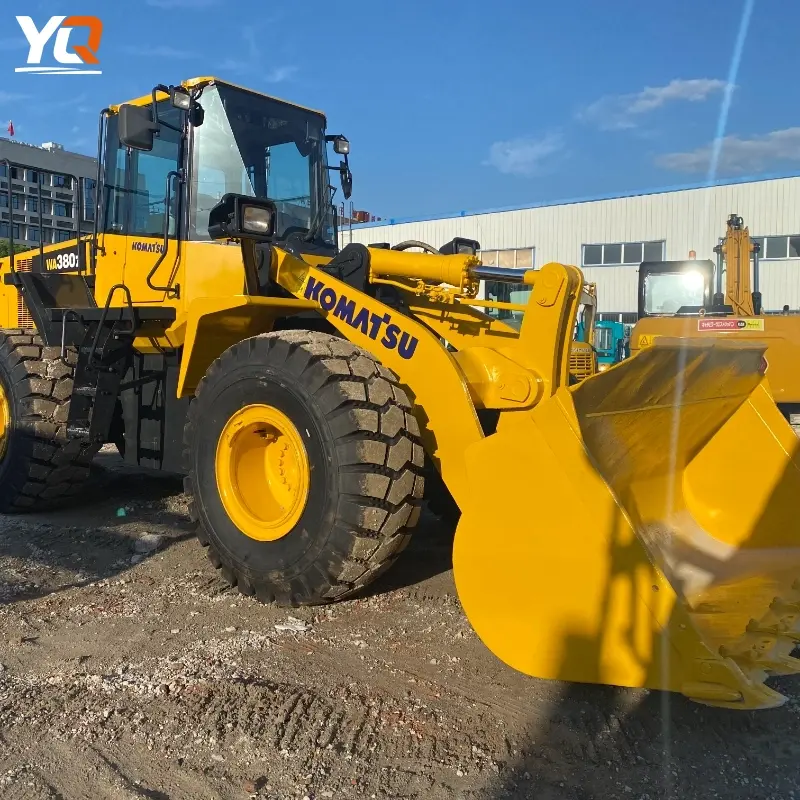

Komatsu 380 Second Hand Wheel Loader Powerful Engine for Mining Work

Basic Specifications

Model: Komatsu WA380 Wheel Loader (commonly WA380-8 / WA380-6)

Category: 6-ton large/medium-sized wheel loader (widely used in construction, mining, stockpiling yards, etc.)

🛠️ Engine & Power

Engine Model: Komatsu SAA6D107E-3 (WA380-8)

Type: 6-cylinder, water-cooled, turbocharged, intercooled diesel engine

Rated Power (Net Power): Approx. 143 kW / 191 HP @ 2,100 rpm

Emission Standard: Complies with EPA Tier 4 Final (some regions)

⚖️ Weight and Load

Operating Weight: Approx. 18,385 – 19,020 kg

Static Tilting Load (Straight Line): Approx. 15,440 kg

Static Tilting Load (Full Rotation): Approx. 13,440 kg

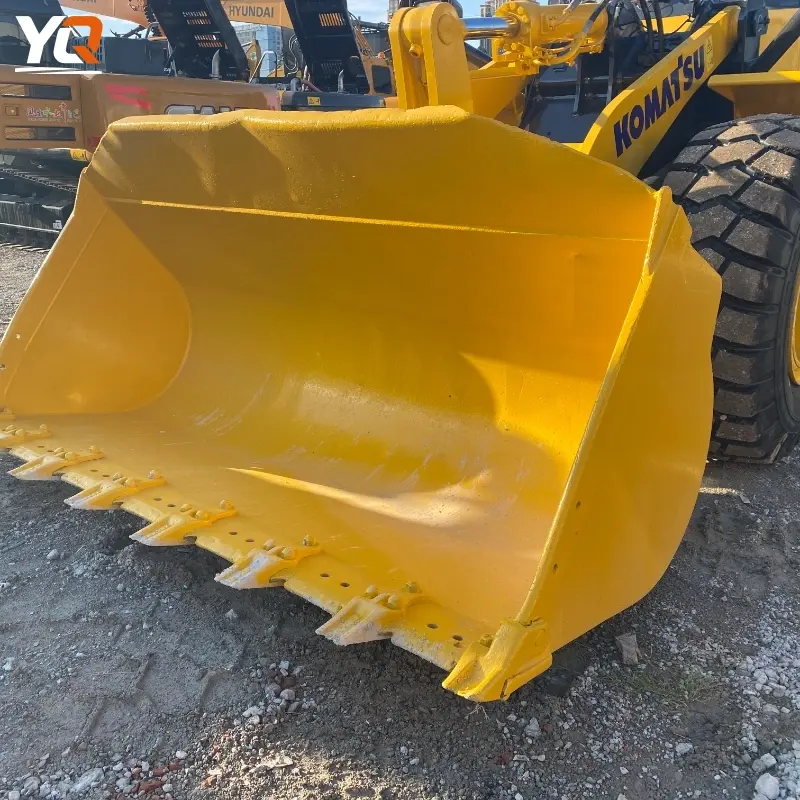

🪣 Bucket Capacity and Working Performance

Bucket Capacity (SAE): Approx. 2.7 – 3.3 m³ (Common Standard ~3.6 m³)

Breakout Force: Approx. 158 kN (Approx. 16,100 kgf)

Unloading Height (Full Height): Approx. 2,950 mm

Unloading Distance (45°): Approx. 1,150 mm

🚗 Transmission and Travel Performance

Transmission: 4 front × 4 rear Powershift automatic transmission (Countershaft Powershift)

Travel Speed:

1st gear: ≈ 6.6 km/h

2nd gear: ≈ 11.7 km/h

3rd gear: ≈ 20.9 km/h

4th gear: ≈ 36 km/h (Lock-up clutch)

📏 Dimensions and Geometry

Wheelbase: Approx. 3,300 mm

Minimum Ground Clearance: Approx. 455 mm

Minimum turning radius: Approx. 6,320 mm (outer wheel center)

Tire size: Typically 23.5-25 L3 (depending on configuration)

💧 Hydraulics and Fuel Tanks

Fuel tank capacity: Approx. 300 L

Cooling system capacity: Approx. 60.6 L

Hydraulic system capacity: Approx. 142 L
