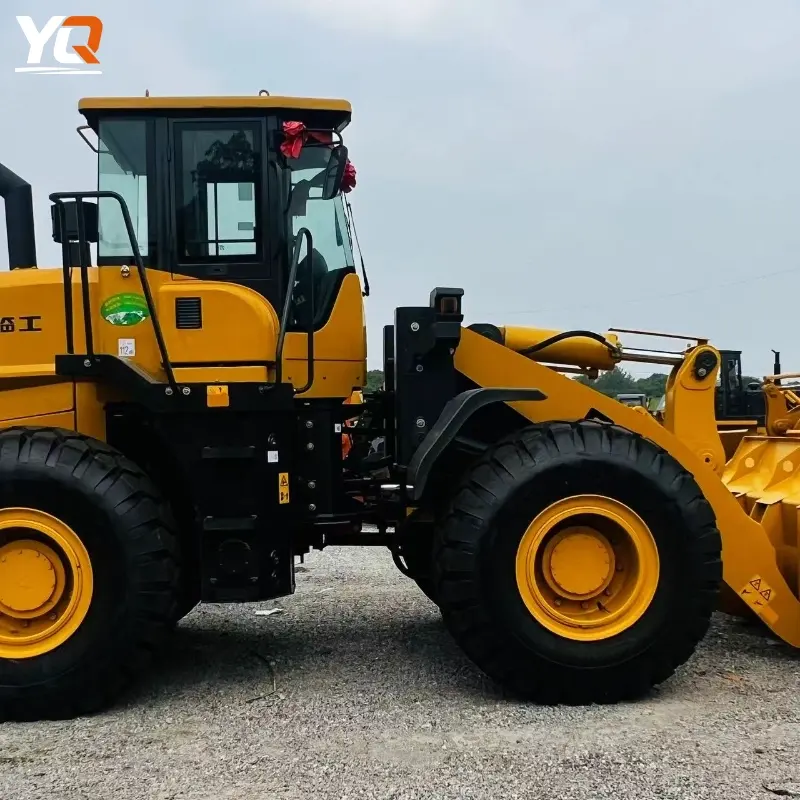

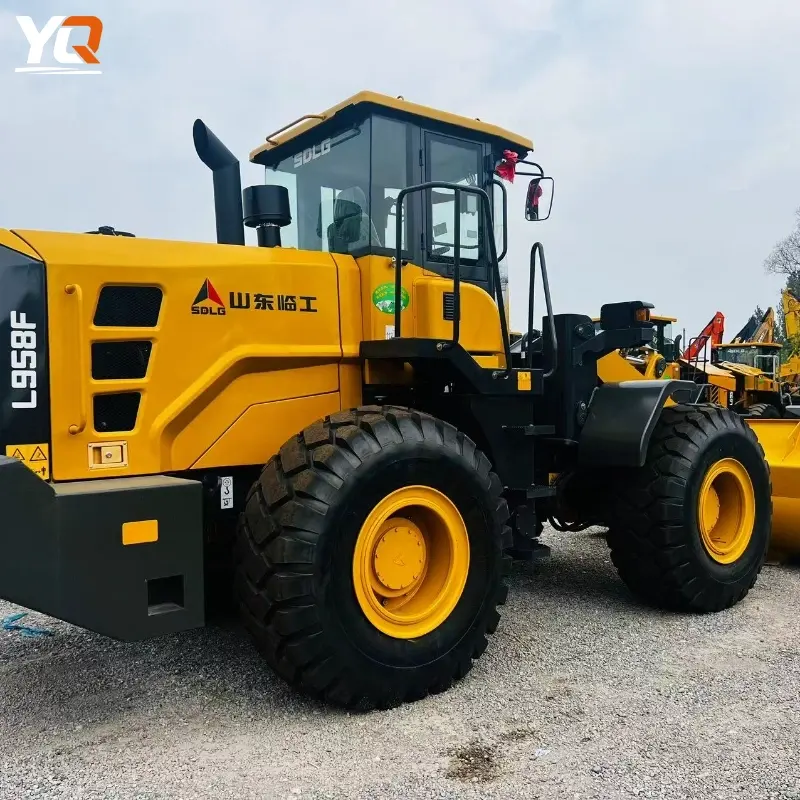

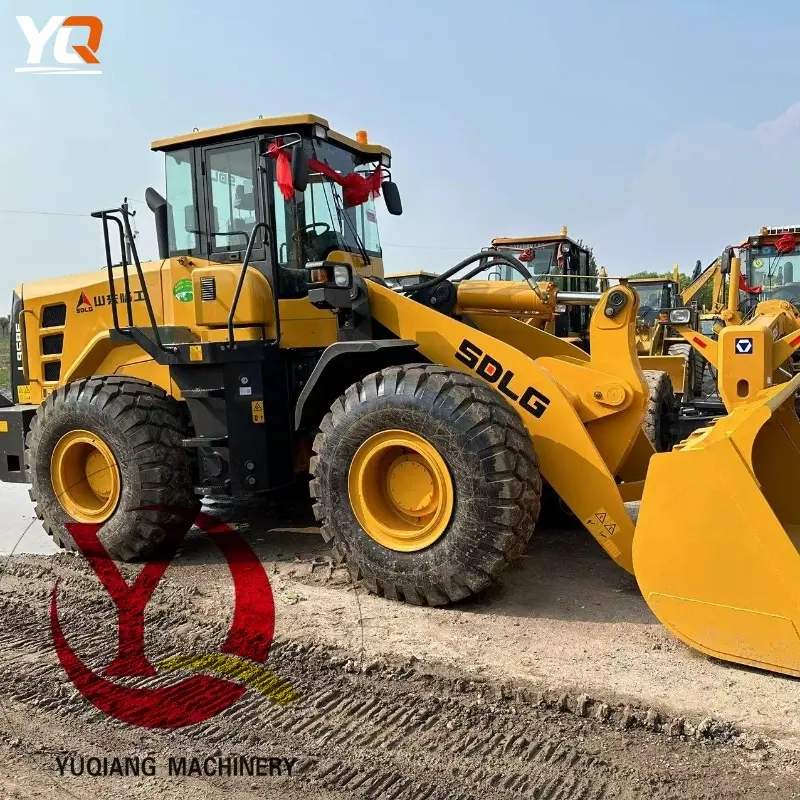

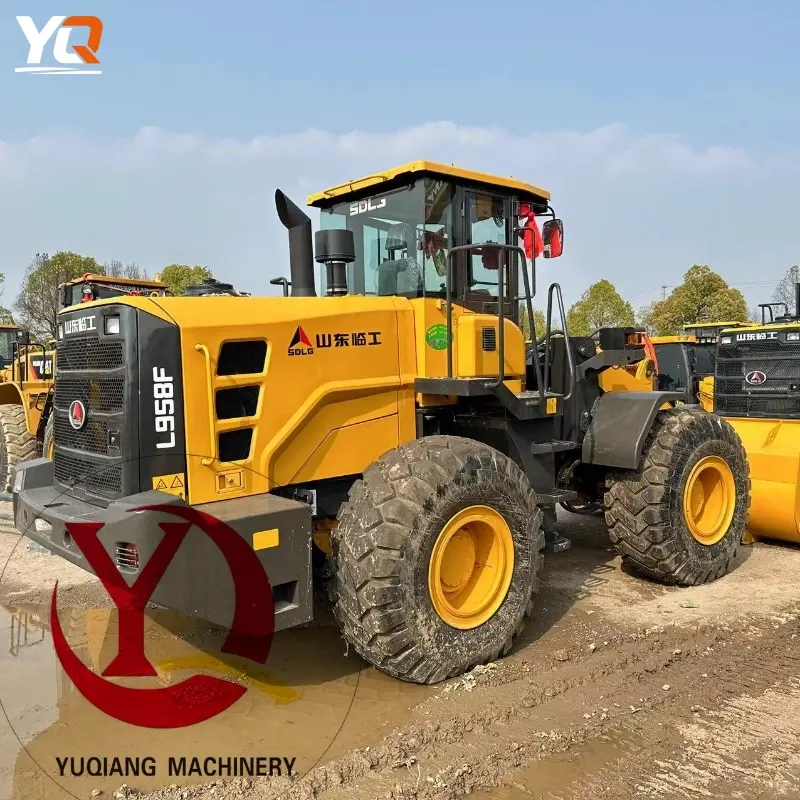

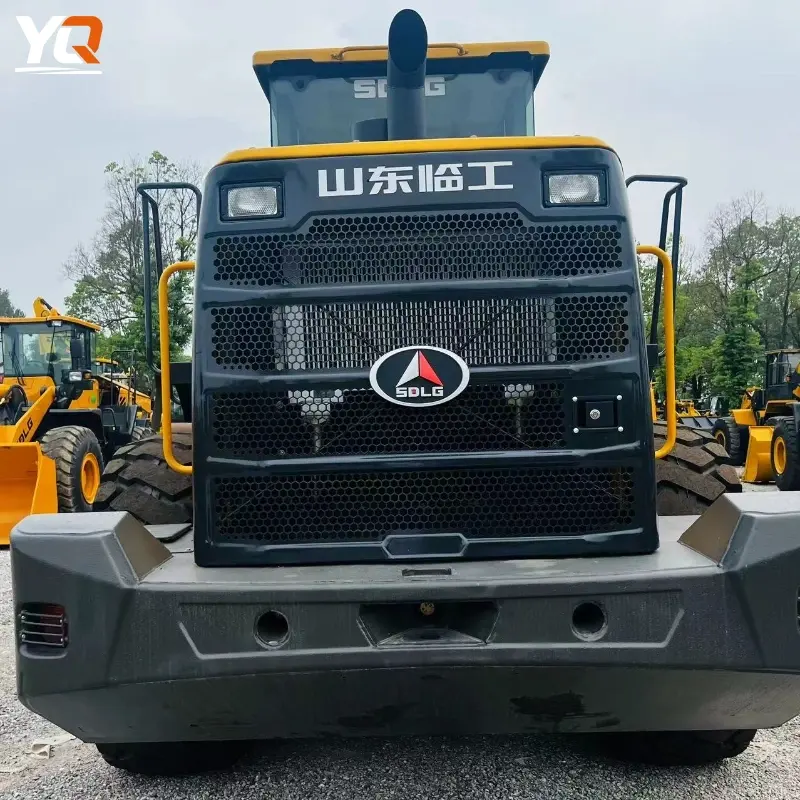

Second Hand SDLG 958 Wheel Loader High Efficiency for Heavy Construction

Key Technical Parameters (Typical Configuration)

🚜 Basic Performance

Equipment Model: Lingong 958 / LG958 / LG958N / L958F

Rated Payload: Approx. 5000 – 5400 kg (5-ton class)

Operating Weight: Approx. 17200 – 17450 kg (Slight variations depending on version)

Bucket Capacity: Approx. 2.8 – 4.5 m³ (Common 3.0 m³)

Loading/Unloading/Lowering Time: ≤ 10 – 11.3 s

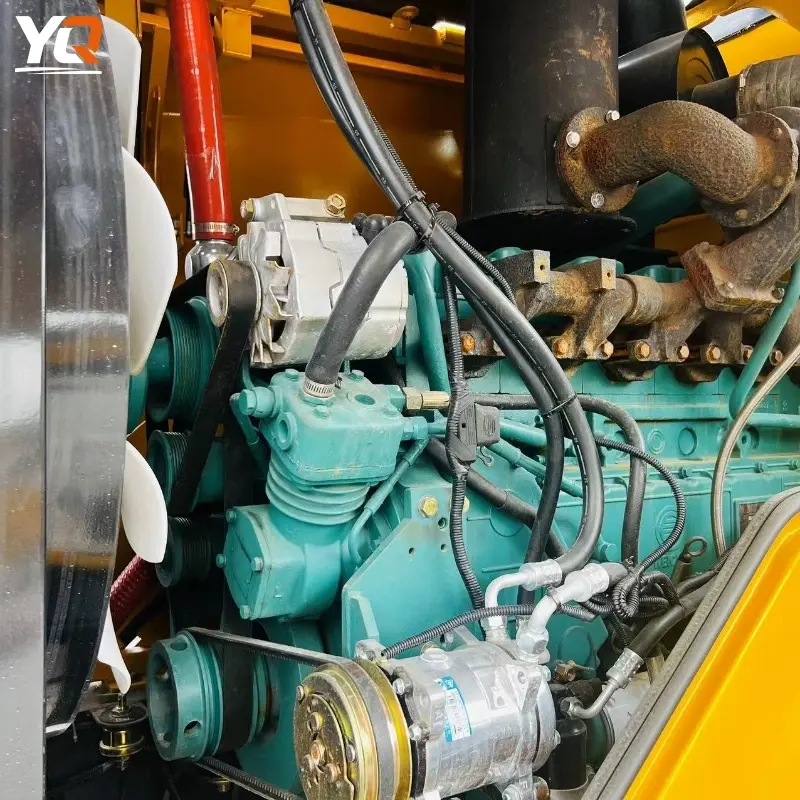

⚙️ Engine & Power System

Engine Brand: Weichai / Deutz, etc. (Depending on specific version)

Rated Power: Approx. 162 kW (~220 hp) @ ~2100–2200 rpm (Different displacements)

Maximum Torque: Approx. 860 – 1050 Nm Nm (varies slightly depending on engine)

Emission Standard: China II / Euro III or higher (depending on market configuration)

Transmission: Hydraulic torque converter + planetary gear powershift / automatic shift (F4/R4)

🏗️ Working Performance

Maximum Digging Force: ≈ ~180 kN

Maximum Traction Force: ≈ 160 – 165 kN

Maximum Breaking Force: ≈ ≥168 – 175 kN

Maximum Travel Speed: Approximately 38 km/h (varies slightly depending on model)

📏 Dimensions and Geometry

Overall Dimensions (L×W×H): Approx. 8000–8400 × 2840–3060 × 3380–3450 mm

Wheelbase: Approx. 3200–3300 mm

Minimum Ground Clearance: Approx. 420–457 mm

Unloading Height (45° angle): Approx. 3100–3120 mm

Unloading distance (45° angle): Approx. 1130 mm

Steering angle: Approx. 35° – 40°

Minimum turning radius: Approx. ~5890 – ~7230 mm (varies depending on model and steering system)

🛞 Brakes and Tires

Tire size: Typically 23.5-25 (suitable for heavy loads)

Brake system: Dry disc / air-hydraulic combination (some configurations)
