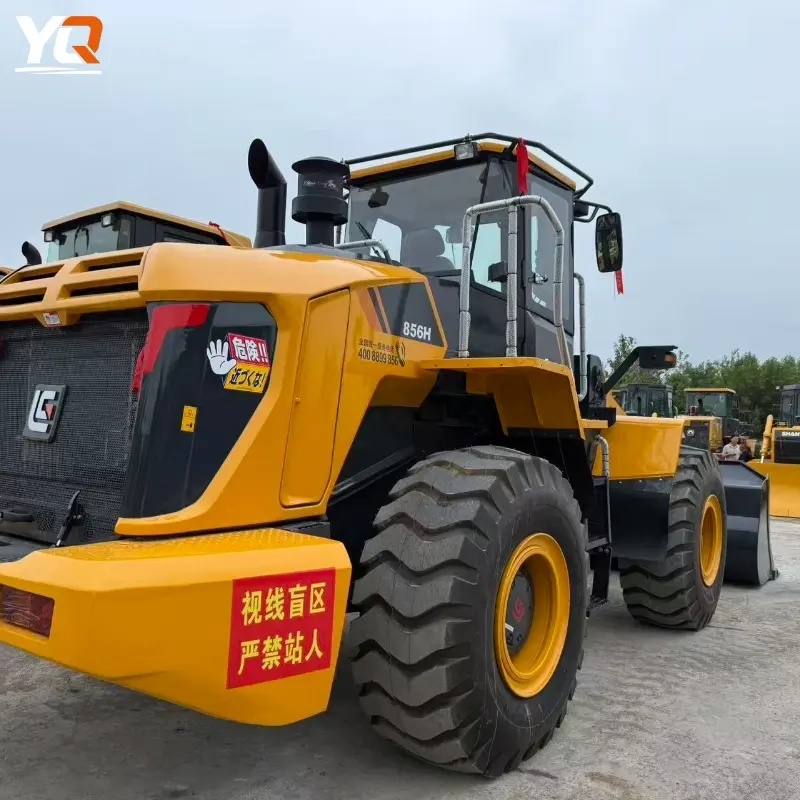

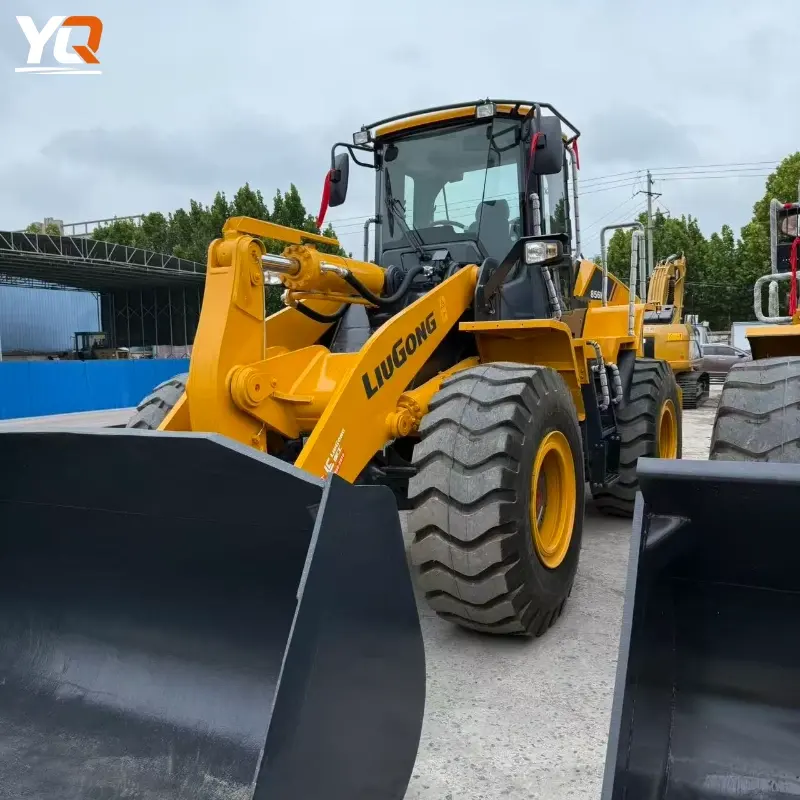

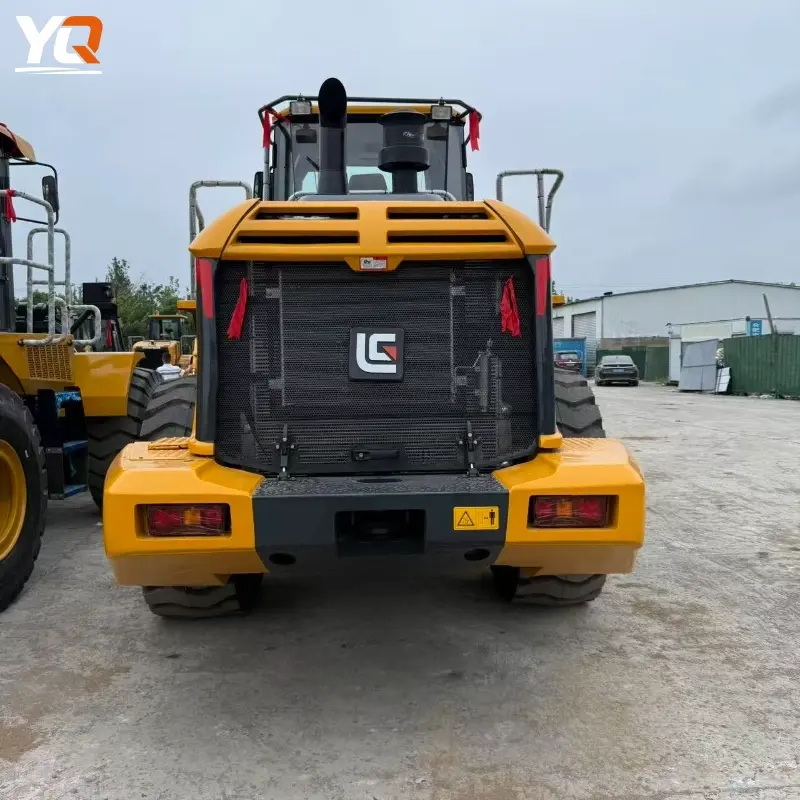

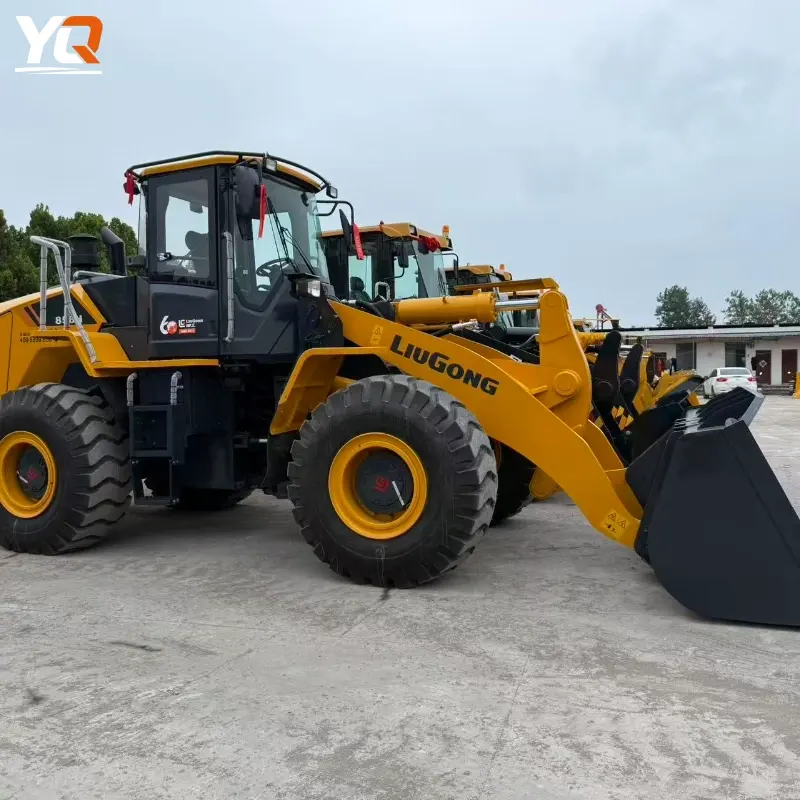

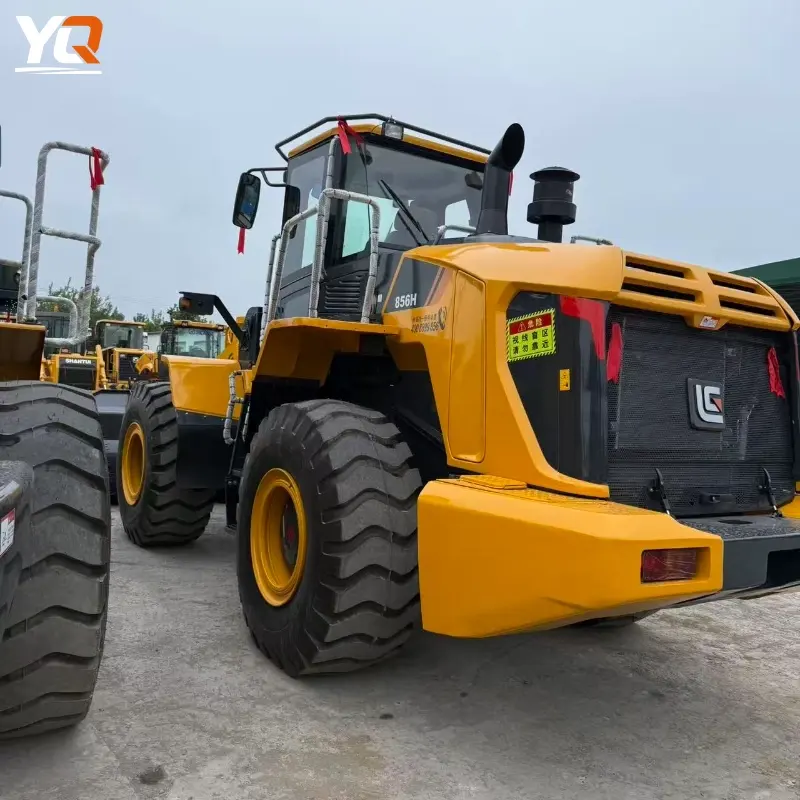

Second Hand LiuGong 856 Wheel Loader High Cost Performance Popular Model

Basic Specifications

Equipment Model: LiuGong 856 / 856H Wheel Loader (≈ 5.0 – 5.8 t class)

Rated Payload: Approx. 5,000 – 5,800 kg (depending on specific version and configuration)

Operating Weight: Approx. 17,000 – 19,870 kg (varies by version)

Standard Bucket Capacity: ≈ 3.0 m³ (optional 2.6 – 5.6 m³ bucket sizes)

🛠️ Engine and Powertrain

Typical Version (856H / Stage V)

Engine Brand/Model: Cummins 6LT9.3 / B6.7 (6-cylinder turbocharged)

Rated Power:

~162 kW (220 hp) @ 2200 rpm (Tier II version)

≈168 kW (225 hp) @ 2000 rpm (Stage V) Version

Emission Standards: EPA Tier II / EU Stage II / EU Stage V (depending on region)

Cooling System: Charge Air Cooling

🏗️ Performance

Total Cycle Time (Loading, Unloading, Dropping): Approx. ~10 s (varies slightly depending on configuration)

Static Full-Spin Tilting Load: Approx. 10,800 kg (Basic Version)

Brecking Force (Excavation Force): Approx. 158 – 172 kN (depending on version and bucket type)

Unloading Height (Full Height): ≈ 3,000 – 3,100 mm

Unloading Distance (Full Height): ≈ 1,035 – 1,126 mm

🚗 Drivetrain and Travel

Transmission: ZP/ZF PowerShift 4 front 4 rear (Automatic/Planetary Gear)

Maximum Travel Speed: ≈ ~37 – 38 km/h (Urban/Working Speed)

📏 Typical Structural Dimensions

Length (with bucket): approx. 8,150 – 8,357 mm

Width (tire): approx. 2,750 mm

Turning radius (outer tire): approx. 6,200 – 6,900 mm

Tire size: typically 23.5-25
