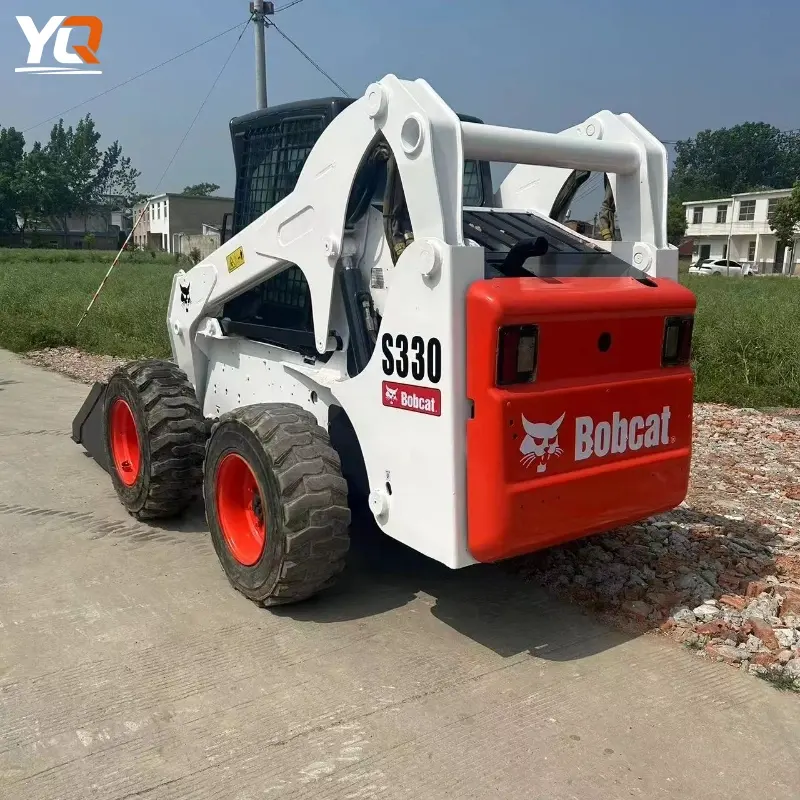

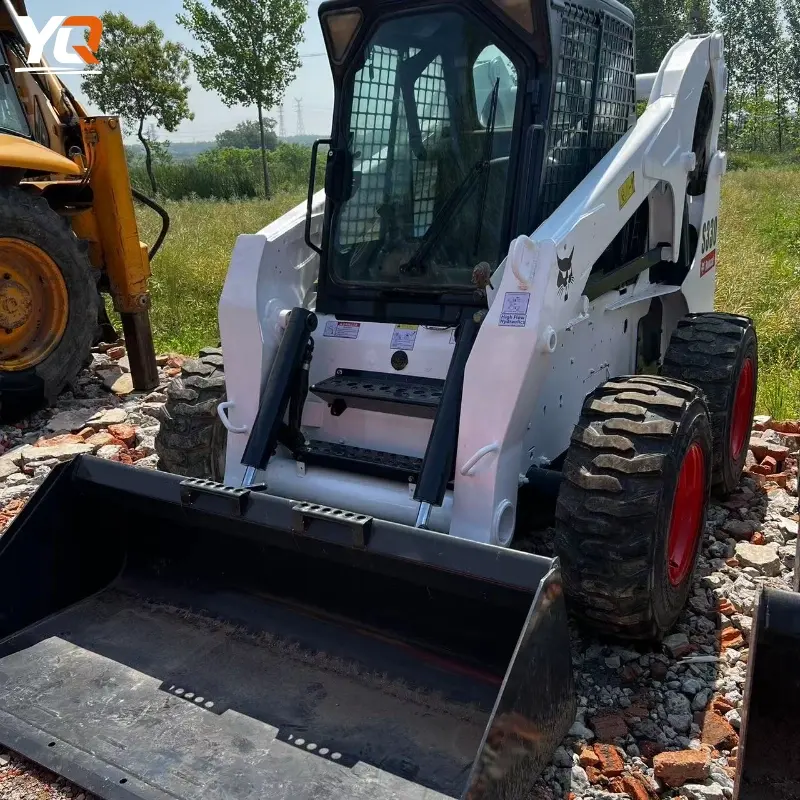

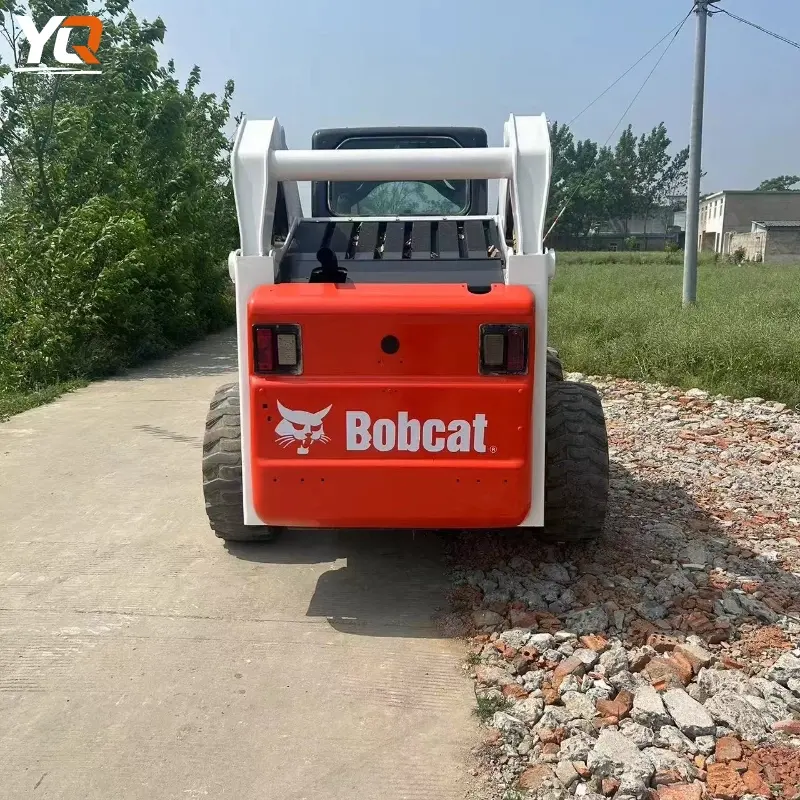

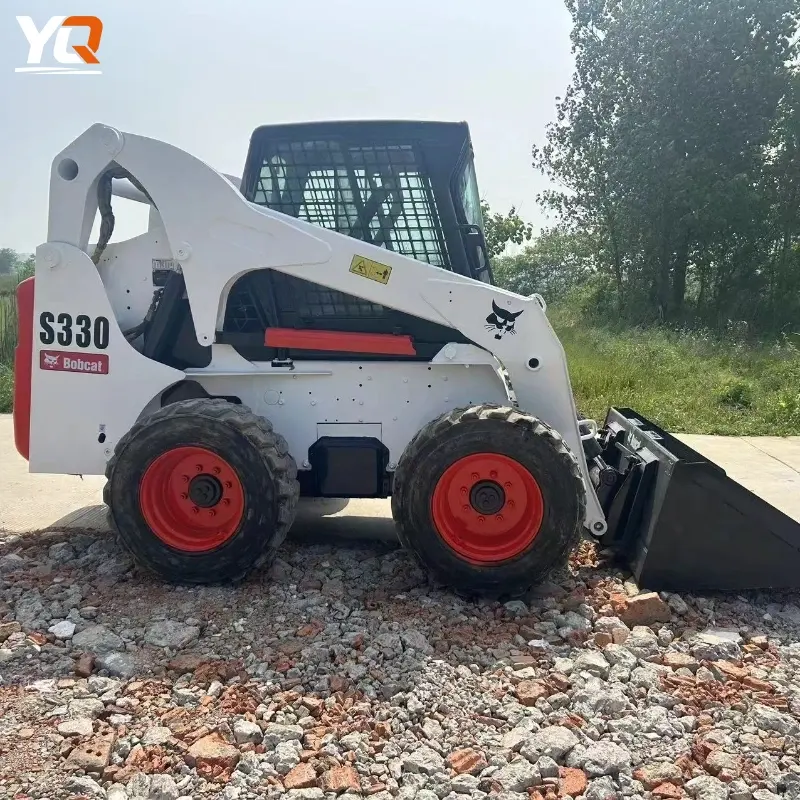

Used Bobcat S330 Skid Steer Loader Heavy Duty Design for Tough Work

Basic Information

Model: Bobcat S330 Skid-steer Loader (Vertical Lift Design)

Production Year: Approximately 2006–2010 (select markets)

Model Category: Medium-duty Skid-steer Loader

⚙️ Engine and Power

Engine Model: Kubota V3800-DI-T Turbocharged Diesel Engine (4 cylinders)

Rated Power: ≈ 85 HP ≈ 63.4 kW @ 2575 rpm (Net power approx. 82.5 HP / 61.5 kW)

Displacement: ≈ 3.8 L (3769 cc)

Fuel Tank Capacity: ≈ 87 L

⚖️ Load and Weight

Operating Weight: Approx. 4,166 kg (≈ 9,185 lb)

Rated Working Load (ISO 14397-1, 50%): Approx. 1 497 kg (≈ 3,300 lb)

Tipping Load (50%): Approx. 3,048 kg (≈ 6,720 lb)

Lift Breakout Force: Approx. 2,517 kg (≈ 5,550 lb)

Tilt Breakout Force: Approx. 2,631 kg (≈ 5,800 lb)

🛞 Drivetrain and Speed

Travel Speed: Approx. 11.1 km/h (≈ 6.9 mph)

Optional High Speed: Up to approx. 19.3 km/h (≈ 12 mph)

Drivetrain: Hydrostatic Continuously Variable Transmission

🛠️ Hydraulic System

Standard Hydraulic Pump Flow Rate: Approx. 78.4 L/min (20.7 gpm)

Optional High Flow Rate: Up to approx. 138.9 L/min (36.7 gpm) (gpm)

System Rated Pressure: Approx. 227.5 bar (≈ 3300 psi)

Hydraulic Oil Capacity: Approx. 49.2 L (13.0 gal)

🪣 Bucket and Working Performance

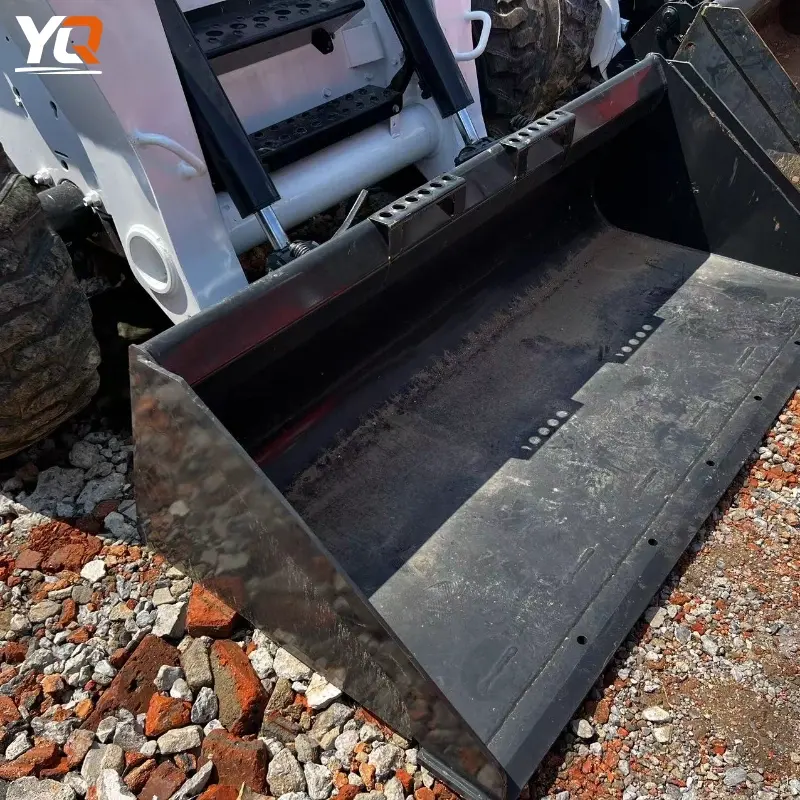

Standard Bucket Volume: Approx. 0.5 m³ (≈ 0.7 yd³)

Lifting Cycle Time (Raise/Lower/Discharge): Approx. 4.4 / 3.2 / 2.7 seconds (Standard Cycle)

📏 Dimensions

Item Typical Value
Overall Length (with bucket) ≈ 3630 mm
Overall Length (without bucket) ≈ 2908 mm
Width (Tire Width) ≈ 1868 mm
Height (Cabin Top) ≈ 2088 mm
Maximum Unloading Height ≈ 2604 mm (102.5 in)
Unloading Distance ≈ 792 mm
Minimum Ground Clearance ≈ 221 mm Tire size 12-16.5 (front/rear)
