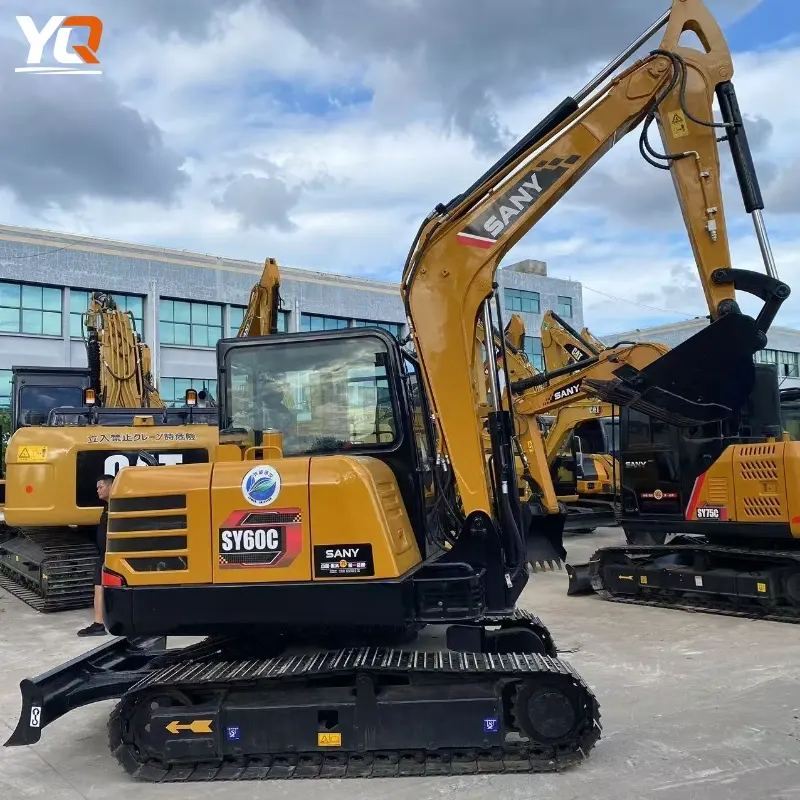

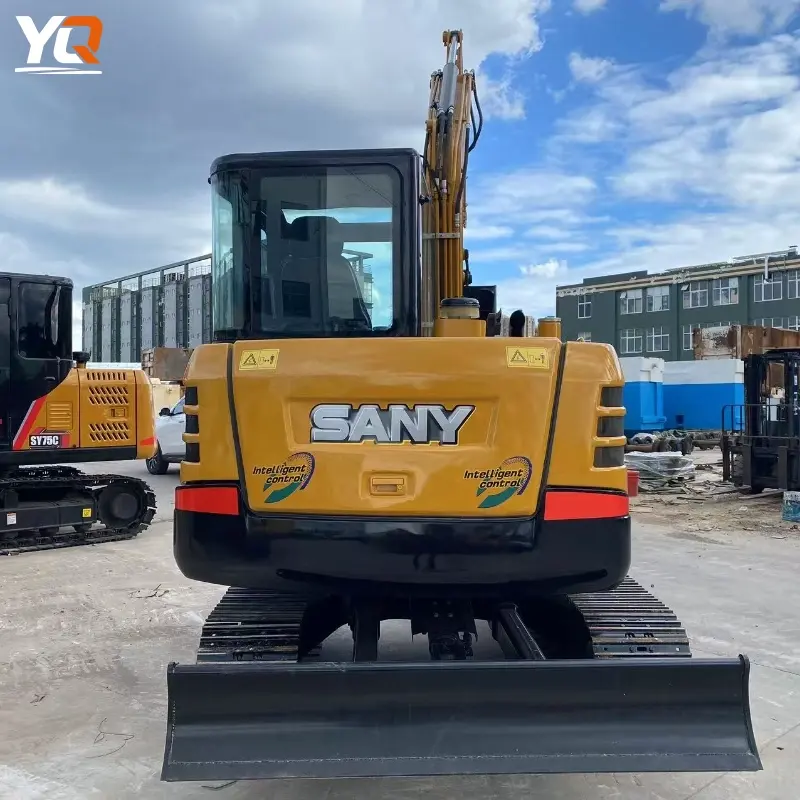

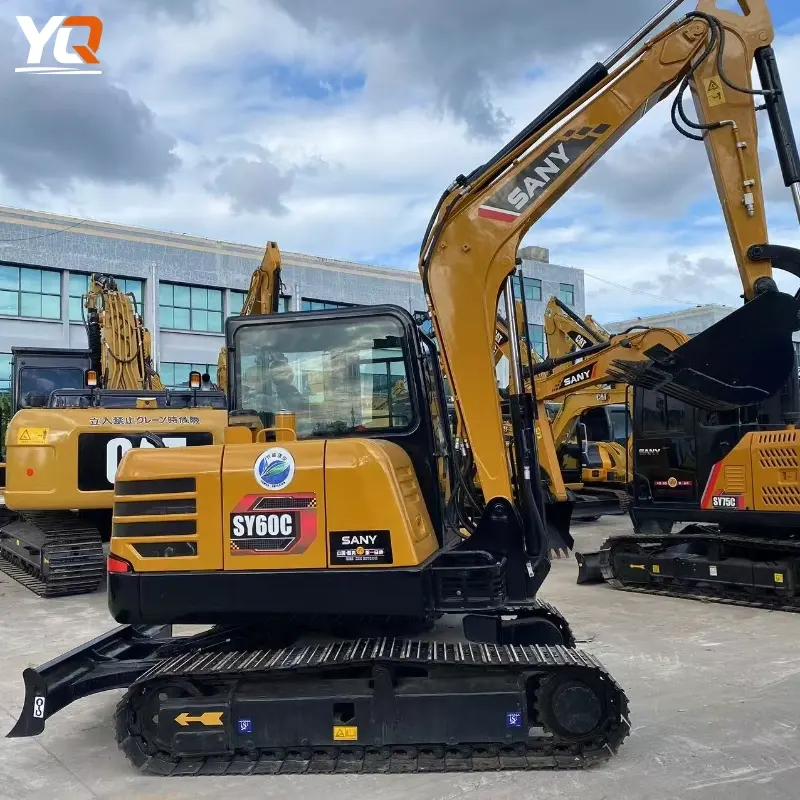

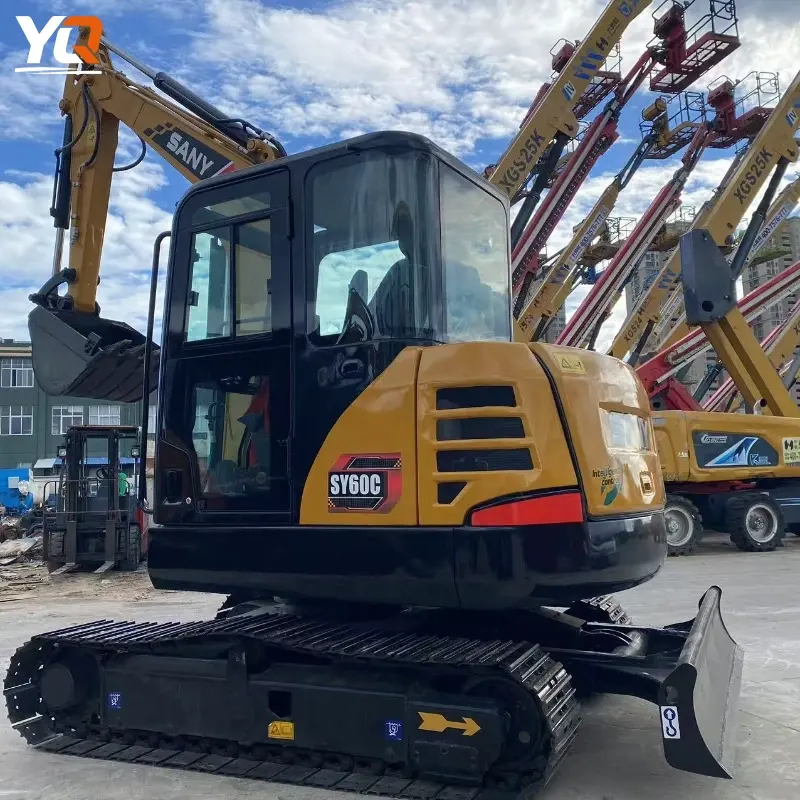

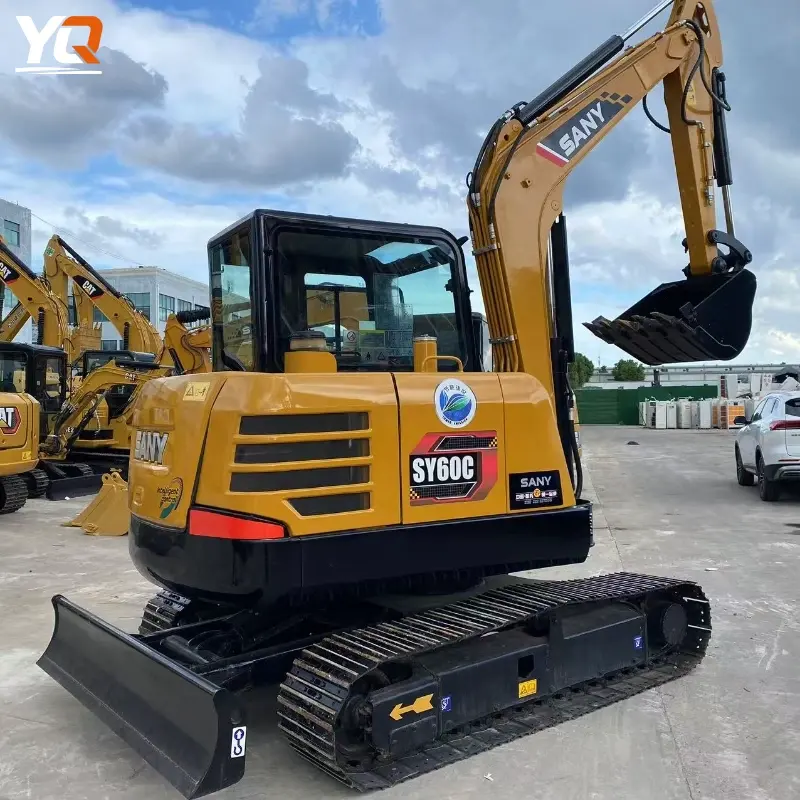

Second-Hand SANY SY60 Mini Hydraulic Excavator Durable Machine

Description

1. Basic Specifications

Parameter	Value / Description
Model Name	SANY SY60C Small Hydraulic Excavator (Common Configuration)
Operating Weight	≈ 6,000 kg (approx. 6 t)
Standard Bucket Capacity	~ 0.21 m³ (some sources also list ~0.23 m³)
Fuel Tank Capacity	~ 125–130 L
Hydraulic Oil Tank	~ 85 L

🔧 2. Engine & Power

Parameter	Value / Description
Engine Model	Kubota V2607 (some versions may use similar displacement engines like Isuzu, etc.)
Displacement	~2.615 L
Rated Power	36 kW (≈ 48 hp) @ 2000 rpm
Maximum Torque	~ 206.9 N·m

🏗️ 3. Hydraulic System

Item	Parameter
Hydraulic Type	Load Sensing Hydraulic System (Load Sensing + Pilot Control)
Main Pump Maximum Flow	~ 142.7 L/min / 37.7 gal/min
Maximum Working Pressure	~ 24.5 MPa (≈ 3553 psi)
Auxiliary Circuit Maximum Flow	~ 90 L/min

⛏️ 4. Performance

Indicator	Approx. Value
Maximum Digging Depth	~ 3,770 mm
Maximum Vertical Digging Depth	~ 3,025 mm
Maximum Digging Reach	~ 6,090 mm
Maximum Dumping Height	~ 3,975 mm
Bucket Digging Force	~ 45 kN
Arm Digging Force	~ 33 kN
Gradeability	~ 70 % (approx. 35°)

🚶‍♂️ 5. Travel & Power Performance

Item	Value
Maximum Travel Speed	~ 4.1–4.2 km/h (High gear) / ~2.4–2.5 km/h (Low gear)
Swing Speed	~ 9.6–10.3 rpm
Ground Pressure	~ 30–31 kPa
Track Width	~ 400 mm

📏 6. Dimensions (Transport Configuration)

Dimension Item	Approx. Value
Shipping Length	~ 5,925–6,015 mm
Shipping Width	~ 2,005 mm
Shipping Height	~ 2,620–2,645 mm
Minimum Ground Clearance	~ 330–370 mm
Tail Swing Radius	~ 1,640 mm

Shipping

FAQ

• Q

  What used construction machines do you mainly supply?

  A

  We supply used excavators, loaders, motor graders, road rollers, forklifts, etc.
• Q

  What brands of machines are available?

  A

  Our main brands include Caterpillar, Komatsu, Doosan, Hitachi, Kubota, Hyundai, Volvo, and other well-known brands.
• Q

  Do you export to overseas markets?

  A

  Yes, we have rich export experience and a professional shipping team. Our customers are from South America, Europe, Africa, and all over the world.
• Q

  How about the quality and price of your machines?

  A

  All our machines are in good working condition with reliable performance and competitive prices. All prices of the machine can be negotiated.
