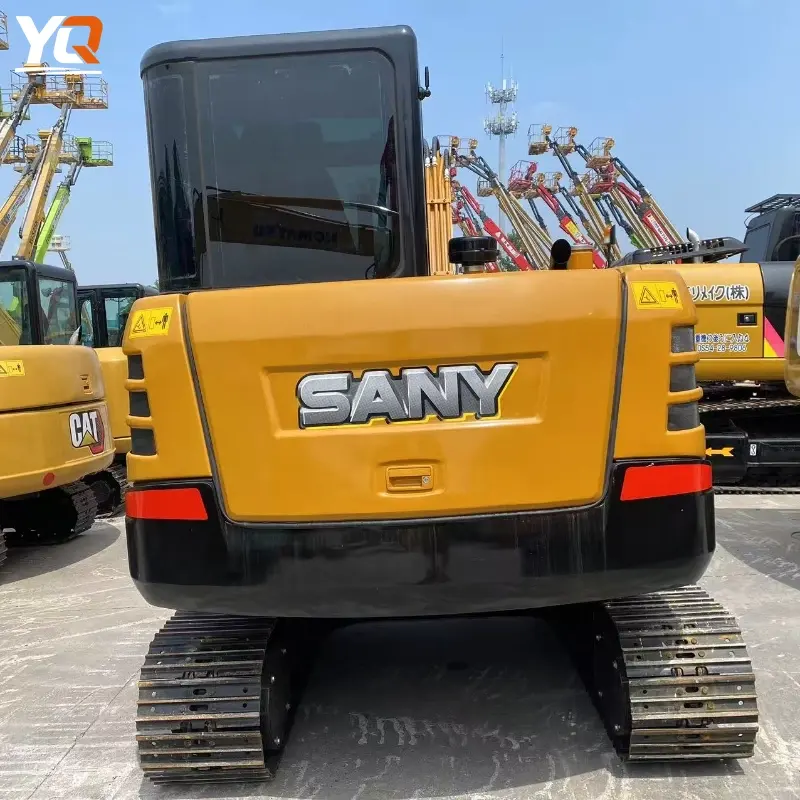

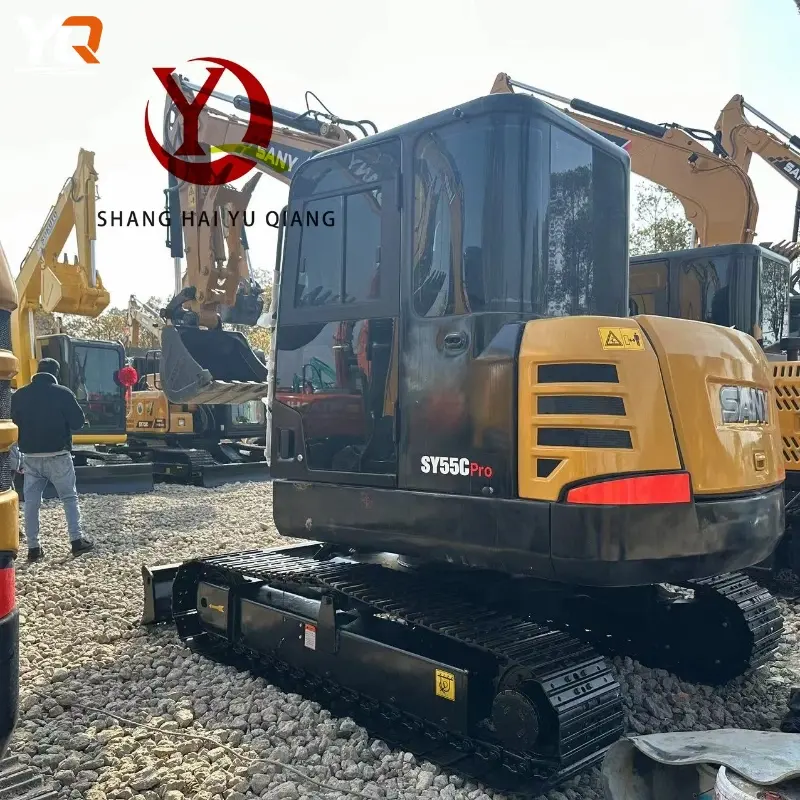

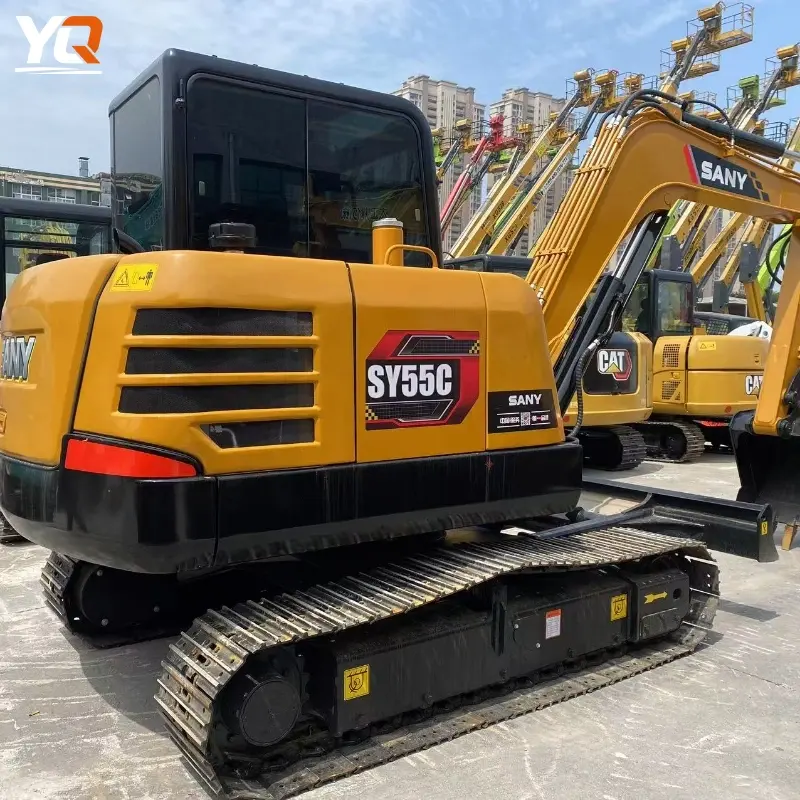

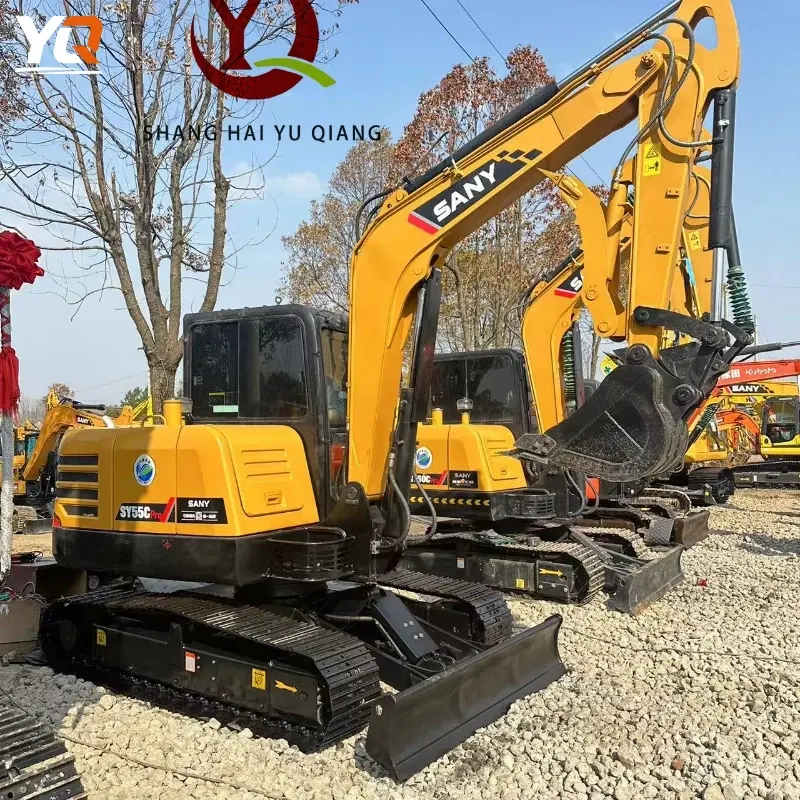

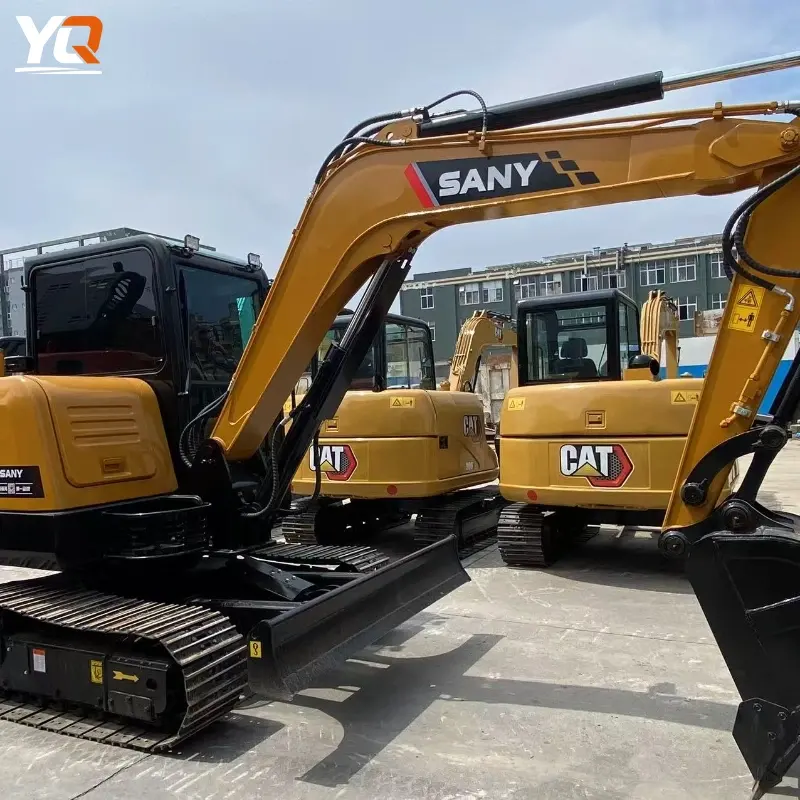

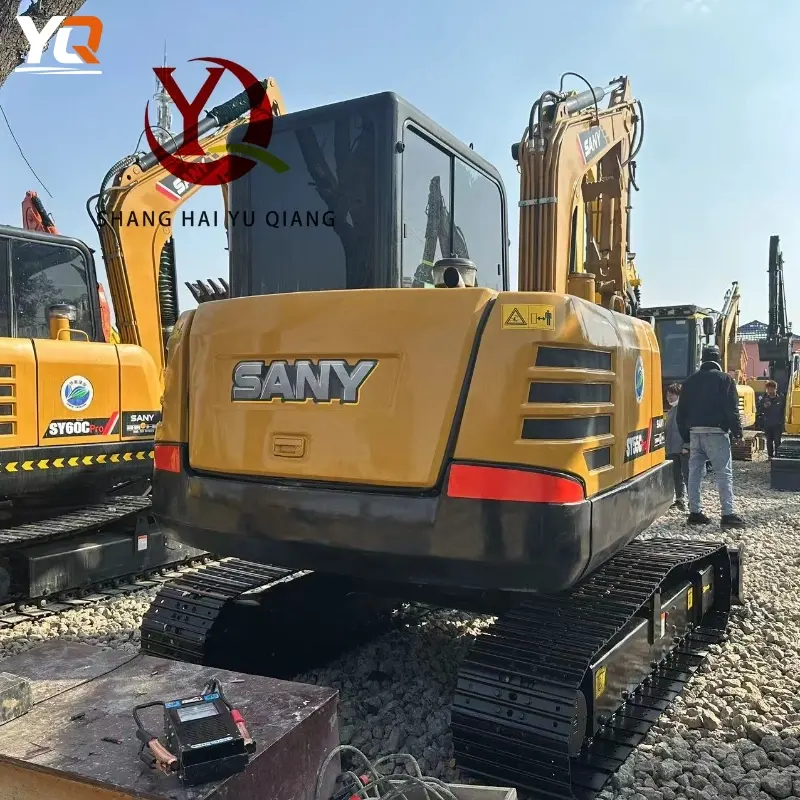

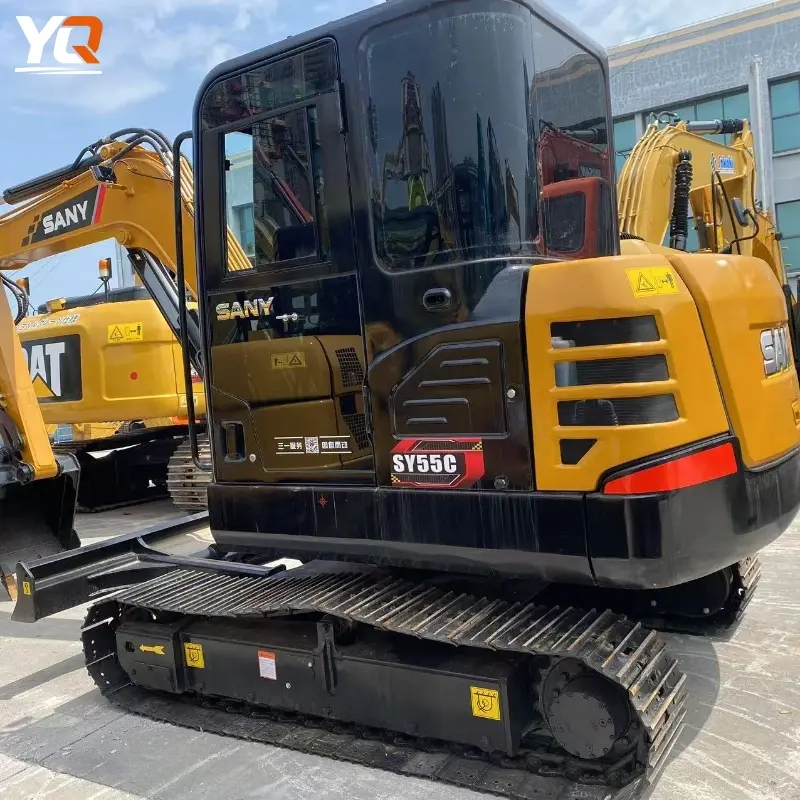

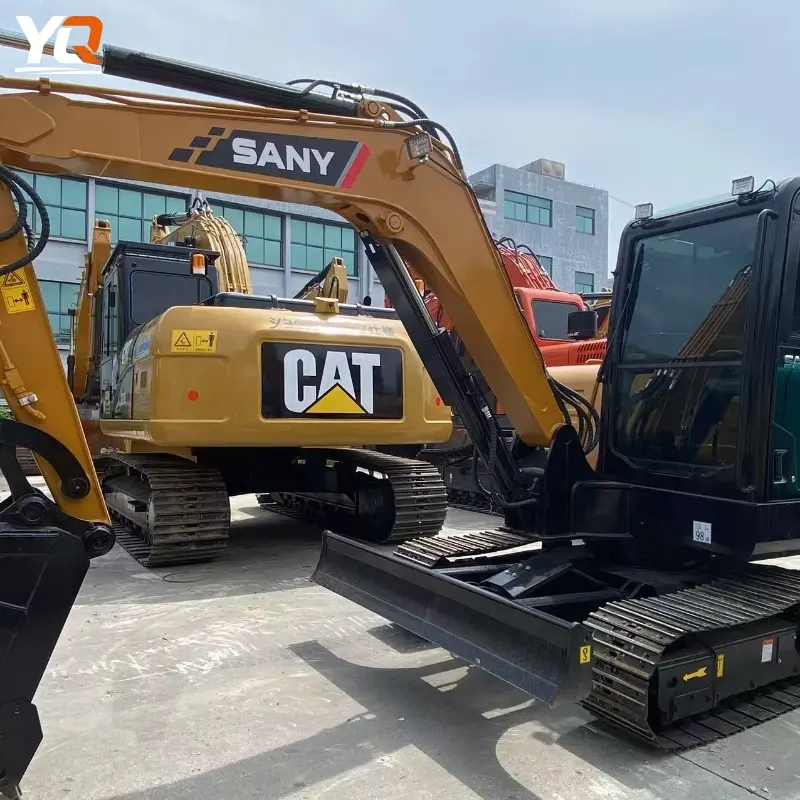

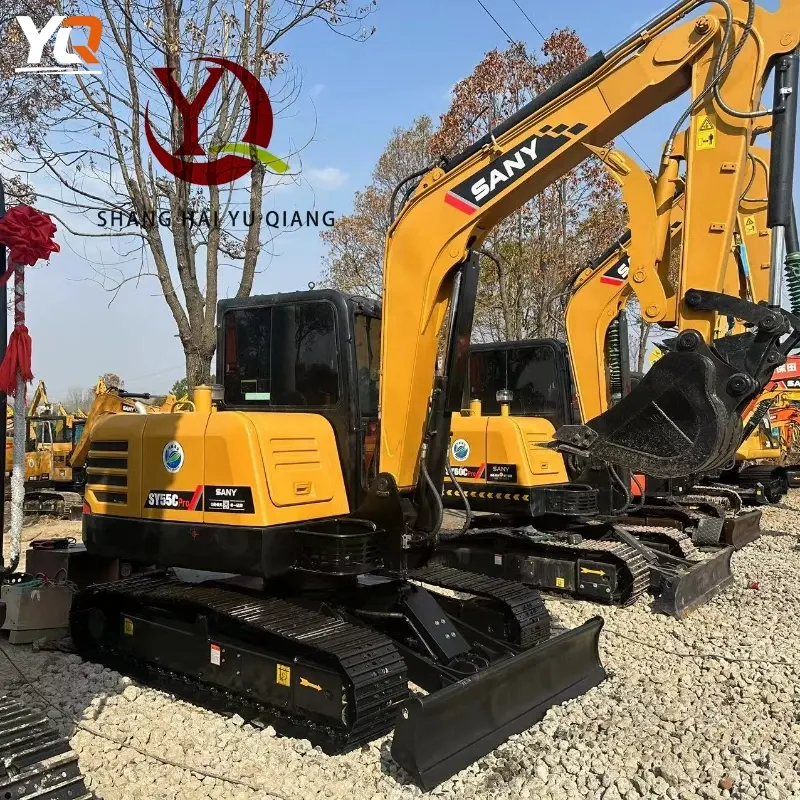

Pre-Owned SANY SY55 Compact Excavator High Cost Performance

Description

I. Basic Specifications

Parameter	Value / Description
Model Name	SANY SY55 / SY55C / SY55U Small Excavator
Operating Weight	≈ 5,780 kg (approx. 5.8 t)
Standard Bucket Capacity	~ 0.21 m³ (optional 0.18–0.23 m³)
Type	Tracked Hydraulic Excavator

🔧 II. Powertrain System

Item	Value
Engine Model	Isuzu 4JG1 / Kubota V2607 (different versions for SY55C / SY55U)
Displacement	~ 3.059 L ~ 2.615 L (depending on version)
Rated Power	36 kW / ≈ 48 hp @ 2,100 rpm (some SY55U versions: 36 kW @ 2,000 rpm)
Maximum Torque	~ 175–207 N·m (depending on version and engine)
Fuel Tank Capacity	~ 125–130 L
Hydraulic Oil Tank Capacity	~ 85 L

🛠️ III. Performance

Indicator	Typical Value
Maximum Digging Depth	~ 3,800–3,815 mm
Maximum Digging Reach	~ 5,880–6,090 mm
Maximum Dumping Height	~ 3,795–3,930 mm
Maximum Vertical Digging Depth	~ 3,070 mm
Bucket Digging Force	~ 45 kN
Arm Digging Force	~ 33 kN

🚶‍♂️ IV. Travel & Hydraulics

Item	Value
Travel Speed (High / Low)	~ 3.7 – 4.0 / 2.4 – 2.5 km/h
Swing Speed	~ 9.6–10.3 rpm
Gradeability	~ 70 % (approx. 35°)

📏 V. Dimensions (Transport Configuration)

Dimension	Typical Value
Overall Shipping Length	~ 5,390–5,930 mm
Shipping Width	~ 1,960–2,025 mm
Shipping Height	~ 2,595–2,630 mm
Track Shoe Width	~ 400 mm
Track Length on Ground	~ 2,510 mm
Minimum Ground Clearance	~ 315–325 mm
Rear Swing Radius	~ 980–1,640 mm (varies slightly by version)

🛢️ VI. Hydraulics & Refill Capacities

System/Item	Capacity
Fuel Tank	~125–130 L
Hydraulic Oil Tank	~85 L
Engine Oil	~9.2–9.6 L
Coolant	~6.2–6.5 L

Shipping

FAQ

• Q

  What used construction machines do you mainly supply?

  A

  We supply used excavators, loaders, motor graders, road rollers, forklifts, etc.
• Q

  What brands of machines are available?

  A

  Our main brands include Caterpillar, Komatsu, Doosan, Hitachi, Kubota, Hyundai, Volvo, and other well-known brands.
• Q

  Do you export to overseas markets?

  A

  Yes, we have rich export experience and a professional shipping team. Our customers are from South America, Europe, Africa, and all over the world.
• Q

  How about the quality and price of your machines?

  A

  All our machines are in good working condition with reliable performance and competitive prices. All prices of the machine can be negotiated.
