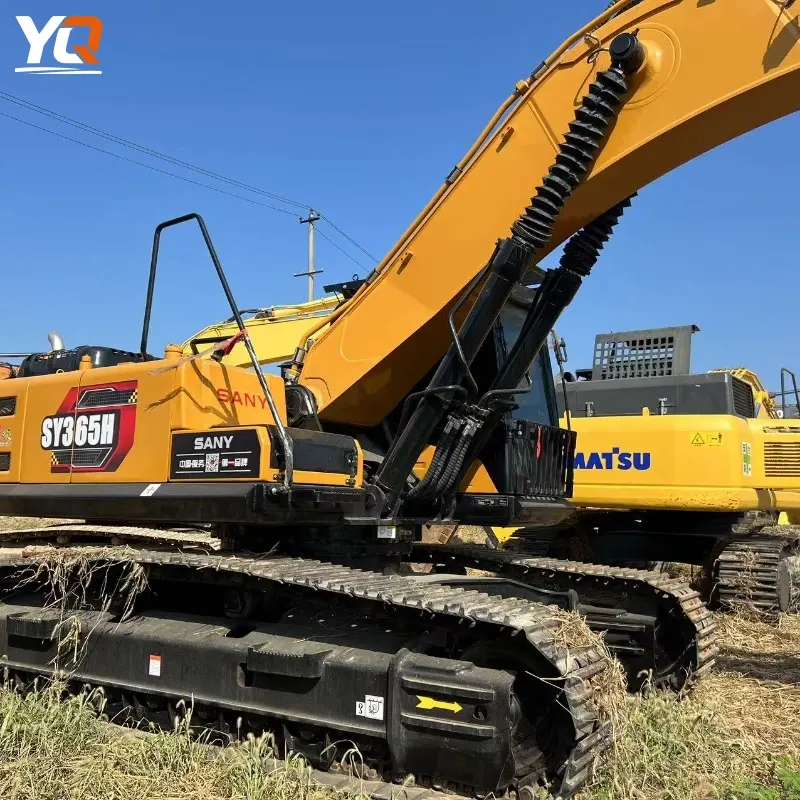

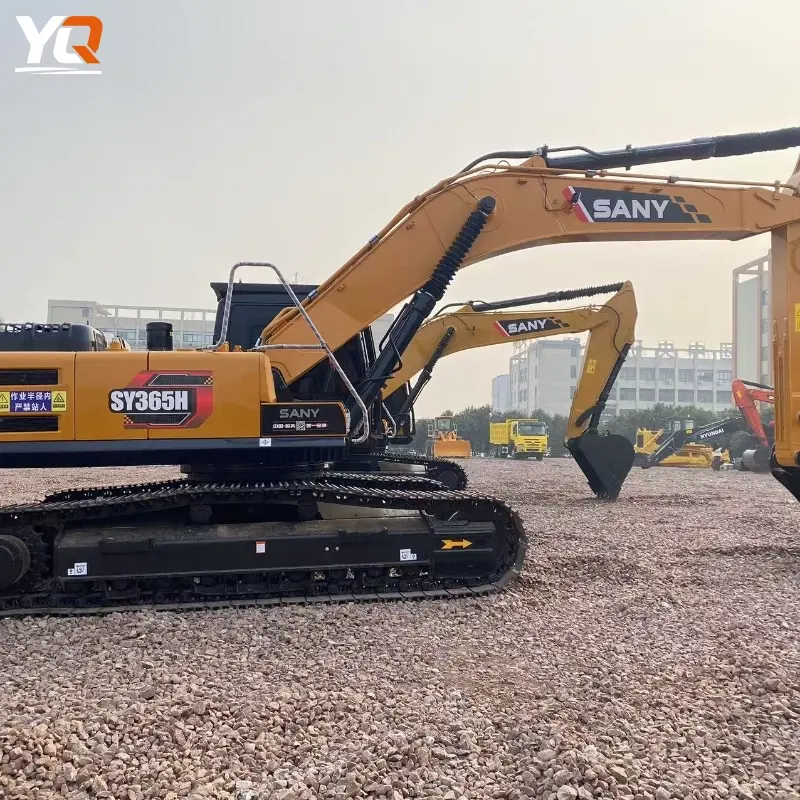

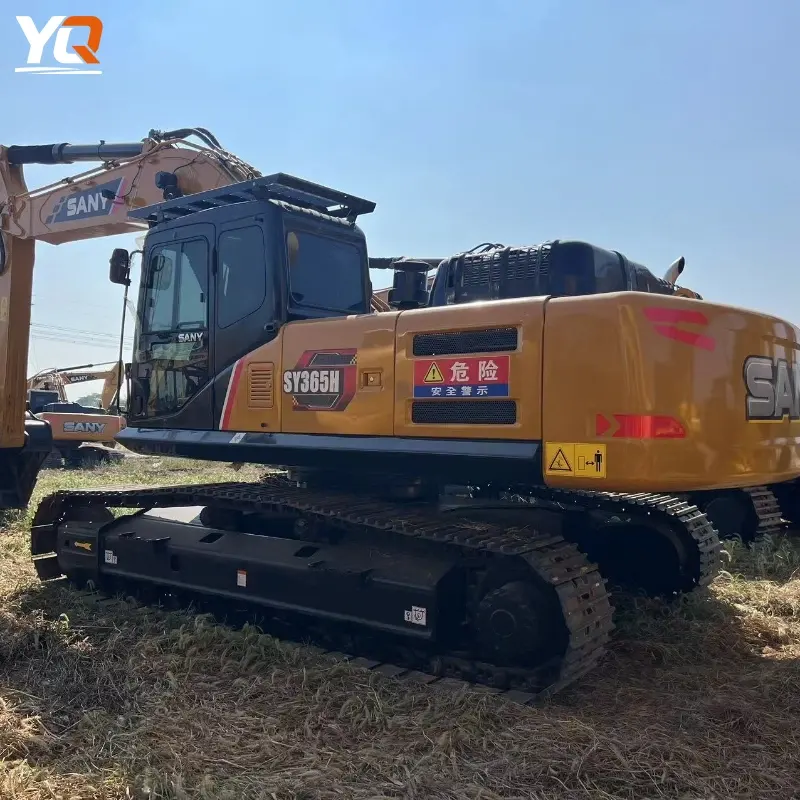

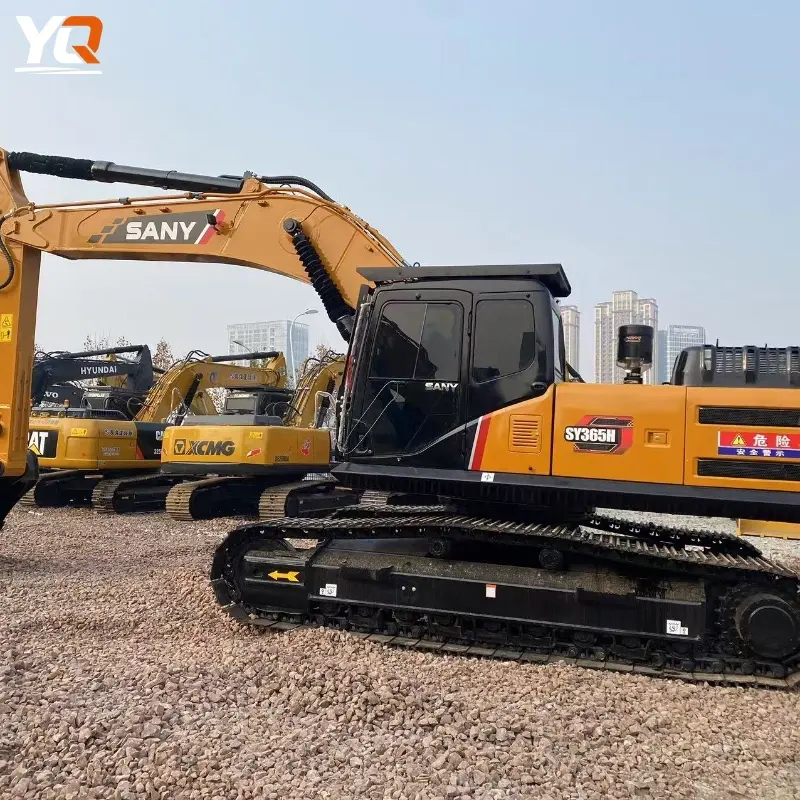

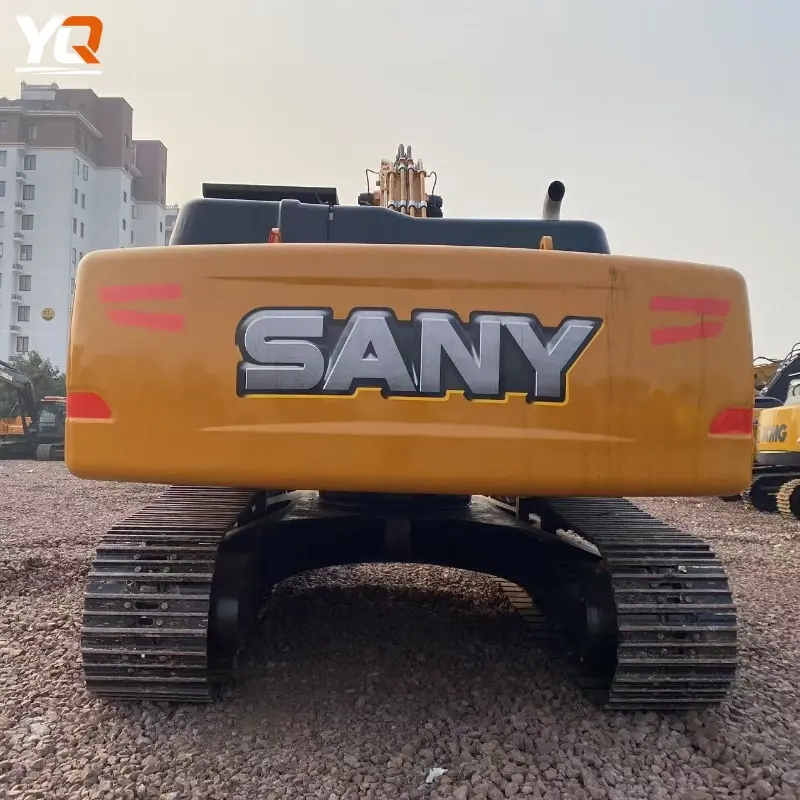

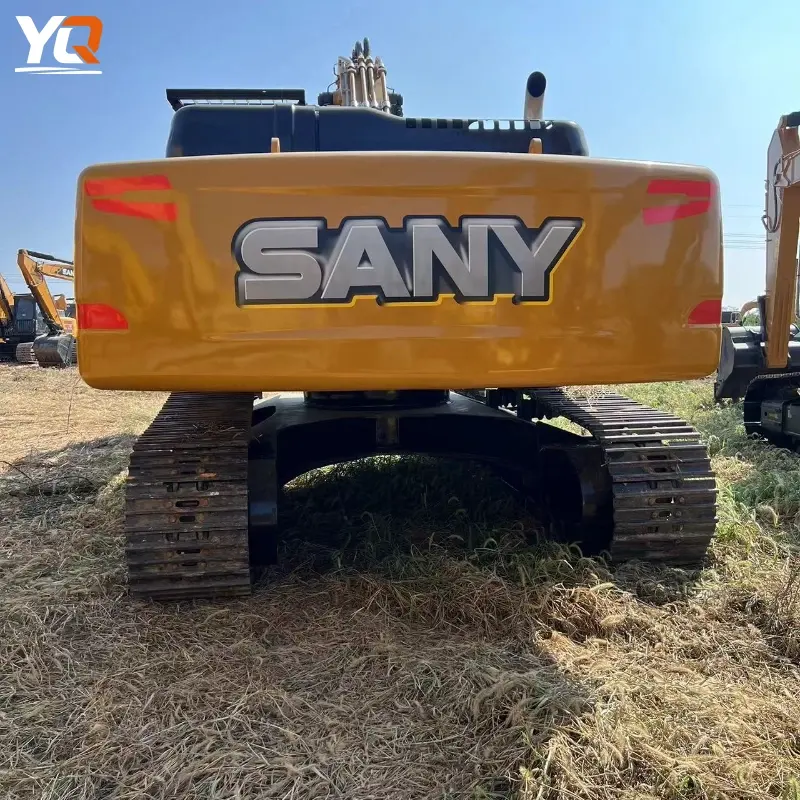

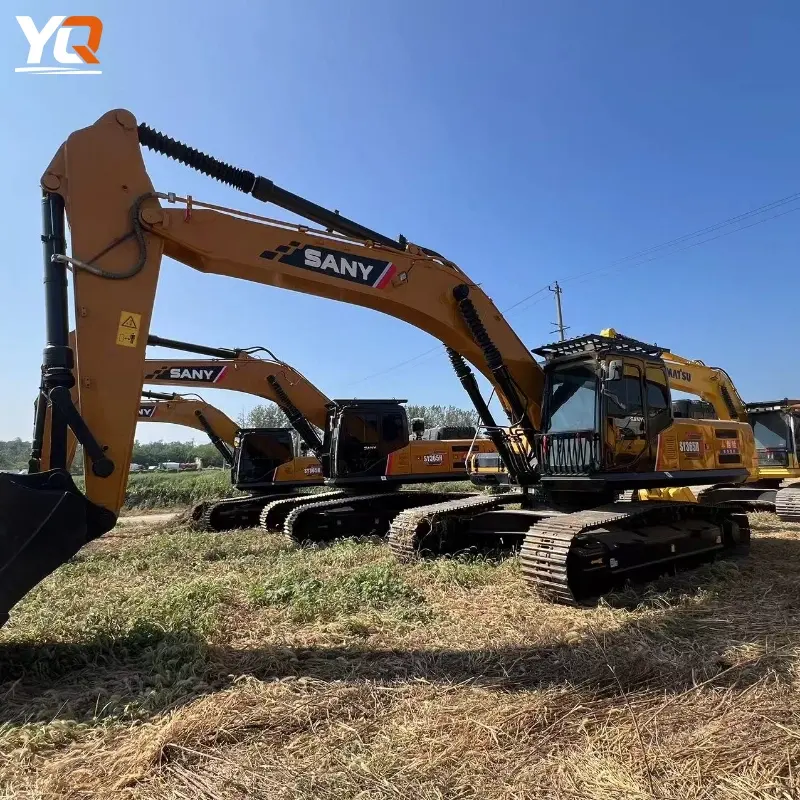

Pre-Owned SANY SY365 Heavy Hydraulic Excavator Good Condition

Description

I. Overall & Engine Parameters

Item	Parameter
Model Name	Sany SY365H Crawler Hydraulic Excavator
Operating Weight	~ 36,000 kg (approximately 36 t)
Engine Model	Isuzu 6HK1-XDHAG-01-C3 / GH-6HK1XKSC 6-Cylinder Turbocharged Diesel Engine
Displacement	~7.79 L
Rated Power	212 kW @ 2000 rpm（≈ 288 hp）
Maximum Torque	~1080 Nm @ 1500 rpm
Fuel Tank Capacity	~690 L (approximately 620–646 L in some data)
Hydraulic Tank Capacity	~380 L
Engine Oil	~36 L
Coolant	~20 L (based on partial data)

II. Operating Performance

Indicator	Typical Value
Standard Bucket Capacity	~1.6 m³ (optional 1.6–2.32 m³)
Maximum Digging Depth	~7050 mm
Maximum Digging Height	~9890 mm
Maximum Digging Radius	~10,780 mm
Maximum Dumping Height	~6920 mm
Maximum Vertical Digging Depth	~3970 mm
Bucket Digging Force	~235 kN
Arm Digging Force	~180 kN
Gradeability	~70 % (approximately 35°)

III. Movement Performance

Indicator	Value
Travel Speed (High/Low Gear)	~5.5 / 3.5 km/h
Swing Speed	~9.5 rpm
Ground Pressure	~65 kPa

IV. Dimensions (Transport Condition / Typical)

Dimension Item	Value (Approximate)
Total Transport Length	~ 11,350–11,530 mm
Transport Width	~ 3150–3190 mm
Transport Height	~ 3545 mm
Upper Width	~ 3150 mm
Track Ground Contact Length	~ 4140–5065 mm
Track Shoe Width	600 mm
Track Gauge	2590 mm
Minimum Ground Clearance	~550 mm
Tail Swing Radius	~3560–4140 mm
Minimum Swing Radius (Front of Working Device)	~4495 mm

V. Fluid & Cooling Capacities

System	Capacity (Approximate)
Fuel Tank	~ 620–690 L
Hydraulic Tank	~ 380 L
Engine Oil	~ 36 L
Coolant	~ 20 L

Shipping

FAQ

• Q

  What used construction machines do you mainly supply?

  A

  We supply used excavators, loaders, motor graders, road rollers, forklifts, etc.
• Q

  What brands of machines are available?

  A

  Our main brands include Caterpillar, Komatsu, Doosan, Hitachi, Kubota, Hyundai, Volvo, and other well-known brands.
• Q

  Do you export to overseas markets?

  A

  Yes, we have rich export experience and a professional shipping team. Our customers are from South America, Europe, Africa, and all over the world.
• Q

  How about the quality and price of your machines?

  A

  All our machines are in good working condition with reliable performance and competitive prices. All prices of the machine can be negotiated.
