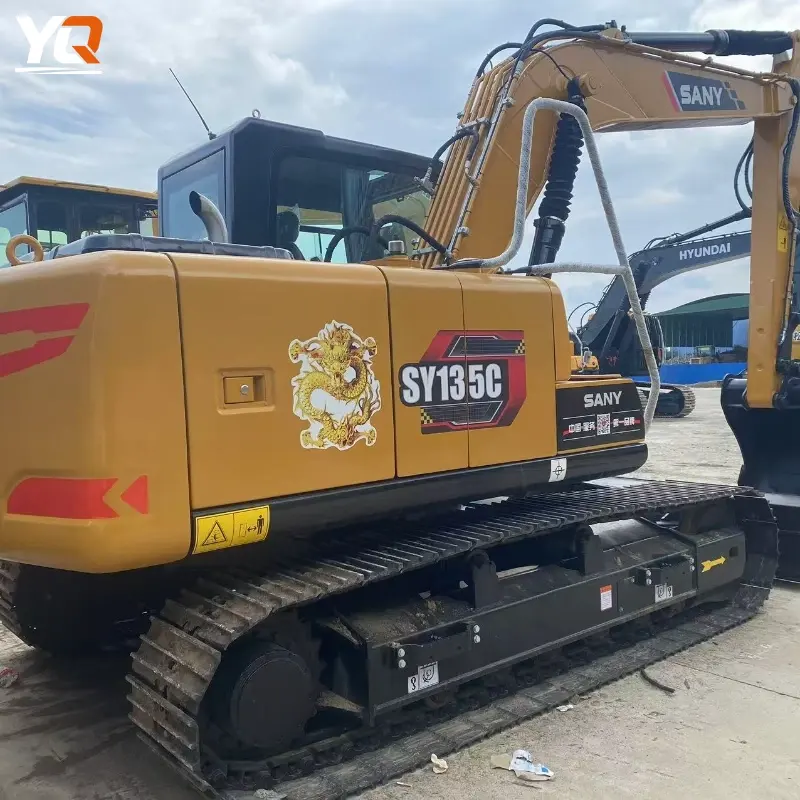

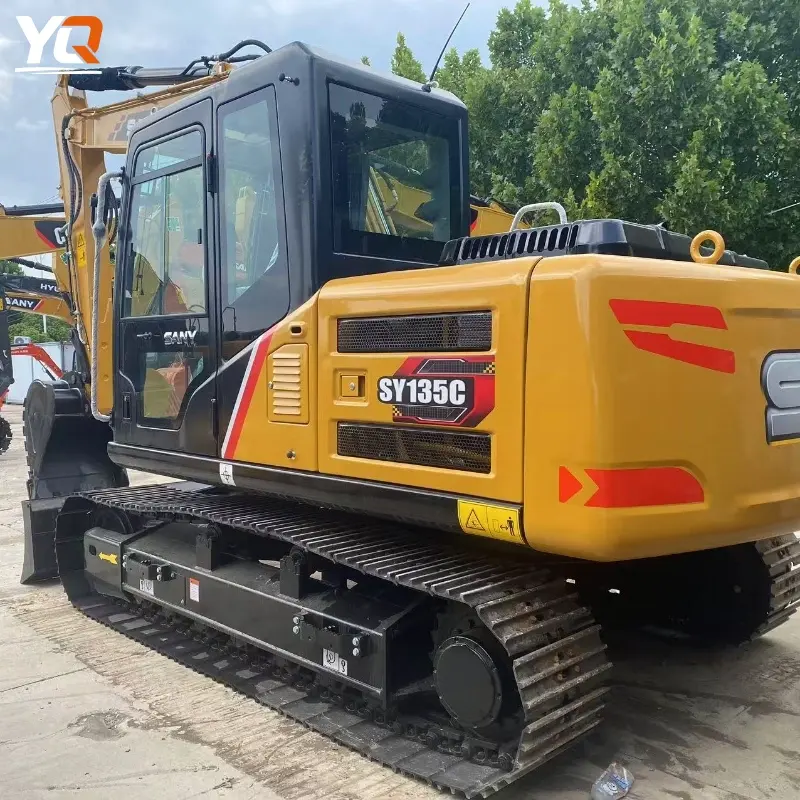

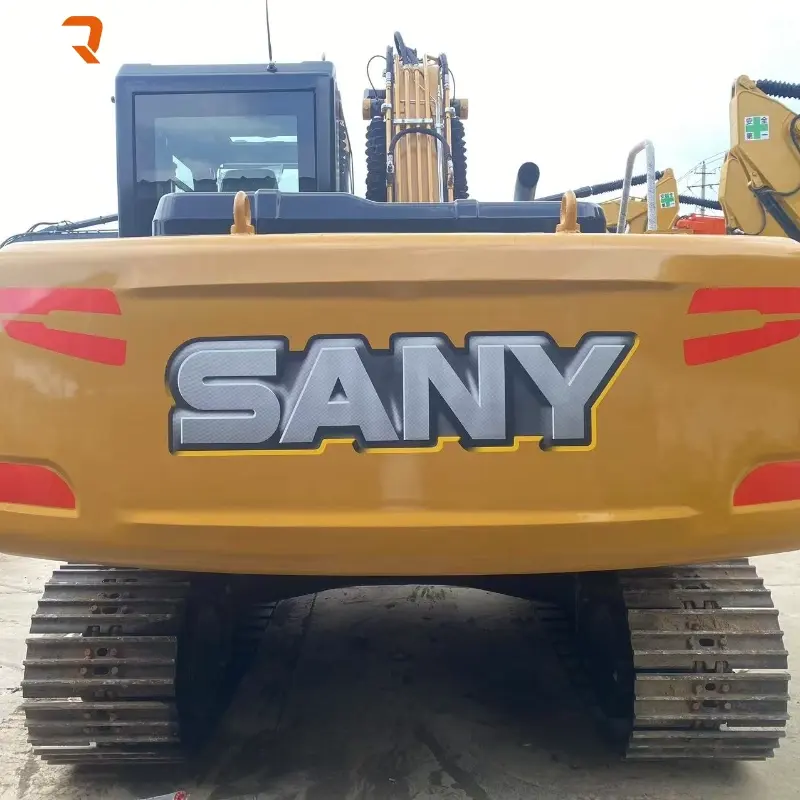

Second-Hand SANY SY135 Medium Excavator High Quality Equipment

Description

I. Basic Specifications

Parameter	Value / Description
Model Name	SANY SY135C Tracked Hydraulic Excavator
Operating Weight	Approx. 13,500 kg (13.5 t) (includes operator and fluids)
Standard Bucket Capacity	Approx. 0.6 m³
Engine Model	Isuzu 4JJ1 / 4JJ-FT4 (4-Cylinder Turbo Diesel Engine)
Emission Standard	Compliant with EPA Tier4 F / Stage V (depending on regional version)

🔧 II. Engine and Power

Indicator	Parameter
Rated Power	~ 77 kW (≈ 105 hp) @ 2000 rpm (net/gross power varies by measurement standard)
Maximum Torque	~ 375 N·m @ 1800 rpm
Fuel Tank Capacity	~ 240 L
Engine Coolant	~ 22 L
Engine Oil	~ 13 L
Hydraulic Oil Tank	~ 150 L

🛠️ III. Performance

Indicator	Typical Value
Maximum Digging Depth	~ 5,505 mm (approx. 5.5 m)
Maximum Vertical Digging Depth	~ 4,850 mm
Maximum Digging Height	~ 6,167 mm
Maximum Dumping Height	~ 5,210 mm (varies slightly across sources)
Maximum Digging Reach	~ 8,320 mm
Bucket Digging Force (ISO)	~ 92–103 kN
Arm Digging Force (ISO)	~ 66–67 kN

🚶‍♂️ IV. Travel and Undercarriage

Parameter	Value
Travel Speed (High/Low Gear)	~ 5.5 / 3.5 km/h
Swing Speed	~ 12 rpm
Gradeability	~ 70 % (≈ 35°)
Ground Pressure	~ 39–41.7 kPa
Maximum Drawbar Pull	~ 110 kN
Track Shoe Width (Standard)	600 mm
Carrier Rollers / Idlers	7 Carrier Rollers / 1 Idler per side

📏 V. Dimensions (Approx. Transport Configuration)

Dimension Item	Typical Value
Shipping Length	~ 7,500–7,700 mm
Shipping Width	~ 2,590–2,690 mm
Shipping Height	~ 2,815 mm
Track Length on Ground	~ 2,930 mm
Minimum Ground Clearance	~ 425 mm
Tail Swing Radius	~ 2,205–2,290 mm

🛢️ VI. Hydraulics & Others

Item	Description
Hydraulic System Type	Positive Flow Load Sensing Hydraulic System (with pilot control)
Main Pump	Variable Displacement Piston Pump, Maximum Flow ~ 220–242 L/min
Working Pressure	~ 31.4–34.3 MPa (main circuit)
