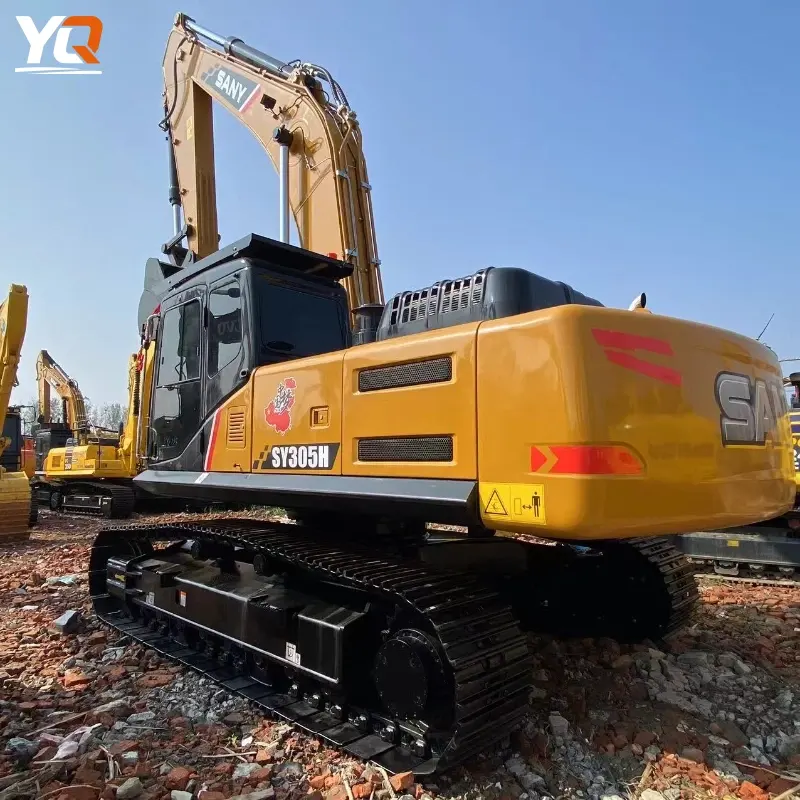

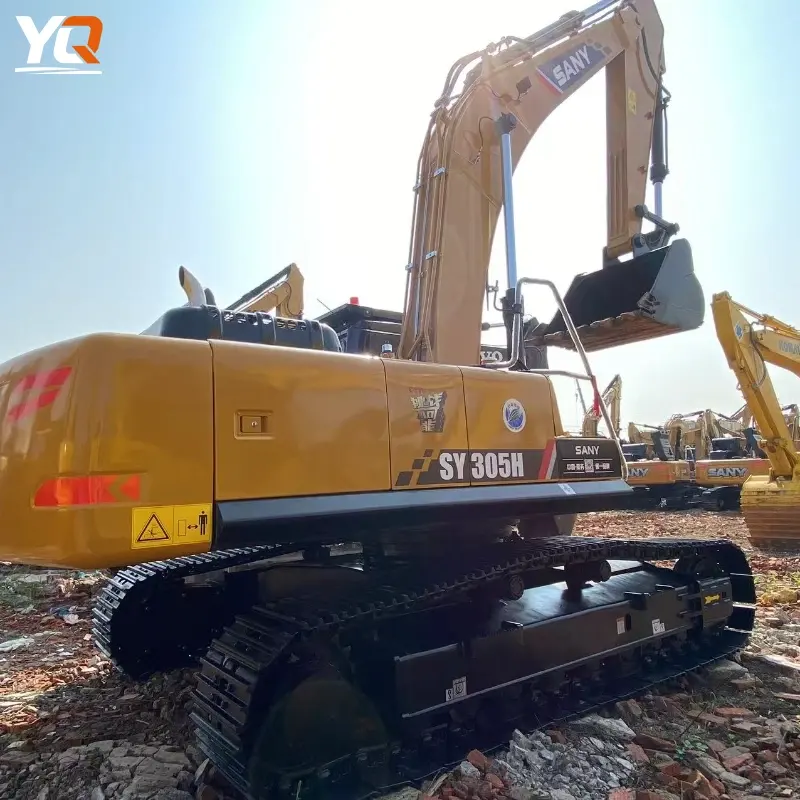

Well-Maintained SANY SY305 Heavy Excavator High Performance

Description

I. Basic Parameters

Parameter	Value / Description
Model Name	Sany SY305H Crawler Hydraulic Excavator
Operating Weight	31,500 kg (approximately 31.5 t)
Standard Bucket Capacity	1.65 m³
Engine Model	Isuzu GH-6HK1 Turbocharged Diesel Engine
Engine Displacement	7.79 L
Rated Power	212 kW @ 2000 rpm
Fuel Tank Capacity	540 L
Hydraulic Tank Capacity	380 L

II. Operating Performance

Indicator	Typical Value
Maximum Digging Depth	~ 6,815 mm
Maximum Vertical Digging Depth	~ 6,170 mm
Maximum Digging Height	~ 10,497 mm
Maximum Dumping Height	~ 7,357 mm
Maximum Digging Radius	~ 10,870 mm
Bucket Digging Force	~ 204 kN
Arm Digging Force	~ 170 kN

III. Travel & Movement Performance

Item	Typical Value
Travel Speed	High gear ~ 5.2 km/h, Low gear ~ 3.4 km/h
Swing Speed	~ 9 rpm
Gradeability	~ 70 % (approximately 35°)
Ground Pressure	~ 60–62 kPa

IV. Dimensions (Transport Condition / Typical)

Dimension Item	Value (Approximate)
Total Transport Length	~ 10,667 mm
Transport Width	~ 3,190 mm
Transport Height	~ 3,470 mm
Track Length	~ 4,840 mm
Track Shoe Width	~ 600 mm
Minimum Ground Clearance	~ 550 mm
Tail Swing Radius	~ 3,315 mm

V. Hydraulic & System Parameters

System / Parameter	Description / Value
Hydraulic System Type	Load-Sensing High-Flow Hydraulic System (common dual pump configuration)
Maximum Main Pump Flow	~ 2×360 L/min (may vary by version)
Hydraulic Operating Pressure	Main circuit ~ 34.3 MPa
