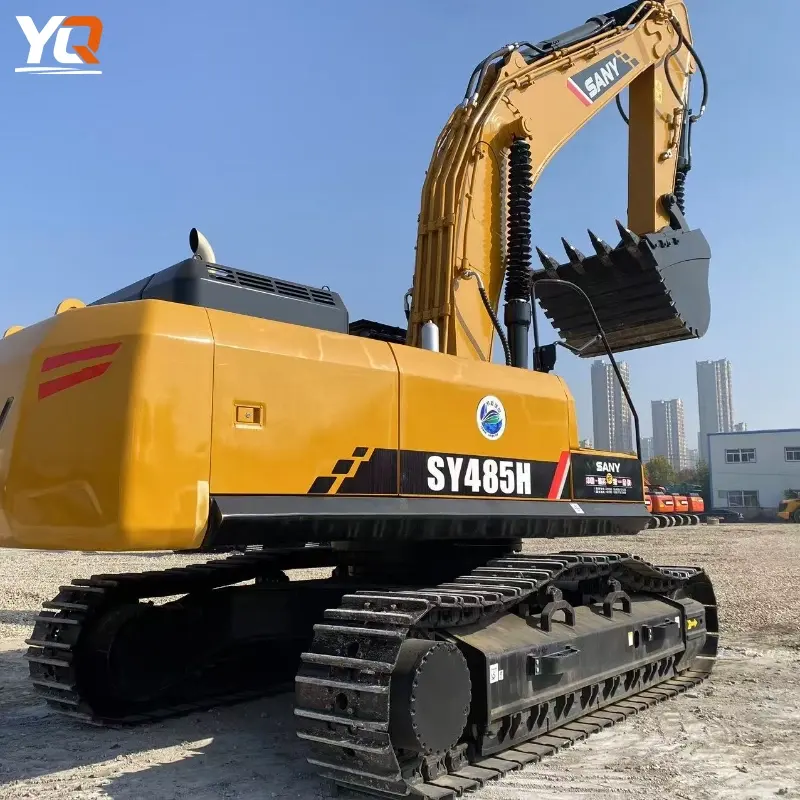

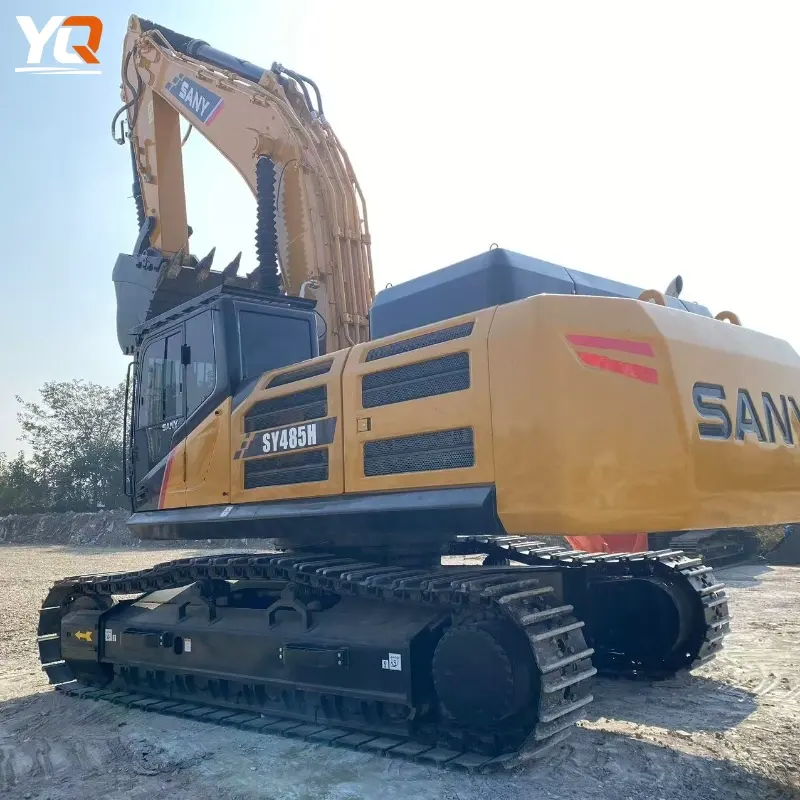

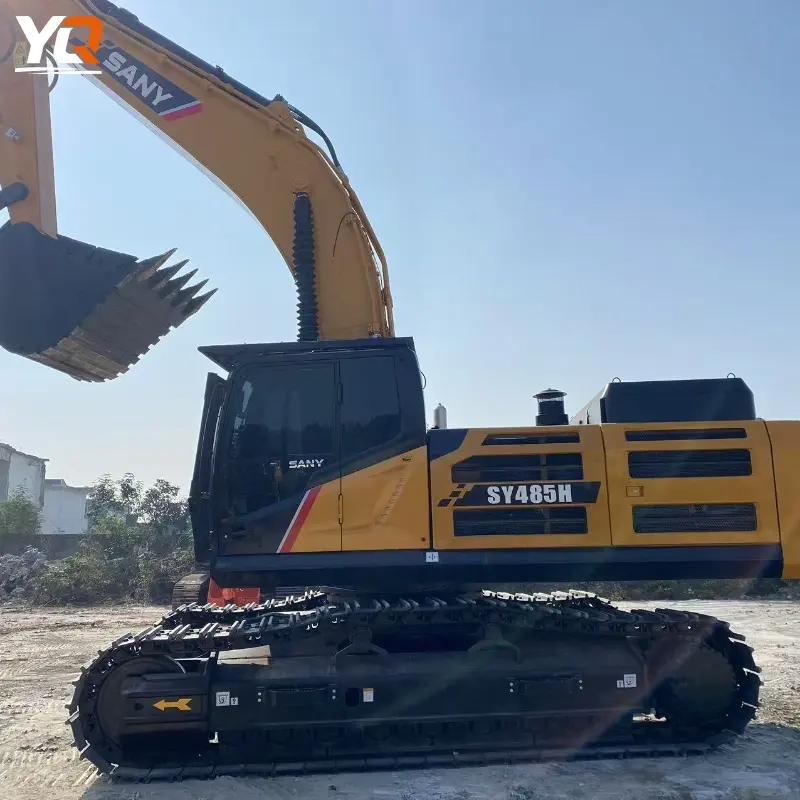

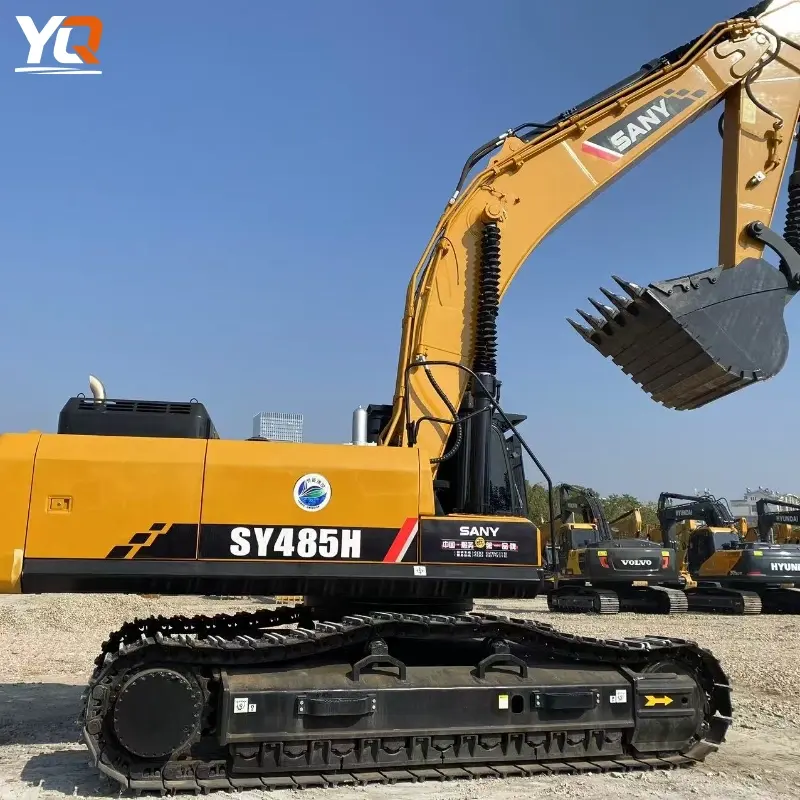

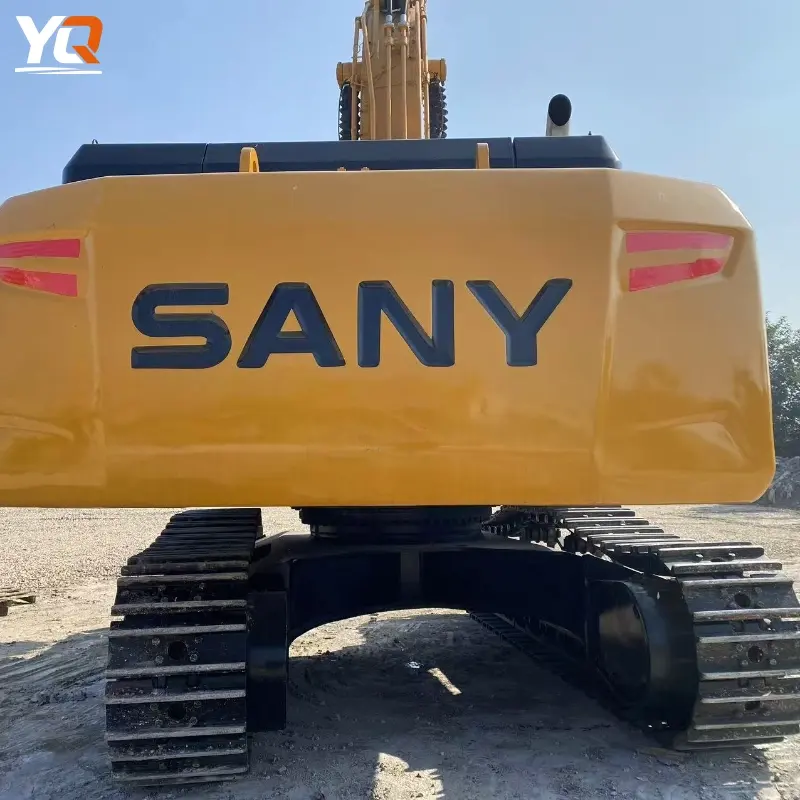

Second-Hand SANY SY485 Large Excavator High Cost Performance

Description

I. Basic Specifications

Indicator	Value / Description
Model Name	Sany SY485H-S / SY485H Crawler Hydraulic Excavator
Operating Weight	~ 48,500 kg (approximately 48.5 t)
Standard Bucket Capacity	2.6 m³ (optional larger buckets 3.1 – 3.5 m³)
Engine Model	Isuzu 6WG1 / 6WG1X 6-Cylinder Turbocharged Diesel Engine
Displacement	≈ 15.681 L
Rated Power	310 kW @ 1800 rpm（≈ 421 hp）
Maximum Torque	≈ 2050 N·m @ 1300 rpm

II. Operating Performance

Indicator	Typical Value
Bucket Digging Force	~ 287 kN
Arm Digging Force	~ 245 kN
Travel Speed (High/Low Gear)	~ 5.3 / 3.1 km/h
Swing Speed	~ 8.4 rpm
Gradeability	~ 70 % (approximately 35°)
Ground Pressure	~ 80.4–87.1 kPa

III. Dimension Parameters (Transport/Working)

Dimension Item	Value (Approximate)
Transport Length	~ 12,095 mm
Transport Width	~ 3,360 mm
Transport Height	~ 3,790–3,775 mm
Track Ground Contact Length	~ 4,415 mm
Total Track Length	~ 5,440 mm
Track Shoe Width	600 mm
Track Gauge	~ 2,740 mm
Minimum Ground Clearance	~ 560 mm
Tail Swing Radius	~ 3,765 mm

IV. Operating Range (Typical)

Working Indicator	Value (Approximate)
Maximum Digging Depth	~ 7,370 mm
Maximum Digging Height	~ 10,900 mm
Maximum Dumping Height	~ 7,450 mm
Maximum Digging Radius	~ 11,860–11,860 mm
Minimum Swing Radius	~ 5,240 mm

V. Fluid & Cooling

System / Item	Capacity (Approximate)
Fuel Tank	~ 680–750 L
Hydraulic Tank	~ 513 L
Engine Oil	~ 42–57 L
Coolant	~ 50 L
Final Drive Oil	~ 2 × 13–15 L
