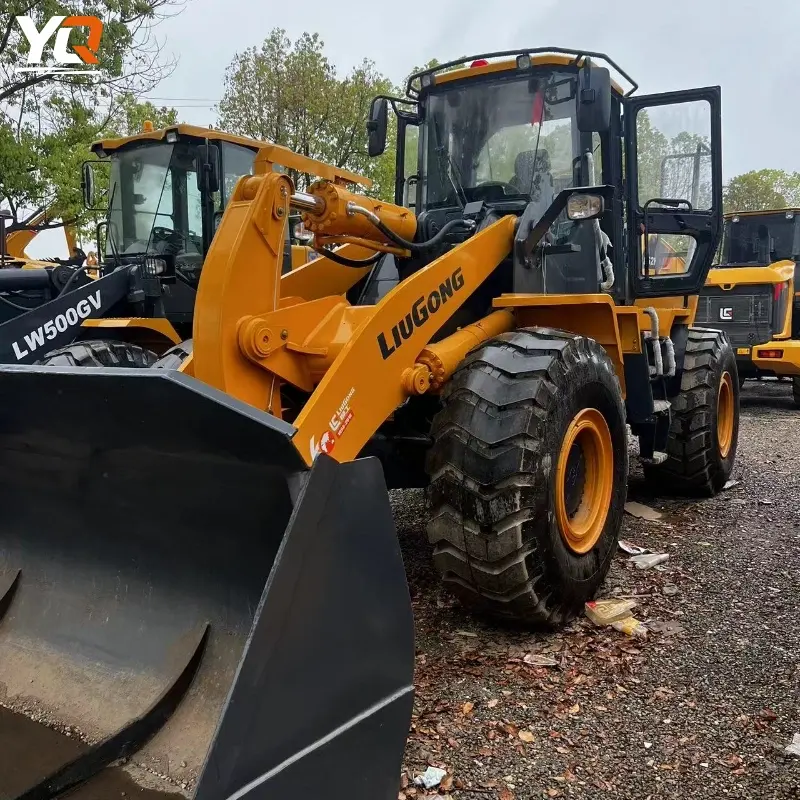

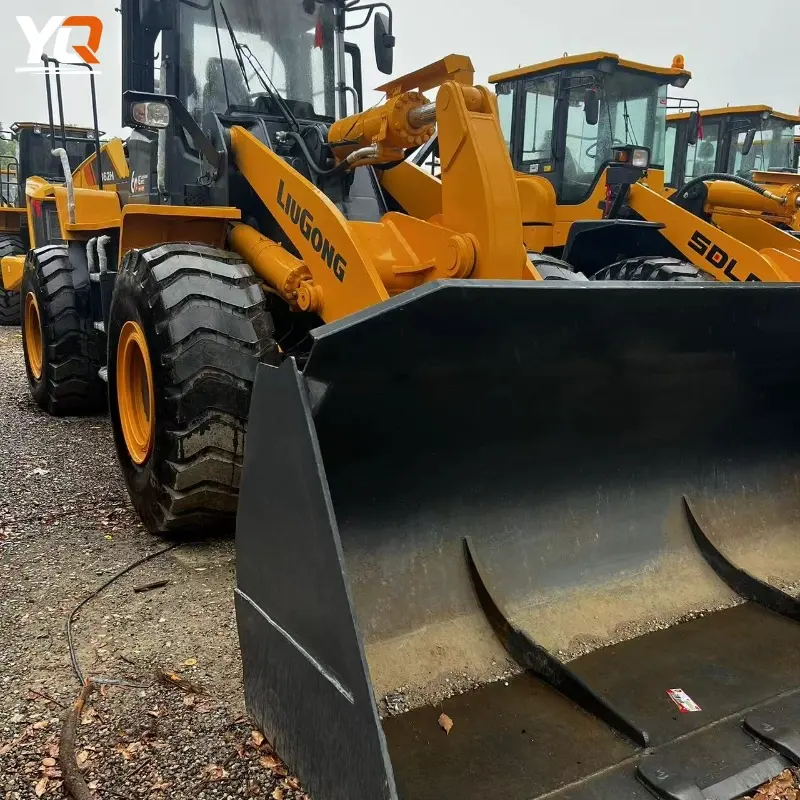

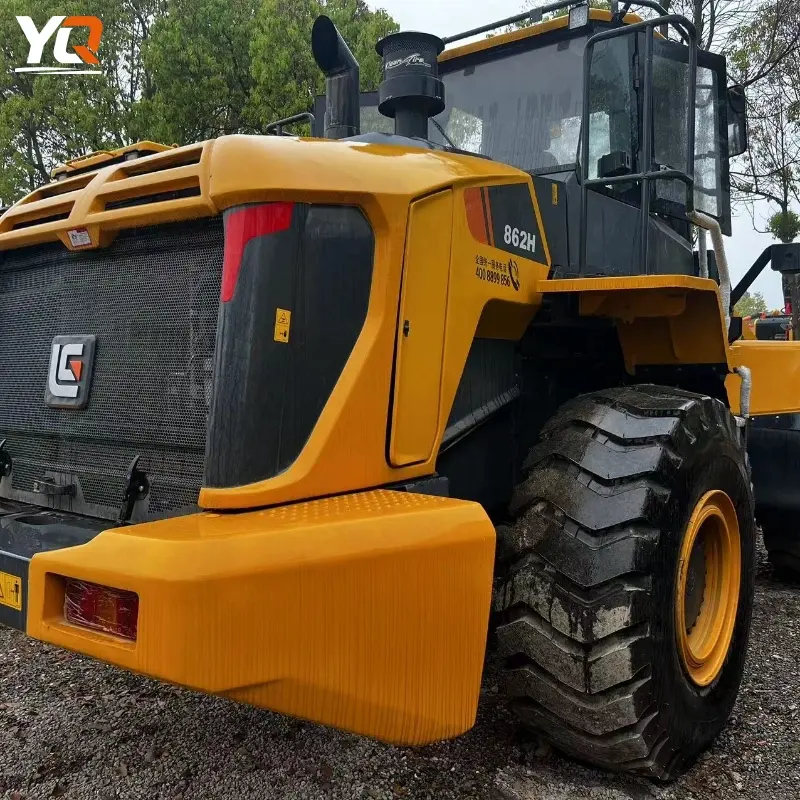

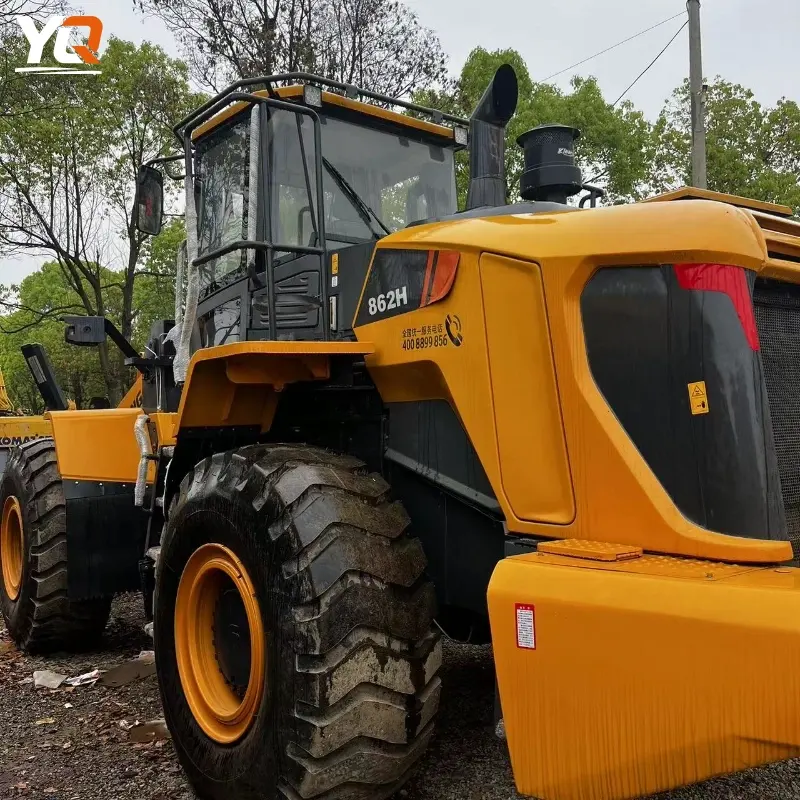

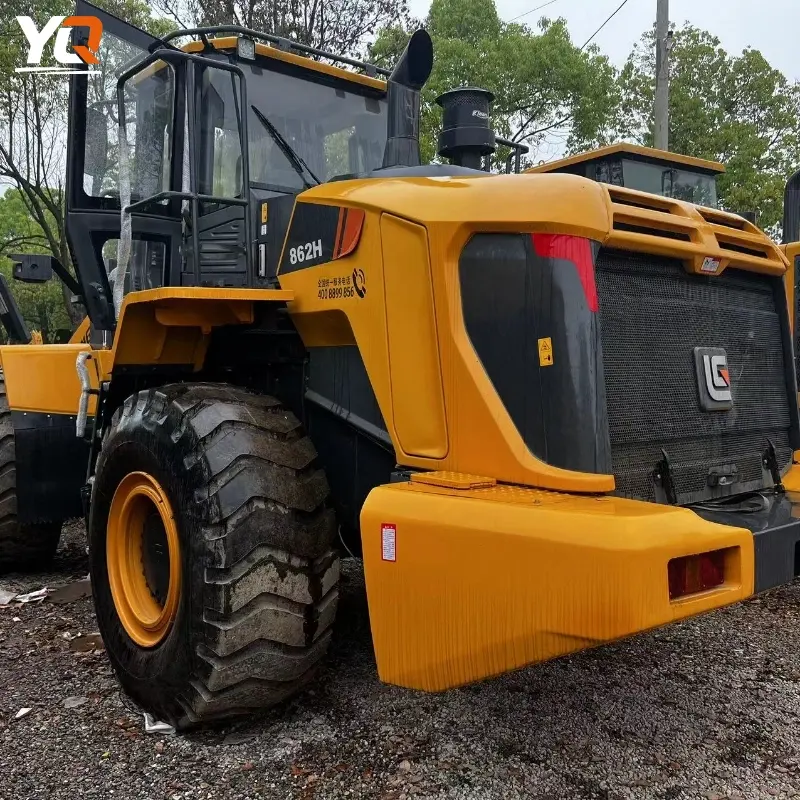

LiuGong 862 Used Wheel Loader Large Capacity for Heavy Duty Projects

Description

Basic Specifications

Parameters Typical Values
Model: LiuGong 862 / 862H
Rated Payload: ~6,000 – 6,500 kg
Operating Weight: ~19,500 – 20,800 kg
Standard Bucket Capacity: ~4.0 m³ (Optional: 3.0 – 6.0 m³)

🛠️ Engine and Performance

862 Standard / 862H

Engine Model: Cummins or equivalent (e.g., 6LTAA8.9 / QSL9.3)

Rated Power: Approx. 168 – 180 kW (225 – 243 hp) @ 2,200 rpm

Peak Torque: Approx. 1,180 – 1,187 N·m

Emission Standard: Tier 2 / Stage II (common in fuel-powered versions), Tier 3 / Stage III versions also available

🏗️ Working Performance
Parameters Values

Static Full-Spin Tilting Load ~14,200 – 14,610 kg (ISO 14397-1)

Bucket Breakout Force ~178 – 180 kN

Unloading Height (Full Height) ~3,253 mm

Unloading Distance ~1,112 mm

🚗 Transmission and Speed

Transmission: Electronic Proportional Powershift / Automatic Power Shift

Travel Speed: Approx. 36 km/h Forward; Approx. 23 km/h Reverse (Standard Version)

Gears: Typically 4 Forward / 3 Reverse

📏 Structural Dimensions (Typical)

Parameters Reference Values
Maximum Bucket Capacity ~6.0 m³ (Depending on Bucket Size)
Tire Size 23.5-25 (Common)
Overall Length (Approx.) ~8,600 – 8,700 mm
Overall Width ~2,880 mm
Overall Height ~3,470 mm Turning radius (outer wheel): ~6,600 mm

🔄 862N (Upgraded Version) Brief Specifications

Rated load capacity: approx. 6,300 kg

Rated power: approx. 190 kW

Total weight: approx. 20,400 kg

Crushing force: approx. 190 kN

Dimensions: approx. 8,810 × 3,216 × 3,550 mm (L×W×H)
