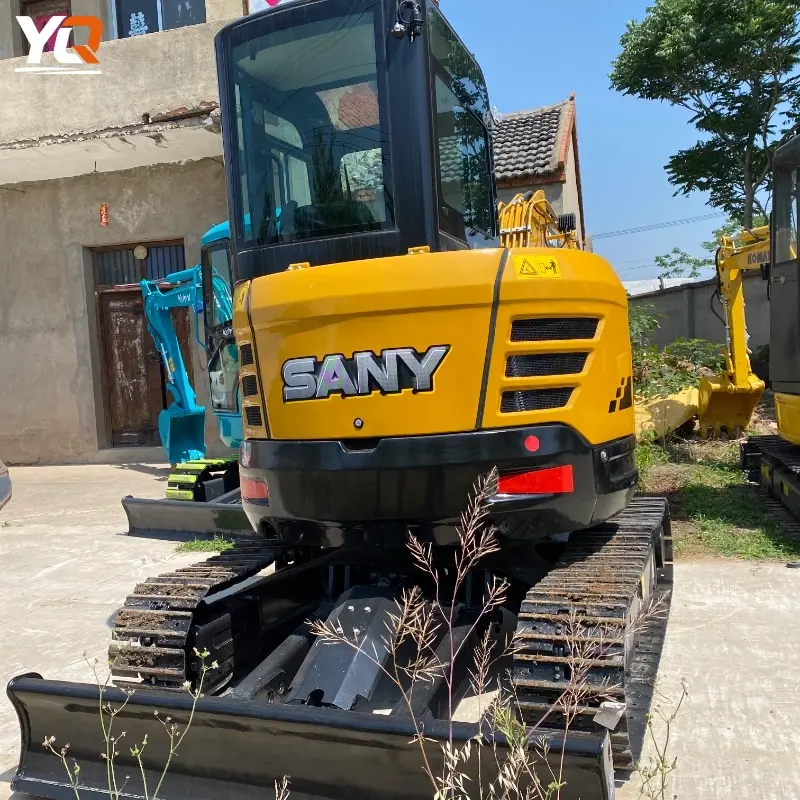

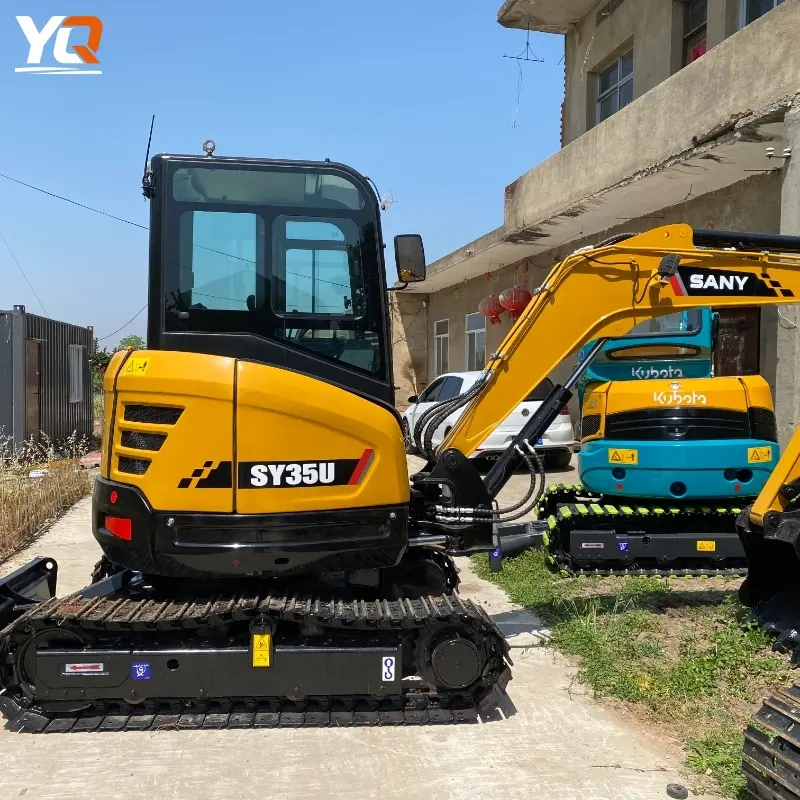

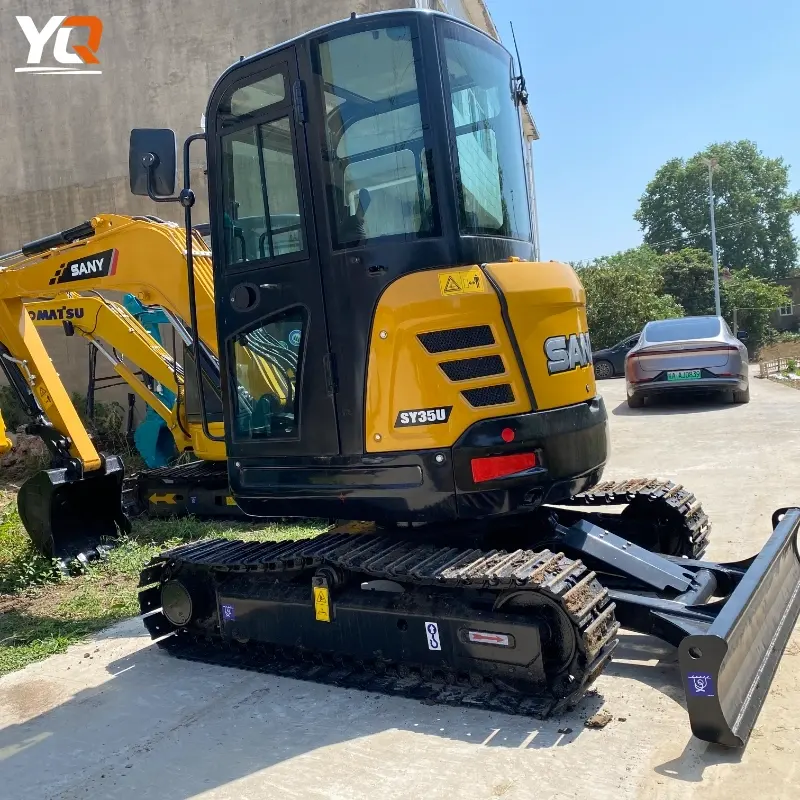

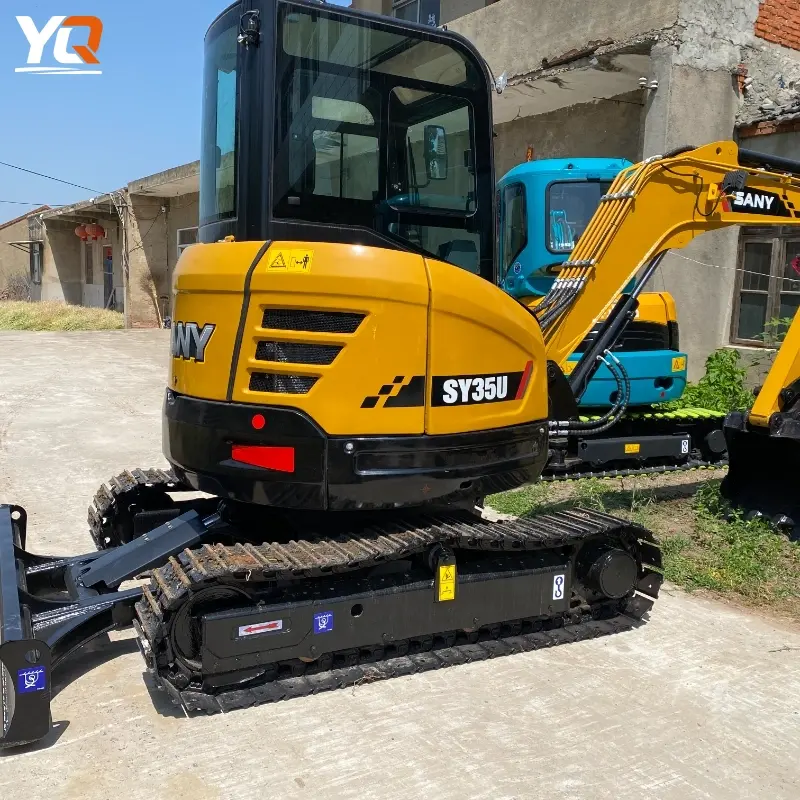

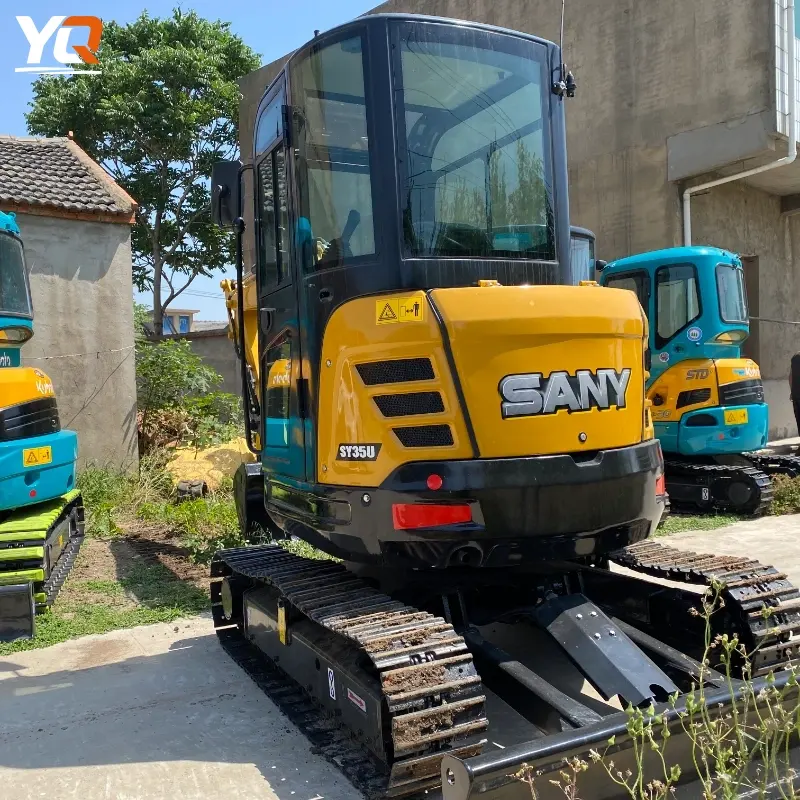

Used SANY SY35 Mini Excavator Good Condition Construction Equipment

Description

I. Basic Specifications (SY35U / SY35C)

Parameter	Value / Description
Model	SANY SY35 Series Mini Hydraulic Excavator (SY35U / SY35C)
Operating Weight	~ 3.58 – 3.92 t (approx. 3580 – 3920 kg)
Standard Bucket Capacity	0.12 m³
Engine Model	Yanmar 3TNV88 (or 3TNV88F)
Engine Displacement	~ 1.642 L
Rated Power	~ 18.2 kW (≈ 24.4 hp) (marked as ~20.2 kW in some regions)
Maximum Torque	~ 94 – 106 N·m (depending on version/testing conditions)
Fuel Tank Capacity	~ 40 – 50 L
Hydraulic Oil Tank Capacity	~ 40 L

🛠️ II. Performance

Indicator	Typical Value
Maximum Bucket Digging Force	~ 30.4 kN (≈ 3.10 t)
Maximum Arm Digging Force	~ 18.2 kN (≈ 1.85 t)
Maximum Digging Depth	~ 3100 mm / 3.1 m (SY35U typical)
Maximum Digging Height	~ 4855 mm / 4.86 m
Maximum Digging Reach	~ 5465 mm / 5.47 m
Maximum Dumping Height	~ 3460 mm / 3.46 m

🏃‍♂️ III. Travel and Performance

Item	Typical Parameter
Travel Speed	~ 4.2 / 2.4 km/h (High/Low gear)
Swing Speed	~ 9 – 10 rpm
Gradeability	~ 58 % (approx. 30°)
Ground Pressure	~ 32–35 kPa

📏 IV. Dimensions (SY35U)

Item	Value
Shipping Length	~ 4910 mm
Shipping Width	~ 1720 mm
Shipping Height	~ 2515 mm
Track Width (single shoe)	300 mm
Minimum Ground Clearance	~ 295 mm
Tail Swing Radius	~ 860 mm

⚙️ V. Hydraulics and Systems

System	Parameter
Hydraulic System	Load Sensing Hydraulics + Pilot Control
Main Pump Type	Variable Displacement Axial Piston Pump
Maximum Working Pressure	~ 24.5 MPa (≈ 3553 psi)
Maximum Main Circuit Flow	~ 88 L/min
Maximum Auxiliary Circuit Flow	~ 70 L/min
