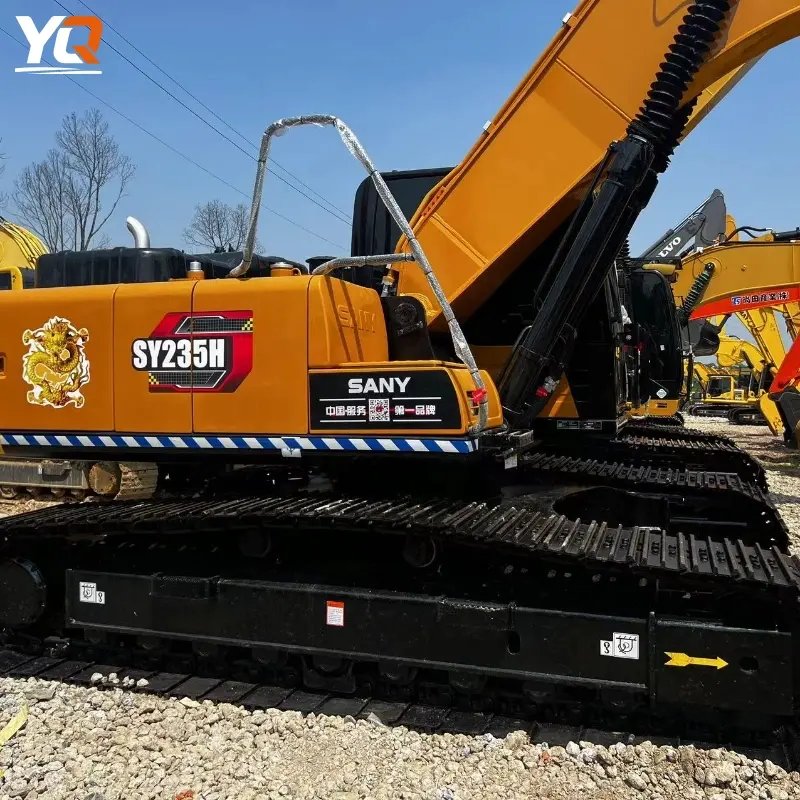

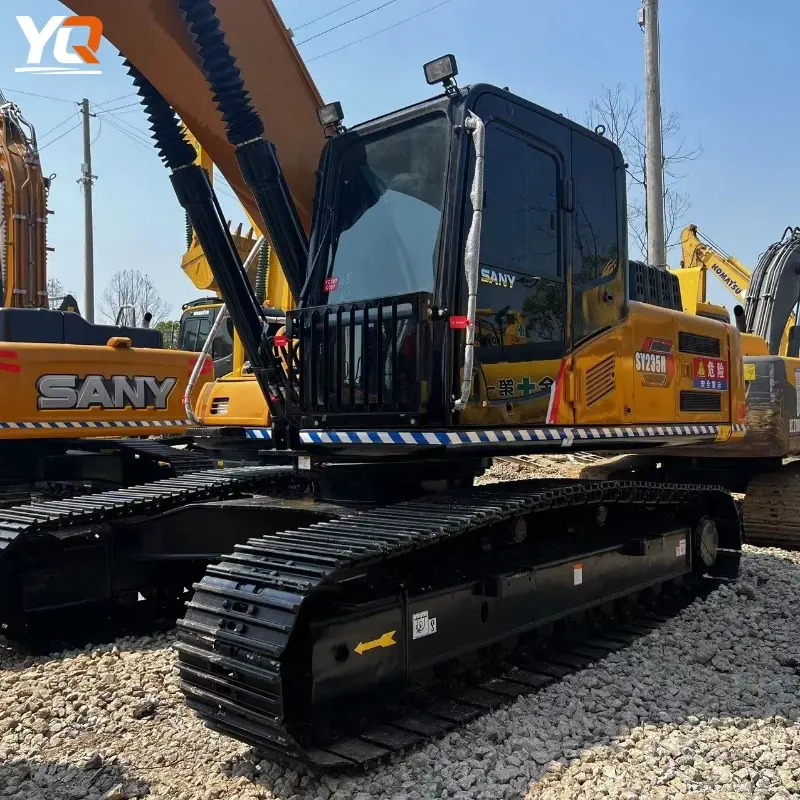

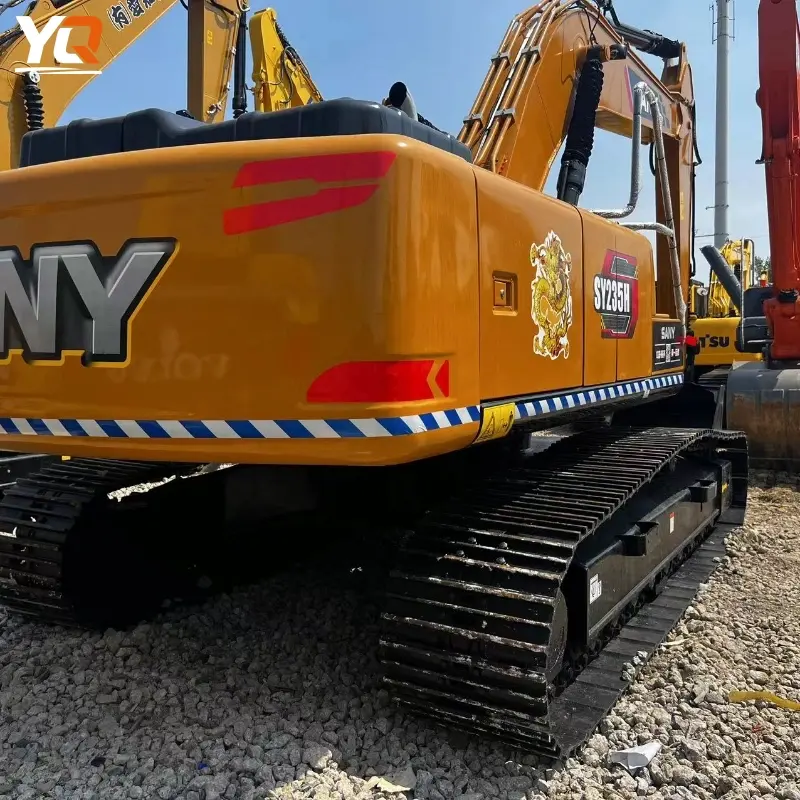

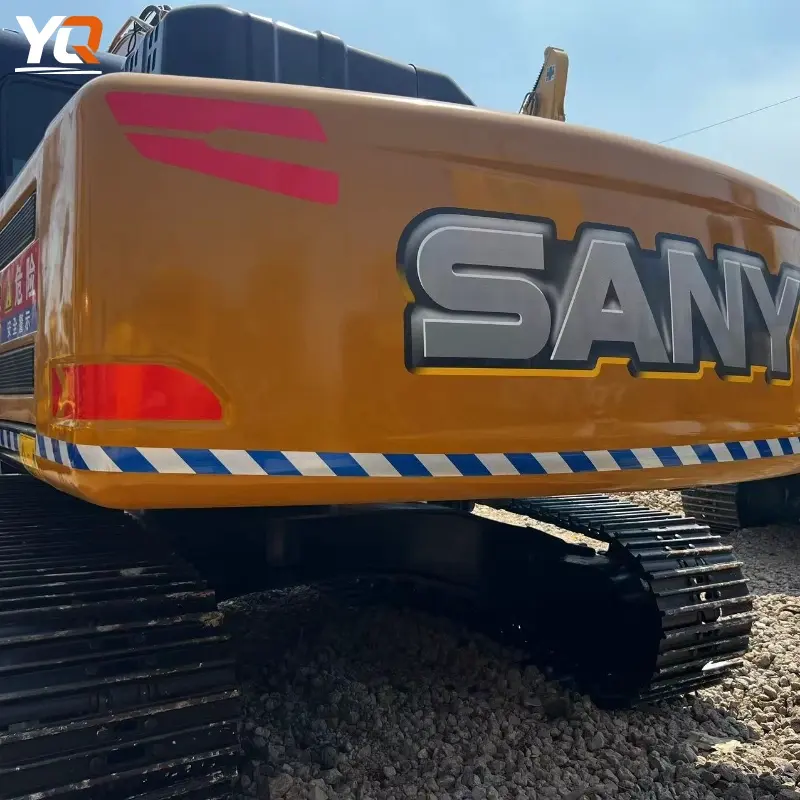

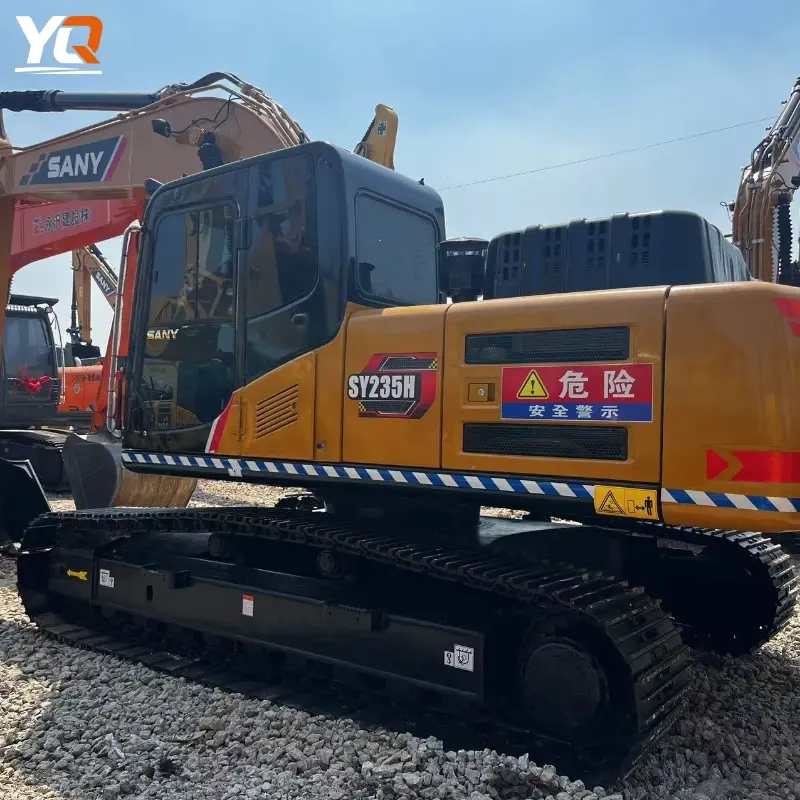

Pre-Owned SANY SY235 Hydraulic Excavator Competitive Price

Description

I. Basic & Power Parameters (Typical)

Item	Parameter / Value
Model Name	Sany SY235 (SY235H-SA / SY235C Medium Excavator)
Operating Weight	~ 23,000 kg (approximately 23 t) (SY235H-SA) / ~ 24,900 – 25,300 kg (SY235C ISO)
Standard Bucket Capacity	~ 1.2 – 1.35 m³
Engine Model	Isuzu 4HK1 / CC-6BG1 (depending on configuration)
Rated Power	~ 128 – 140 kW @ 2000 rpm（≈ 172 – 188 hp）
Fuel Tank Capacity	~ 340 L
Hydraulic Tank	~ 239 L
Emission Standard	Multiple regional versions with different emission levels (depending on market/year)

II. Operating Performance

Indicator	Typical Value
Maximum Digging Height	~ 9,470 mm (SY235H)
Maximum Dumping Height	~ 6,735 mm
Maximum Digging Depth	~ 6,450 mm
Maximum Digging Radius	~ 9,745 mm
Bucket Digging Force	~ 158 kN (SY235H)
Arm Digging Force	~ 124 kN
Travel Speed (High/Low Gear)	~ 5.6 / 3.5 km/h
Swing Speed	~ 11.5 rpm
Gradeability	~ 70 %（≈ 35°）
Ground Pressure	~ 51 kPa

III. Dimensions & Chassis (Typical SY235H)

Dimension Item	Value (Approximate)
Total Transport Length	~ 9,635 mm
Transport Width	~ 2,980 mm
Transport Height	~ 3,100 mm (transport condition)
Upper Width	~ 2,813 mm
Track Width	600 mm (common)
Track Gauge	~ 2,380 mm
Minimum Ground Clearance	~ 442 mm
Tail Swing Radius	~ 2,900 mm
Track Ground Contact Length	~ 3,640 mm

IV. Hydraulic System & Transmission

System	Parameter / Description
Hydraulic Pump	Dual variable piston pump (typically high flow)
Maximum Main Pump Flow	~ 2×252 L/min (reference for SY235C long boom version)
Hydraulic Pressure	~ 34.3 MPa (main circuit) (common for medium-sized standard models)

V. Fluid & Filling Capacities (Reference)

System	Capacity (Approximate)
Fuel Tank	~ 340 L
Hydraulic Tank	~ 239 L
Engine Oil	~ 26.4 L
Coolant	~ 27.6 L
