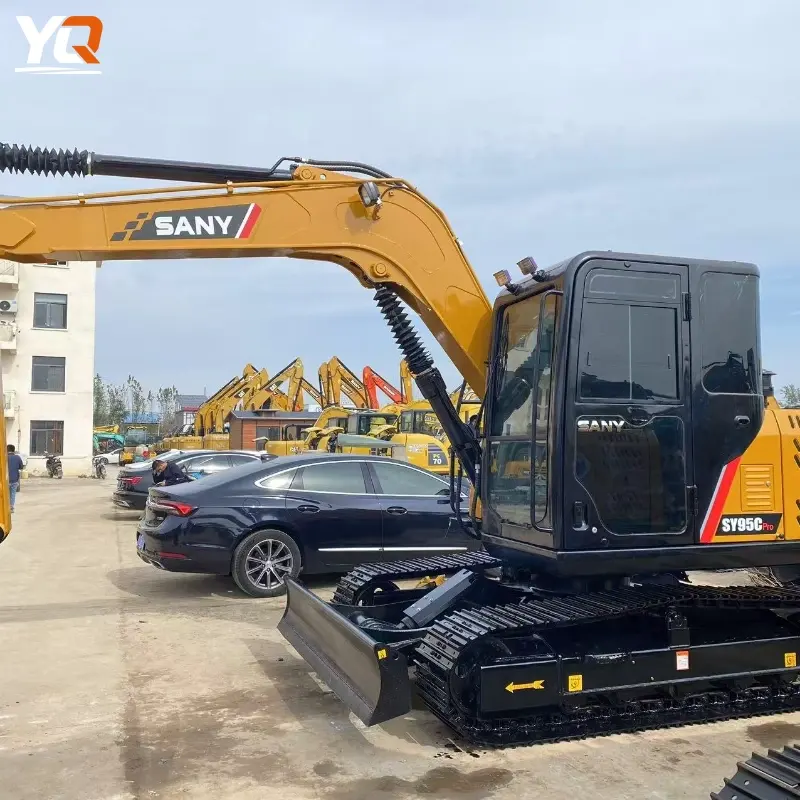

90% New SANY SY95 Medium Excavator Good Performance Equipment

Description

I. Basic Information

📌 Model Name: SANY SY95C Small Hydraulic Excavator
📌 Operating Weight: ≈ 9,180 kg (approx. 9.18 t)
📌 Standard Bucket Capacity: ≈ 0.38 m³
📌 Engine Model: Yanmar 4TNV98CT 4-Cylinder Turbocharged Diesel Engine
📌 Engine Displacement: ≈ 3.3 L
📌 Rated Power: ≈ 53.7 kW (≈ 72 hp)

🔧 II. Power and Hydraulics

Item	Parameter / Value
Maximum Net Power	≈ 49.5 kW / 66.4 hp @ 2200 rpm
Hydraulic System Type	Load Sensing Hydraulics + Pilot Control
Main Pump Type	Variable Displacement Axial Piston Pump
Maximum Working Pressure	~ 26.3 MPa (≈ 3814 psi)
Swing Speed	~ 11–11.2 rpm

⛏️ III. Performance

Parameter	Typical Value
Maximum Digging Depth	≈ 4,330 mm
Maximum Vertical Digging Depth	≈ 3,080 mm
Maximum Digging Height	≈ 7,260 mm
Maximum Dumping Height	≈ 5,210 mm
Maximum Digging Reach	≈ 6,660 mm
Bucket Digging Force	~ 63.6 kN (≈ 6.49 t)
Arm Digging Force	~ 46.8 kN (≈ 4.77 t)

🚶‍♂️ IV. Drive and Movement

Item	Value
Travel Speed (High/Low Gear)	~ 5.0 / 2.9 km/h
Gradeability	~ 70 % (approx. 35°)
Ground Pressure	~ 38.6 kPa
Standard Track Width	~ 450 mm

📏 V. Dimensions (Transport Configuration)

Dimension Item	Approx. Value
Overall Shipping Length	~ 6,560 mm
Overall Shipping Width	~ 2,260 mm
Overall Shipping Height	~ 2,720 mm
Track Length on Ground	~ 2,980 mm
Minimum Ground Clearance	~ 360 mm
Tail Swing Radius	~ 1,885–1,990 mm

🛢️ VI. Fluids and Capacities

System	Approx. Capacity
Fuel Tank	~ 160 L
Hydraulic Oil Tank	~ 120 L
Engine Oil	~ 10 L (approx.)
Radiator Capacity	~ 12.5 L
