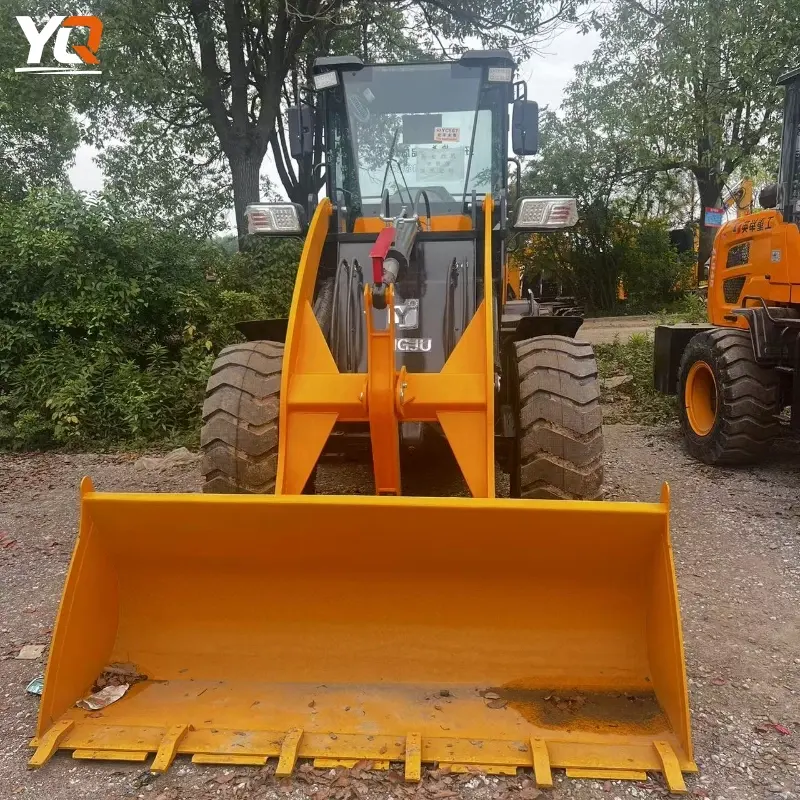

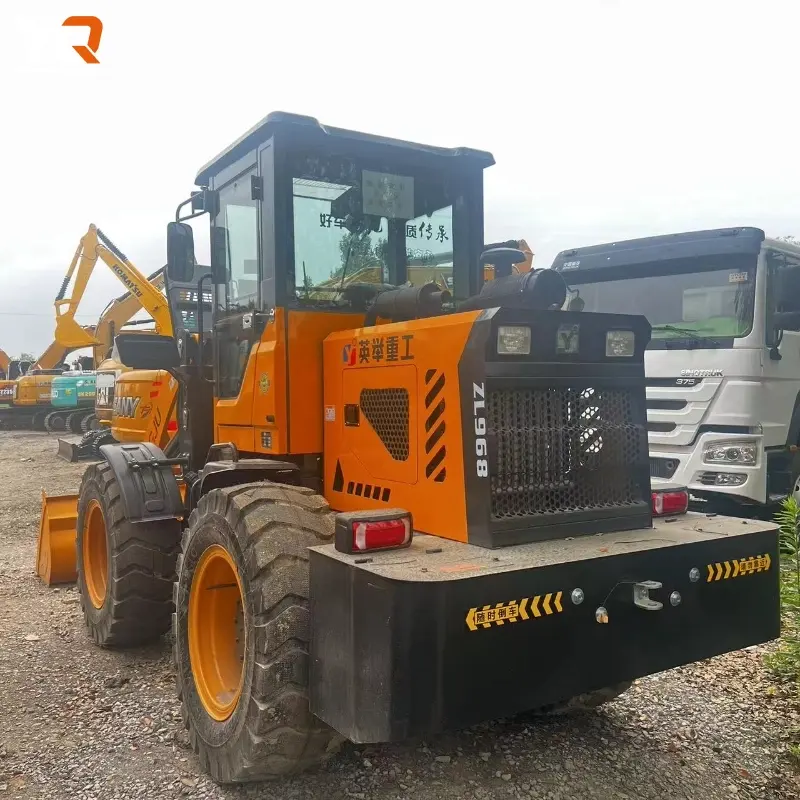

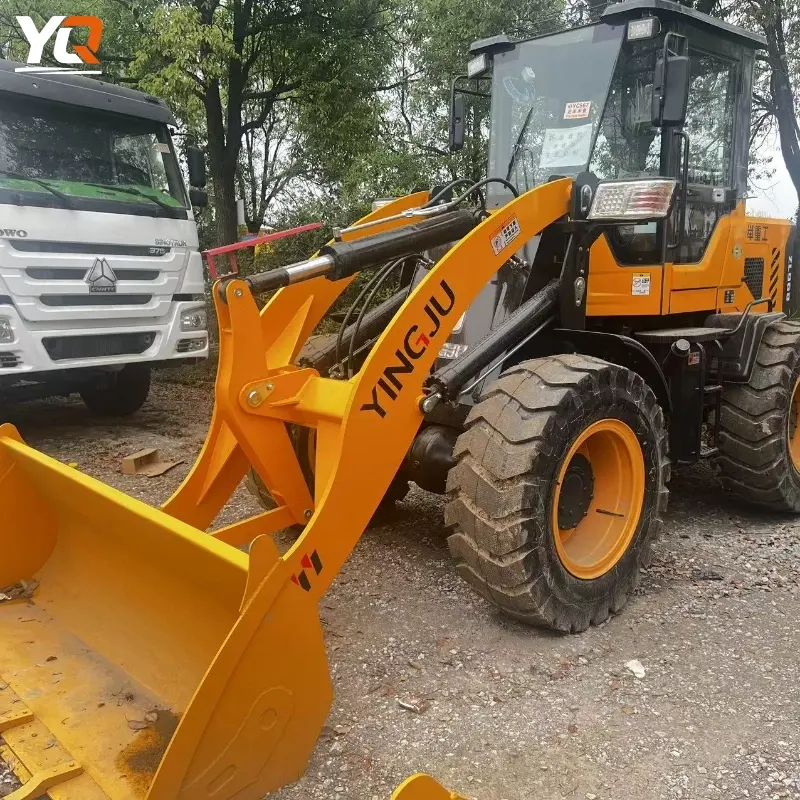

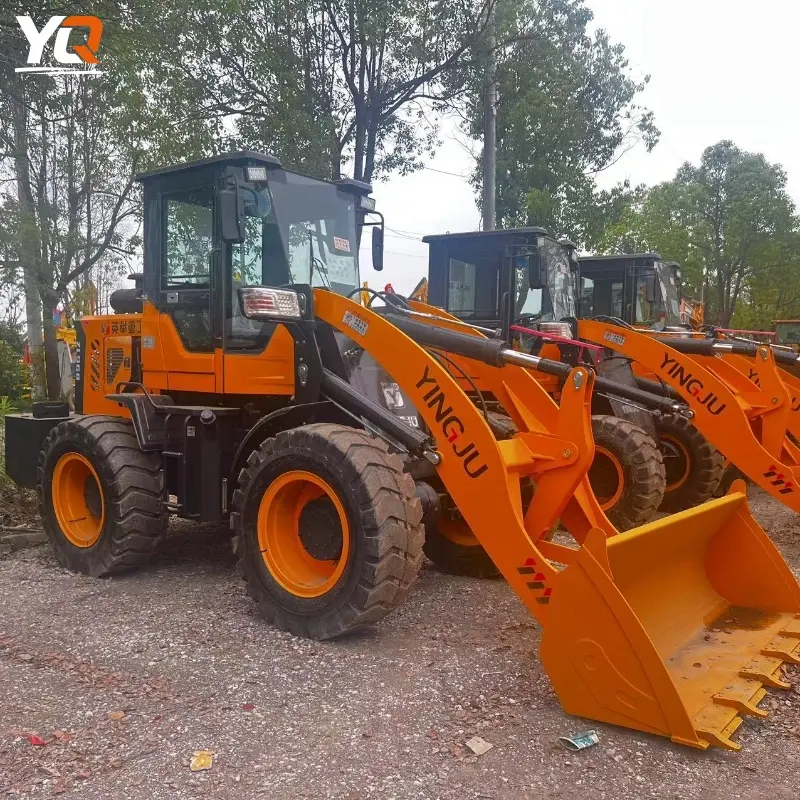

Yingju 968 Used Wheel Loader Durable Engineering Machine Good Condition

Description

Basic Performance

Rated Payload: ≈ 6000 kg (6 tons)

Standard Bucket Capacity: ≈ 3.0 – 3.5 m³

Operating Weight: ≈ 17,900 – 19,000 kg

🔧 Engine and Powertrain

Engine Model: Such as Shangchai SC11CB220G2B1 (CAT authorized/similar) or STEYR WD10G240E21 (6-cylinder, water-cooled)

Rated Power: ≈ 162 – 175 kW @ 2200 rpm (≈ 220 – 238 hp)

Maximum Torque: ≈ 780 – 844 N·m

⚙️ Transmission and Travel

Transmission: ZF technology or similar Power-Shift planetary gear automatic transmission

Travel Speed: Maximum ≈38 km/h

Drive Type: Four-wheel drive (4WD)

🏗️ Working Performance

Maximum Crushing Force: ≈ 170 – 200 kN

Maximum Traction Force: ≈ 150 – 152 kN

Maximum Climbing Ability: ≈ 30°

📏 Dimensions and Geometry

Body Dimensions (L×W×H): Approx. 7,920 × 3,050 × 3,400 mm

Minimum Turning Radius: ≈ 6,640 – 7,268 mm

Minimum Ground Clearance: ≈ 450 mm

Maximum Unloading Height: ≈ 3,100 – 3,150 mm

Maximum Unloading Distance: ≈ 1,198 – 1,250 mm

🛞 Chassis and Tires

Tire Size: 26.5-25 (Common)

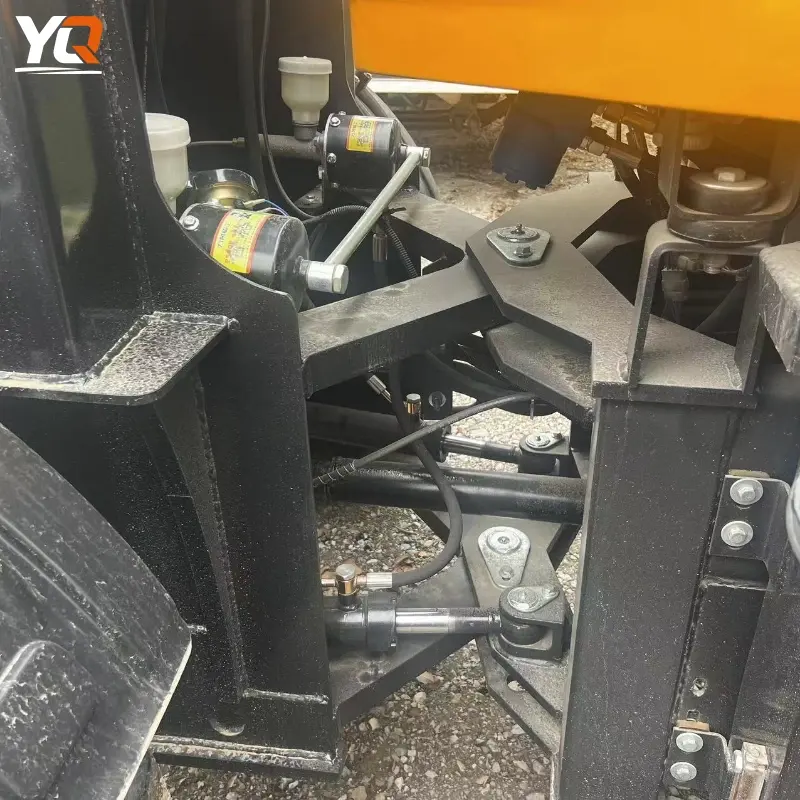

Steering System: Fully hydraulic articulated steering (with swing rear axle)

Braking System: Four-wheel air-assisted hydraulic disc brakes

🛠️ Hydraulics and Fuel Tank

Hydraulic System Working Pressure: ≈ 16 – 18 MPa

Fuel Tank Capacity: ≈ 300 – 320 L
