Machine Specifications and Performance
Item | Parameter

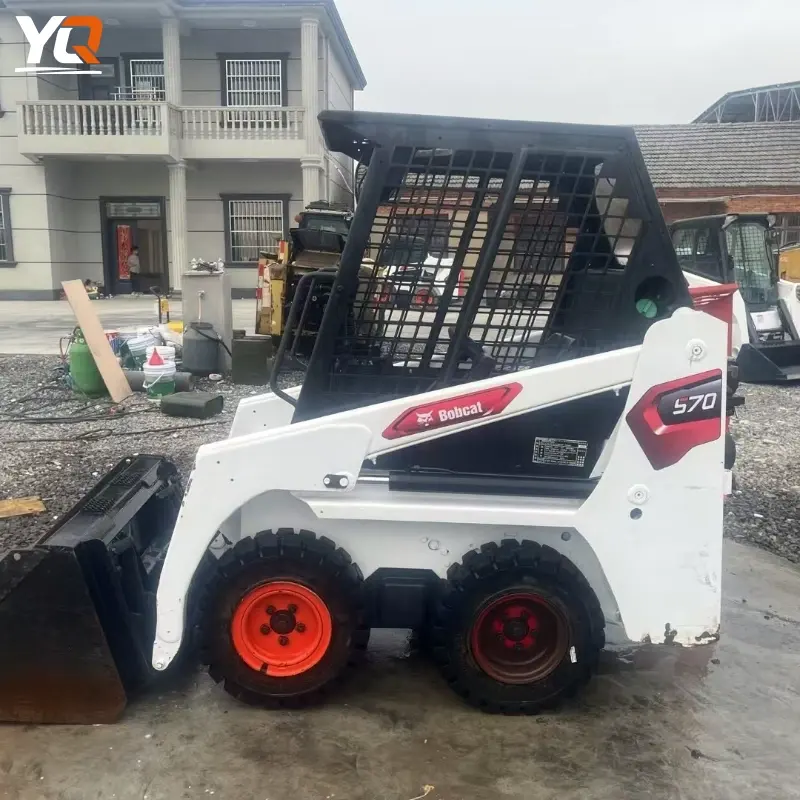

Model Name | Bobcat S70 Skid-Steer Loader
Rated Operating Load (ISO 14397-1) | ≈ 343 – 362 kg (approx. 760 lbs)
Tipping Load | ≈ 686 kg (approx. 1520 lbs)
Operating Weight | ≈ 1,268 – 1,312 kg (approx. 2,892 lbs)
Engine Power | ≈ 17.5 kW (~23.5 hp) (Diesel)
Maximum Speed | ≈ 9.8 km/h (≈ 6.1 mph)
Machine Specifications and Performance
Item | Parameter
Model Name | Bobcat S70 Skid-Steer Loader
Rated Operating Load (ISO 14397-1) | ≈ 343 – 362 kg (approx. 760 lbs)
Tipping Load | ≈ 686 kg (approx. 1520 lbs)
Operating Weight | ≈ 1,268 – 1,312 kg (approx. 2,892 lbs)
Engine Power | ≈ 17.5 kW (~23.5 hp) (Diesel)
Maximum Speed | ≈ 9.8 km/h (≈ 6.1 mph)
🛠️ Engine and Powertrain
Engine Model: Kubota D1005-E4B-BC-3 (3-cylinder, water-cooled, diesel)
Displacement: Approx. 1.001 L (1001 (cm³)
Fuel Type: Diesel, fuel tank capacity approx. 24.6 L
Cooling Method: Water-cooled/liquid-cooled system
Auxiliary Hydraulic Flow Rate: ≈ 37.1 L/min (standard flow rate)
System Operating Pressure: Approx. 206 bar (approx. 3000 psi)
📏 Dimensions & Structural Parameters
Specifications Values
Length (without attachments) ≈ 1,920 mm
Length (with standard bucket) ≈ 2,471 mm
Width ≈ 902 mm (approx. 35.5 in)
Height (to roof) ≈ 1,814 mm
Height (bucket hinge pin) ≈ 2,400 mm
Maximum Lifting Height (Reach @ Max Height) ≈ 401 mm
Minimum Ground Clearance ≈ 141 mm
Turn Radius ≈ 1,491 mm
Wheelbase ≈ 721 mm
