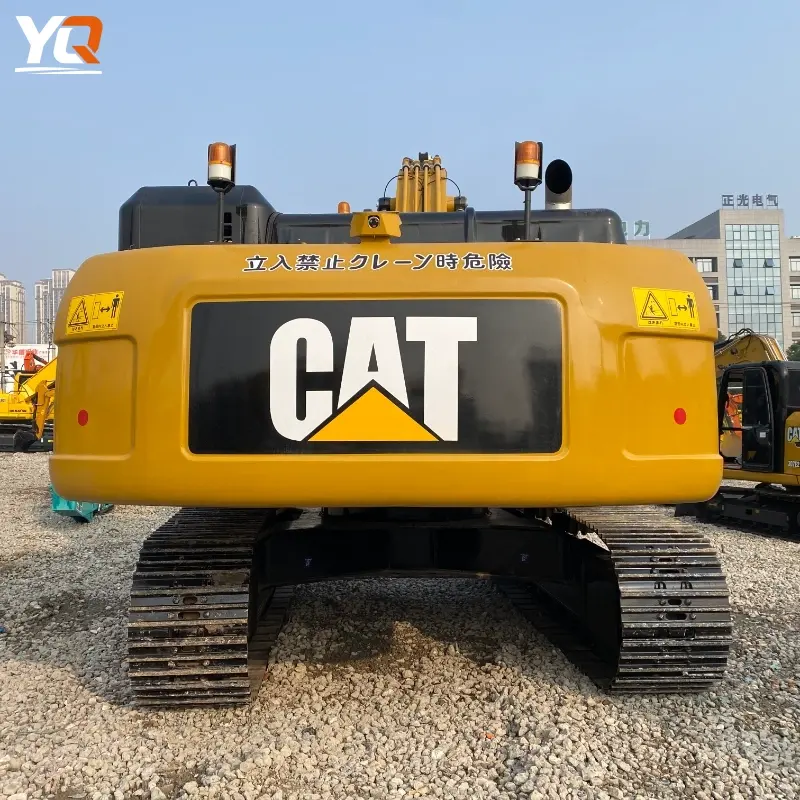

Cost-effective Used CAT 336GC Crawler Digger Nice Condition For Sale

Description

1. Basic Specifications

Model Name: Caterpillar 336 GC Hydraulic Excavator (Large)
Engine Model: Cat® C7.1 (ACERT Technology)
Displacement: 7.1 L (433 in³)
Net Power (ISO 9249): 259 hp / 195 kW
Rated Power (ISO 14396): 261 hp / 195 kW
Operating Weight: Approx. 33,900 kg (74,800 lb)
Standard Configuration Description: Standard undercarriage, 6.5 m long arm + 3.2 m stick, HD 1.88 m³ bucket (different sticks/buckets optional)

🛠️ 2. Performance

Indicator	Typical Value
Maximum Digging Depth	~7,520 mm (24.7 ft)
Maximum Horizontal Reach (at ground)	~11,050 mm (36.3 ft)
Maximum Cutting Height	~10,300 mm (33.8 ft)
Maximum Loading Height	~7,080 mm (23.2 ft)
Bucket Capacity (HD)	~1.88 m³ (2.46 yd³)
Bucket Digging Force ISO	~197 kN (44,350 lbf)
Arm Digging Force ISO	~148 kN (33,160 lbf)
Max. Digging Depth for 2440 mm Flat Floor	~7,360 mm (24.1 ft)
Maximum Vertical Wall Digging Depth	~5,660 mm (18.6 ft)

💧 3. Hydraulic System

Item	Parameter
Main Pump Maximum Flow (Equipment)	~559 L/min (148 gal/min)
Maximum Working Pressure (Equipment/Travel)	35,000 kPa (5076 psi)
Maximum Swing Pressure	28,000 kPa (4061 psi)
Swing Speed	~8.74 rpm
Maximum Swing Torque	~137 kN·m

📏 4. Dimensions (Typical)

Dimension	Value
Transport Height (Top of Cab)	~3,170 mm (10.4 ft)
Shipping Length	~11,170 mm (36.6 ft)
Tail Swing Radius	~3,530 mm (11.6 ft)
Ground Clearance	~510 mm (1.7 ft)
Track Length	~4,590 mm (15.1 ft)
Track Gauge	~2,590 mm (8.5 ft)
Shipping Width	~3,190 mm (10.5 ft)

🛢️ 5. Refill Capacities (Reference)

System / Capacity	Value
Fuel Tank	~600 L
Cooling System	~19 L
Engine Oil	~20 L
Swing Drive (each)	~18 L
Final Drive (each)	~8 L
Total Hydraulic System	~373 L
Hydraulic Oil Tank	~161 L
