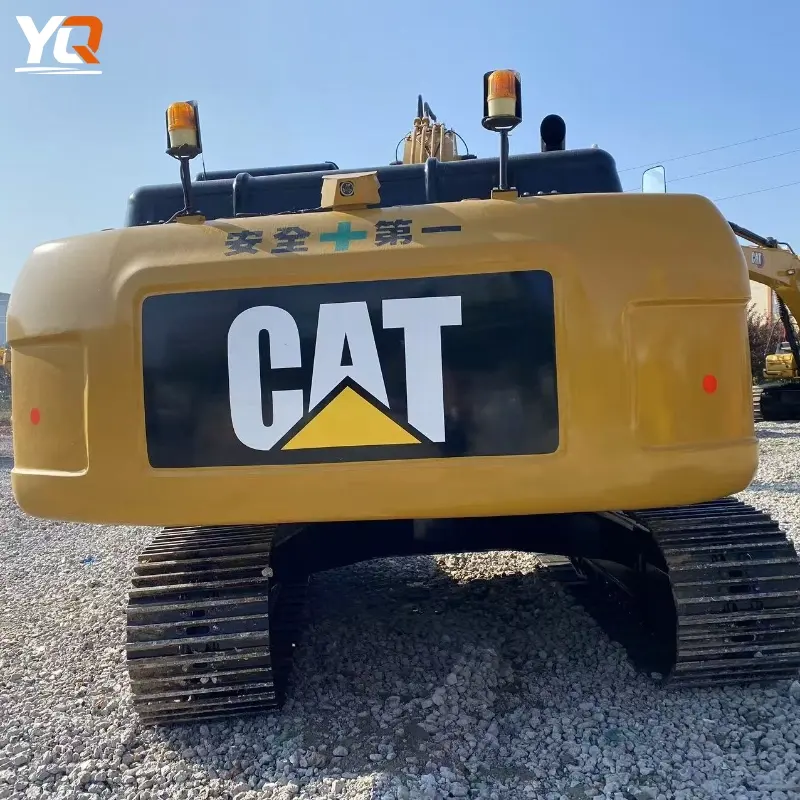

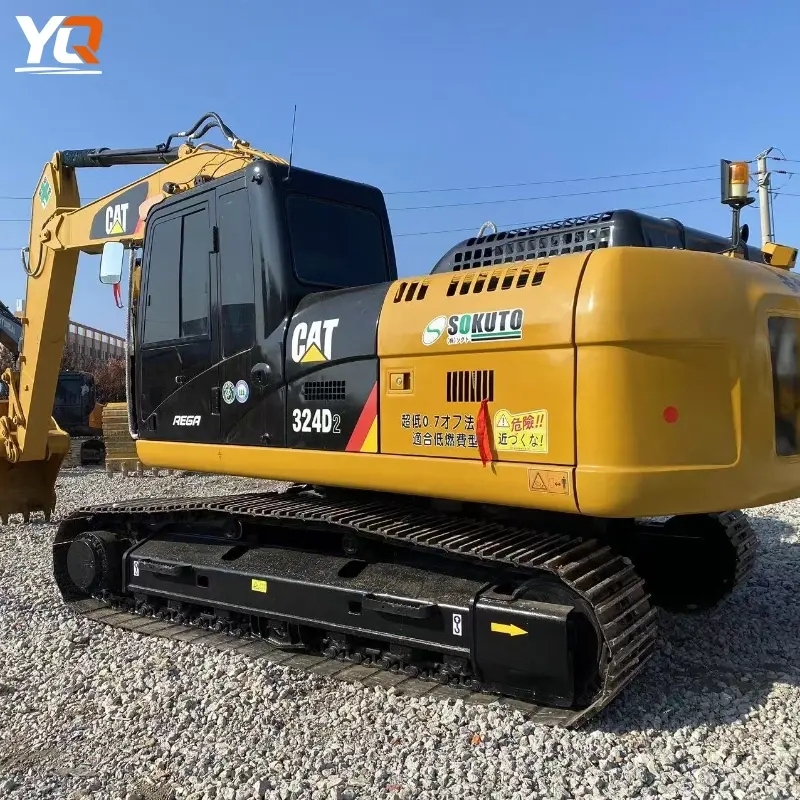

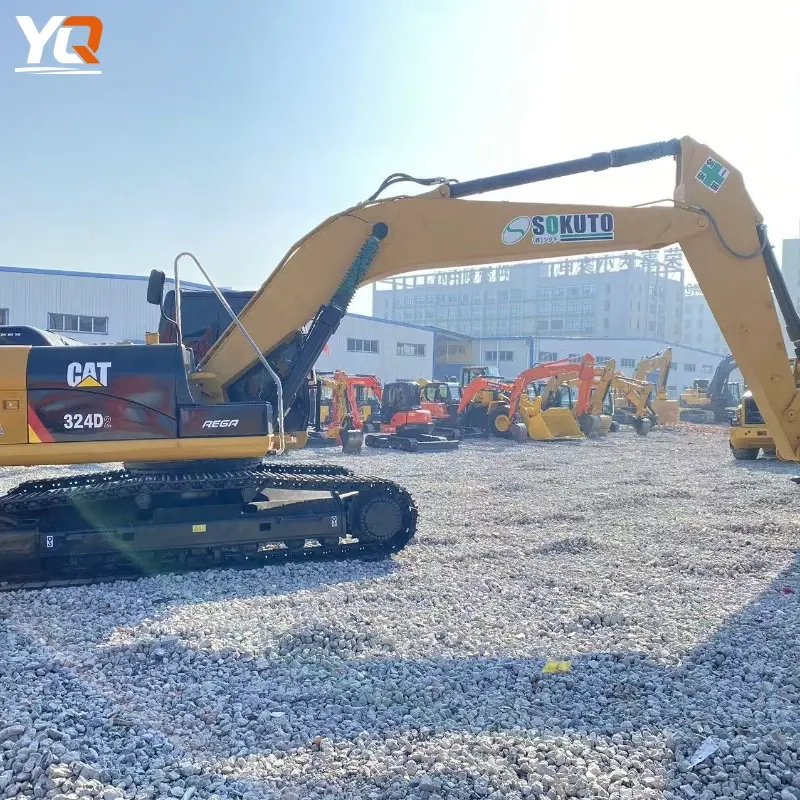

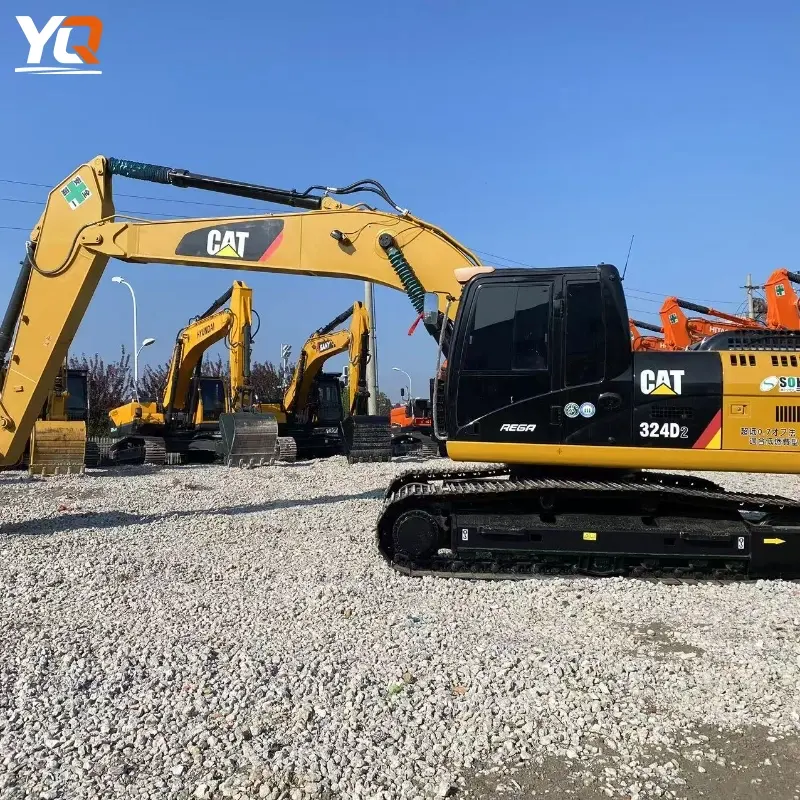

Powerful Used CAT 324D Crawler Excavator Mining Machine Supplier

Description

General Specifications

• ** Model Name:** Caterpillar 324D / 324D L Crawler Hydraulic Excavator
• ** Operating Weight:**
  • Standard Undercarriage: ≈ 24,240 kg
  • Long Undercarriage (L): ≈ 25,560 kg
• ** Engine Model:** Cat® C7 ACERT™ 6-Cylinder Turbocharged Diesel Engine
• ** Rated Net Power:** ~124 kW (~168 hp) (ISO 9249/SAE J1349 Standard)
• ** Displacement:** ~7.2 L
• ** Fuel Tank Capacity:** ~520 L
• ** Swing Speed:** ~10 rpm
• ** Max. Travel Speed:** ~5.5 km/h

Operating Performance

Parameter	Value
Max. Digging Depth	~6,290 mm
Max. Digging Radius	~9,620 mm
Max. Cutting Height	~9,460 mm
Max. Loading/Dumping Height	~6,500 mm
Bucket Capacity	~1.54 m³ (Common Configuration)
Bucket Digging Force	~160 kN
Stick (Arm) Digging Force	~149 kN

Hydraulic System

Item	Value
Main Pump Max. Flow	~235 L/min
Operating Pressure (Equipment/Travel)	~35 MPa
Swing Pressure	~24.5 MPa
Pilot Oil Pressure	~3.9 MPa

Dimensions & Structure

• ** Track Shoe Width:** ~600 mm
• (Note: Other dimensions such as shipping height, width, and length may vary slightly depending on the specific undercarriage and stick combination.)

️Service Refill Capacities (Reference)

System / Component	Capacity
Cooling System	~30 L
Engine Oil	~30 L
Hydraulic System (Total incl. tank)	~300 L
Hydraulic Tank	~145 L
Swing Drive	~10 L
Final Drive (Each Side)	~6 L
