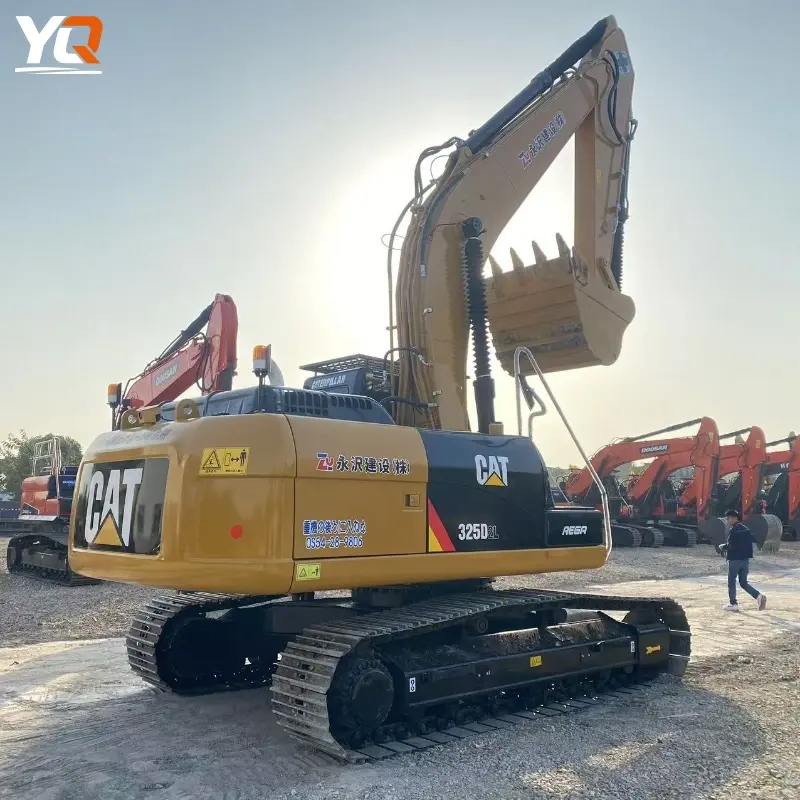

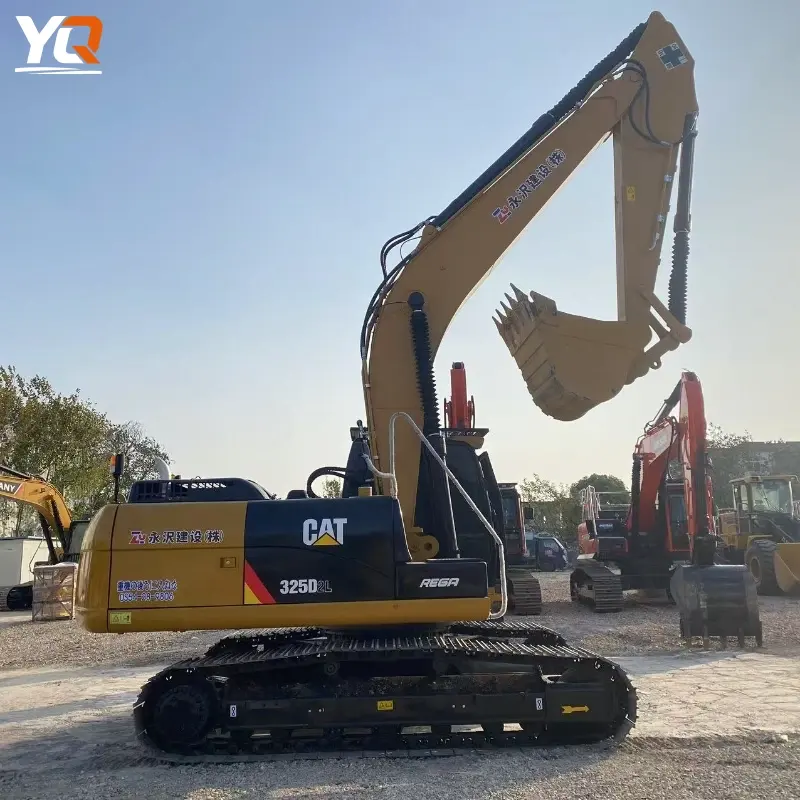

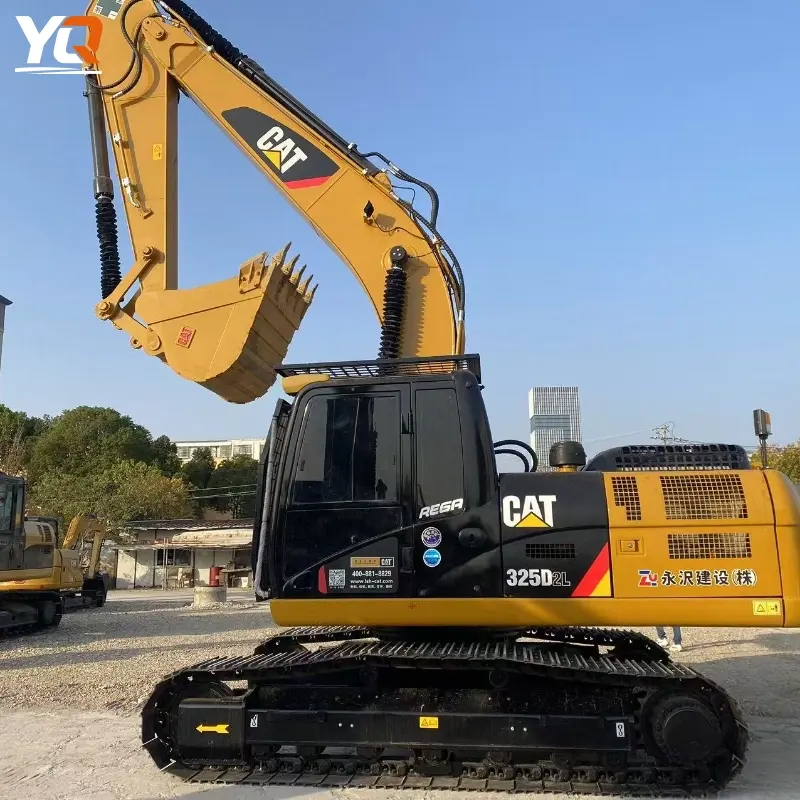

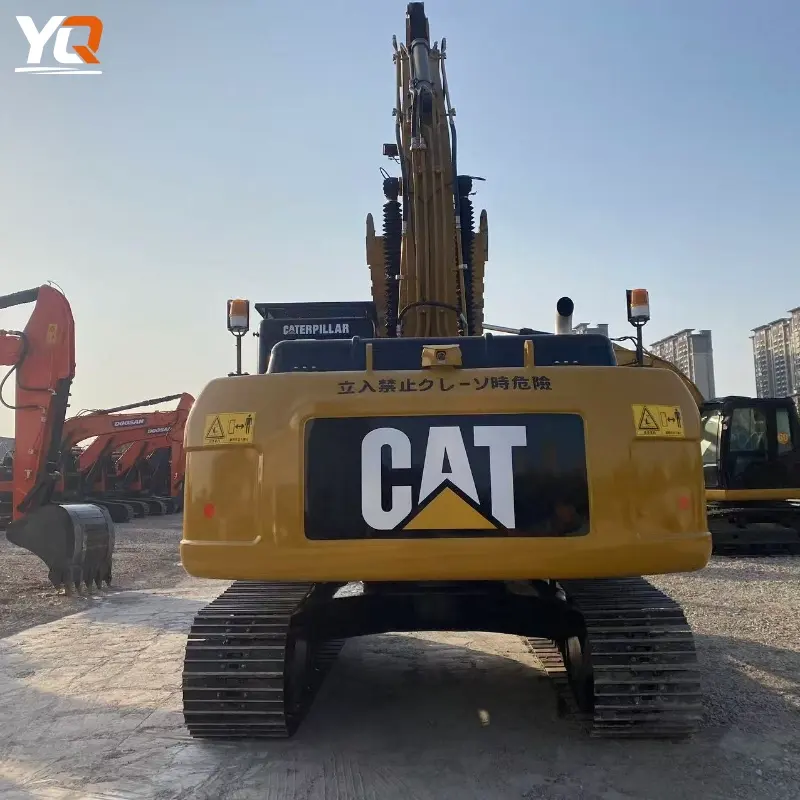

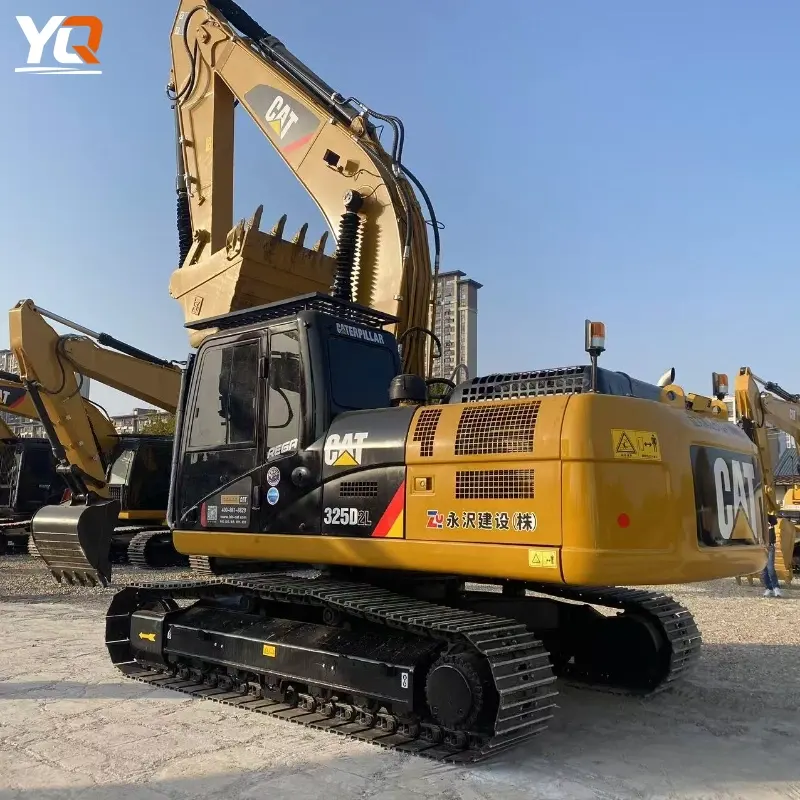

Original Used CAT 325D Hydraulic Excavator Good Condition Global Supply For Sale

Description

General Specifications

• Model: Caterpillar 325D / 325D L Hydraulic Excavator (Standard & Long Undercarriage)
• Engine Model: Cat® C7 Engine (ACERT Technology)
• Displacement: 7.2 L (440 cu in)
• Rated Power: ≈ 140 kW / 188 hp (ISO 9249)
• Fuel Tank Capacity: ~ 520 L (137 gal)
• Operating Weight:
  • Standard Undercarriage: ~ 26,900 kg (~ 26.9 t)
  • Long Undercarriage (L): ~ 29,240 kg (~ 29.2 t)

🏗️ Operating Performance

Parameter	Value
Max. Digging Depth	~ 6,700 mm (~ 6.7 m)
Max. Reach at Ground Level	~ 9,780–9,900 mm (~ 9.8–9.9 m)
Max. Cutting Height	~ 10,970 mm (~ 10.97 m)
Max. Loading Height	~ 7,900 mm (~ 7.9 m)
Bucket Capacity	Common ~ 0.8 – 1.6 m³ (Depending on bucket type)
Bucket Digging Force (ISO)	~ 150 kN (~ 15.3 tf)
Stick (Arm) Digging Force (ISO)	~ 106 kN (~ 10.8 tf)

⚙️ Hydraulic & Drive

Item	Value
Max. Hydraulic Flow (Main Pump)	~ 2 × 235 L/min (Total ~ 470 L/min)
Max. Equipment Pressure	~ 35,000 kPa (~ 5,076 psi)
Max. Heavy Lift Pressure	~ 36,000 kPa (~ 5,221 psi)
Max. Swing Pressure	~ 27,500 kPa (~ 3,988 psi)
Swing Speed	~ 10.2 rpm (Long Undercarriage)
Max. Travel Speed	~ 5.3 km/h (~ 3.3 mph)
Max. Drawbar Pull	~ 249 kN (~ 25.4 tf)

📏 Dimensions (Typical for Long Undercarriage)

Dimension	Value (Approx.)
Shipping Height (Top of Cab)	~ 3,040 mm (~ 3.04 m)
Transport Width	~ 3,390 mm (~ 3.39 m)
Track Gauge	~ 2,590 mm (~ 2.59 m)
Track Length (On Ground)	~ 4,460 mm (~ 4.46 m)
Ground Clearance	~ 490 mm (~ 0.49 m)
Tail Swing Radius	~ 3,080 mm (~ 3.08 m)

⛽ Service Refill Capacities (Reference Data)

System	Capacity
Fuel Tank	~ 520 L (137 gal)
Cooling System	~ 30 L (~ 8 gal)
Engine Oil	~ 30 L (~ 8 gal)
Hydraulic System (Including Tank)	~ 310 L (~ 82 gal)
Hydraulic Tank	~ 145 L (~ 38 gal)
Swing Drive	~ 10 L (~ 2.6 gal)
Final Drive (Each Side)	~ 6 L (~ 1.6 gal)

Shipping

FAQ

• Q

  What used construction machines do you mainly supply?

  A

  We supply used excavators, loaders, motor graders, road rollers, forklifts, etc.
• Q

  What brands of machines are available?

  A

  Our main brands include Caterpillar, Komatsu, Doosan, Hitachi, Kubota, Hyundai, Volvo, and other well-known brands.
• Q

  Do you export to overseas markets?

  A

  Yes, we have rich export experience and a professional shipping team. Our customers are from South America, Europe, Africa, and all over the world.
• Q

  How about the quality and price of your machines?

  A

  All our machines are in good working condition with reliable performance and competitive prices. All prices of the machine can be negotiated.
