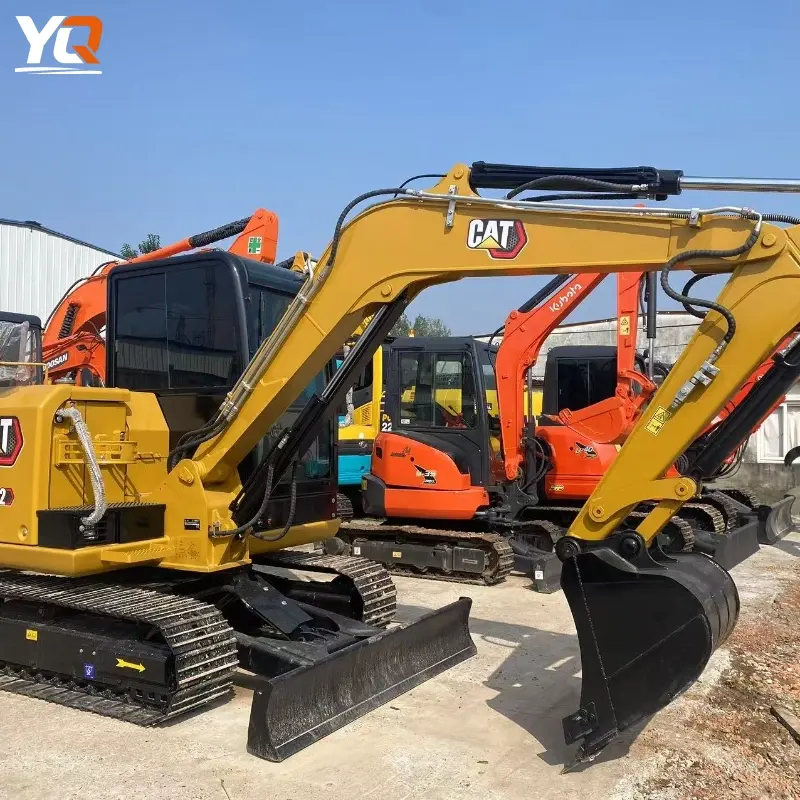

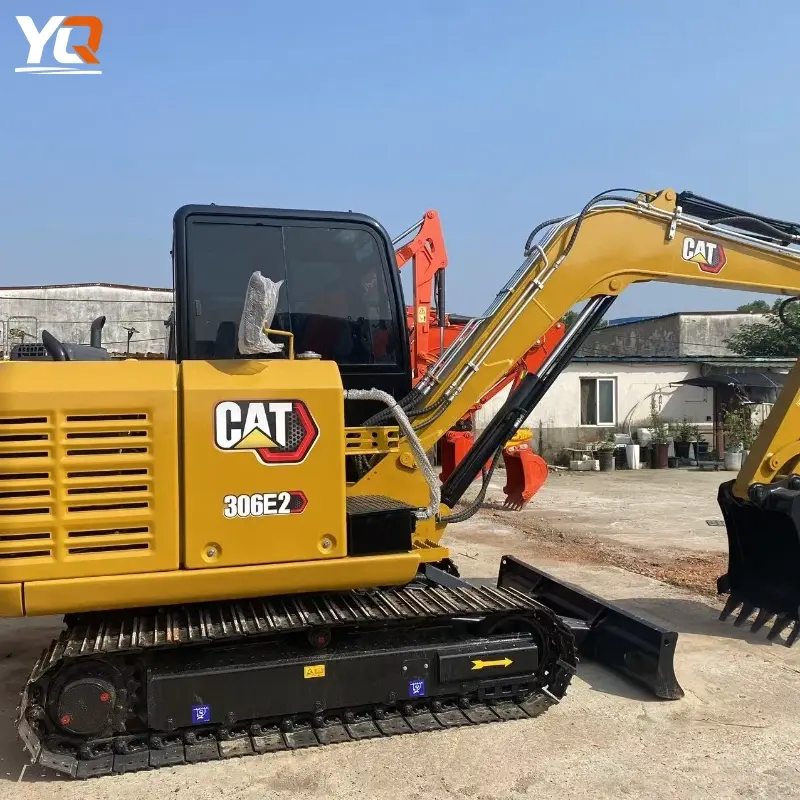

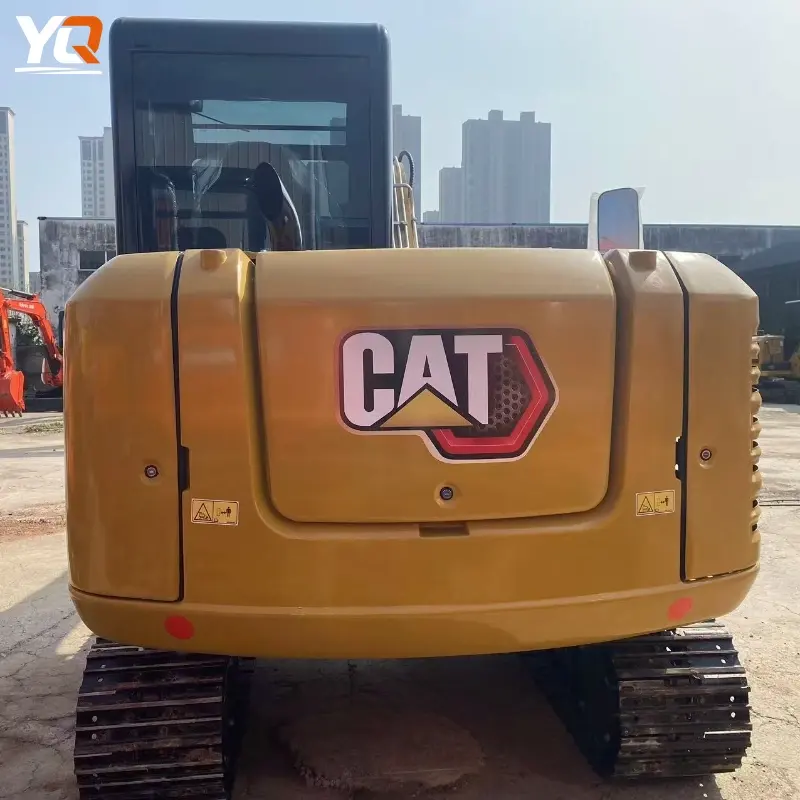

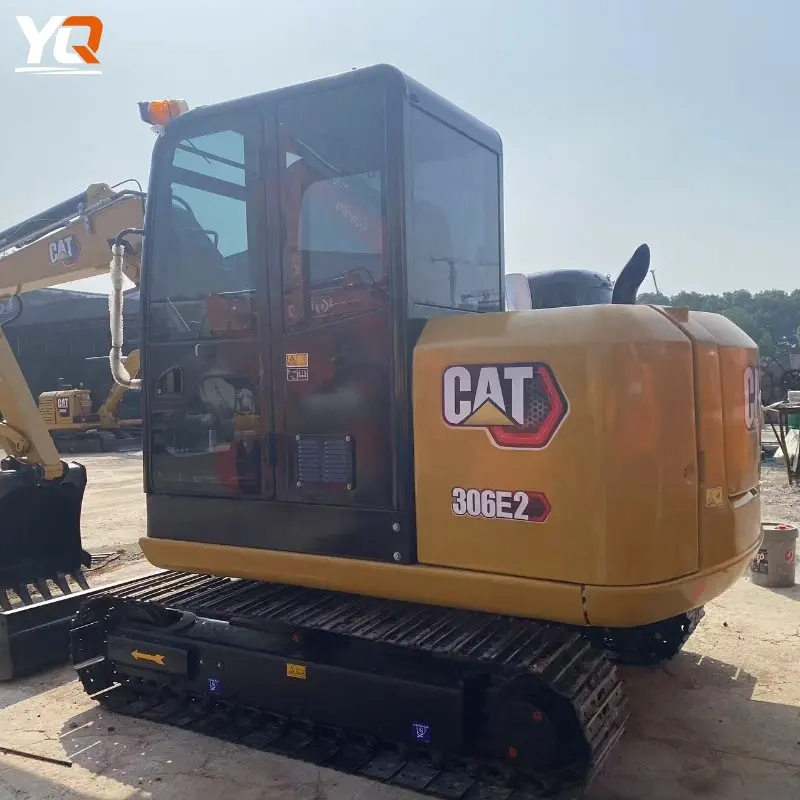

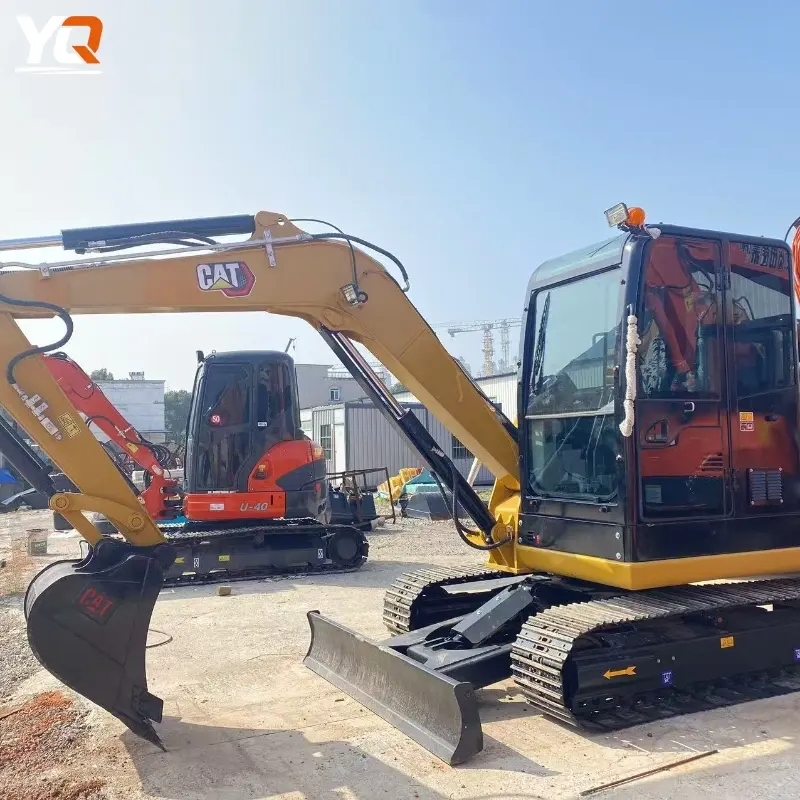

Low Hours Competitive Price 90% New Used CAT 306E2 Excavator

Description

Basic Information​

Model Name: Caterpillar 306E2 Compact Hydraulic Excavator​

Overall Operating Weight: Approx. 5,800 kg (Including Standard Configuration: Bucket, Chassis, Operator, etc.)​

Standard Bucket Capacity: Approx. 0.25 m³ (Slight Variations Based on Actual Bucket Size)​

⚙️ Engine Parameters​

Parameter​	Specification​
Engine Model​	Cat® C2.4 (DI Turbo)​
Rated Net Power​	34.7 kW (Approx. 47.2 hp, per SAE J1349/ISO 9249)​
Rated Gross Power​	36.5 kW (ISO 14396)​
Displacement​	2.4 L (2,400 cm³)​
Bore × Stroke​	87 mm × 102.4 mm​
Cooling Method​	Water-Cooled​

💪 Power & Performance​

Performance Parameter​	Value​
Maximum Bucket Digging Force​	~39 kN​
Maximum Arm Digging Force​	~28 kN​
Maximum Traction Force​	~46.4 kN​
Travel Speed​	Low: 2.8 km/h / High: 4.3 km/h (Dual Speed)​
Gradeability​	≥ 50% (Approx. 25°)​
Swing Speed​	~10.5 rpm​

🛢️ Hydraulic System & Fuel Tanks​

Item​	Capacity / Parameter​
Maximum Main System Pressure (Equipment)​	25,000 kPa​
Maximum Swing System Pressure​	21,600 kPa​
Hydraulic Oil Tank Capacity​	58 L​
Total Hydraulic System Capacity​	85 L​
Fuel Tank Capacity​	78 L​
Engine Oil Change Capacity​	9.5 L​
Coolant Capacity​	8.3 L​

📏 Chassis Dimensions​

Parameter​	Value​
Transport Dimensions (L × W × H)​	Approx. 5,785 × 1,950 × 2,540 mm​
Track Shoe Width​	400 mm​
Track Ground Contact Length​	1,920 mm​
Track Gauge (Inner Distance)​	1,550 mm​
Rear Swing Radius​	~1,580 mm​

📌 Working Range (Reference)​

Operating Parameter​	Value​
Maximum Digging Depth​	~3,870 mm​
Maximum Digging Radius​	~6,090 mm​
Maximum Digging Height​	~5,530 mm​
Maximum Dumping Height​	~3,900 mm​

​

Shipping

FAQ

• Q

  What used construction machines do you mainly supply?

  A

  We supply used excavators, loaders, motor graders, road rollers, forklifts, etc.
• Q

  What brands of machines are available?

  A

  Our main brands include Caterpillar, Komatsu, Doosan, Hitachi, Kubota, Hyundai, Volvo, and other well-known brands.
• Q

  Do you export to overseas markets?

  A

  Yes, we have rich export experience and a professional shipping team. Our customers are from South America, Europe, Africa, and all over the world.
• Q

  How about the quality and price of your machines?

  A

  All our machines are in good working condition with reliable performance and competitive prices. All prices of the machine can be negotiated.
