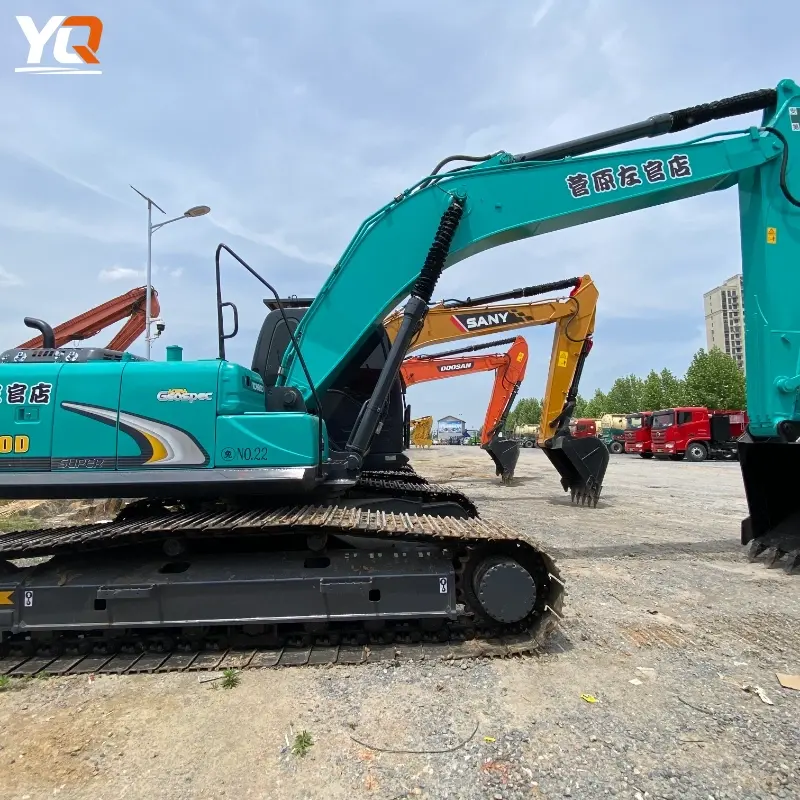

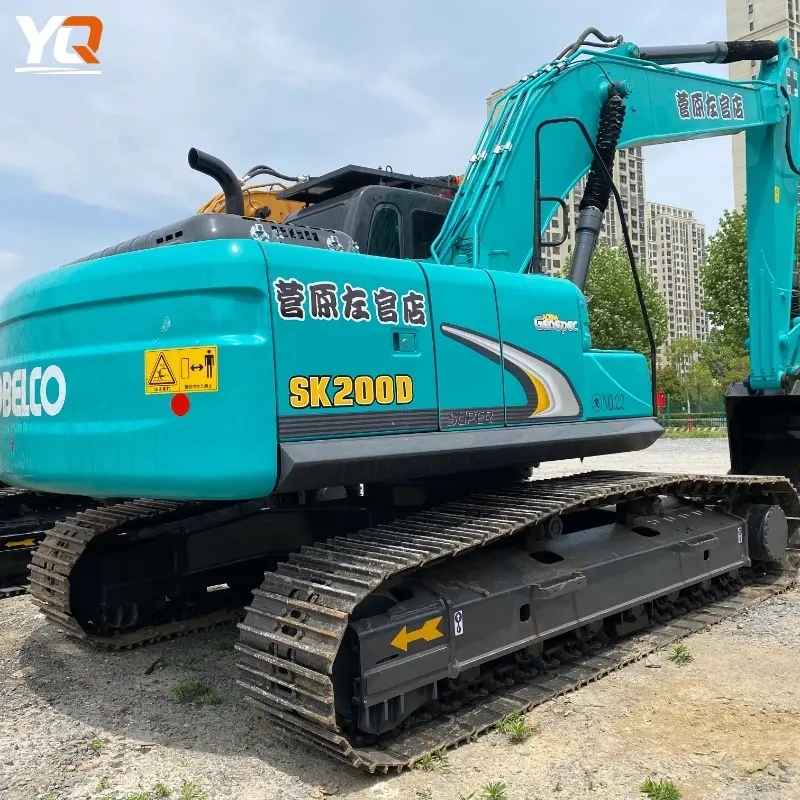

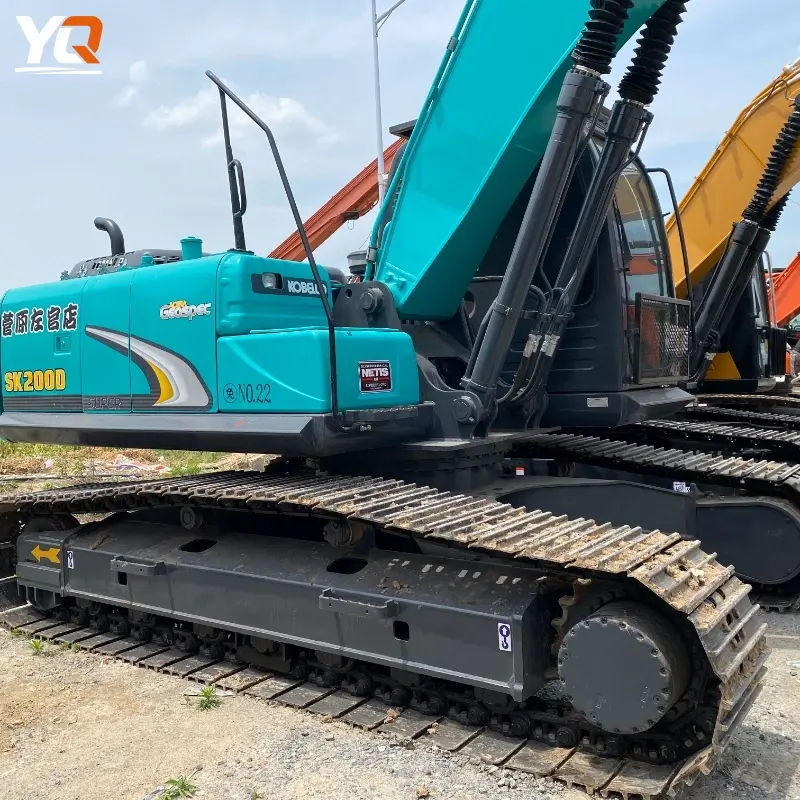

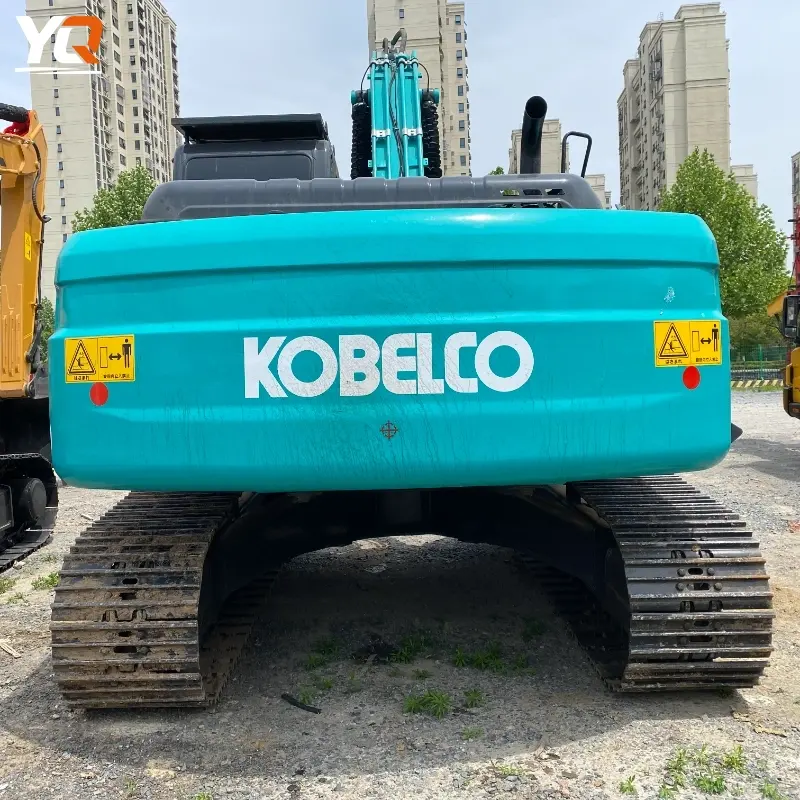

Well-Maintained Kobelco SK200 Hydraulic Excavator High Performance

Description

I. Basic Specifications

Parameter	Data
Model	Kobelco SK200-10 / SK200-12 (slight variations by model)
Operating Weight	≈ 20,600 – 21,400 kg (different versions)
Standard Bucket Capacity	≈ 0.80 – 1.0 m³ (ISO 14397)
Drive Type	Crawler-type
Application	General earthwork, municipal engineering, foundation construction, etc.

II. Engine & Power

Parameter	Data
Engine Model	HINO J05ETG (some regions) / Cummins F4.5 (National IV export version)
Type	Turbocharged, Water-Cooled, Direct Injection Diesel Engine
Rated Power	~108 – 118 kW @ 2000 rpm (ISO 14396)
Rated Torque	~592 N·m (some versions)
Fuel Tank Capacity	~320 – 420 L (depending on version)

III. Hydraulics & Travel

Parameter	Data
Hydraulic System	Dual Variable Displacement Pumps + Gear Pump (standard)
Hydraulic Tank Capacity	~140 – 244 L (including total hydraulic system capacity)
Travel Speed (High/Low)	≈ 6.0 / 3.6 km/h
Swing Speed	~11.0 – 13.3 rpm
Gradeability	~70 % (≈ 35°)
Traction Force	~228 kN

IV. Operating Range (Standard Arm)

Item	Value
Maximum Digging Depth	~6,700 mm
Maximum Digging Radius	~9,900 mm
Maximum Digging Height	~9,720 mm
Maximum Dumping Height	~6,910 mm
Maximum Vertical Digging Depth	~6,160 mm
Rear Swing Radius	~2,910 mm

V. Digging Force

Item	Data
Bucket Digging Force (ISO)	~143 kN
Bucket Digging Force (Power Boost)	~157 kN (some versions)
Arm Digging Force	~102 kN (standard)

VI. Dimensions (Typical Values)

Item	Value
Overall Length (Transport)	~9,600 mm
Overall Width	~2,800 mm
Overall Height	~2,980 mm
Track Shoe Width	600 mm (optional wider tracks)
Minimum Ground Clearance	~450 mm

Shipping

FAQ

• Q

  What used construction machines do you mainly supply?

  A

  We supply used excavators, loaders, motor graders, road rollers, forklifts, etc.
• Q

  What brands of machines are available?

  A

  Our main brands include Caterpillar, Komatsu, Doosan, Hitachi, Kubota, Hyundai, Volvo, and other well-known brands.
• Q

  Do you export to overseas markets?

  A

  Yes, we have rich export experience and a professional shipping team. Our customers are from South America, Europe, Africa, and all over the world.
• Q

  How about the quality and price of your machines?

  A

  All our machines are in good working condition with reliable performance and competitive prices. All prices of the machine can be negotiated.
