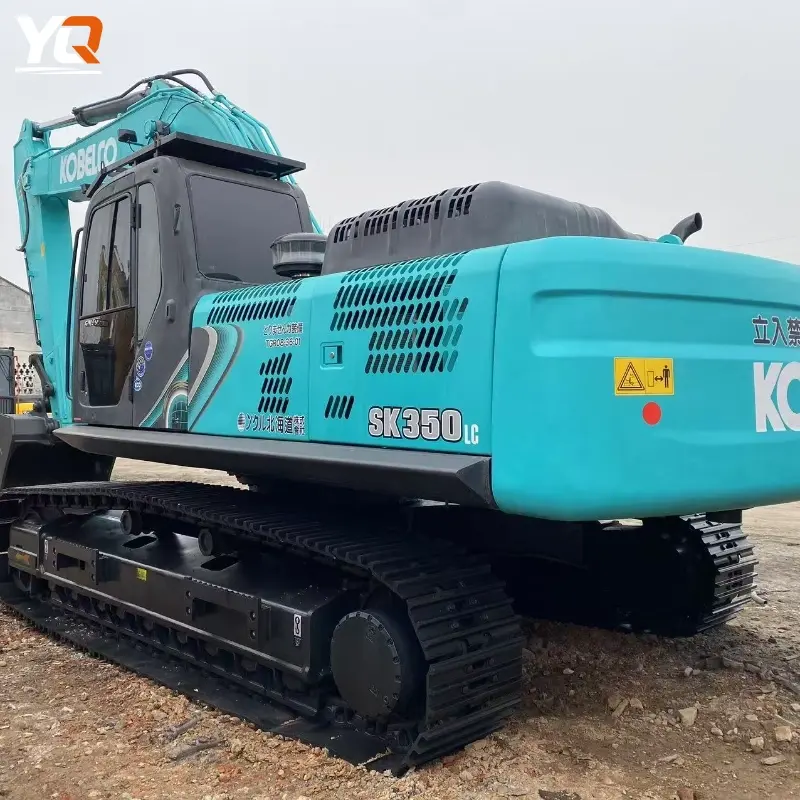

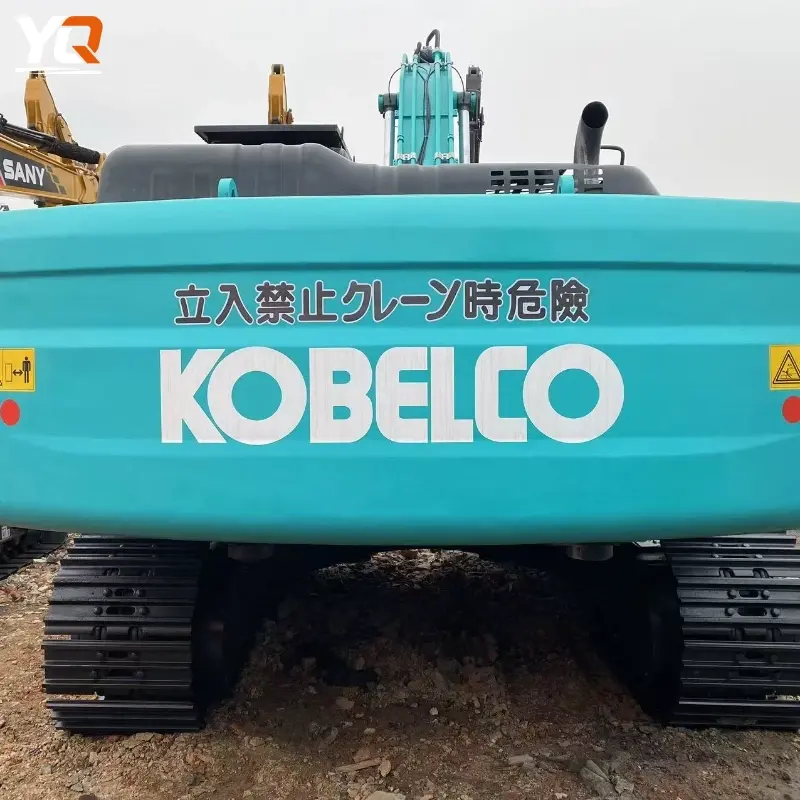

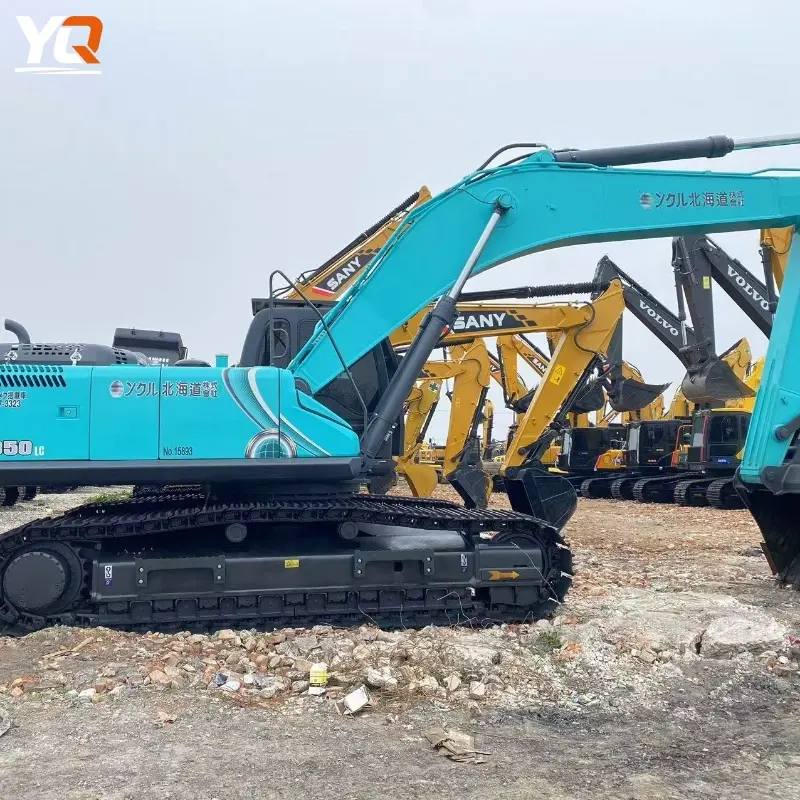

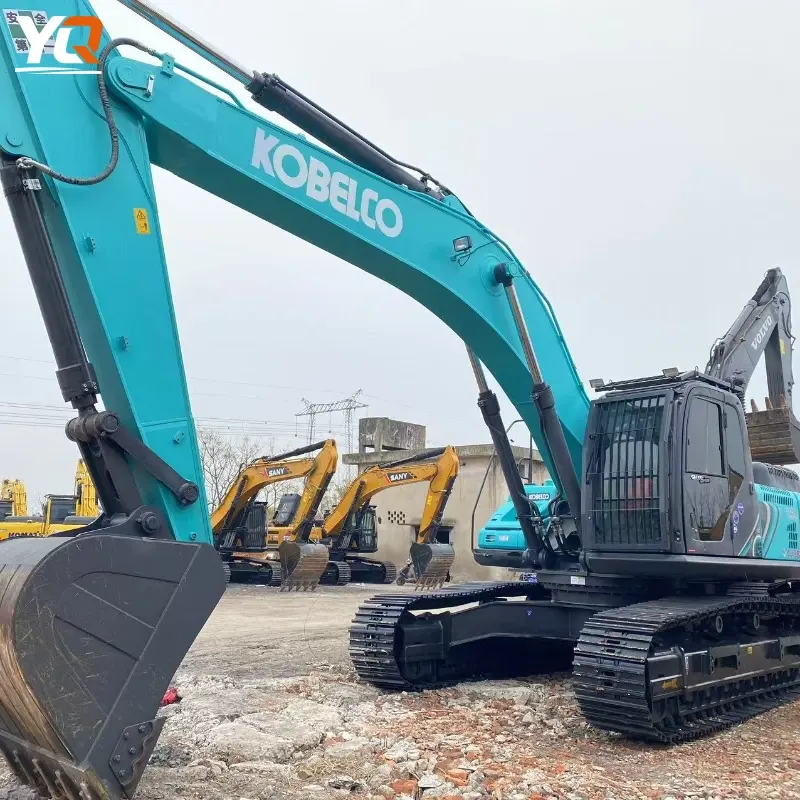

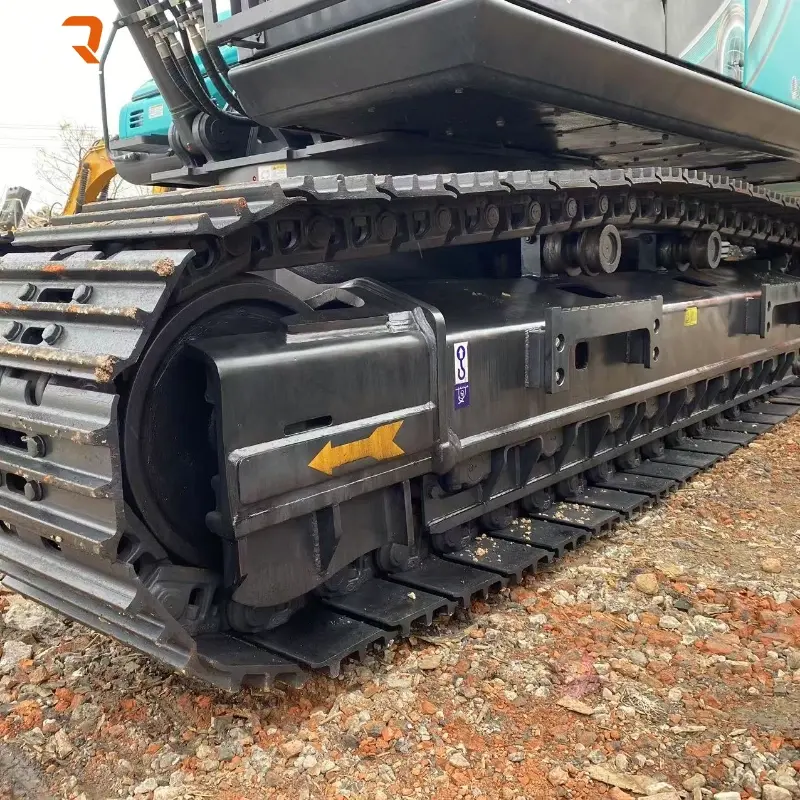

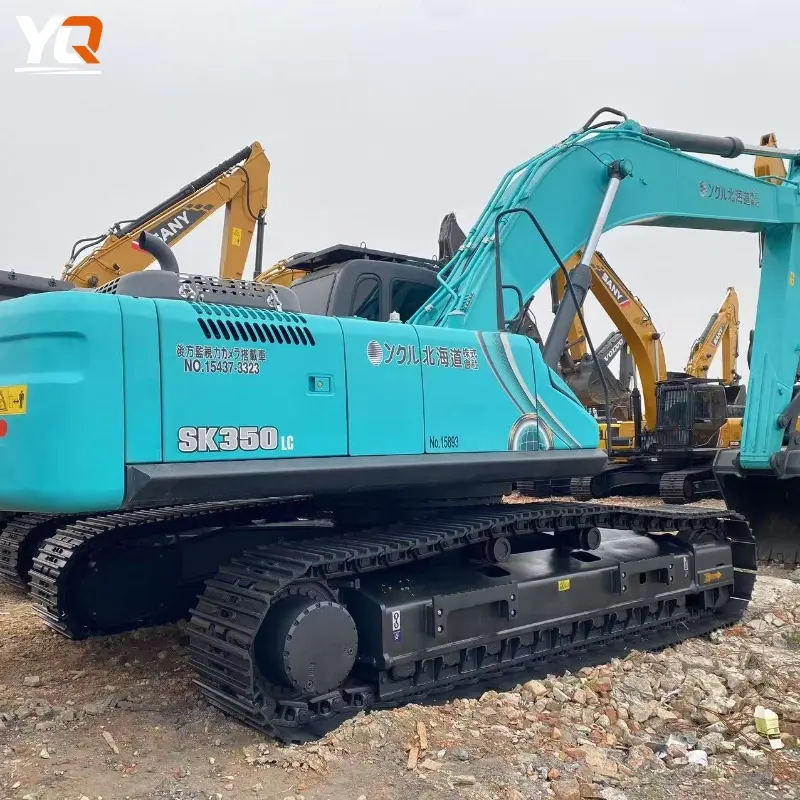

Pre-Owned Kobelco SK350 Heavy Excavator Powerful Engineering Equipment

Description

I. Basic Specifications

Parameter	SK350 Series
Model Classification	SK350LC-10 / SK350(N)LC-11E, etc. (35 t class)
Operating Weight	~36,900 – 38,600 kg (approximately 36.9 – 38.6 t)
Standard Bucket Capacity	1.2 – 1.8 m³ (depending on bucket specification)
Optional Bucket Capacity	1.4 – 2.3 m³ (configuration in some markets)
Category	Medium-Large Hydraulic Crawler Excavator

II. Engine & Power

Item	Parameter
Engine Model	ISUZU 6HK1 4-Stroke Turbocharged Diesel Engine (Stage V / Tier 3 and other versions)
Displacement	~7.79 L
Rated Output Power	210 kW @ ~1,900–2,100 rpm (approximately 280 hp)
Fuel Tank Capacity	~503 L

III. Travel & Hydraulic System

Item	Value
Travel Speed (High / Low)	~5.6 / 3.3 km/h
Gradeability	~70 % (≈35°)
Swing Speed	~10.0 rpm
Traction Force	~321 – 322 kN
Hydraulic Pump	2×Variable Displacement Pumps + Gear Pump + Pilot Pump (slight variations by regional version)
Total Hydraulic System Volume	Hydraulic tank ~245 L; total system volume ~410 L

IV. Operating Range (Typical Configuration)

Values vary slightly according to different arm lengths (short 2.60 m / standard 3.30 m / long 4.15 m):

Item	Value Range
Maximum Digging Depth	~6,860 – 8,410 mm
Maximum Digging Height	~10,260 – 10,700 mm
Maximum Digging Radius	~10,400 – 11,970 mm
Maximum Dumping Height	~7,060 – 7,530 mm
Minimum Swing Radius	~4,370 – 4,450 mm

V. Digging Force

Indicator	Typical
Bucket Digging Force	~221 – 244 kN (ISO; including Power Boost)
Arm Digging Force	~163 – 205 kN (depending on arm length)

Note: Output is higher with Power Boost, which can increase short-term operating force according to specific versions and working modes.

VI. Dimensions & Structure

Item	Typical Value
Overall Width	~3,190 – 3,400 mm
Overall Height (to cab top)	~3,150 – 3,640 mm
Track Shoe Width	600 / 700 / 800 mm (optional)
Track Center Distance	~2,590 – 2,600 mm
Rear Swing Radius	~3,600 mm
