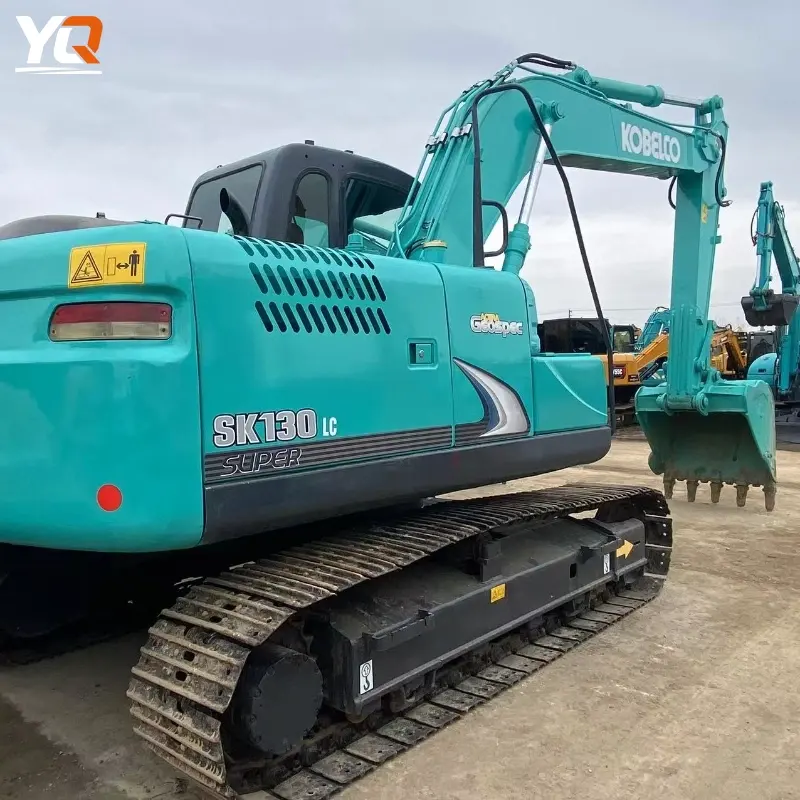

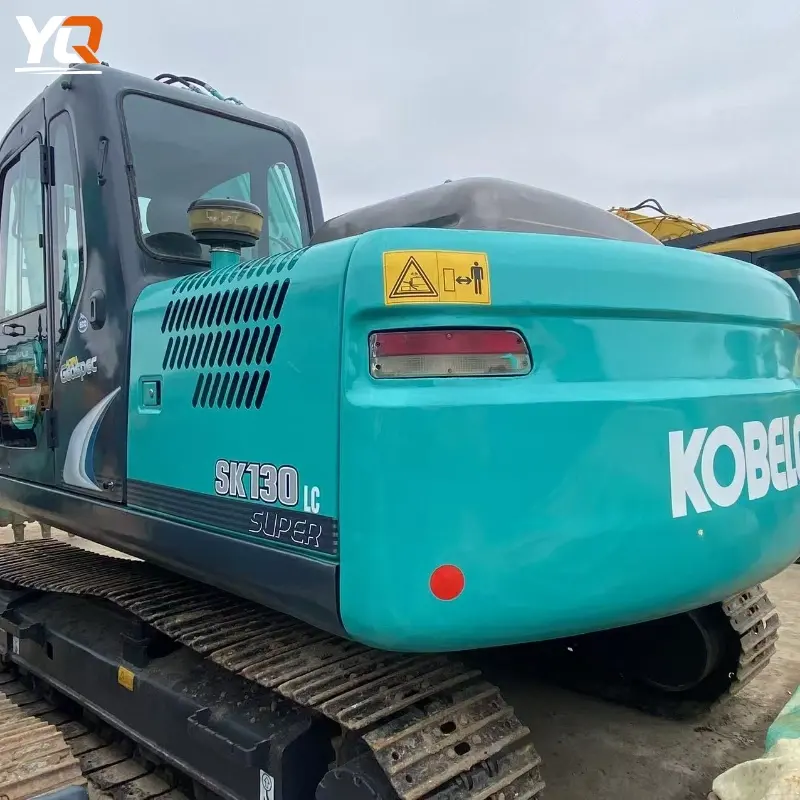

Second-Hand Kobelco SK130 Medium Excavator Durable Machine

Description

Weight & Dimensions

Item	Parameter
Operating Weight	~12,800 kg (SK130-8 standard)
Transport Dimensions (L×W×H)	~7,790 × 2,490 × 2,870 mm (typical value)
Track Shoe Width	500 mm (optional 600/700 mm)
Minimum Ground Clearance	~400–440 mm
Minimum Swing Radius	~2,620 – 2,750 mm

Engine & Power

Item	Parameter
Engine Type	Mitsubishi / Isuzu Turbocharged Diesel Engine (slight variations by version)
Rated Power	~74 kW @ 2000 rpm (SK130-8/10)
Rated Power (SK130-11 version)	~78.5 kW (approximately 107 PS)
Number of Cylinders	4 cylinders
Displacement	~3.0 – 4.2 L (depending on specific engine model)

Power & Performance

Parameter	Data
Travel Speed (High/Low)	5.6 / 3.4 km/h
Swing Speed	~11 rpm
Gradeability	70 % (approximately 35°)
Maximum Traction Force	~139-142 kN
Ground Pressure	~39-41 kPa

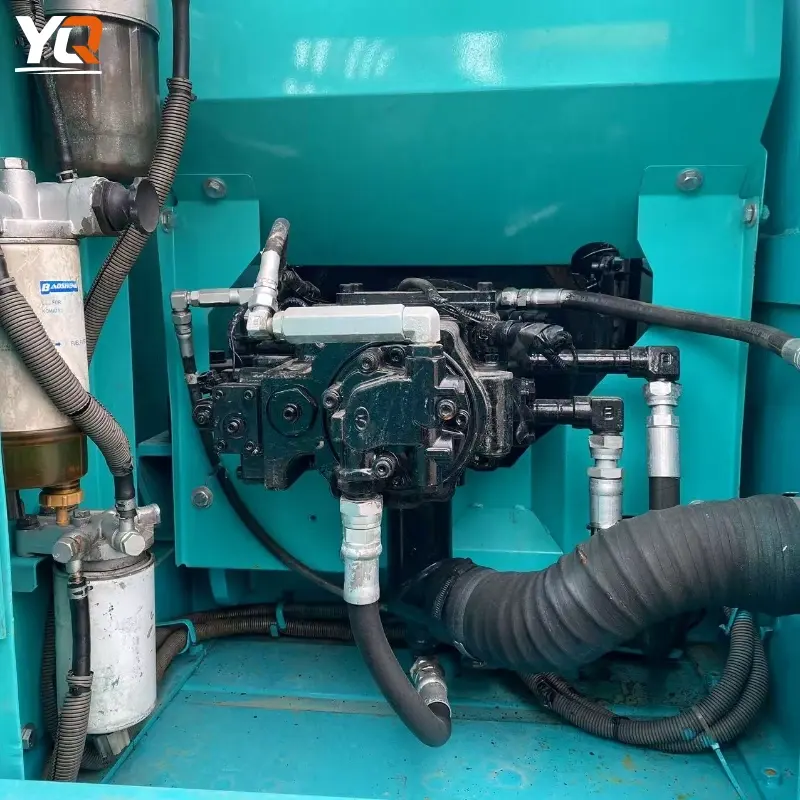

Hydraulic System

Item	Parameter
Hydraulic Pump	Dual Variable Displacement Pumps + Gear Pump
Hydraulic Tank Capacity	~101 L (hydraulic oil)
Total System Capacity	~172 L

Operating Range & Capacity

Item	Standard Arm/Long Arm (Optional)	Unit
Maximum Digging Depth	~5,520 – 5,980	mm
Maximum Digging Radius	~8,340 – 8,780	mm
Maximum Digging Height	~8,500	mm
Maximum Dumping Height	~6,090 – 6,390	mm
Horizontal Digging Stroke	~4,180 – 4,670	mm
Bucket Capacity (ISO)	~0.38 – 0.57 m³ (common 0.52 m³)
Bucket Digging Force	~90.1 kN
Arm Digging Force	~64 kN

Fuel & Fluid Capacities (Typical)

Item	Value
Fuel Tank Capacity	~275 – 280 L
Hydraulic Tank Capacity	~96.7 L

Shipping

FAQ

• Q

  What used construction machines do you mainly supply?

  A

  We supply used excavators, loaders, motor graders, road rollers, forklifts, etc.
• Q

  What brands of machines are available?

  A

  Our main brands include Caterpillar, Komatsu, Doosan, Hitachi, Kubota, Hyundai, Volvo, and other well-known brands.
• Q

  Do you export to overseas markets?

  A

  Yes, we have rich export experience and a professional shipping team. Our customers are from South America, Europe, Africa, and all over the world.
• Q

  How about the quality and price of your machines?

  A

  All our machines are in good working condition with reliable performance and competitive prices. All prices of the machine can be negotiated.
