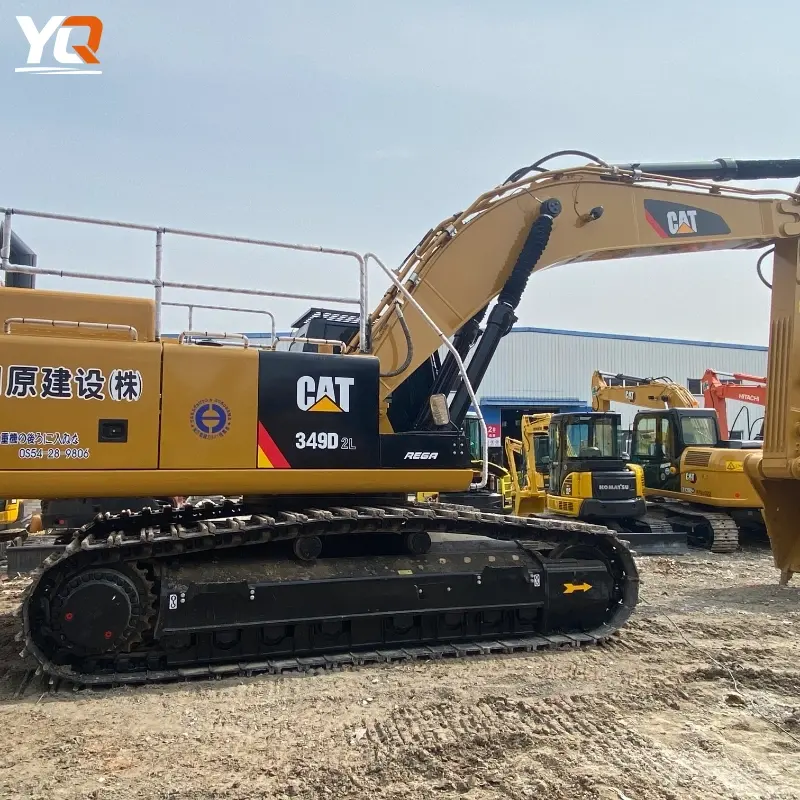

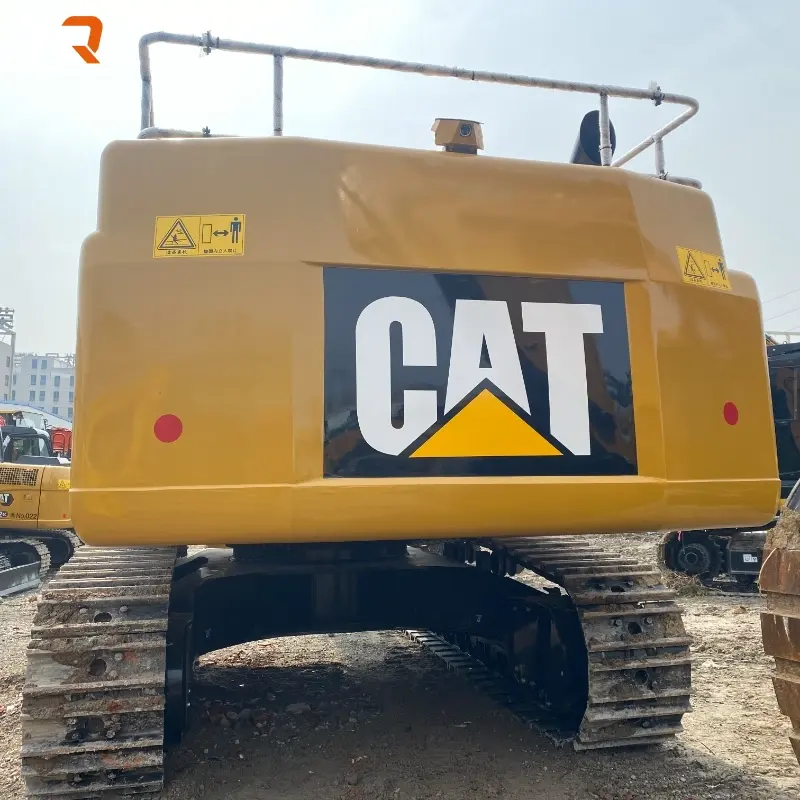

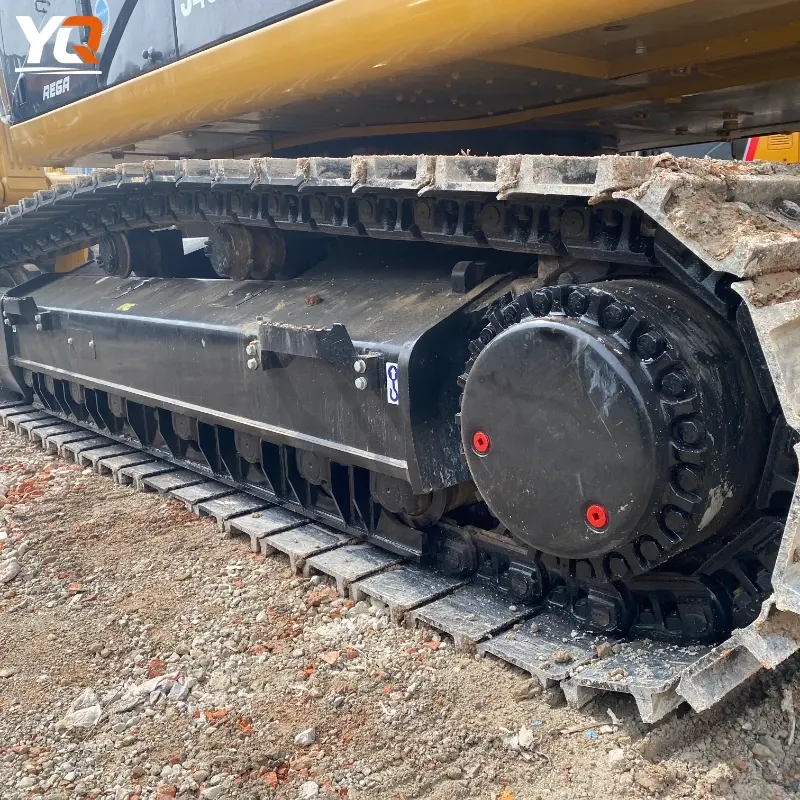

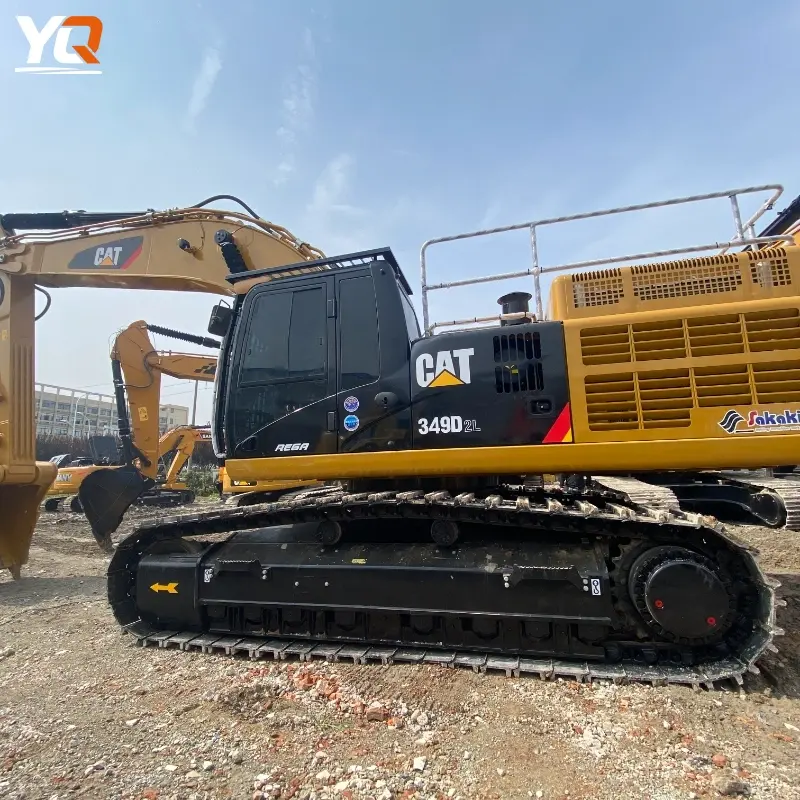

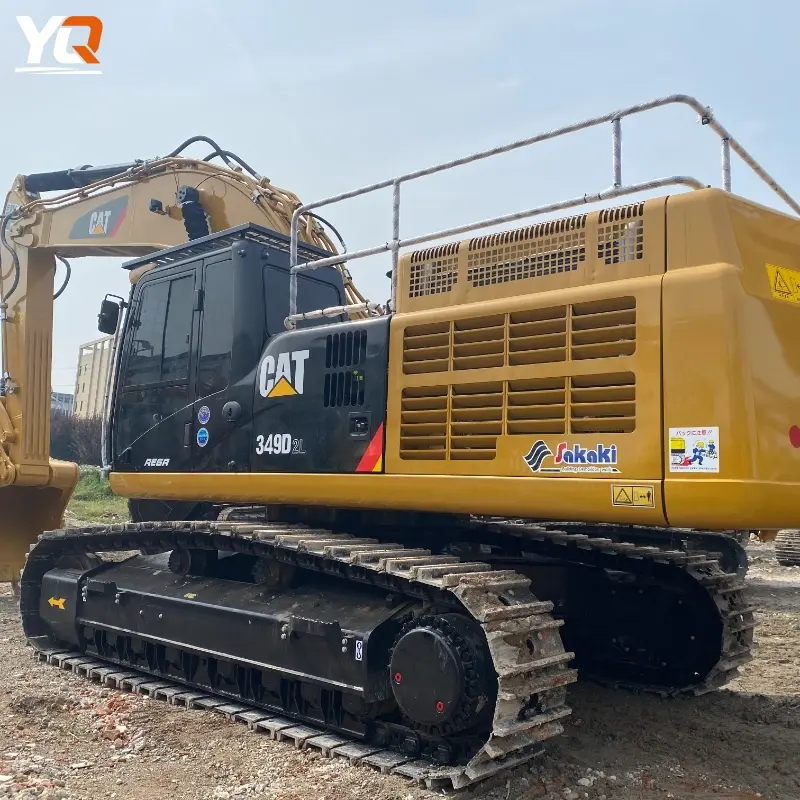

Used CAT 349D Heavy Excavator Original Engine Good Condition

Description

I. Basic Information

Model: Caterpillar 349D Hydraulic Excavator (including 349D L Long Undercarriage Version)
Engine Model: Cat® C13 Turbocharged Diesel Engine (ACERT Technology)
Displacement: ~12.5 L (763 in³)
Engine Power: ~283 kW (≈380 hp) (ISO 9249/SAE J1349 Standard Power)
Fuel Tank Capacity: ~705 L
Operating Weight: ~44,856 – 51,073 kg (approx. 45 – 51 t, depending on undercarriage/configuration)

🏗️ II. Performance (Typical)

Parameter	Value
Maximum Digging Depth	~8,150 – 8,200 mm (approx. 8.1 m)
Maximum Horizontal Reach (at Ground Level)	~11,240 – 12,080 mm (approx. 11.2 – 12.1 m)
Maximum Dumping Height	~7,470 mm (typical configuration)
Maximum Vertical Wall Digging Depth	~6,300 – 6,460 mm
Bucket Capacity Range (Reference)	~1.8 – 3.1 m³ (varies by bucket type and application)
Bucket Digging Force (ISO)	~266 – 297 kN (with different stick/bucket)
Arm Digging Force (ISO)	~185 – 240 kN (depends on arm length/heavy-duty configuration)

Note: The above values are derived from Caterpillar official series performance range charts. Different arm/bucket combinations will cause variations in specific digging depths and dumping heights.

💧 III. Hydraulic System

Item	Parameter
Main Pump Maximum Flow (Total)	~734 L/min
Maximum Working Pressure (Equipment/Travel)	35,000 kPa (≈5076 psi)
Pilot System Maximum Flow/Pressure	~43 L/min / 4110 kPa
Total Hydraulic System Capacity	~570 L
Hydraulic Oil Tank Capacity	~243 L

🚶‍♂️ IV. Travel and Movement

Item	Value
Maximum Travel Speed	~4.5 km/h
Maximum Drawbar Pull	~338 kN
Swing Speed	~8.7 rpm
Swing Torque	~149 kN·m (Long Undercarriage High-Spec)

📏 V. Dimensions & Structure (Typical)

Dimension Item	Approx. Value
Overall Length (with Bucket)	~11,950 mm
Overall Width	~3,640 mm
Overall Height (Including Cab)	~3,210 – 3,660 mm
Shoe Width (Standard)	~750 mm
Ground Clearance	~510 mm
Track Length on Ground	~4,360 mm
Track Gauge	~2,740 mm

🛢️ VI. Refill Capacities (Reference)

System	Capacity
Fuel Tank	~705 L
Engine Coolant	~35.5 L
Engine Oil	~42 L
Swing Drive (each)	~10 L
Final Drive (each)	~15 L
Total Hydraulic System	~570 L
