| Basic Machine Parameters | |
| Model Name | Caterpillar 330D Tracked Hydraulic Excavator (including 330D L and other undercarriage configurations) |
| Engine Model | Cat® C9 ACERT Turbocharged Diesel Engine |
| Rated Net Power | 200 kW / 268–270 hp @ 1800 rpm |
| Displacement | 8.8 L (537 cu in) |
| Fuel Tank Capacity | 620 L |
| Standard Version | 33,750 kg (approx. 33.8 t) |
| Reference Bucket Capacity | 1.4 – 2.0 m³ |










Cat

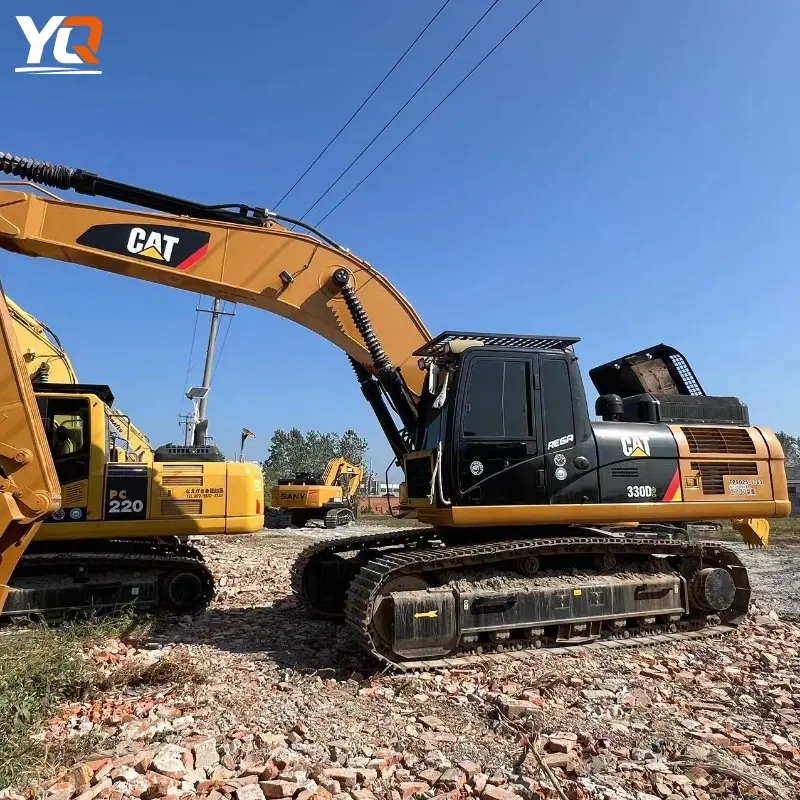

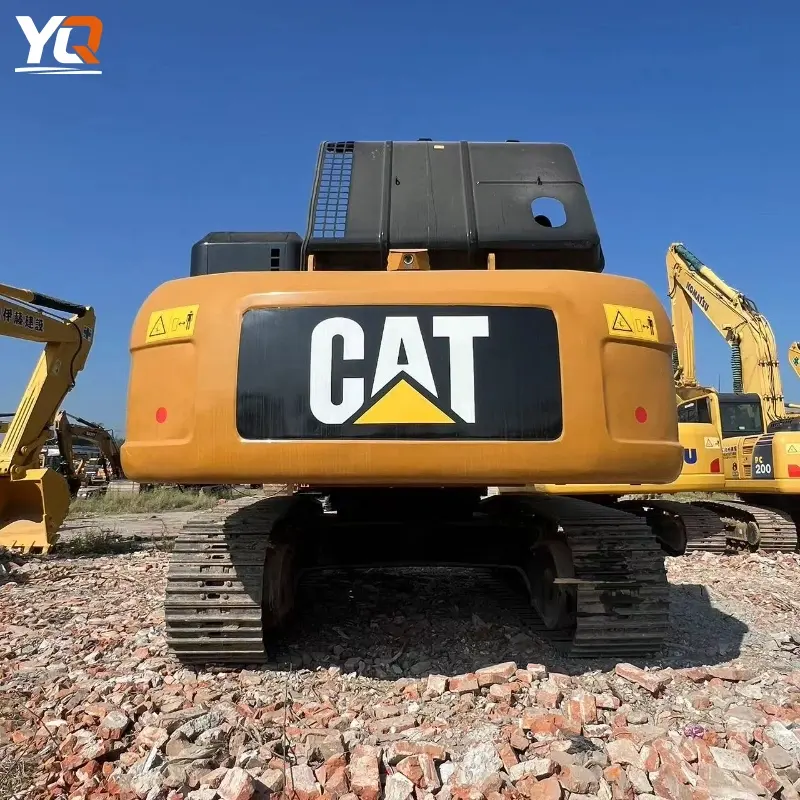

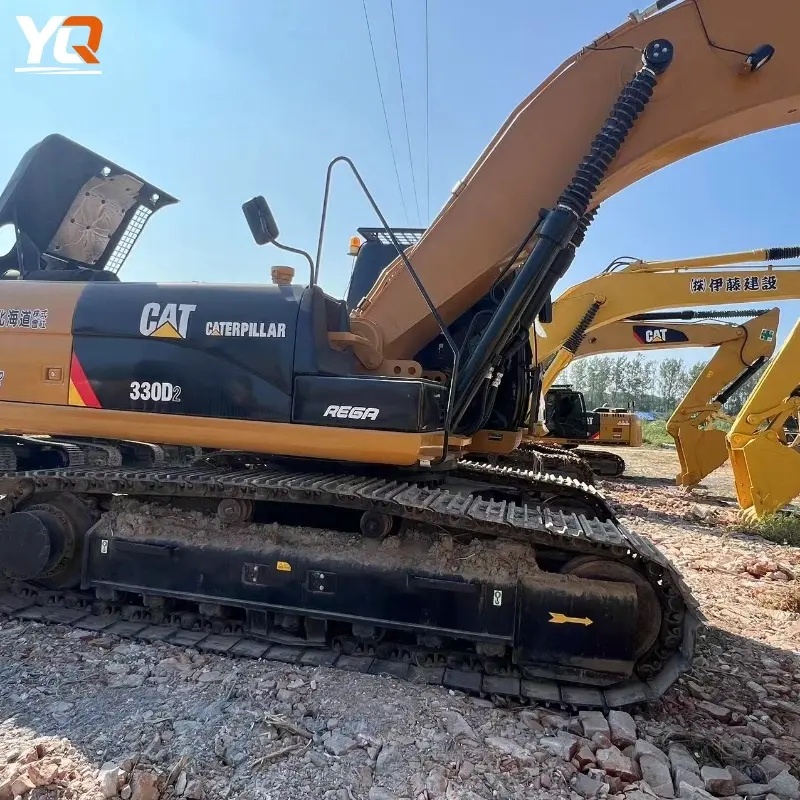

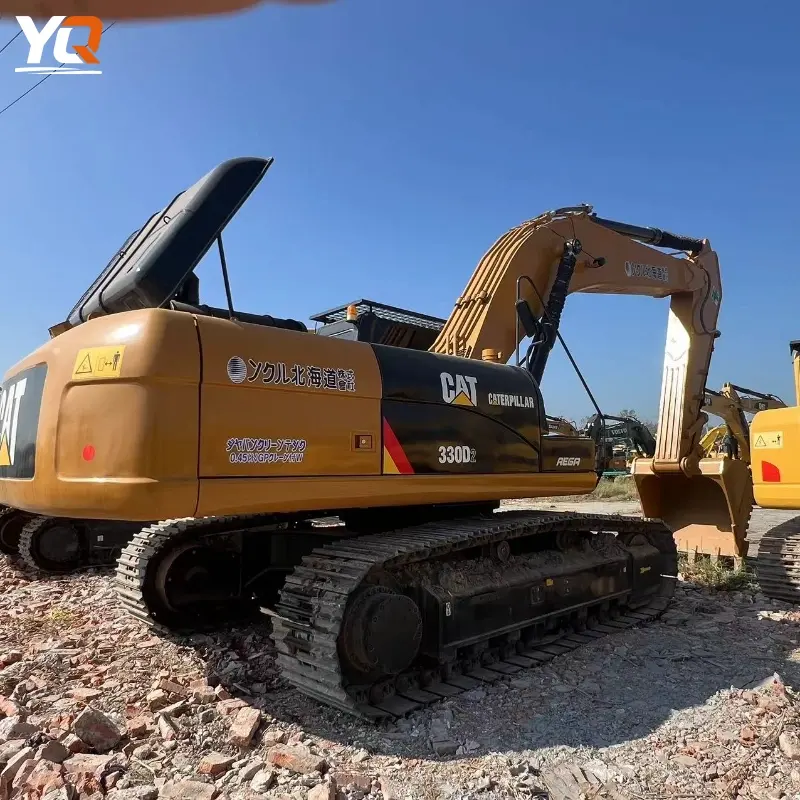

Durable Used CAT 330D Heavy Excavator Well-maintained Engineering Machinery Supplier
Fob Price: $35000~$38000
- Detailed description
Description
I. Basic Machine Parameters
Model Name: Caterpillar 330D Tracked Hydraulic Excavator (including 330D L and other undercarriage configurations)
Engine Model: Cat® C9 ACERT Turbocharged Diesel Engine
Rated Net Power: ~200 kW / 268–270 hp @ 1800 rpm
Displacement: ~8.8 L (537 cu in)
Fuel Tank Capacity: ~620 L
Operating Weight:
- Standard Version ≈ 33,750 kg (approx. 33.8 t)
- Typical 330D L ≈ 36,150 kg (approx. 36.1 t)
Reference Bucket Capacity: ~1.4 – 2.0 m³ (standard common)
🧱 II. Performance (Typical Configuration)
| Index | Approx. Value |
|---|---|
| Maximum Digging Depth | ~7,390 mm (varies slightly with different arm/stick) |
| Maximum Dumping Height | ~7,200 mm or higher (depends on actual arm length) |
| Maximum Horizontal Reach | ~10,900 mm |
| Bucket Digging Force | ~222 kN (typical reference) |
| Arm Digging Force | ~146 kN (typical reference) |
🌊 III. Hydraulic System
Main Pump Max. Flow: ~280 L/min (approx. 74 gpm)
Main Relief Setting Pressure: ~35 MPa (350 bar)
Travel/Equipment Pressure: ~35 MPa; Swing Pressure: ~28 MPa
🚶♂️ IV. Travel and Movement
| Item | Approx. Value |
|---|---|
| Swing Speed | ~10 rpm |
| Maximum Travel Speed | ~5 km/h |
| Maximum Drawbar Pull | ~240 kN (varies slightly by undercarriage) |
📏 V. Structural Dimensions (Reference)
| Dimension Item | Typical Value |
|---|---|
| Overall Shipping Length | ~11,150 – 11,210 mm |
| Shipping Width | ~3,190 mm |
| Overall Cab Height | ~3,300 – 3,400 mm |
| Track Gauge | ~2,590 mm |
| Minimum Ground Clearance | ~450 mm |
🛢️ VI. Refill Capacities (Reference)
| System | Capacity |
|---|---|
| Fuel Tank | ~620 L |
| Cooling System | ~40 L |
| Engine Oil | ~40 L |
| Hydraulic System Oil | ~410 L |
| Swing Drive Oil | ~11 L |
