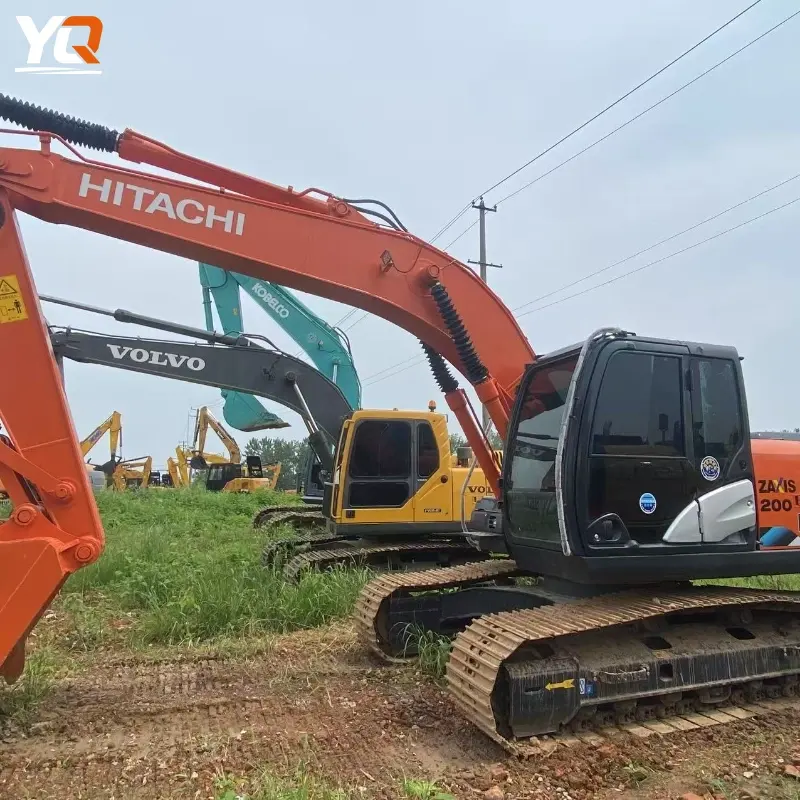

High Quality Used Hitachi ZX200-5G Crawler Excavator Well-maintained For Sale

Description

I. Basic Parameters

Item	Parameter (Typical)
Model Name	Hitachi ZX200-5G
Operating Weight	~ 19,800 kg – 20,400 kg (varies by configuration and track width)
Engine Model	Isuzu CC-6BG1T
Engine Displacement	~ 6.494 L
Engine Rated Power	~ 125 kW (≈168 HP) @ 2,100 rpm
Fuel Tank Capacity	~ 400 L
Bucket Capacity (ISO Heaped)	~ 0.51 – 1.20 m³

🛠️ II. Power and Hydraulic System

System/Parameter	Value / Description
Engine Type	6-Cylinder, Water-cooled, Direct Injection, Turbocharged + Intercooled
Maximum Torque	~ 637 Nm @ 1,800 rpm
Hydraulic Pump	2 × Variable Displacement Axial Piston Pumps
Main Pump Total Flow	~ 2 × 212 L/min
Hydraulic System Working Pressure	~ 34.3 MPa (350 kgf/cm²)
Pilot Pump Flow	~ 33.6 L/min

⚙️ III. Performance

Item	Approx. Value
Maximum Digging Depth	~ 6,670 mm
Maximum Horizontal Reach (at ground level)	~ 9,750 – 9,920 mm
Maximum Dumping Height	~ 7,180 mm
Maximum Vertical Wall Digging Depth	~ 5,990 mm
Bucket Digging Force (ISO)	~ 158 kN
Arm Digging Force	~ 114 kN

🚶‍♂️ IV. Travel & Swing

Item	Typical Value
Travel Speed	High: ~ 5.5 km/h; Low: ~ 3.5 km/h
Swing Speed	~ 13.5 rpm
Maximum Drawbar Pull	~ 203 kN
Gradeability	~ 70 % (approx. 35°)
Ground Pressure	~ 44 kPa

📐 V. Dimensions (Transport and Undercarriage)

Dimension Item	Approx. Value
Shipping Length	~ 9,660 mm
Shipping Width	~ 2,860 mm
Shipping Height	~ 3,010 mm
Track Shoe Width	~ 600 mm
Track Length on Ground	~ 3,300 – 3,370 mm
Minimum Ground Clearance	~ 450 mm
Rear Swing Radius	~ 3,180 mm

🛢️ VI. Fluids and Capacities (Reference)

System	Approx. Capacity
Fuel Tank	~ 400 L
Total Hydraulic Oil	~ 240 L
Hydraulic Oil Tank	~ 135 L
Engine Oil	~ 25 L
Engine Coolant	~ 23 L
Swing Drive Oil	~ 6.2 L
