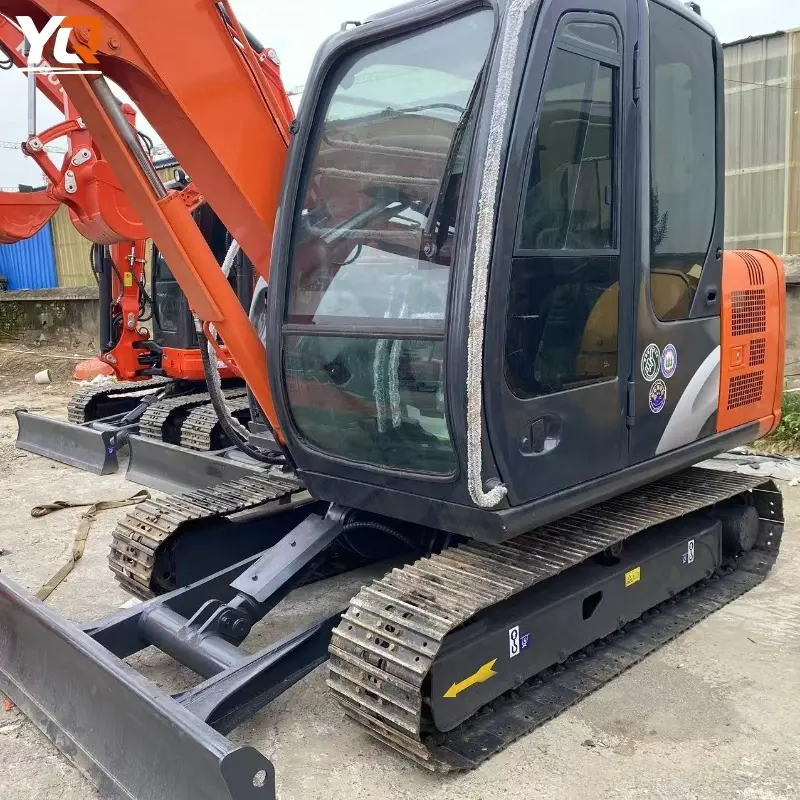

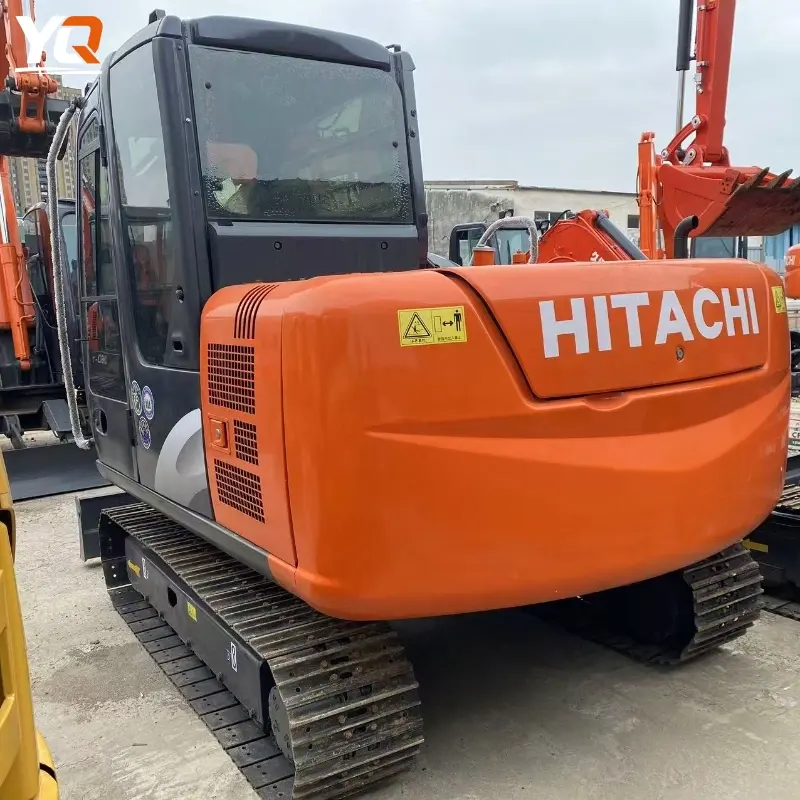

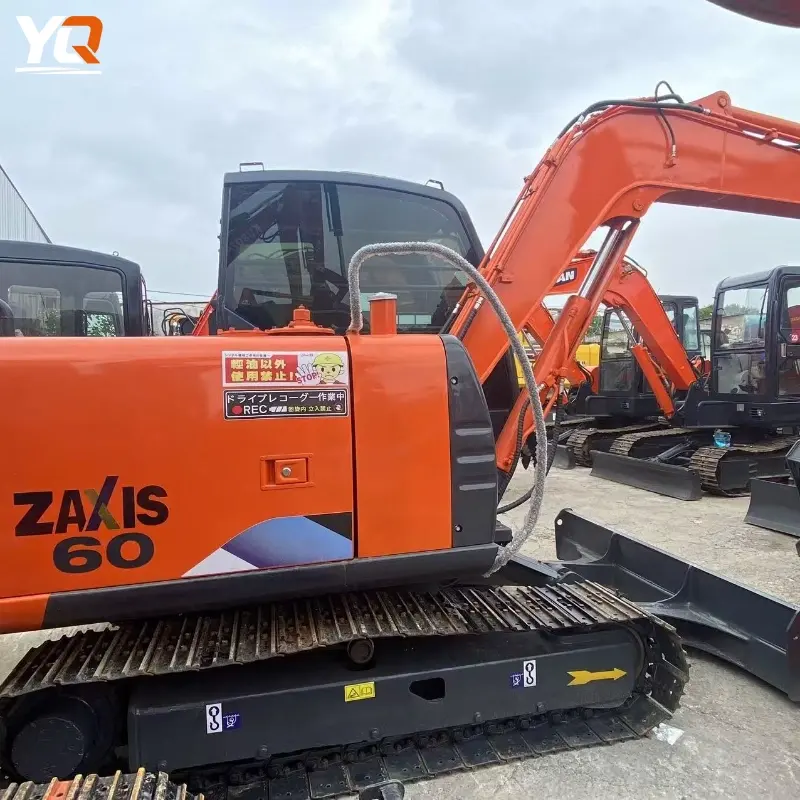

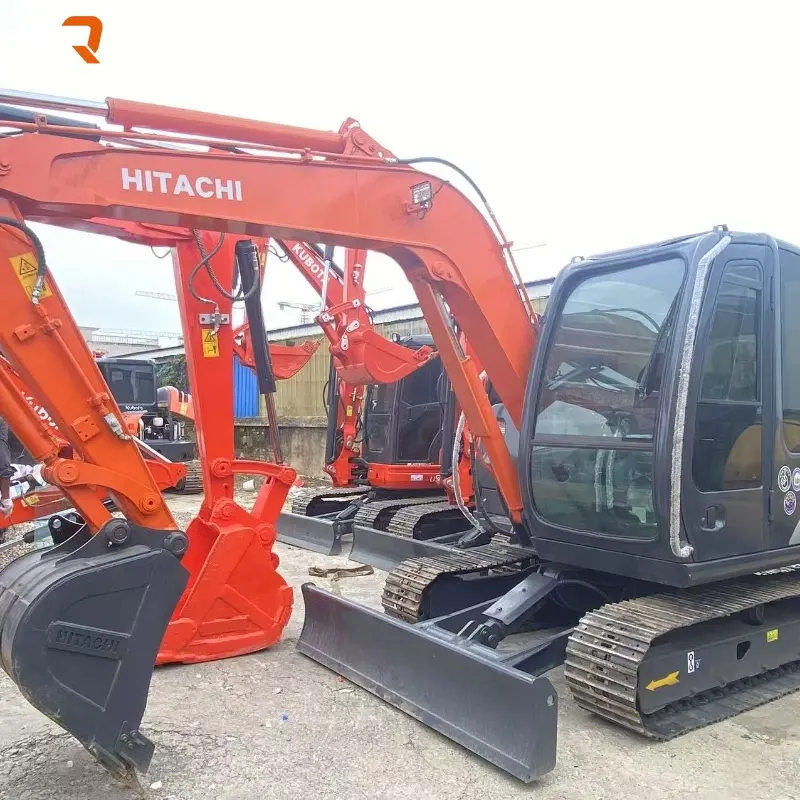

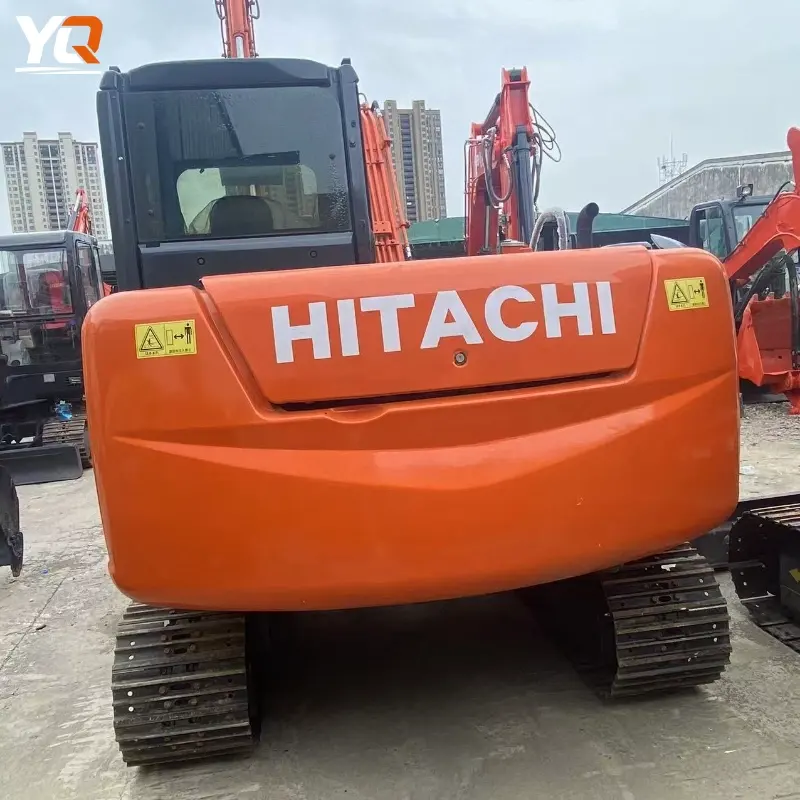

Cheap Used Hitachi ZX60 Mini Excavator Good Condition For Agricultural Use

Description

I. Basic Information

Item	Typical Value / Description
Model Name	Hitachi ZX60 / ZX60-5A / ZX60C-5A / ZX60C-6A
Model Category	Small Tracked Hydraulic Excavator (approx. 6-ton class)
Operating Weight	~ 5,400 – 5,960 kg (varies slightly by version)
Standard Bucket Capacity	~ 0.21 – 0.24 m³
Fuel Tank Capacity	~ 120 L (typical)
Emission Standard	Depending on version, may be China Stage III/IV (e.g., ZX60C-6A)

🔧 II. Engine & Power

*Most Hitachi ZX60 models are designed based on Isuzu / Yanmar 4-cylinder diesel engines.*

Item	Typical Value
Engine Model	ISUZU CC-4JG1 / Yanmar 4TNV98 (varies by version)
Rated Power	~ 40.5 kW / 2100 rpm (approx. 54.5 hp)
Net Power (ZX60C-5A/6A)	~ 28.1 kW (38.2 hp) – 29.6 kW (40.3 hp)
Displacement	~ 3.06 – 3.32 L

*Note: Power ratings differ across markets and model years (e.g., ZX60-5A vs. ZX60C-5A / ZX60C-6A). Common low/standard configurations like ZX60C-5A have power around 29 kW, while some older or higher-spec versions approach 40 kW.*

📏 III. Dimensions and Structure

Item	Typical Value
Shipping Length	~ 6,060 mm
Shipping Width	~ 2,000 – 2,060 mm
Shipping Height	~ 2,470 mm
Track Width	~ 400 mm
Track Length on Ground	~ 2,000 mm
Minimum Ground Clearance	~ 310 mm
Minimum Rear Swing Radius	~ 1,650 mm

🛠️ IV. Performance

Indicator	Typical Value
Maximum Digging Depth	~ 3,850 mm
Maximum Digging Height	~ 5,800 mm
Maximum Dumping Height	~ 4,080 mm
Maximum Digging Reach	~ 6,250 mm
Bucket Digging Force	~ 41.4 kN
Arm Digging Force	~ 28.4 kN

🚶‍♂️ V. Travel & Other Performance

Item	Typical Value
Travel Speed (High/Low)	~ 4.5 / 2.5 km/h
Swing Speed	~ 9.1 – 9.3 rpm
Gradeability	~ 70 % (≈35°)
Ground Pressure	~ 31–33 kPa

💧 VI. Hydraulics & Fluid Capacities (Typical)

System / Capacity	Typical Value
Fuel Tank	~ 120 L
Hydraulic Oil Tank	~ 61 L (Full tank ~95 L)
Engine Oil	~ 11–12 L

Shipping

FAQ

• Q

  What used construction machines do you mainly supply?

  A

  We supply used excavators, loaders, motor graders, road rollers, forklifts, etc.
• Q

  What brands of machines are available?

  A

  Our main brands include Caterpillar, Komatsu, Doosan, Hitachi, Kubota, Hyundai, Volvo, and other well-known brands.
• Q

  Do you export to overseas markets?

  A

  Yes, we have rich export experience and a professional shipping team. Our customers are from South America, Europe, Africa, and all over the world.
• Q

  How about the quality and price of your machines?

  A

  All our machines are in good working condition with reliable performance and competitive prices. All prices of the machine can be negotiated.
