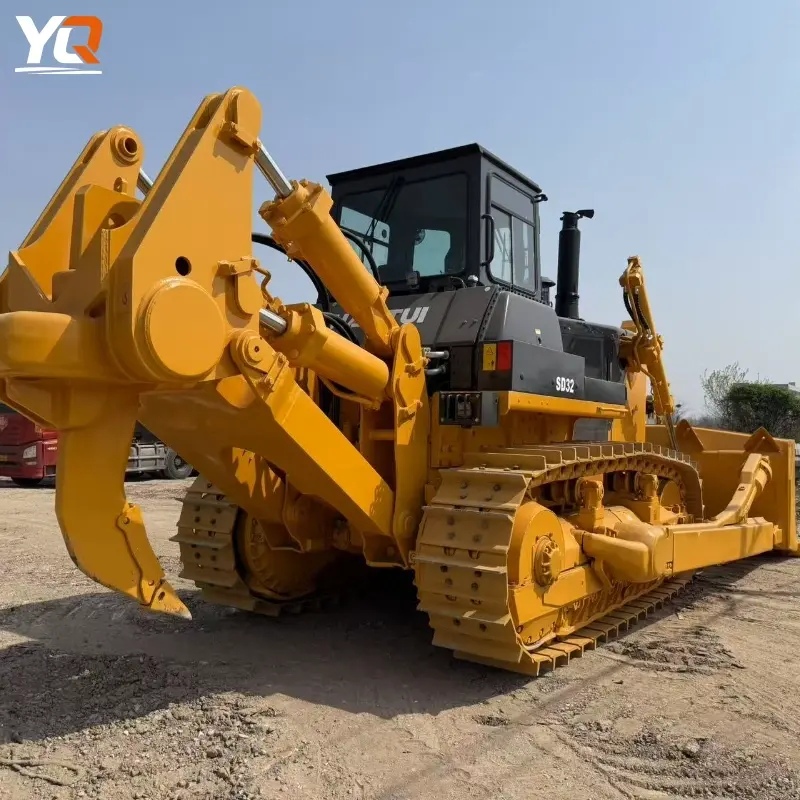

Well-Maintained Shantui SD32 Heavy Bulldozer Powerful Equipment

Description

I. Basic Overview

Parameter Item	Value
Equipment Model	Shantui SD32 Bulldozer (Standard)
Overall Operating Weight	≈ 40,200 kg (standard type)
Application Field	Water conservancy, hydropower, mining, highways and other medium to heavy-duty engineering construction

II. Engine & Power

Item	Value
Engine Model	WP12 / QSNT-C345 (domestic electronically controlled diesel)
Rated Power / Speed	≈ 257 kW @ 2000 rpm（≈ 350 HP）
Emission Standard	National Non-Road Machinery National III (National III) / Euro III (some export versions)
Fuel Tank Capacity	≈ 640 L

III. Dimensions & Chassis

Item	Value
Overall Dimensions (L×W×H)	≈ 8650 × 4130 × 3760 mm
Track Center Distance	2140 mm
Track Shoe Width (Optional)	560 / 610 / 660 / 710 mm
Ground Contact Length	3150 mm
Ground Pressure (Standard)	≈ 97.7 kPa

IV. Travel Performance

Item	Value
Forward Speed	F1: 0-3.6 km/hF2: 0-6.6 km/hF3: 0-11.5 km/h
Reverse Speed	R1: 0-4.4 km/hR2: 0-7.8 km/hR3: 0-13.5 km/h
Maximum Gradeability	≈ 30°

V. Working Devices

Item	Value / Description
Blade Type	Straight Tilt Blade / Angle Blade / Semi-U-Type Blade (optional)
Blade Digging Depth	Straight Tilt/Semi-U/Angle Blade approximately 560 / 630 / 560 mm (depending on configuration)
Ripper Configuration	Single-Tine / 3-Tine optional
Ripper Depth	Single-Tine approximately 1250 mm; 3-Tine approximately 842 mm

VI. Typical Parameter Summary

Category	Standard Value
Overall Weight	~40,200 kg (standard configuration)
Engine Power	~257 kW @ 2000 rpm (~350 HP)
Body Dimensions	~8650×4130×3760 mm
Travel Speed	0-11.5 km/h (3 forward gears)
Fuel Tank Capacity	~640 L
Ground Pressure	~97.7 kPa
