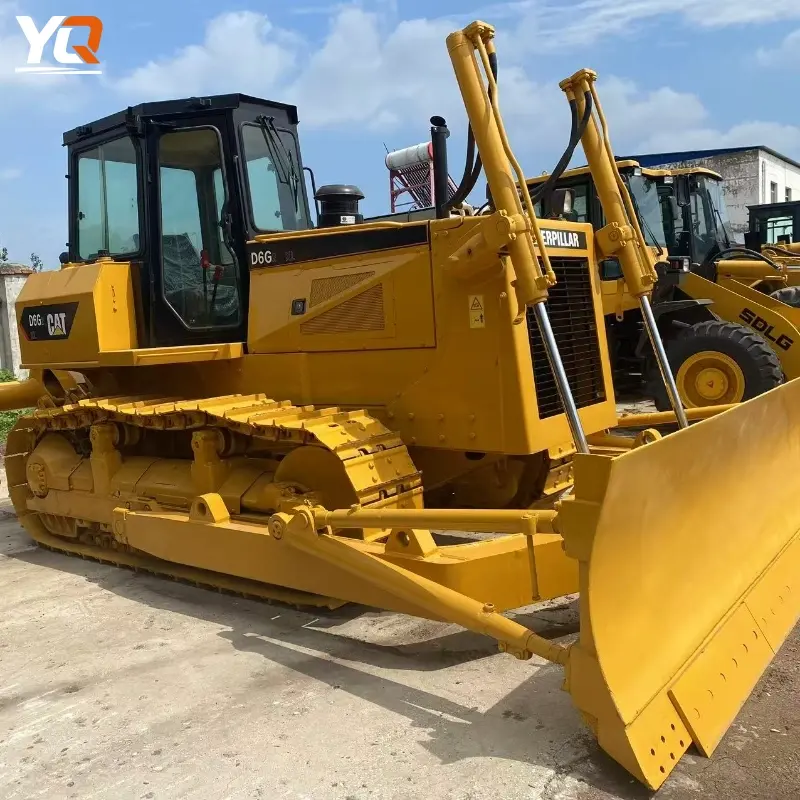

Pre-Owned CAT D6G2 Bulldozer High Performance Construction Machinery

Description

I. Basic Specifications

Item	Parameter
Model	Caterpillar D6G2 Dozer
Overall Operating Weight	Approximately 16,300–16,880 kg (depending on specific variant and configuration)
Application	Medium earthmoving, grading, excavation assistance, site clearing and other engineering tasks

II. Engine & Power

Item	Parameter
Engine Model	Cat® 3306T Diesel Engine
Displacement	Approximately 10.5 L (638 cu in)
Rated Power / Net Power	≈ 119 kW (≈ 160 hp) @ 1900 rpm
Cylinder Number / Type	6-cylinder, In-line, Turbocharged Diesel Engine

III. Dimensions & Weight

Typical Parameters of D6G2 XL Variant (Example)

Item	Value
Overall Length (without blade)	~3937 mm
Overall Width (Body)	~2440 mm
Overall Height (to cab roof)	~3057 mm
Minimum Ground Clearance	~310 mm
Track Ground Contact Length	Approximately 2667 mm
Standard Track Shoe Width	Approximately 560 mm (22 in)

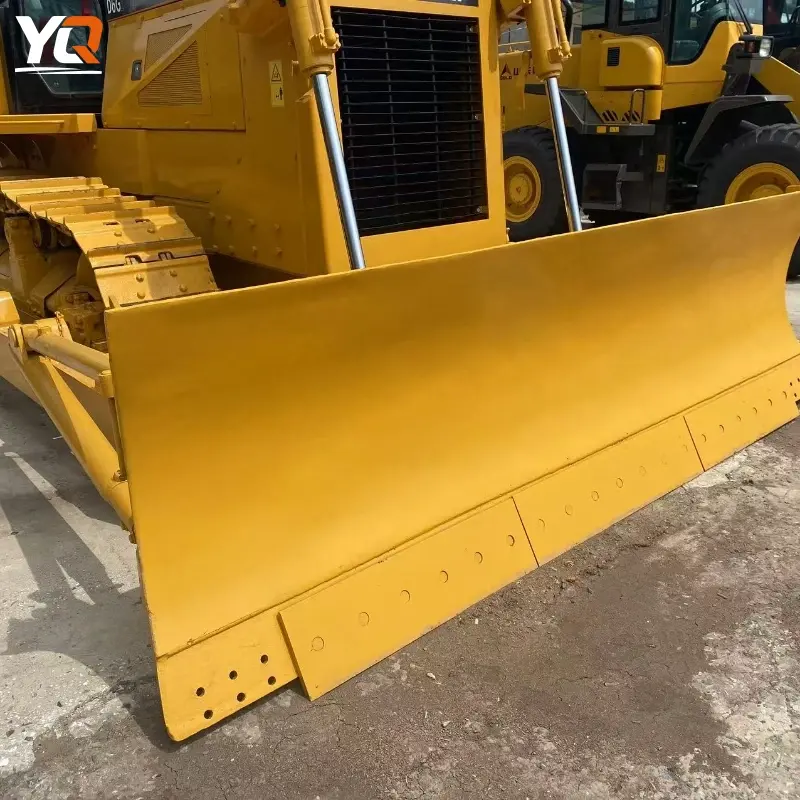

IV. Working Device (Bulldozer Blade)

Item	Parameter
Common Blade Types	Semi-Universal (Semi-U), Straight, S-type, etc.
Blade Capacity (Example)	Semi-U type: approximately 4.28 yd³ (≈ 3.27 m³)
Blade Width	Approximately 3.20–3.80 m, varying with blade type and configuration

Blade capacity and dimensions vary with different blade types (Semi-U, Straight, S-type, etc.) and variants.

V. Transmission & Travel Performance (Reference Example)

Item	Parameter
Transmission Type	Powershift Automatic Mechanical Transmission (multi-speed drive)
Forward/Reverse Gears	Commonly 3 forward / 3 reverse gears (depending on specific configuration)
Travel Speed (Example)	Approximately 0–10.8 km/h (in gears)

VI. Fluid & Capacity (Example)

System	Capacity
Fuel Tank Capacity	Approximately 300–337 L (sample data)
Hydraulic Oil / Coolant / Other Fluids	Varying with actual configuration; typically hydraulic oil ~49 L, coolant ~39 L, etc.
