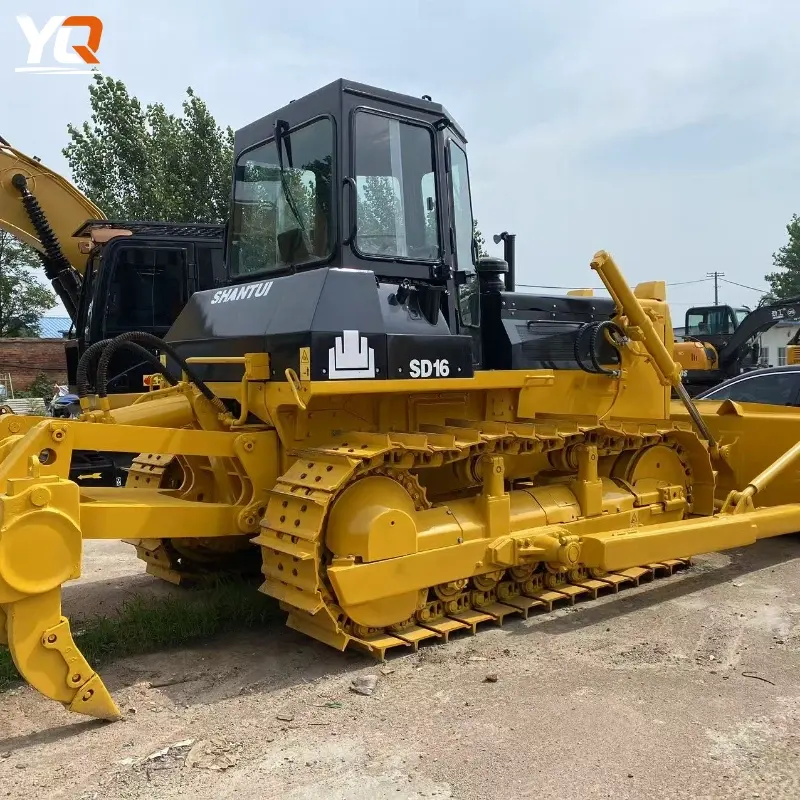

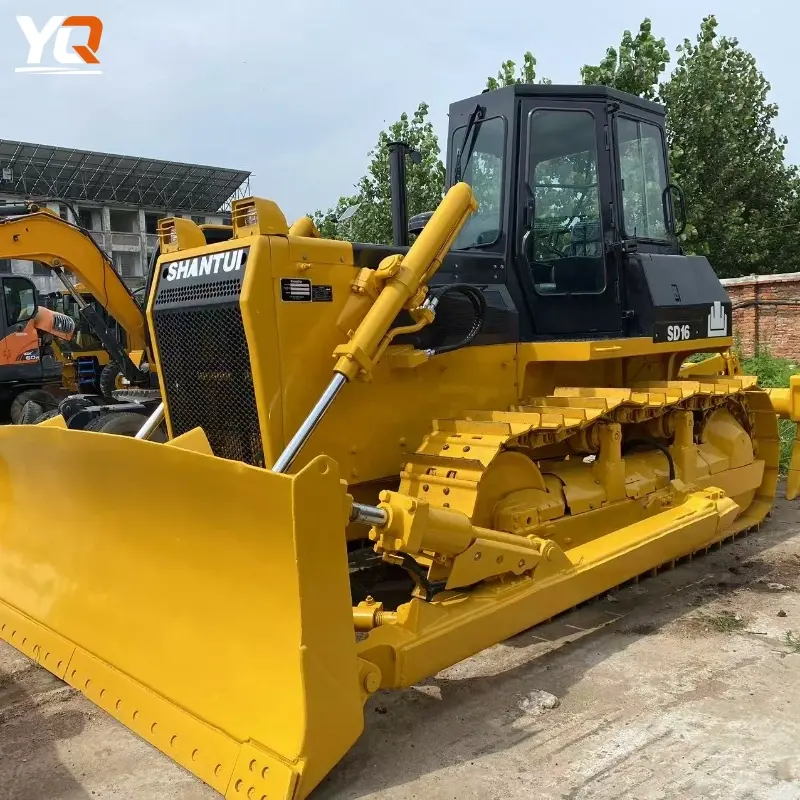

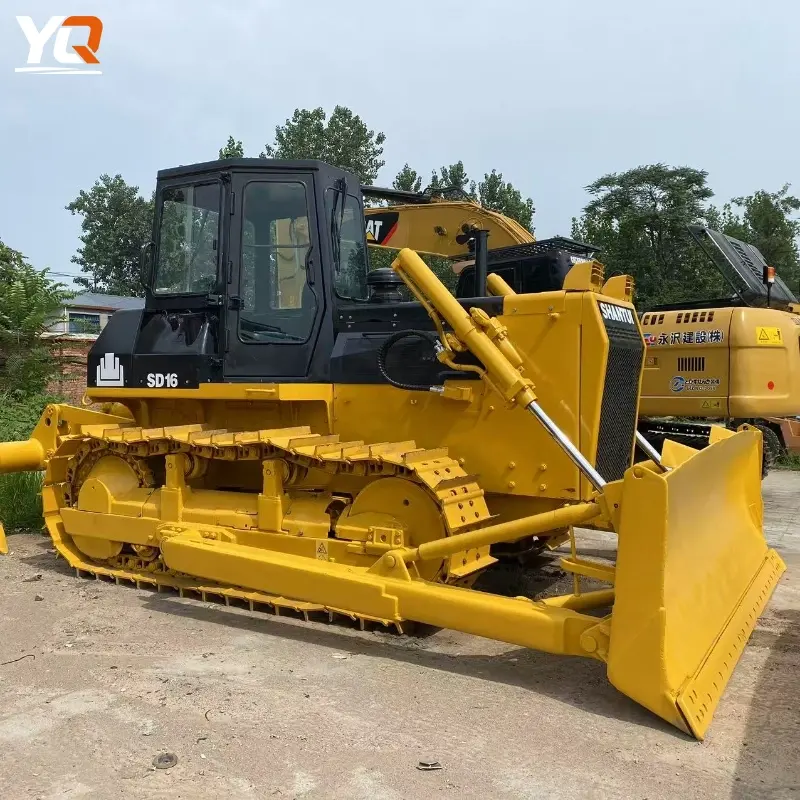

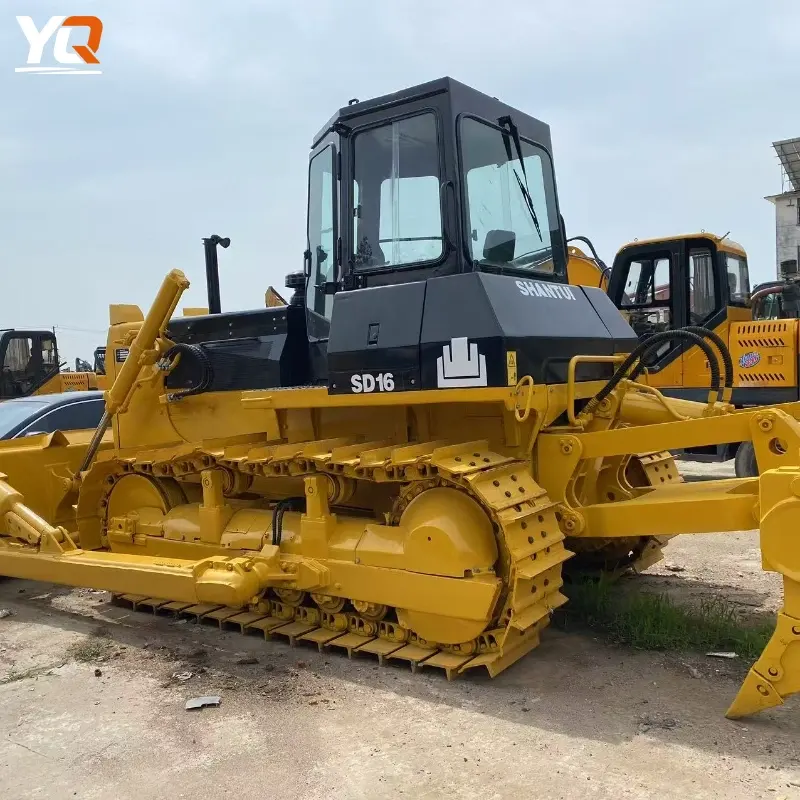

Used Shantui SD16 Bulldozer Durable Engineering Machinery

Description

I. Basic Specifications

Parameter Item	Value
Model	Shantui SD16 Bulldozer
Overall Operating Weight	Approximately 17,000 kg (standard type)
Overall Dimensions (L×W×H)	5,140 × 3,388 × 3,032 mm (excluding ripper)
Track Center Distance	1,880 mm
Track Shoe Width	510 / 560 / 610 mm (optional)
Ground Contact Length	2,430 mm
Minimum Ground Clearance	Approximately 400 mm
Ground Pressure	Approximately 58 kPa
Gradeability	Approximately 30° (typical)

II. Engine & Power

Item	Value
Optional Engines	Weichai WP10G178E25 / Shangchai SC11CB184G2B1, etc. (domestic turbocharged diesel)
Rated Power / Speed	Approximately 131 kW (≈ 160 HP) / 1850 rpm
Maximum Torque	Approximately 764 N·m @ 1300 rpm (reference typical configuration)
Displacement & Number of Cylinders	6 cylinders, approximately 9.7 L (Weichai) or similar displacement (SC11CB series)
Fuel Tank Capacity	≈ 315 L
Emission Level	Meets China II / EU Stage II standards (depending on regional version)

III. Transmission & Travel Performance

Item	Parameter
Transmission System	Torque Converter + Planetary Gear Powershift Transmission
Forward Speed	F1: 0–3.29 km/hF2: 0–5.82 km/hF3: 0–9.63 km/h
Reverse Speed	R1: 0–4.28 km/hR2: 0–7.59 km/hR3: 0–12.53 km/h

IV. Working Devices

Item	Value
Blade Type	Straight Tilt Blade / Angle Blade / U-Type Blade (optional according to configuration)
Standard Blade Capacity	Approximately 4.5 m³ (straight tilt blade)
Blade Width	3,970 mm (angle blade)／3,388 mm (straight tilt)／3,556 mm (U-type)
Maximum Lifting Height	Approximately 1,095 mm
Maximum Cutting Depth	Approximately 540 mm

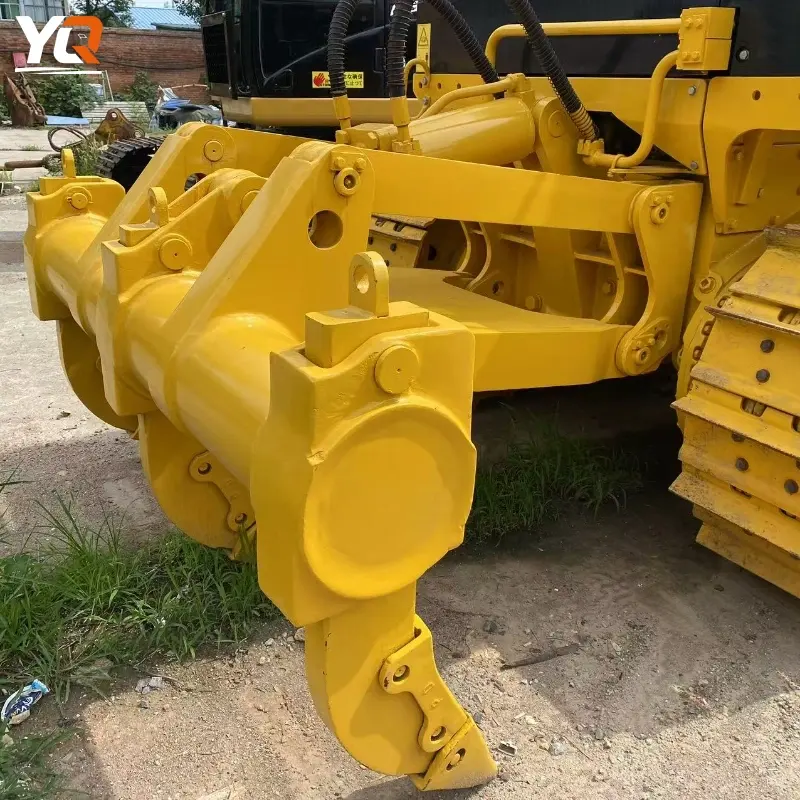

Ripper Type	3-Tine Ripper (optional)
Ripper Depth	Approximately 572 mm
