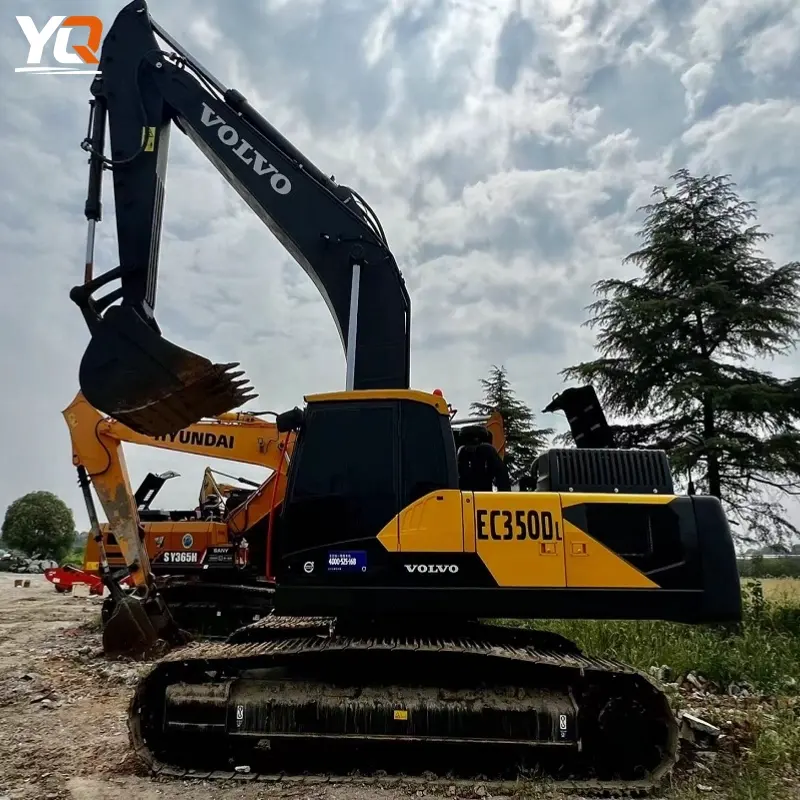

Used Volvo EC350 Large Hydraulic Excavator Powerful Engine Competitive Price

Description

I. Basic Specifications of the Machine

Item Parameter
Model Volvo EC350D
Category Medium-sized Hydraulic Tracked Excavator
Operating Weight 34,300 – 38,700 kg (depending on configuration)
Bucket Capacity 1.0 – 2.53 m³
Engine Type Volvo D8 Series Diesel Engine (6-cylinder)
Overall Width ~3,190 mm
Tail Turning Radius ~3,560 mm

🔥 II. Engine and Power

Parameter Value
Rated Power (Gross Power) 210 kW (approx. 286 hp) @ 1,800 rpm
Rated Power (Net/ISO) ≈ 197 kW (approx. 268 hp)
Maximum Torque ~1,340 Nm @ 1,350 rpm
Displacement 7.8 L (6-cylinder diesel engine)
Fuel Type Diesel

Note: The specific engine specifications for different market versions of the EC350D may vary slightly, but the power output is generally consistent within the specified range. 210 kW class.

🏗️ III. Performance and Operating Range

Item Parameters
Maximum Digging Depth ~7,480 mm
Maximum Digging Radius ~11,110 mm
Undercarriage Lifting Capacity ~12,480 kg (at 6 m/1.5 m position)
Bucket Breaking Force (Normal/Boosted) 177 kN / 193 kN
Boom Tear Force (Normal/Boosted) 156 kN / 170 kN

🚶‍♂️ IV. Travel and Hydraulics

Standard equipment is a load-sensing hydraulic system with an ECO operating mode to improve fuel efficiency and responsiveness (specific values ​​refer to the complete manual).

Typical Walking Performance (Example Data, Subject to Regional/Equipment Differences)

Walking Speed ​​(Low/High): Approx. 3.3 – 5.1 km/h (Market Version Example)

Maximum Traction Force: Approx. 261 kN (Market Version Example)

Note: Information from different regional sources may show slight variations in walking speed, traction, hydraulic displacement, etc., depending on the specific model configuration.

📏 V. Dimensions (Typical)
Dimension Item Value (Example)
Overall Length ~10,530 – 11,190 mm (Depending on Configuration)
Overall Width ~3,190 mm
Overall Height ~3,230 mm (Example)
Track Width ~600 mm (Common Configuration)
Minimum Ground Clearance ~500 mm (Example)

🛢️ VI. Fuel Tank and Capacity (Example)

Note: Official market manuals may vary slightly.

Item Capacity (Reference)
Fuel Tank ~580 L (Example)
Hydraulic Oil Tank ~215 L (Example)
Total Hydraulic System Oil Volume ~465 L (Example)
Engine Oil Capacity ~32 L (Example)
Coolant Capacity ~41 L
