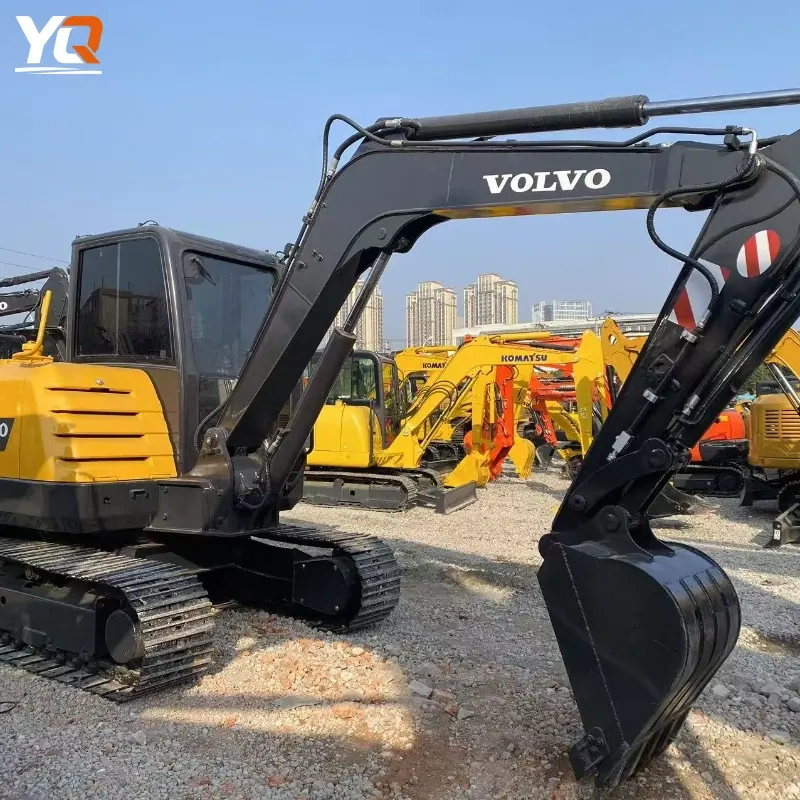

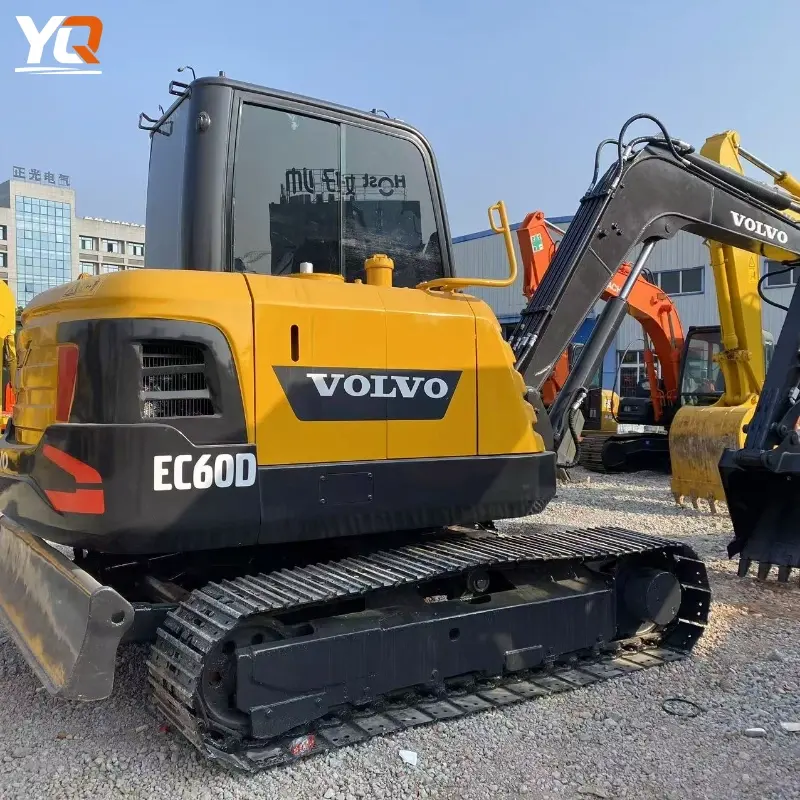

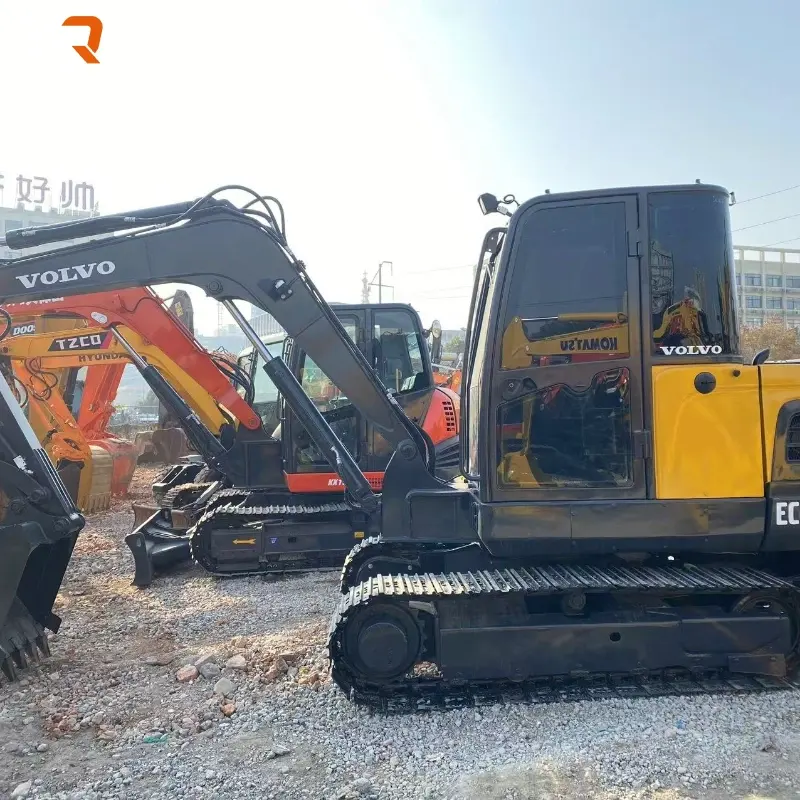

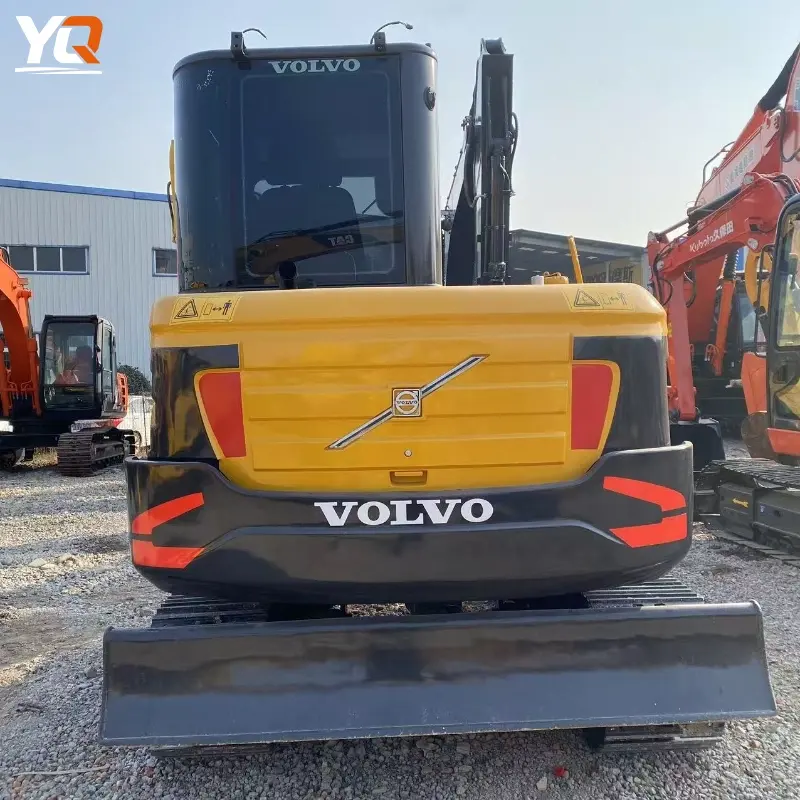

Second-Hand Volvo EC60 Compact Excavator Durable Machine

Description

Basic Specifications

Item	Parameter
Model	Volvo EC60D
Category	Small Crawler Hydraulic Excavator
Operating Weight	5,580 kg (Standard Configuration)
Rated Power	36.5 kW @ 2,000 rpm (Gross Power) / 34.5 kW (Net Power)

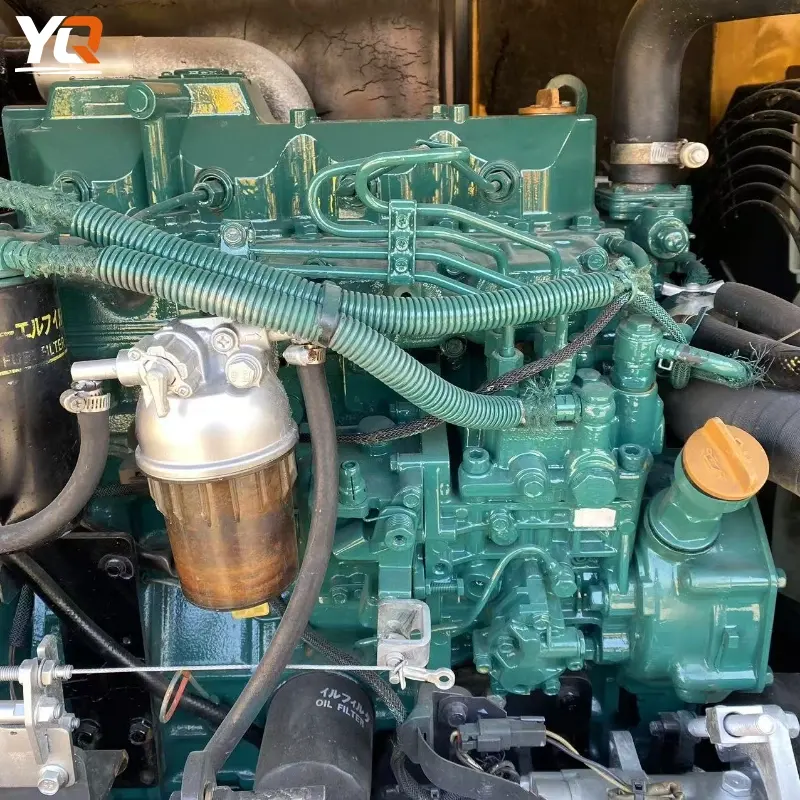

Engine Model	Volvo D2.6A 4-Cylinder Diesel Engine
Displacement	2.62 L

Power & Engine

Emission Standard: Tier 3 / Stage 3 (Complies with emission requirements for medium-sized excavators)

Maximum Torque: Approximately 210 Nm @ 1,000 rpm

Number of Cylinders: 4 Cylinders

Operation & Performance

Performance Indicator	Parameter
Maximum Travel Speed (Low/High)	2.6 / 4.3 km/h
Swing Speed	9 rpm
Maximum Traction Force	~43 kN
Ground Pressure	~31.8 kPa

Hydraulic System

Maximum Main Pump Flow: Approximately 142.4 L/min

Working Pressure (Main Circuit): Approximately 21.6 MPa

Total Hydraulic System Fluid Capacity: Approximately 130 L (including about 90 L in the hydraulic tank)

Equipped with a load-sensing hydraulic system to enhance efficiency.

Working Performance

Operating Parameter	Value
Bucket Capacity	0.23 m³ (Standard Bucket)
Maximum Digging Depth	~3,800 mm
Maximum Digging Radius	~6,115 mm
Maximum Dumping Height	~4,100 mm
Horizontal Digging Range	~5,980 mm
Vertical Wall Digging Depth	~2,765 mm
Bucket Digging Force (ISO)	~42.3 kN
Arm Digging Force (ISO)	~28.5 kN

Machine Dimensions (Typical)

Dimension	Value
Total Length	~5,885 mm
Total Width	~1,940 mm
Cab Height	~2,560 mm
Track Shoe Width	400 mm
Minimum Ground Clearance	~380 mm
Tail Swing Radius	~1,680 mm

Fuel Tanks & Fluid Capacities

Item	Capacity
Fuel Tank Capacity	~100 L
Hydraulic Tank Capacity	~90 L
Engine Oil Refill Capacity	~10 L
Coolant Capacity	~7.8 L
