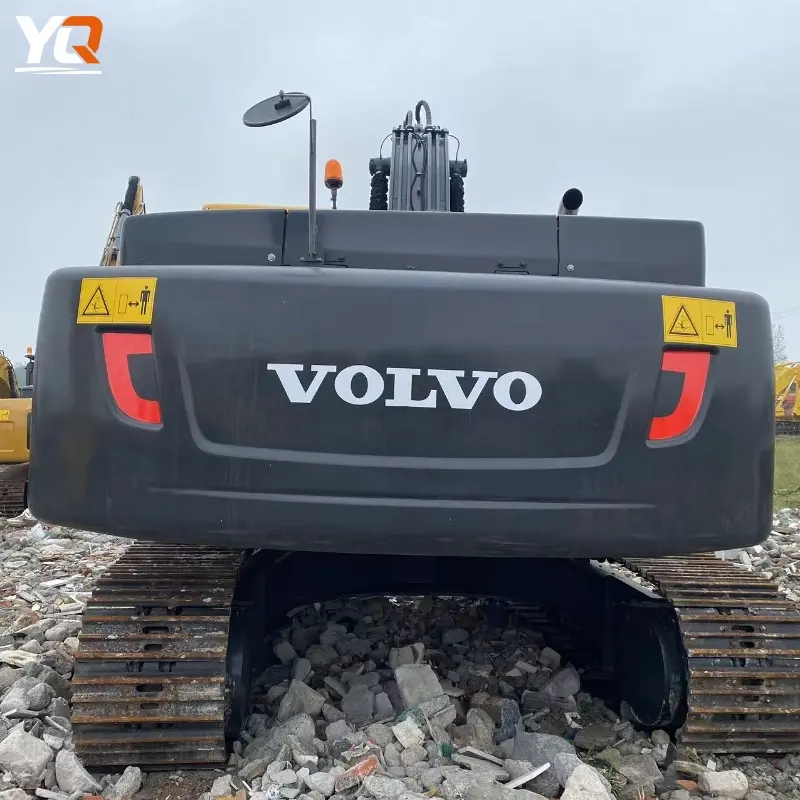

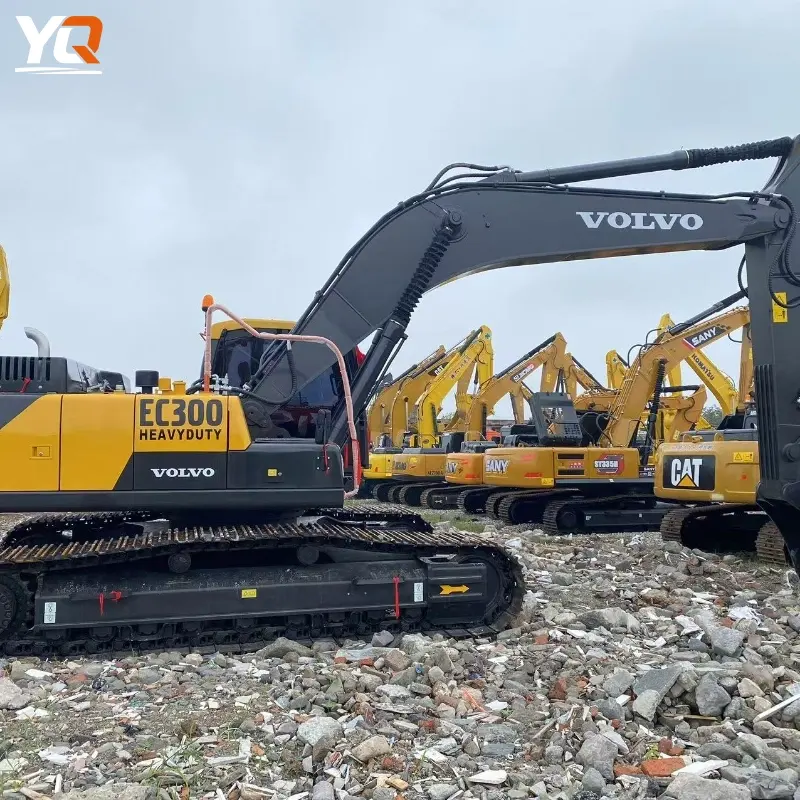

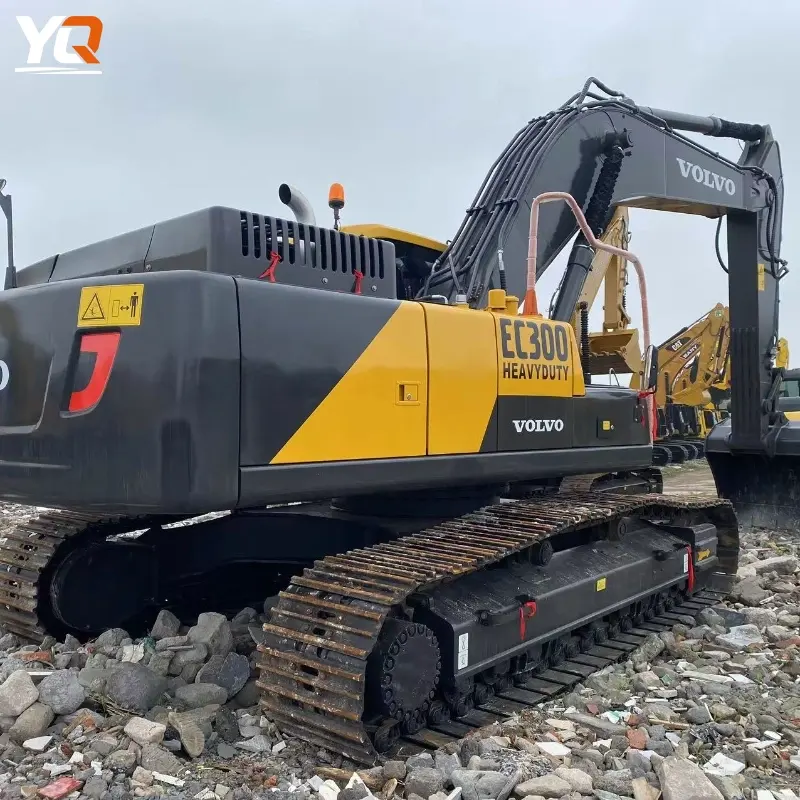

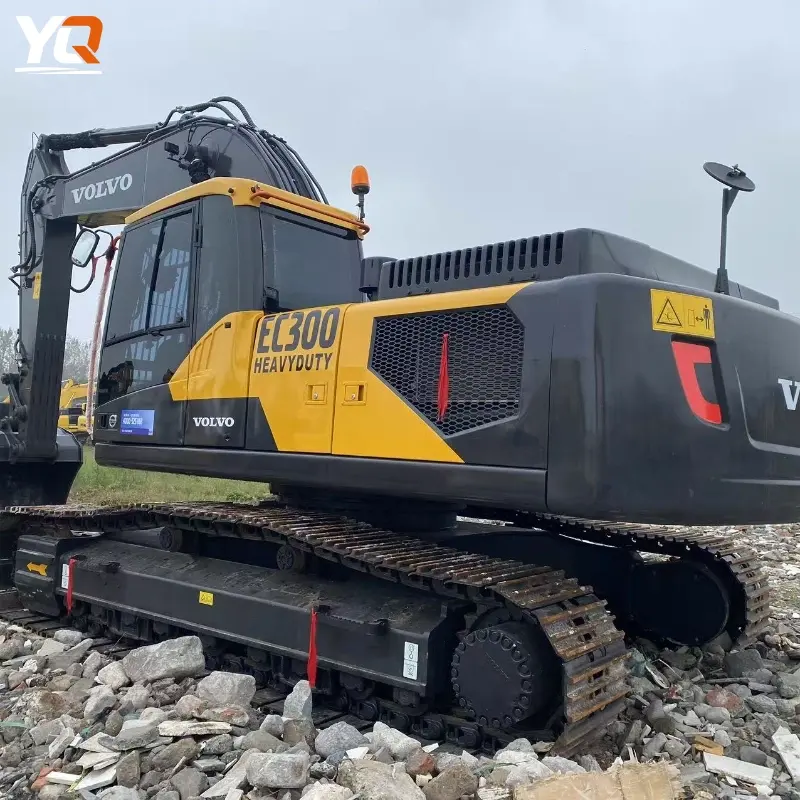

High Cost Performance Used Volvo EC300 Heavy Crawler Excavator Good Condition

I. Basic Specifications of the Machine

Item Parameter
Model Volvo EC300D
Category Medium-sized Hydraulic Tracked Excavator
Operating Weight ~27,700 – 33,100 kg (depending on configuration/track width)
Standard Bucket Capacity 0.52 – 2.02 m³ (depending on accessories)
Emission Standard Tier 2 / Stage II (depending on market)

🔥 II. Engine & Power

Parameter Value
Engine Model Volvo D7E 6-cylinder turbocharged diesel engine
Total Power 170 kW (≈231 hp) @ 1,800 rpm
Net Power ≈169 kW (≈230 hp) ISO/SAE
Displacement 7.1 L
Maximum Torque ~1,080 Nm @ 1,350 rpm
Electrical System 24 V / 2×12 V, 200 Ah Battery

🏗️ III. Hydraulics & Travel

Item Data
Hydraulic Pump 2×Variable Displacement Piston Pumps + Gear Pilot Pump
Maximum Pump Flow Rate: 2×263 L/min (Main Pump)
Operating Pressure: Approx. 33.3–36.3 MPa (Execution/Swing/Travel) / 27.9–36.3 MPa
Travel Speed: ~3.4 / 5.4 km/h (Low/High Speed)
Maximum Swing Speed: ~10.7 rpm
Maximum Traction: ~247 kN
Climbing Capacity: ~35° (Approx. 70%)

🛠️ IV. Operational Performance
Indicators: Maximum Digging Depth: ~7,350 mm
Maximum Digging Radius: ~10,720 mm
Chassis Lifting Capacity: ~11,020 kg (at 6 m/1.5 m)
Bucket Breaking Force (Normal / Boost): 168 / 182 kN
Boom Tear Force (Normal / Boost): 132 / 143 kN

📏 V. Chassis &Geometric Dimensions

Item Values
Overall Width 3,190 mm
Tail Turning Radius 3,120 mm
Track Shoe Width 600 / 700 / 800 / 900 mm Optional (depending on configuration)
Ship Rollers / Carrier Rollers 2×9 / 2×2 (Example Configuration)
Minimum Ground Clearance ~480 mm (Typical) (See similar series data)

🛢️ VI. Fuel Tanks and Capacities

Item Capacity
Fuel Tank ~470 L
Hydraulic Oil Tank ~195 L
Total Hydraulic System Oil Capacity ~400 L
Engine Oil Capacity ~32 L
Engine Coolant ~41 L
