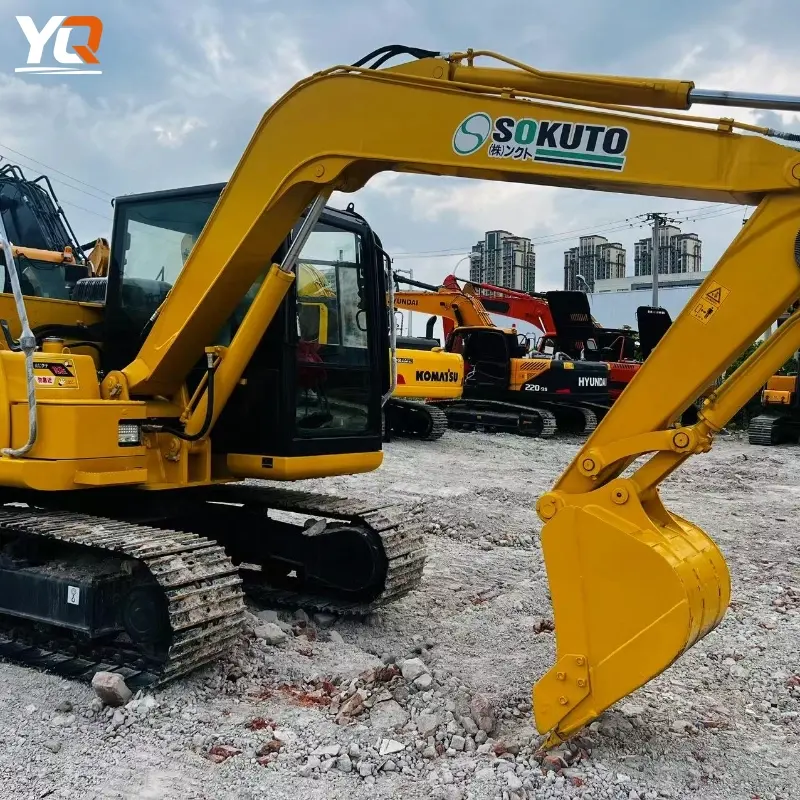

Used Komatsu PC70 Small Hydraulic Excavator Powerful Engine Low Price

I. Basic Specifications (PC70-8 / PC70-11M0)

PC70-8 (Older Model / Higher Displacement Version)

Item Parameters
Machine Operating Weight ~ 6500 kg
Engine Rated Power ~ 48.5 kW (≈ 66 PS)
Bucket Capacity Range 0.32 – 0.39 m³
Travel Speed ​​High Gear ≈ 4.5 km/h / Low Gear ≈ 2.8 km/h
Maximum Bucket Digging Force ≈ 55.9 kN (≈ 5700 kgf)
Maximum Boom Digging Force ≈ 39.0 kN
Machine Dimensions (L×W×H) ~ 6080 × 2225 × 2620 mm
Maximum Digging Height ~ 7150 mm
Maximum Unloading Height ~ 5015 mm
Maximum Digging Depth ~ 4100 mm
Maximum Digging Radius ~ 6360 mm
Engine Model Komatsu SAA4D95LE-5

The PC70-8 is a common 7-ton Komatsu mini excavator model, offering more power and suitability for heavier earthmoving and foundation work.

PC70-11M0 (New Model/China IV Emission Standard)

Parameters
Machine Operating Weight ~ 6600 kg
Engine Rated Power 36.0 kW
Standard Bucket Capacity 0.33 – 0.37 m³
Travel Speed ​​~ 4.0 km/h (High Speed), ~ 2.8 km/h (Low Speed)
Maximum Bucket Digging Force ~ 54.8 kN
Maximum Stick Digging Force ~ 39.8 kN
Machine Dimensions (L×W×H) ~ 6035 × 2225 × 4925 mm
Maximum Digging Height ~ 7030 mm
Maximum Unloading Height ~ 4925 mm
Maximum Digging Depth ~ 3900 mm
Maximum Vertical Digging Depth ~ 3350 mm
Maximum Digging Radius ~ 6190 mm
Engine Model Komatsu DLA026 (Turbocharged)
Engine Displacement 2.615 L
Engine Speed ​​2000 rpm
