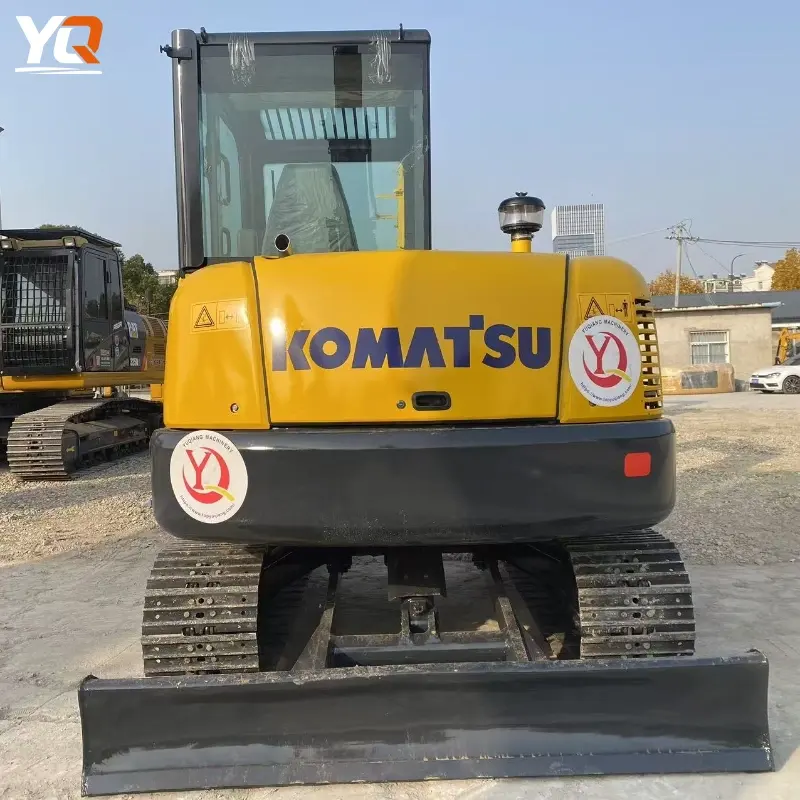

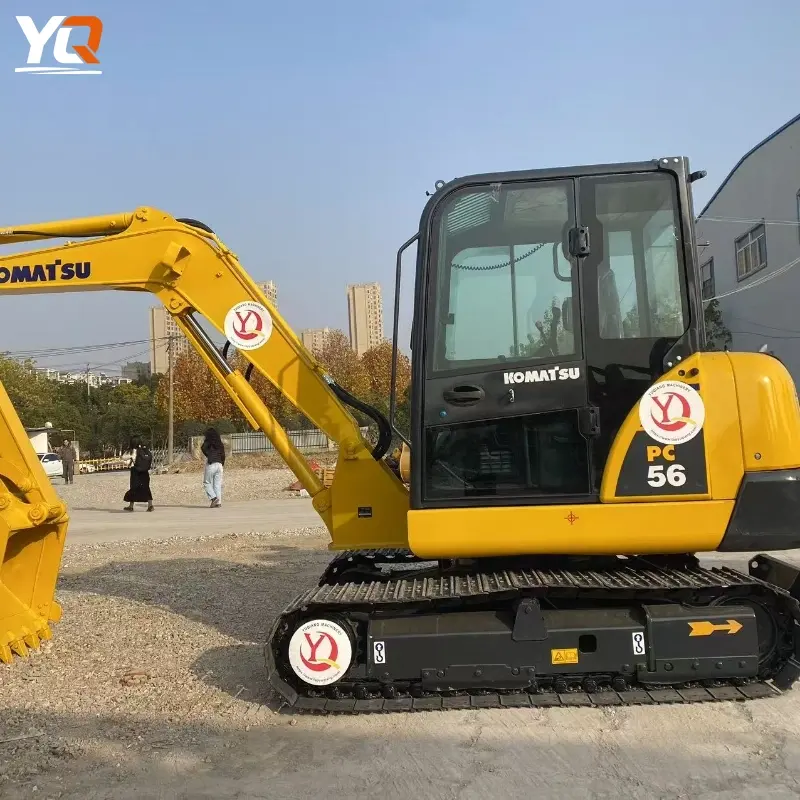

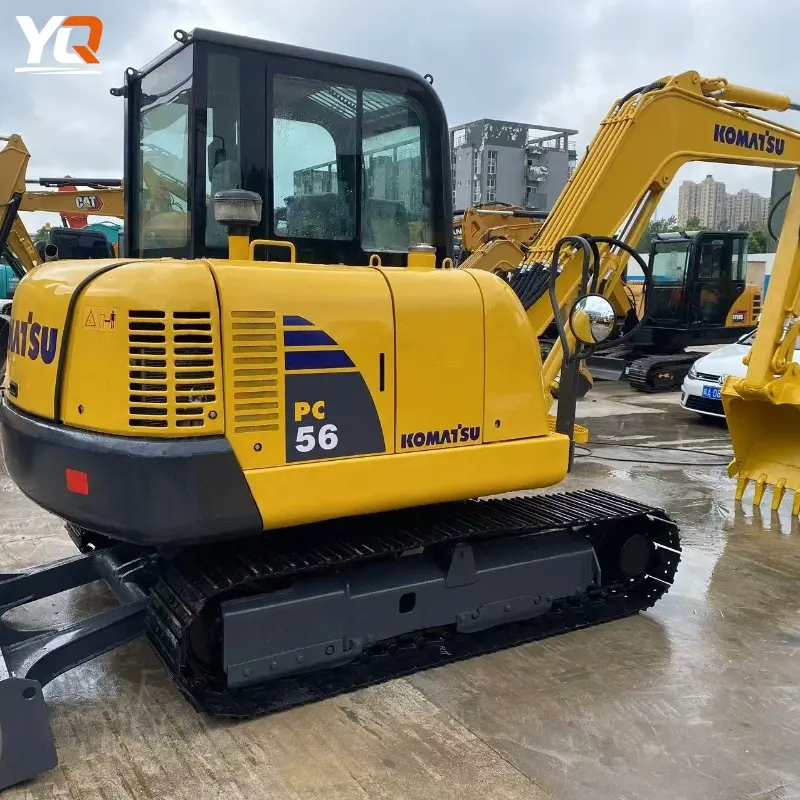

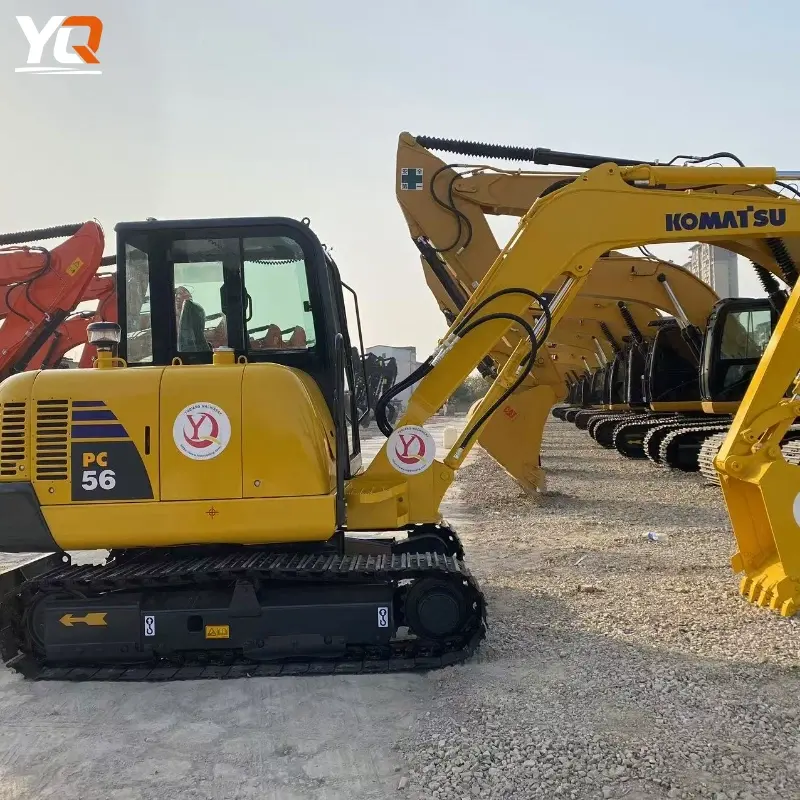

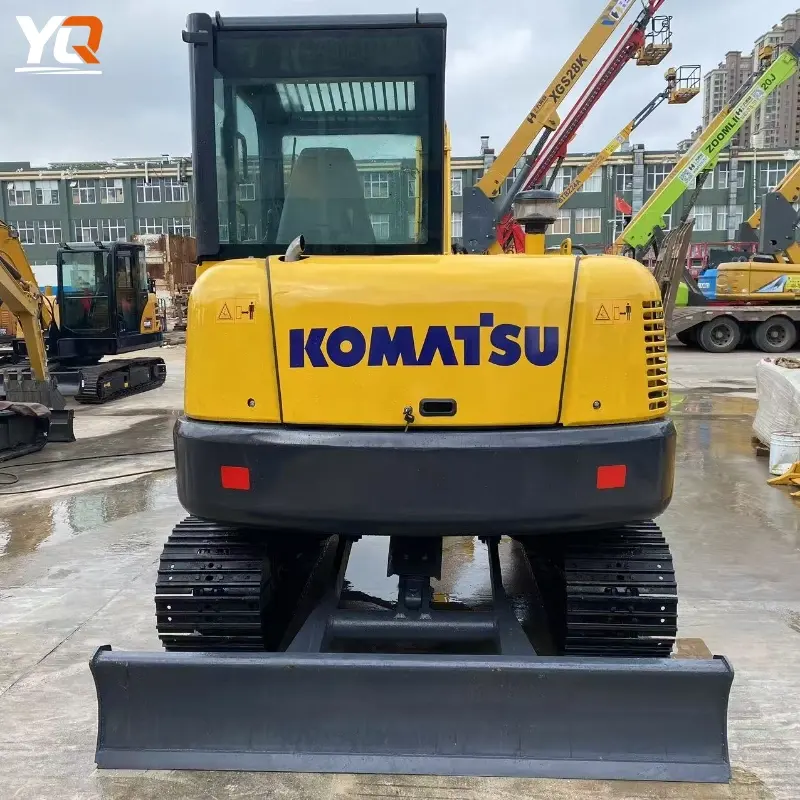

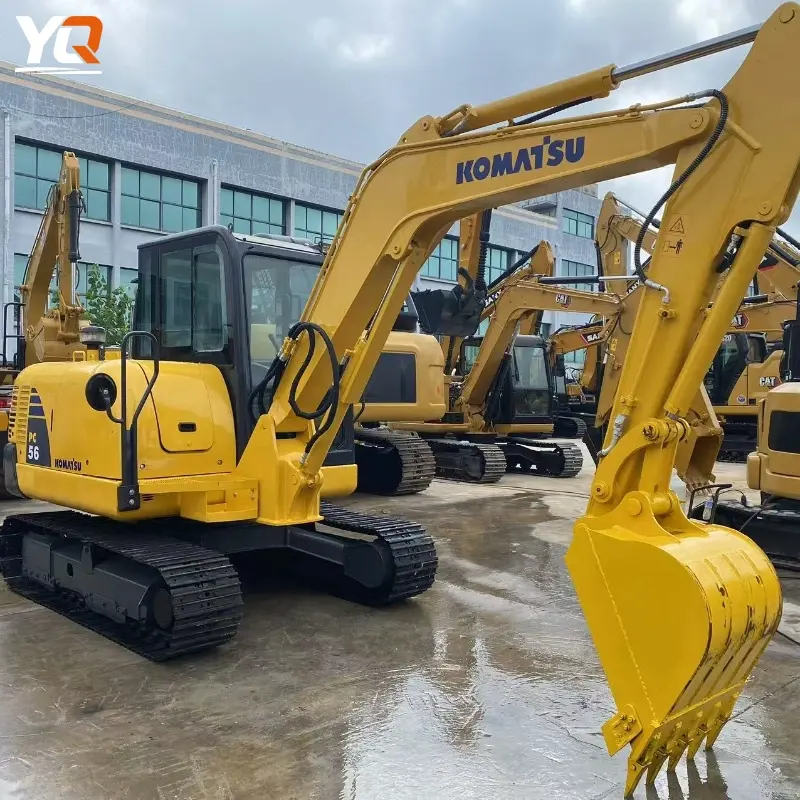

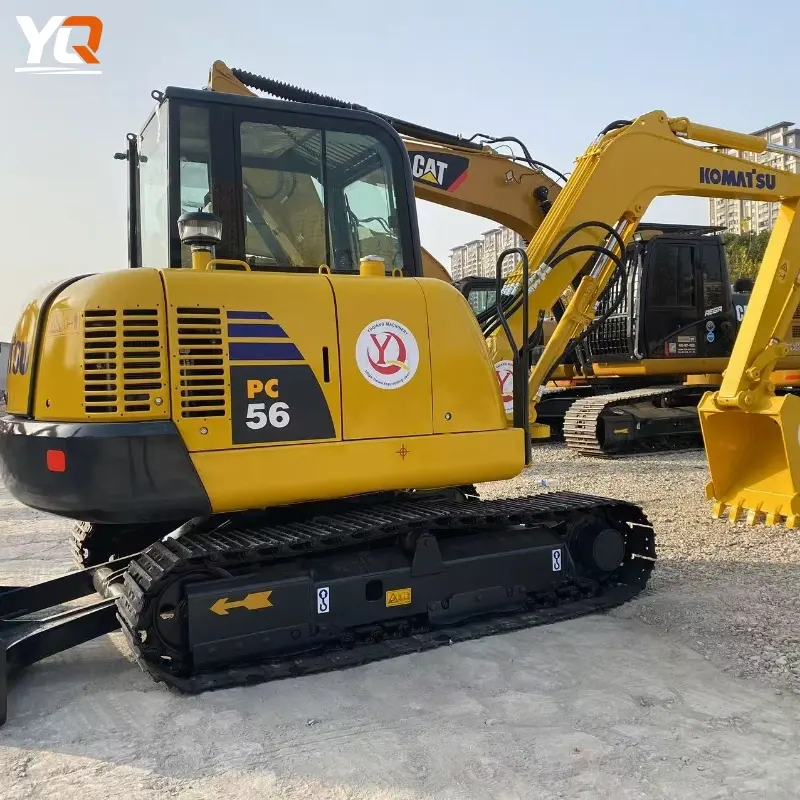

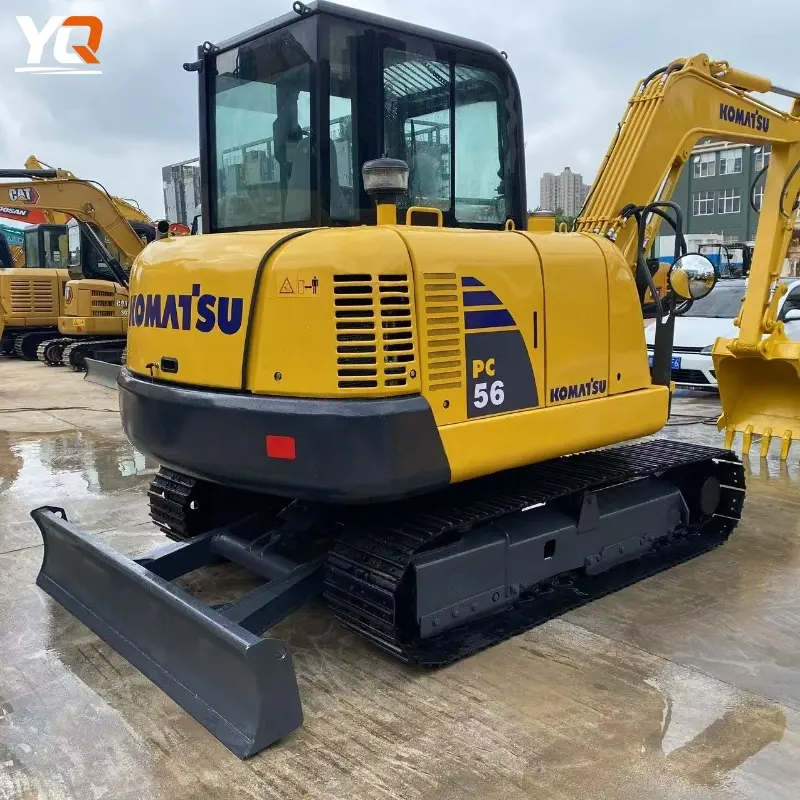

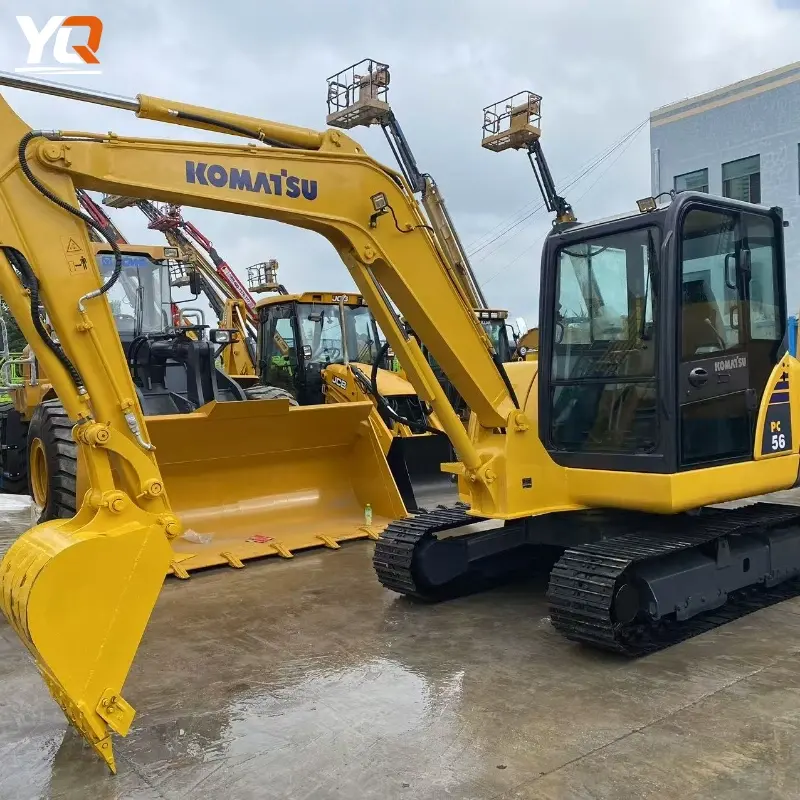

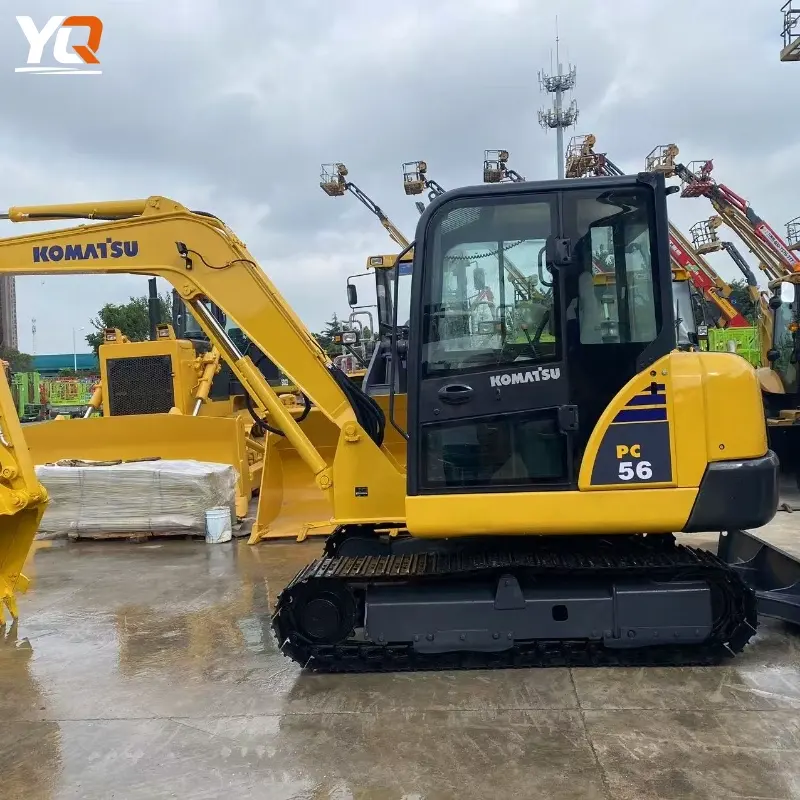

Second Hand Komatsu PC56 Mini Excavator Original Parts Good Working Condition

I. Basic Specifications

Parameters | Values ​​/ Descriptions
Model Name: Komatsu PC56-7 Tracked Hydraulic Excavator
Operating Weight: ~ 5,300 kg (approx. 5.3 t)
Standard Bucket Capacity: 0.055 – 0.22 m³
Engine Model: Komatsu S4D87E-1 (Water-cooled, direct injection diesel engine)
Engine Displacement: 2.434 L
Rated Power: 34.5 kW / 47 PS @ 2300 rpm
Fuel Tank Capacity: ~ 120 L (partial data)

⛏️ II. Operating Performance
Indicators | Typical Values
Maximum Digging Depth: ~ 3,810 mm
Maximum Vertical Digging Depth: ~ 3,060 mm
Maximum Digging Height: ~ 5,860 mm
Maximum Unloading Height: ~ 4,130 mm
Maximum Digging Radius: ~ 6,130 mm
Bug Digging Force (Maximum): ~ 39 kN / ~ 3,980 Kf
Boom digging force (maximum) ~ 24 kN / ~ 2,440 kgf

🚶‍♂️ III. Motion and Hydraulics

Specifications Values ​​(Typical)
Travel speed High gear ~ 4.1 km/h / Low gear ~ 2.6 km/h
Swing speed ~ 9 rpm
Ground pressure ~ 30.7 kPa
Hydraulic working pressure ~ 26.5 MPa (working/travel circuit)

📏 IV. Dimensions

Dimensions Values ​​(Approx.)
Total transport length ~ 5,935 mm
Total transport width ~ 1,960 mm
Total transport height ~ 2,550 mm

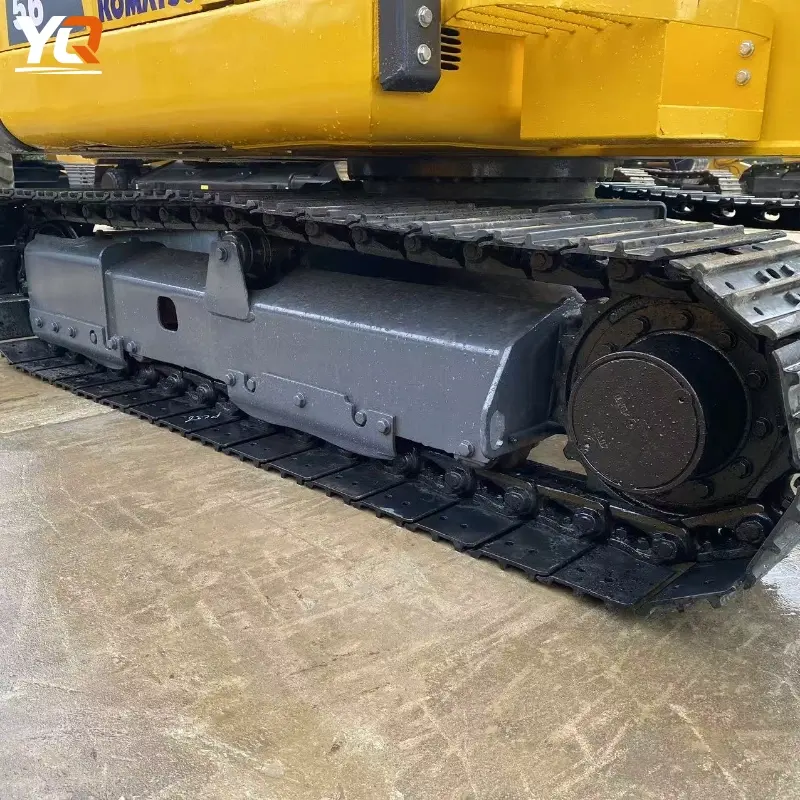

Track width ~ 400 mm
Track ground contact length ~ 1,980 mm
Minimum ground clearance ~ 320 mm
Rear swing radius ~ 1,650 mm

🛢️ V. Hydraulics and Others

Systems / Items Typical capacity
Fuel tank ~ 120 L
Hydraulic oil tank ~ 55 L Engine oil (change volume) ~ 9.7 L Coolant ~ 8 L
