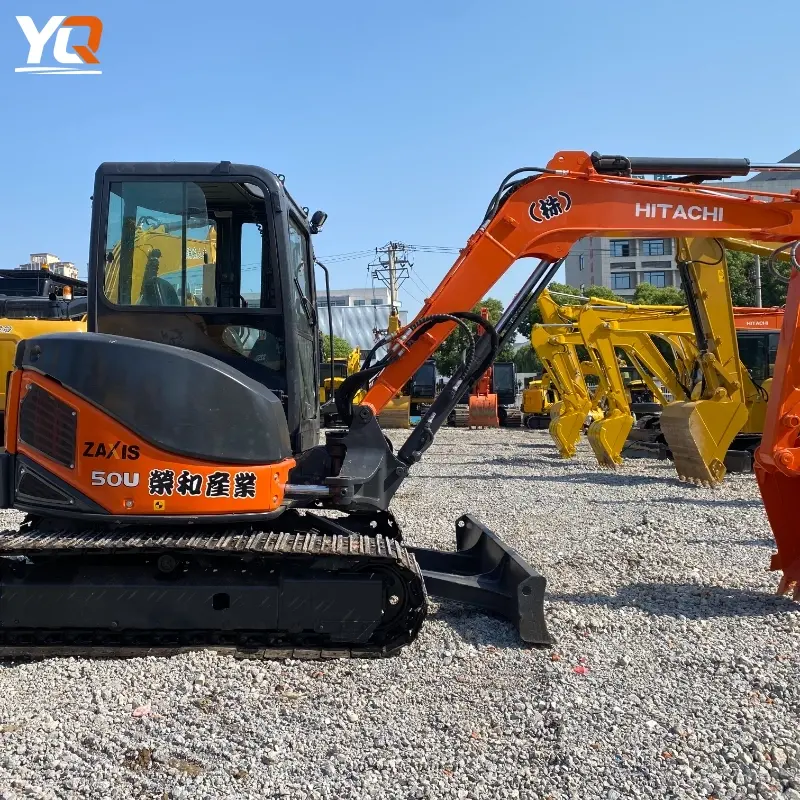

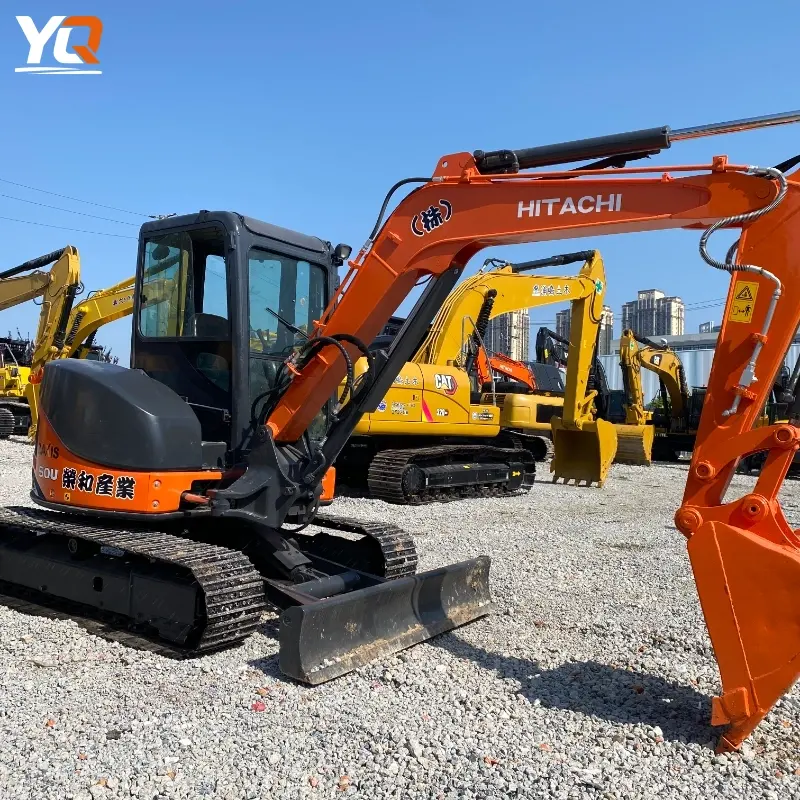

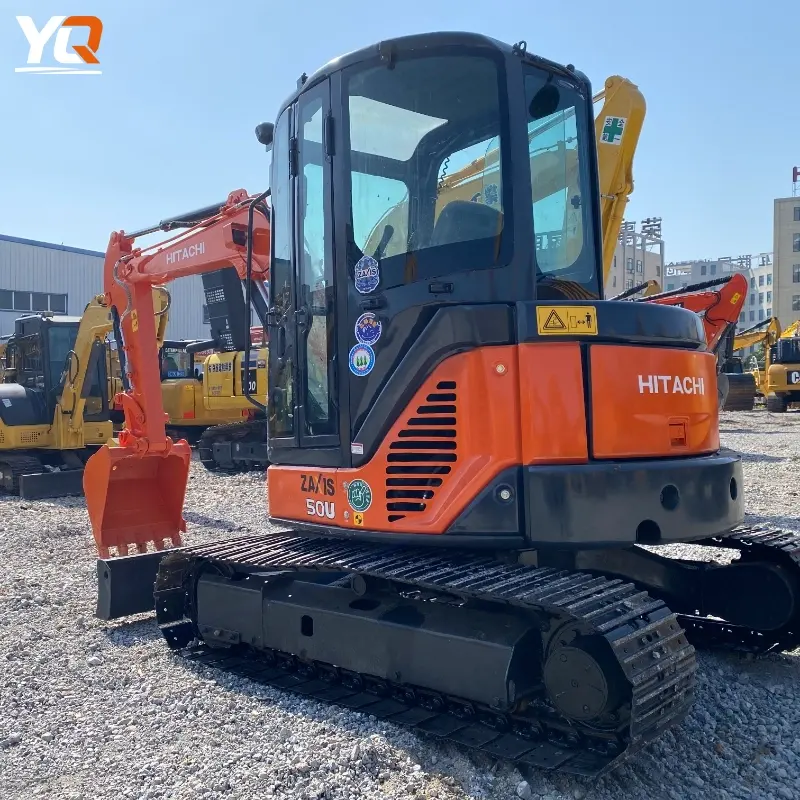

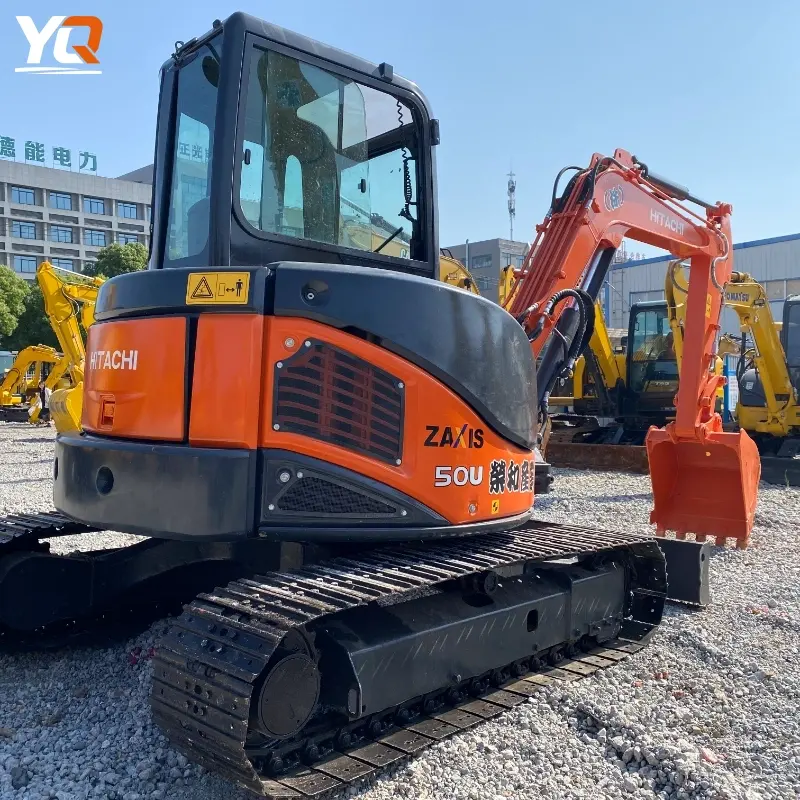

Used Hitachi ZX50 Mini Excavator Good Condition Construction Machine

Description

1. Basic Specifications

📌 Machine Category: Small Tracked Hydraulic Excavator / Mini Excavator (Approx. 5-ton class)
📌 Net Engine Power (ISO 9249): 36.8 hp / 27.1 kW @2400 rpm (Yanmar 4TNV88C)
📌 Operating Weight: ~5,014 – 5,320 kg (varies by configuration)
📌 Engine Displacement: ~2.19 L (2190 cm³)
📌 Fuel Tank Capacity: ~70 L (reference value for similar class specifications)

🛠️ 2. Performance

Item	Value / Description
Maximum Digging Depth	~3.83 m (12 ft 7 in)
Maximum Digging Reach (at ground level)	~6.13 m (20 ft 1 in)
Working Range Arm Length	~1.69 m (5 ft 7 in)
Maximum Horizontal Reach (Boom)	~6.1 m (reference value for similar class)

🔧 3. Power and Hydraulics

📌 Hydraulic System Type: Load-sensing closed-center hydraulic system, Variable displacement piston pump
📌 Auxiliary Hydraulic Supply: With auxiliary flow selection control (5 levels)
📌 Swing Mechanism: Axial piston motor + planetary gear reduction unit
📌 Swing Speed: ~9 rpm (standard specification)

🚶‍♂️ 4. Travel and Undercarriage

Item	Typical Value
Travel Speed	Low: Approx. 2.5 km/h / High: Approx. 4.2 km/h
Track Width (Example)	~400 mm (Rubber/steel tracks optional)
Ground Pressure	~26.9 – 29.5 kPa (varies by track type/counterweight condition)

📏 5. Dimensions and Capacities (Reference)

Item	Typical Value / Description
Fuel Tank	~70 L (approx. 19 gal)
Hydraulic Oil Tank	~56 L (approx. 15 gal)
Engine Oil	~9 L (approx. 2 gal)
Cooling System	~5 L (approx. 1 gal)
