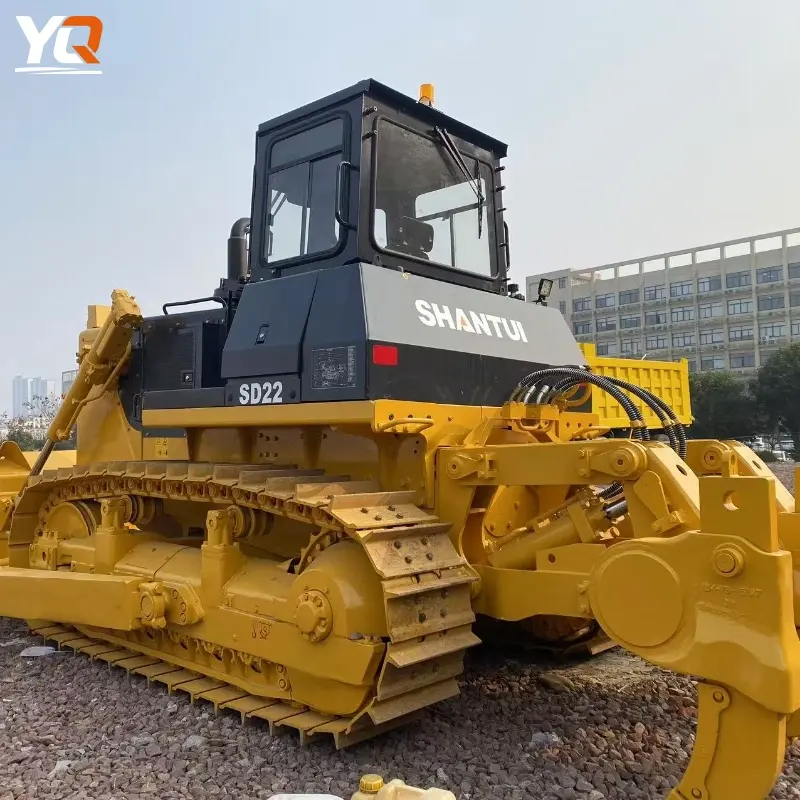

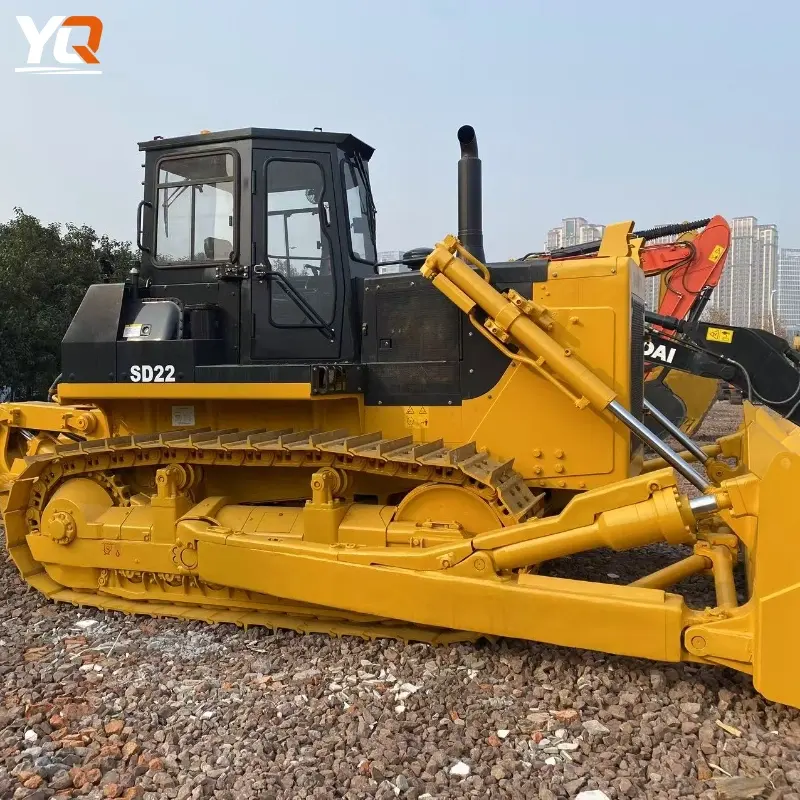

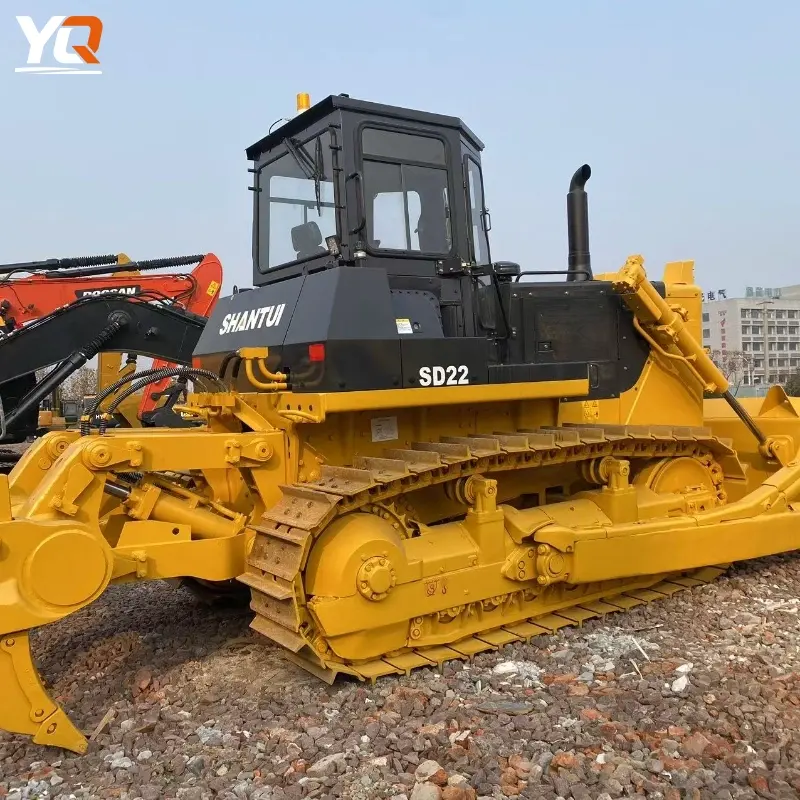

Pre-Owned Shantui SD22 Bulldozer High Performance Machine

Description

Basic Specifications (Standard SD22)

Parameter Item	Typical Value
Model	Shantui SD22 Bulldozer
Operating Weight (Overall Weight)	Approximately 23,450 kg (standard type)
Engine Model	Cummins NT855-C280S10 or Weichai WP12G240E306 / WP12/QSNT-C235
Rated Power/Rated Speed	175 kW / 1800 rpm
Fuel Tank Capacity	≈ 450 L
Overall Dimensions (L×W×H)	~6060 × 4200 × 3402 mm
Ground Contact Length	≈ 2430 mm
Track Center Distance	2000 mm
Track Shoe Width	560 / 610 / 660 mm (optional)

Travel & Chassis Performance

Item	Parameter
Forward Speed	F1: 0–3.6 km/hF2: 0–6.5 km/hF3: 0–11.2 km/h
Reverse Speed	R1: 0–4.3 km/hR2: 0–7.7 km/hR3: 0–13.2 km/h
Minimum Turning Radius	≈ 3300–3800 mm (depending on version)
Ground Clearance	≈ 405 mm
Ground Pressure	≈ 66 kPa (standard type)
Gradeability	≈ 30°

Working Devices

Item	Value / Supported Options
Blade Type	Straight Tilt Blade, Angle Blade, U-Type Blade, Semi-U-Type Blade (optional)
Blade Capacity (Straight Tilt Blade)	≈ 6.4 m³
Blade Width × Height	3725 × 1315 mm
Maximum Lowering Depth	≈ 540 mm
Maximum Tilt Amount	＞735 mm

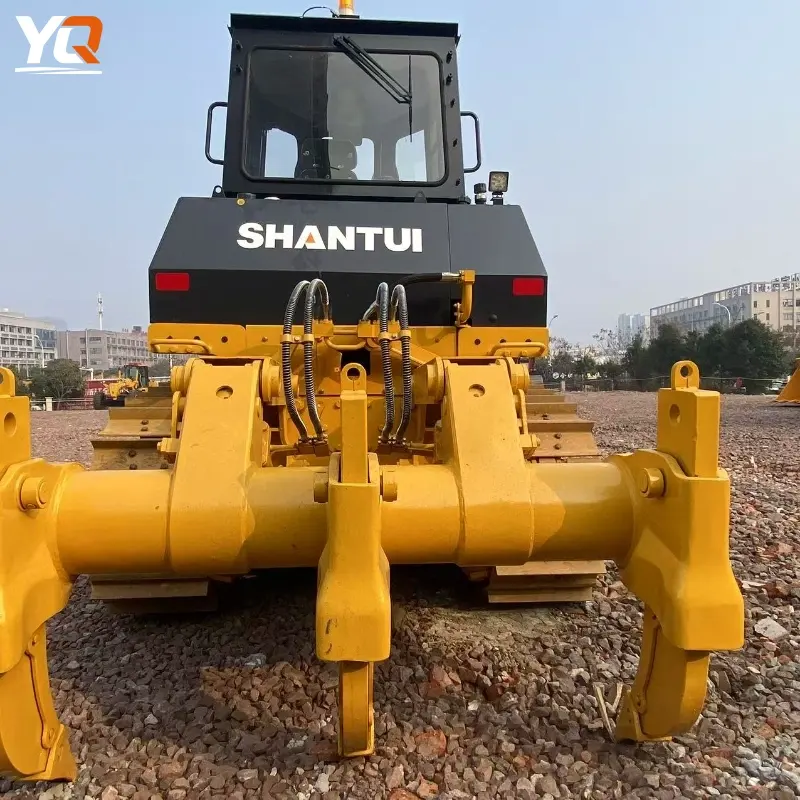

Ripper (Optional)	Single-Tine / 3-Tine, maximum depth approximately 695 / 666 mm

Engine & Fuel System

Item	Value
Type	6-Cylinder Inline, Water-Cooled, Turbocharged Diesel Engine
Displacement	Approximately 14.01 L (WP12/QSNT-C235)
Fuel Consumption Rate	≈ 205 g/kW·h

Hydraulics & Transmission

Item	Parameter
Hydraulic Pump Type	Gear Oil Pump
Working Pressure (Device)	≈ 14 MPa
Gearbox / Transmission	Torque Converter + Multi-Stage Planetary Gear Transmission, Hydraulic Engagement Forced Lubrication, etc.
Road Wheels (Per Side)	6
Carrier Rollers (Per Side)	2
Track Link Pitch	216 mm

Overall Dimensions (Standard Type)

Item	Value
Overall Length	≈ 5495 mm
Overall Width	≈ 3725 mm
Overall Height	≈ 3402 mm
Track Ground Contact Length	≈ 2730 mm

Typical Parameter Summary

Category	Parameter
Operating Weight	23,450 kg (standard)
Engine Power	175 kW @ 1800 rpm
Fuel Tank	450 L
Blade Capacity	≈ 6.4 m³
Drive / Transmission	Hydromechanical Transmission
Travel Speed	Maximum approximately 11.2 km/h (forward) / 13.2 km/h (reverse)
