Powerful Used CAT 308E2 Excavator Heavy Duty Mini Digger

Description

Basic Information​

Model Name: Caterpillar 308E2 / 308E2 CR Compact Hydraulic Excavator​

Overall Operating Weight: Approx. 8,400 kg (Including Cab, Standard Bucket, Rubber Tracks, etc.)​

Weight Range: Approx. 8,400–8,700 kg (Varies by Configuration; e.g., Variable Angle Boom (VAB) Models Are Slightly Heavier)​

⚙️ Engine Parameters​

Parameter​	Value​
Engine Model​	Cat® C3.3B Turbocharged Diesel Engine​
Net Power (ISO 9249)​	48.5 kW (≈ 65 hp) @ 2,400 rpm​
Gross Power (ISO 14396)​	49.7 kW (≈ 66.6 hp)​
Displacement​	3.33 L (203.2 in³)​
Bore × Stroke​	94 mm × 120 mm​
Emission Standard​	EPA Tier 4 Final / EU Stage IIIB (Most Markets)​

🏋️‍♂️ Power/Performance Indicators​

Performance Parameter​	Value​
Maximum Traction Force (Low Speed)​	~64.5 kN​
Maximum Traction Force (High Speed)​	~37.4 kN​
Travel Speed (High/Low)​	~5.1 / 2.8 km/h​
Maximum Gradeability​	~30°​
Swing Speed​	~10.8 rpm​
Digging Force – Bucket​	~57.1 kN (Certain Model Years/Configurations)​
Digging Force – Arm​	~38.9 kN​

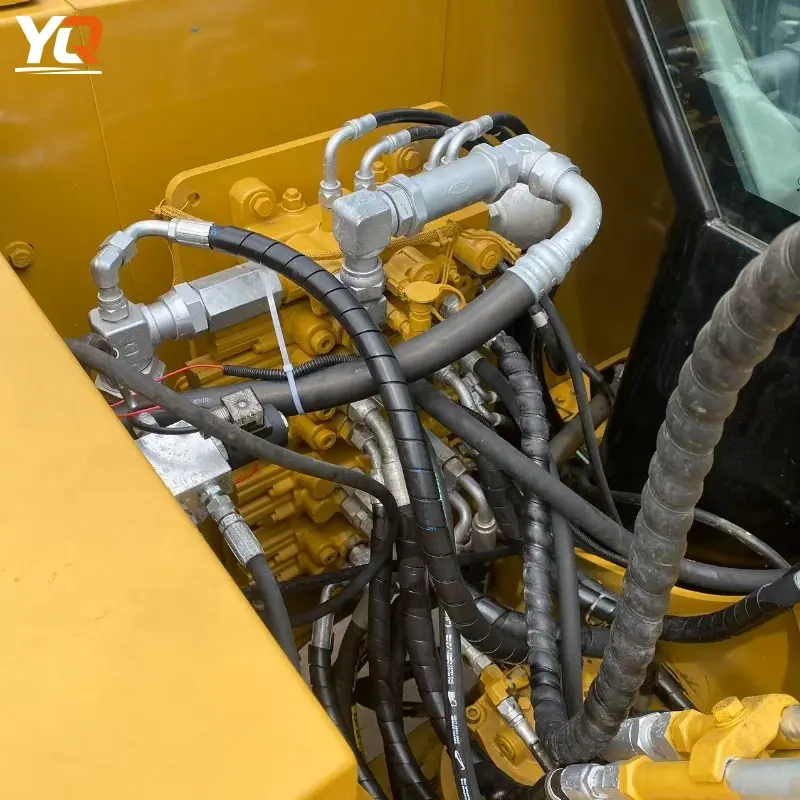

🛢️ Hydraulics & Fuel Tanks​

Item​	Value​
Fuel Tank Capacity​	~135 L​
Hydraulic Oil Tank Capacity​	~51 L​
Total Hydraulic System Capacity​	~94 L​
Engine Oil Change Capacity​	~11.2 L​
Coolant Capacity​	~12–14 L​
Main System Working Pressure​	~28,000 kPa​
Swing System Working Pressure​	~24,000 kPa​

📏 Dimensions & Structure​

Parameter​	Specification​
Transport Dimensions (L × W × H) (Approx.)​	~6,080 × 2,320 × 2,700 mm​
Cab Height​	~2,540 mm​
Dozer Blade Width × Height​	~2,300 × 450 mm​
Total Track Length​	~2,910 mm​
Track Shoe Width​	~450 mm​
Minimum Ground Clearance​	~370 mm​
Rear Swing Radius​	~1,750 mm​

📊 Working Range (Typical)​

Operating Parameter​	Value​
Maximum Digging Depth​	~4,210 mm​
Maximum Digging Radius​	~6,420 mm​
Maximum Digging Height​	~7,330 mm​
Maximum Dumping Height​	~5,300 mm​

​
