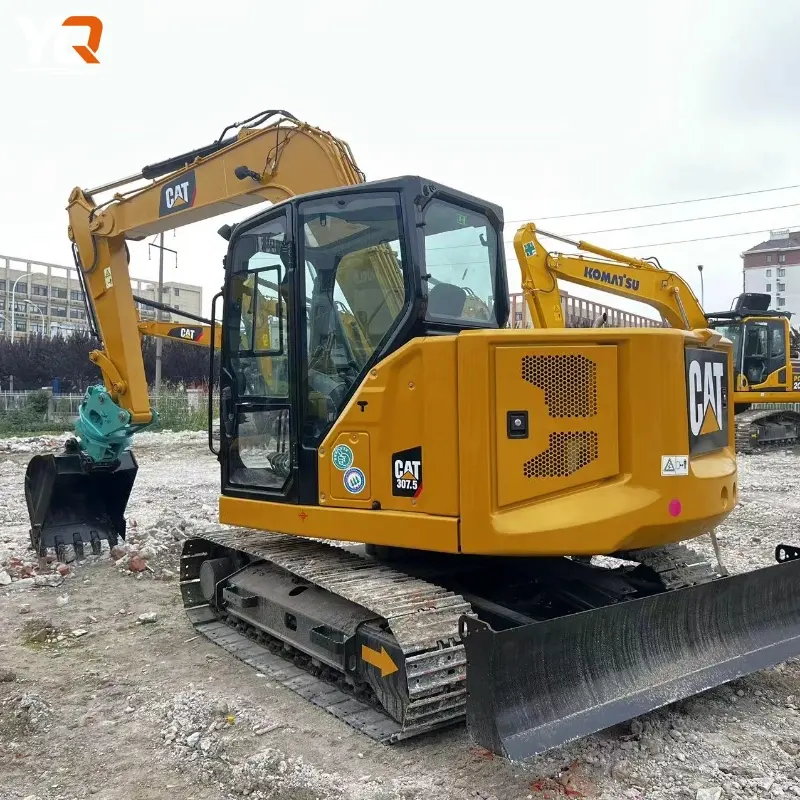

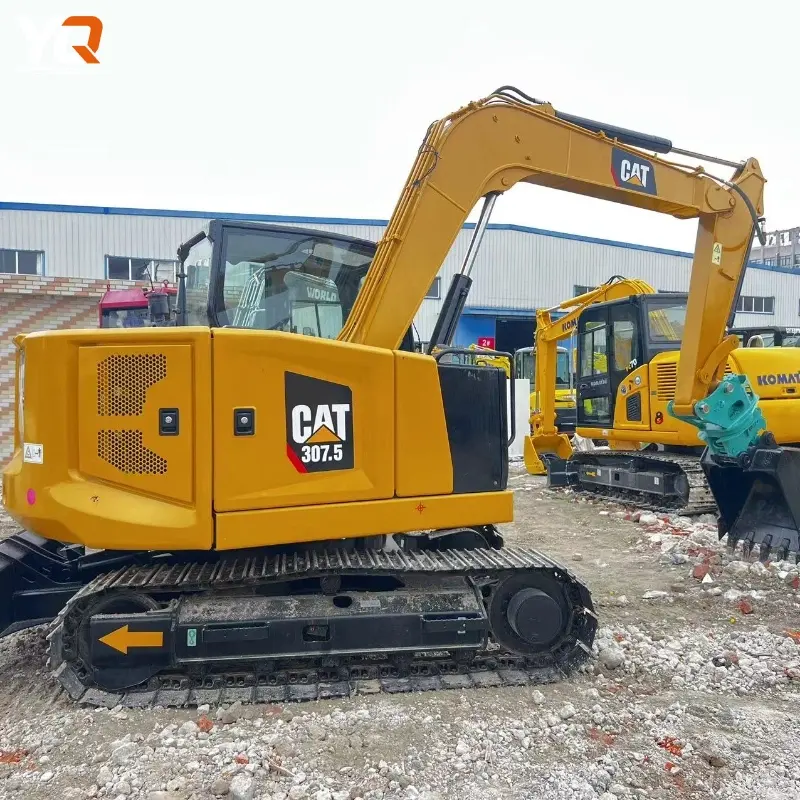

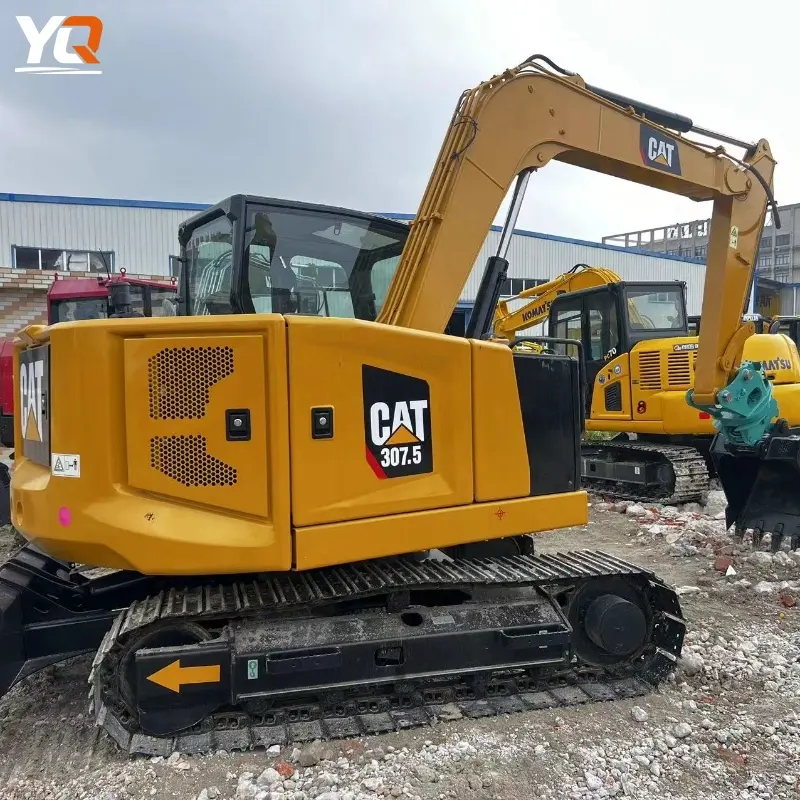

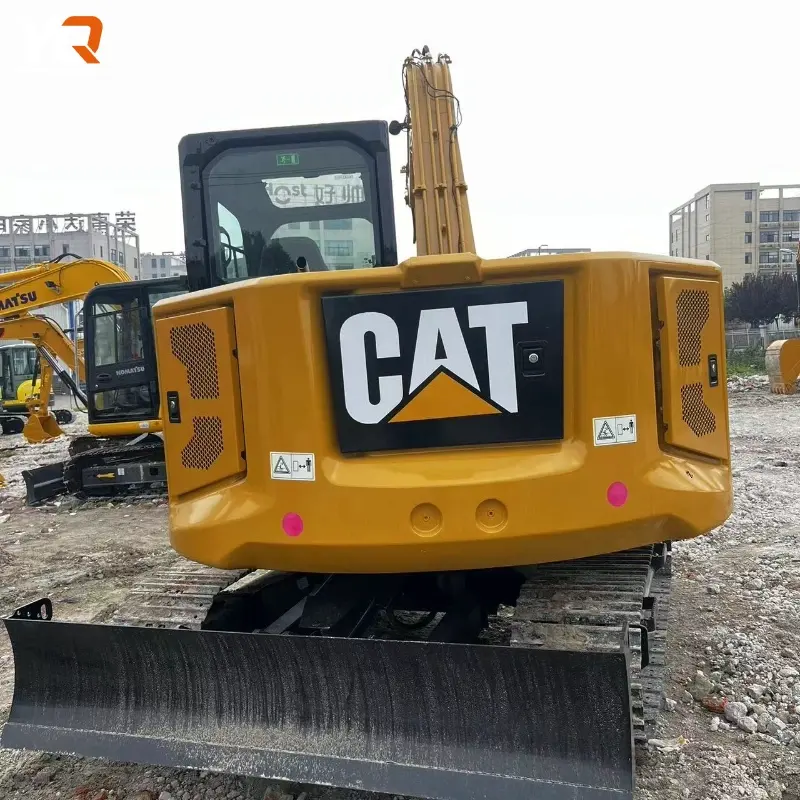

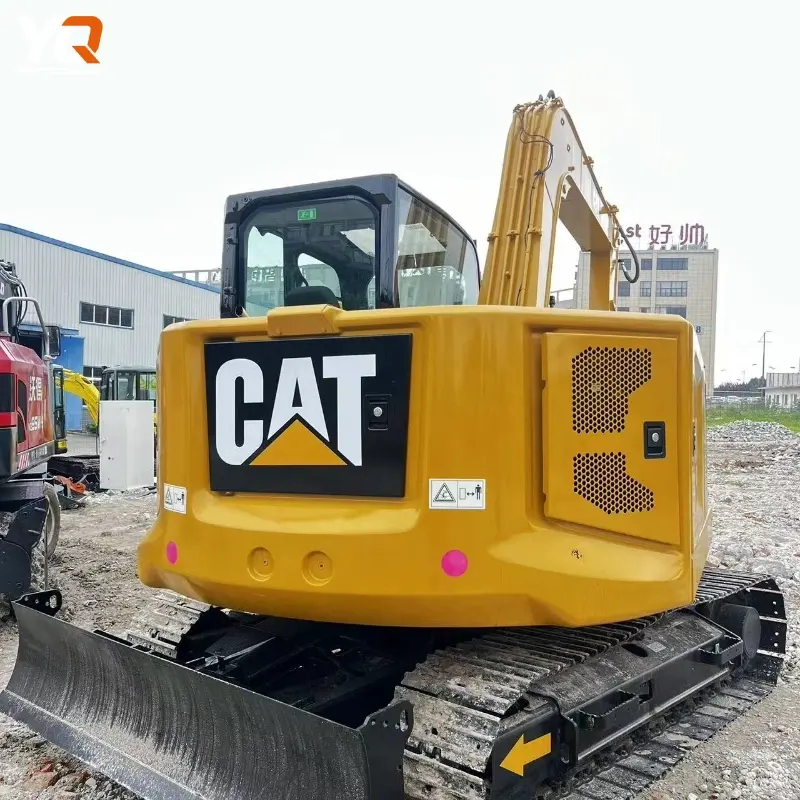

Model Name: Caterpillar 307.5 Mini Hydraulic Excavator
Operating Weight: Approx. 8,113 kg (Minimum Approx. 7,504 kg)
Net Power: Approx. 46.8 hp (34.9 kW) @ 2,400 rpm (ISO 9249/EEC 80/1269)
Gross Power: Approx. 48.9 hp (36.5 kW) (ISO 14396)
Engine Model: Cat C2.4 Turbocharged Diesel Engine
Displacement: 2.43 L (148 in³)
Model Name: Caterpillar 307.5 Mini Hydraulic Excavator
Operating Weight: Approx. 8,113 kg (Minimum Approx. 7,504 kg)
Net Power: Approx. 46.8 hp (34.9 kW) @ 2,400 rpm (ISO 9249/EEC 80/1269)
Gross Power: Approx. 48.9 hp (36.5 kW) (ISO 14396)
Engine Model: Cat C2.4 Turbocharged Diesel Engine
Displacement: 2.43 L (148 in³)
| Parameter | Value |
| Hydraulic Pump Flow @ 2,400 rpm | ~167 L/min |
| Main Circuit Working Pressure | ~285 bar (Equipment/Travel) |
| Swing System Pressure | ~250 bar |
| Primary Auxiliary Circuit Flow | ~131 L/min |
| Secondary Auxiliary Circuit Flow | ~33 L/min |
| Digging Force – Arm | ~37.8 kN |
| Digging Force – Bucket | ~54.6 kN |
| Parameter | Value |
| Travel Speed – High | ~5.0 km/h |
| Travel Speed – Low | ~3.1 km/h |
| Maximum Traction Force – High Speed | ~26.1 kN |
| Maximum Traction Force – Low Speed | ~62.4 kN |
| Maximum Gradeability | ~30° |
| Item | Dimension |
| Maximum Digging Depth | ~4,107 mm |
| Maximum Digging Height | ~7,341 mm |
| Maximum Dumping Height | ~5,293 mm |
| Maximum Reach Distance | ~6,297 mm |
| Maximum Ground Reach | ~6,152 mm |
| Rear Swing Radius (Without Counterweight) | ~1,800 mm |
| Rear Swing Radius (With Counterweight) | ~1,995 mm |
| Track Shoe Width | ~450 mm |
| Width (Upper Structure) | ~2,250 mm |
| Total Chassis Length | ~2,760 mm |
| Cab Height | ~2,534 mm |
| System | Capacity |
| Fuel Tank | ~145 L |
| Hydraulic Oil Tank | ~53 L |
| Total Hydraulic System Capacity | ~104 L |
| Engine Oil | ~9.5 L |
| Cooling System | ~10 L |
