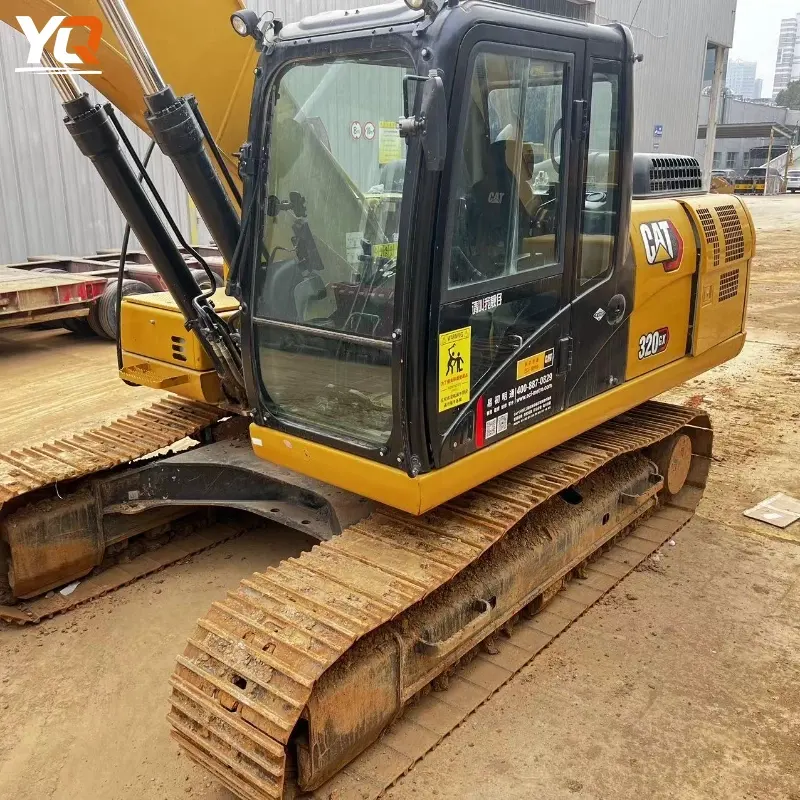

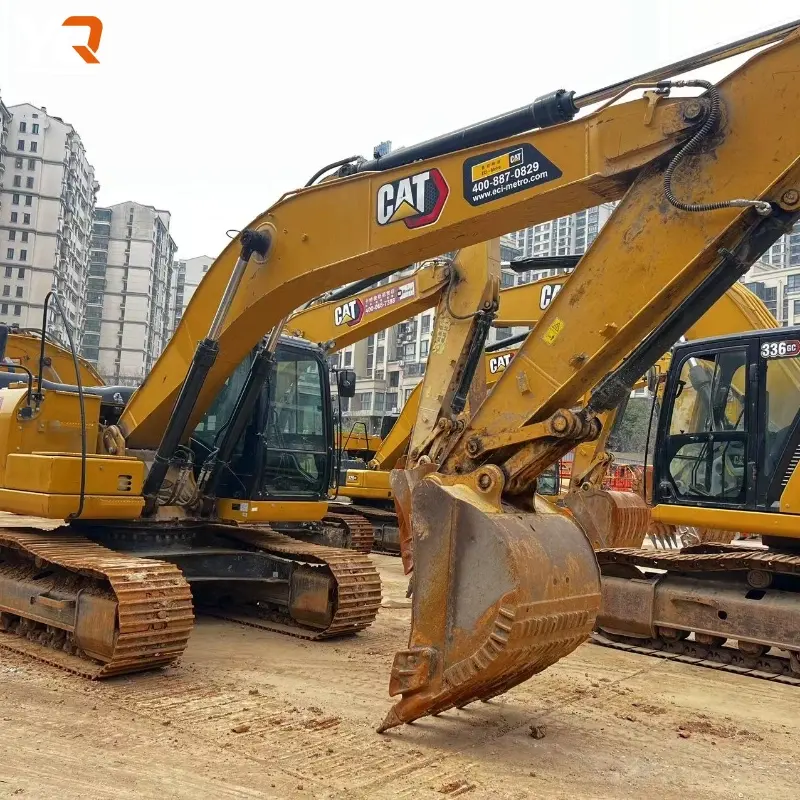

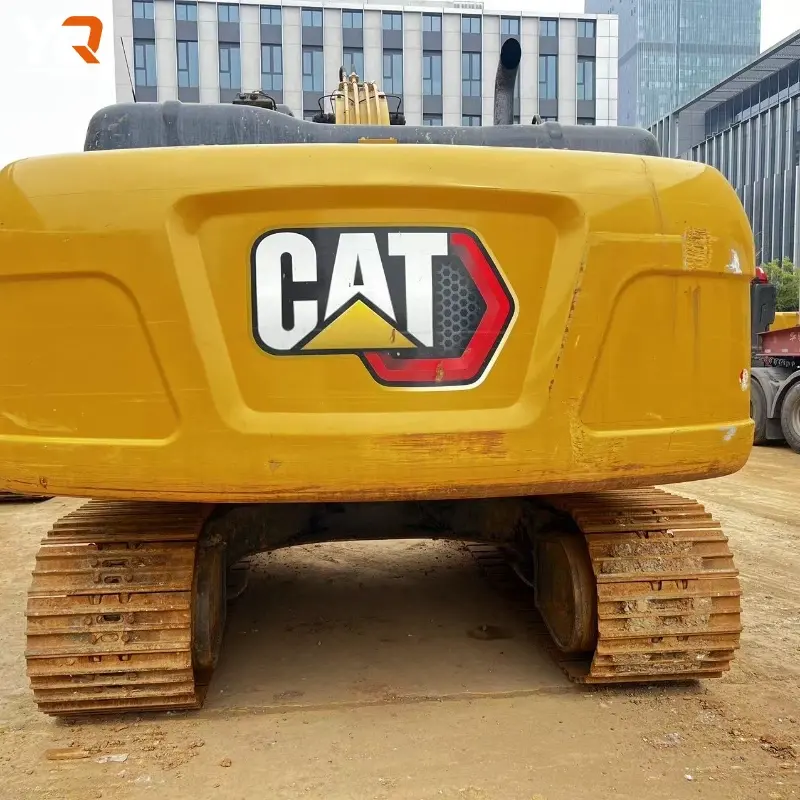

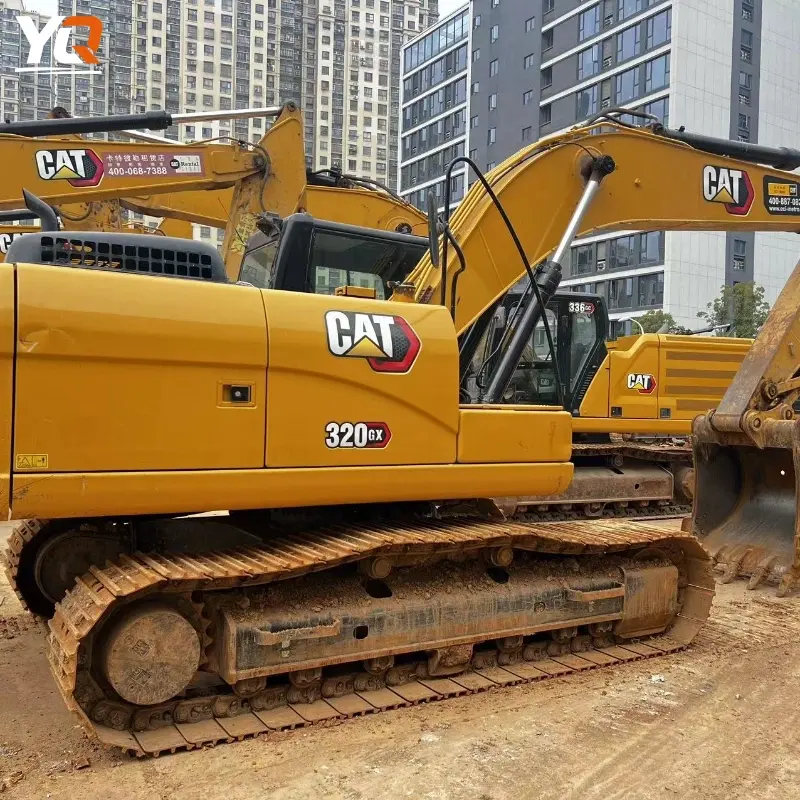

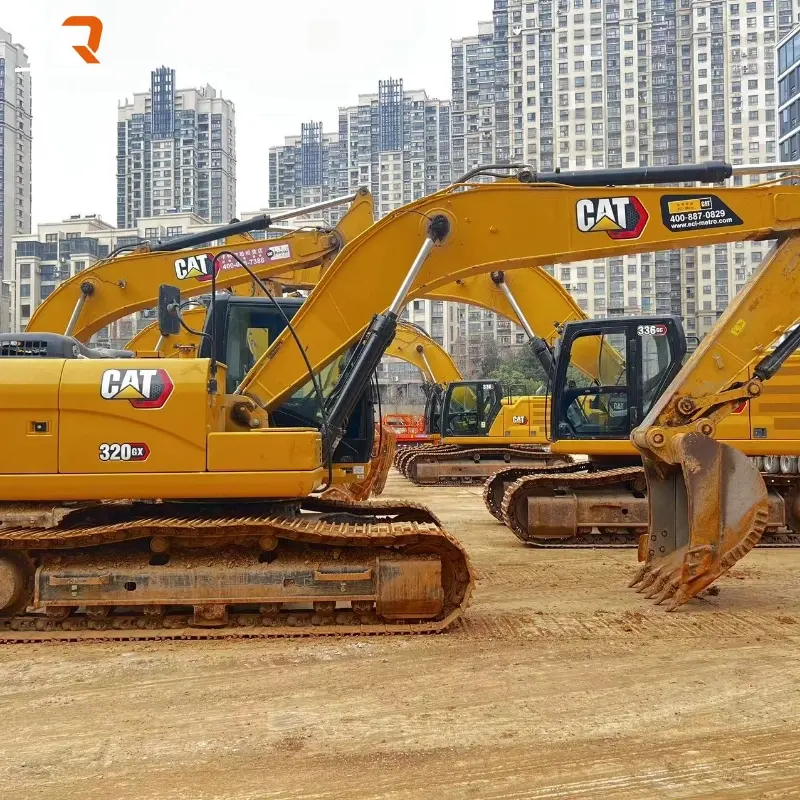

New Arrival Low Price Economy Used CAT 320GX Excavator

Description

Basic Specifications

Model: Caterpillar 320 GX Hydraulic Excavator

Engine Model: Cat® C4.4 Turbocharged Diesel Engine

• Rated Net Power (ISO 9249): approx. 142 hp / 105–106 kW
• Rated Gross Power (ISO 14396): approx. 148 hp / 110 kW
• Displacement: 4.4 L
• Emission Standard: Meets Tier 4 / Stage V (available on selected versions; standards may vary by market)

Operating Weight: approx. 19,800 – 20,100 kg (depending on track width and configuration)
Fuel Tank Capacity: approx. 390 L

Working Performance

Item	Value
Maximum Digging Depth	~6,430 mm (21.1 ft)
Maximum Reach at Ground Level	~9,580 mm (31.4 ft)
Maximum Cutting Height	~9,290 mm (30.5 ft)
Maximum Loading Height	~6,450 mm (21.2 ft)
Bucket Capacity (GD)	~0.93 m³
Bucket Digging Force (ISO)	~136 kN
Arm Digging Force (ISO)	~106 kN

Hydraulic System & Undercarriage

• Maximum Hydraulic Flow (Machine): ~429 L/min
• Maximum Working Pressure (Implement/Travel): ~35,000 kPa
• Maximum Swing Pressure: ~25,000 kPa
• Swing Speed: ~11.07 rpm
• Maximum Travel Speed: ~5.7 km/h (3.5 mph)
• Maximum Drawbar Pull: ~201 kN

Dimensions (Typical Standard Configuration)

Dimension	Value
Transport Height (Cab Top)	~2,950 mm
Transport Length (with Boom & Bucket)	~9,570 mm
Tail Swing Radius	~2,830 mm
Ground Clearance	~460 mm
Track Length on Ground	~4,080 mm
Track Gauge	~2,200 mm
Transport Width	~2,800 – 2,990 mm

Service Refill Capacities (Reference)

System	Capacity
Fuel Tank	~390 L
Cooling System	~24.5 L
Engine Oil	~15 L
Swing Drive	~5.5 L
Hydraulic System (Total)	~218 L
Hydraulic Tank	~115 L
