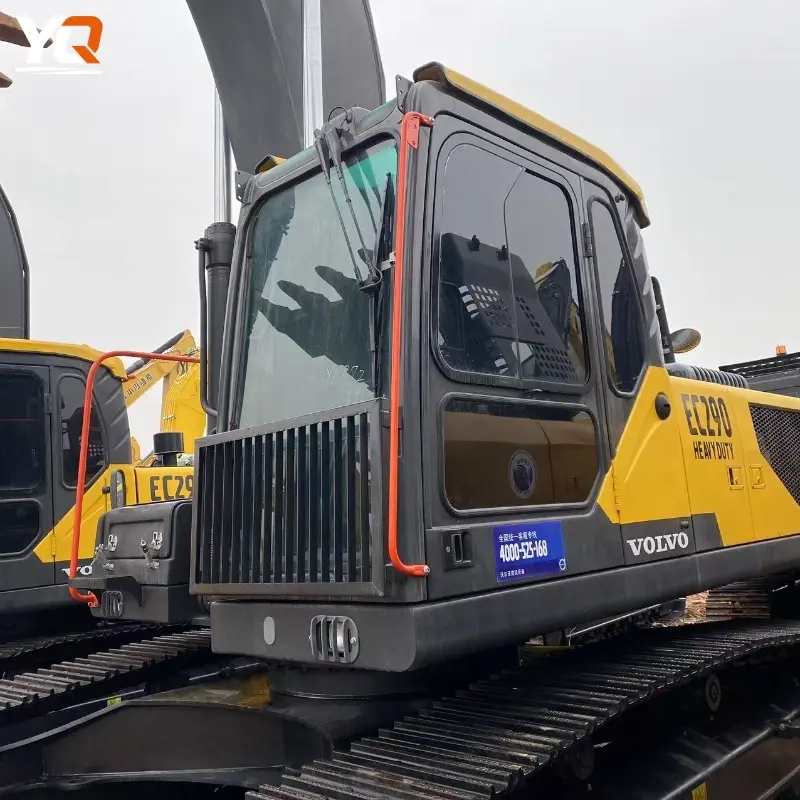

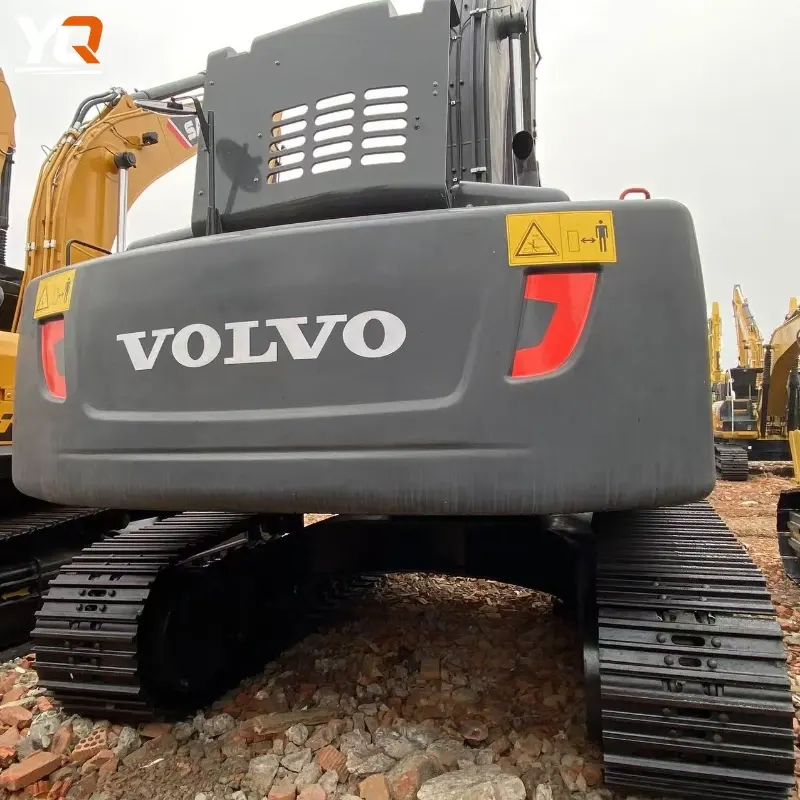

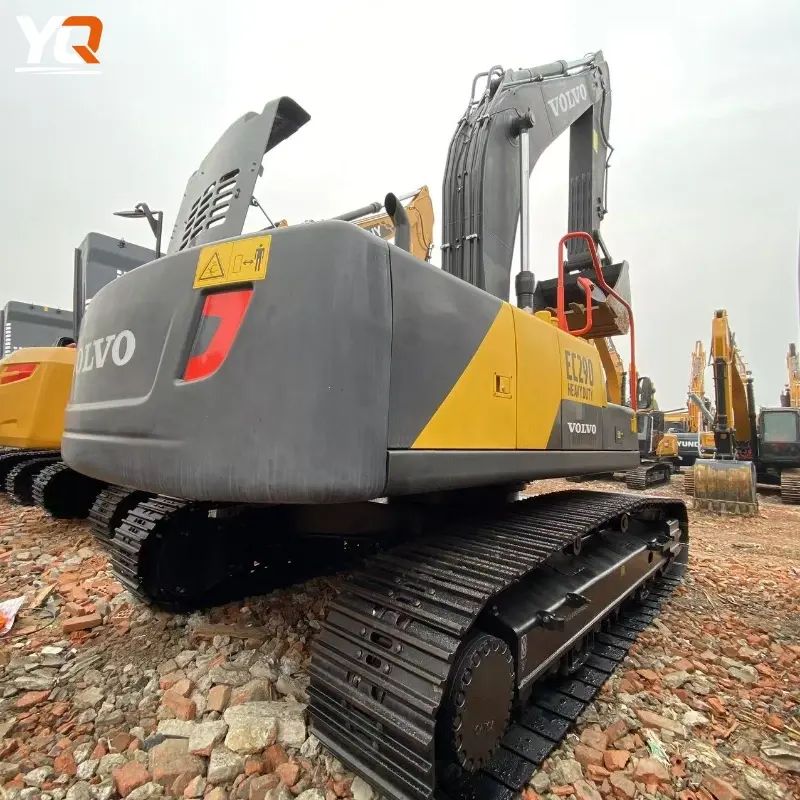

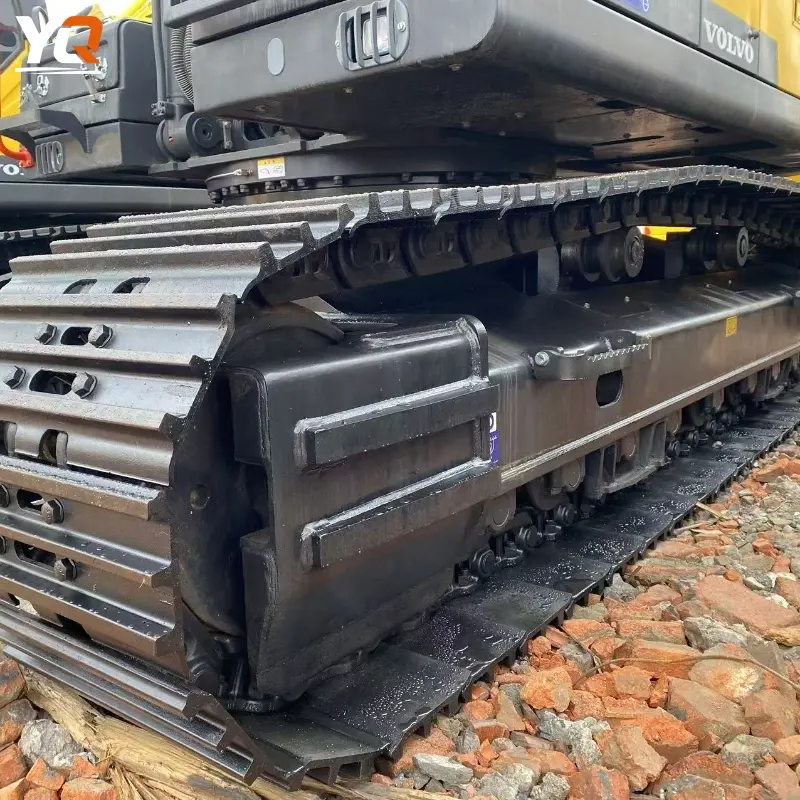

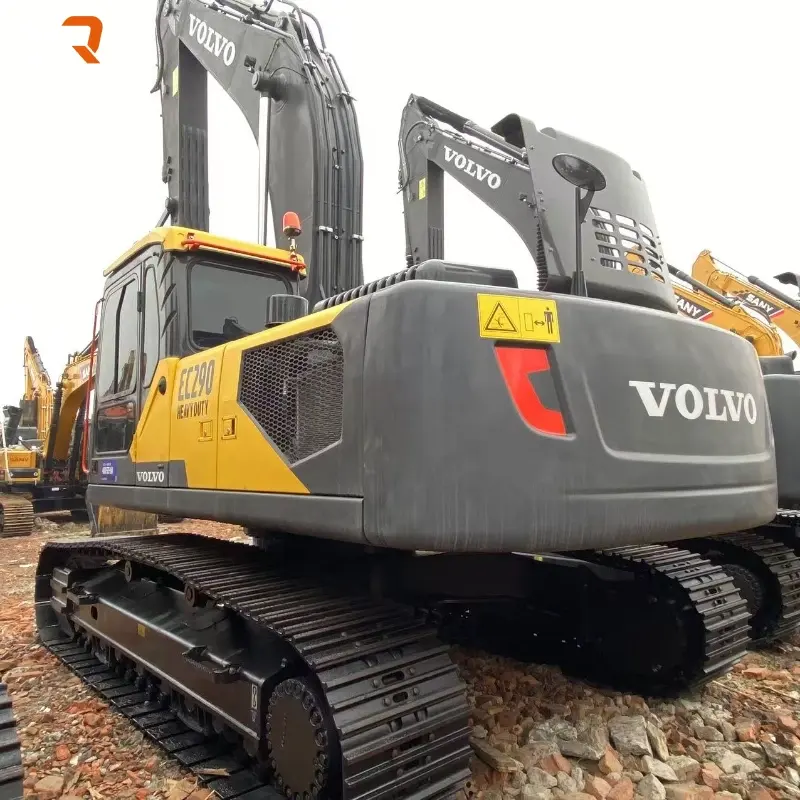

Hot Sale Used Volvo EC290 Hydraulic Excavator Durable Construction Equipment

Description

I. Basic Specifications

Parameters Values
Model: Volvo EC290D (Medium-sized Hydraulic Excavator)
Operating Weight: Approx. 28,000 – 29,600 kg (approx. 28 – 30 t)
Standard Bucket Capacity: 1.1 – 1.75 m³ (depending on the specific bucket)
Applications: Medium to heavy-duty work such as earthmoving, excavation, digging, and loading.

🔥 II. Power System

Parameters Values
Engine Brand/Model: Volvo D7E turbocharged diesel engine / sometimes labeled Cummins C8.3-C (depending on the market)
Rated Power: ~160 kW (215 hp) (Gross Power)
Displacement: ~7.1-7.2 L (6 cylinders)
Maximum Torque: ~940 Nm (example: older EC290B data)
Emission Standard: Mostly Tier 3/Stage III (depending on the specific market)

🛠️ III. Travel and Hydraulic Subsystems Parameters
Main Pump Type: Dual Variable Displacement Axial Piston Pump + Gear Pump (Load-Sensing Hydraulic System)
Hydraulic System Pressure: 31.4 / 34.3 MPa (Typical)
Travel Speed ​​(High/Low): Approx. 5.2 / 3.3 km/h (Refer to older EC290 model)
Swing Speed: ~10.8 rpm
Traction / Grip: Approx. 230 kN
Grading Ability: ~70% (Approx. 35°)

🏗️ IV. Operational Performance
Operating Specifications (Typical)
Maximum Digging Depth: ~7,000 – 7,320 mm (Boom/Stick Configuration)
Maximum Digging Radius: ~9,950 – 10,490 mm
Maximum Unloading Height: ~6,690 – 7,470 mm
Vertical Wall Digging Depth: ~5,440 – 6,200 mm
Bucket Digging Force: ~188 kN (Standard) (Example Value)
Stick Digging Force: ~120 – 144 kN (Example Value)

📏 V. Dimensions and Structure

Dimensions Item Value (Typical old EC290 similar)
Transport Length ~10,460 – 10,500 mm
Transport Width ~3,190 mm
Transport Height ~3,120 mm
Track Width ~600 mm (Optional 700 mm/800 mm)
Minimum Ground Clearance ~450 – 480 mm
Tail Turning Radius ~3,150 – 3,200 mm

⛽ VI. Fuel Tanks and Capacities

Item Capacity
Fuel Tank Capacity ~470 L (Typical)
Hydraulic Oil Tank Capacity ~200–260 L (Example)
Engine Oil Capacity ~25–32 L (Example)
Coolant Capacity ~30–33 L
