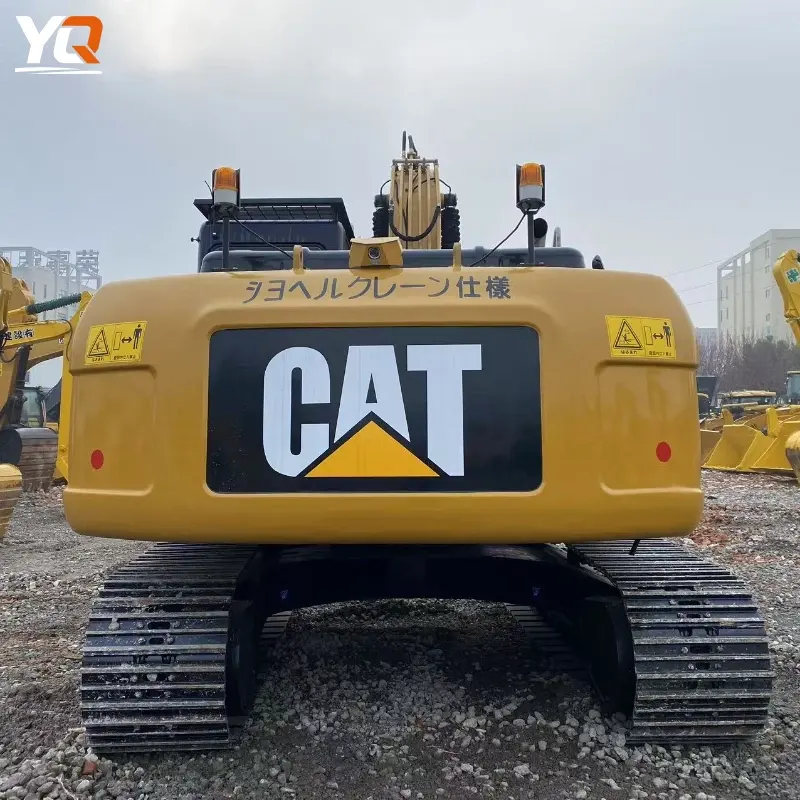

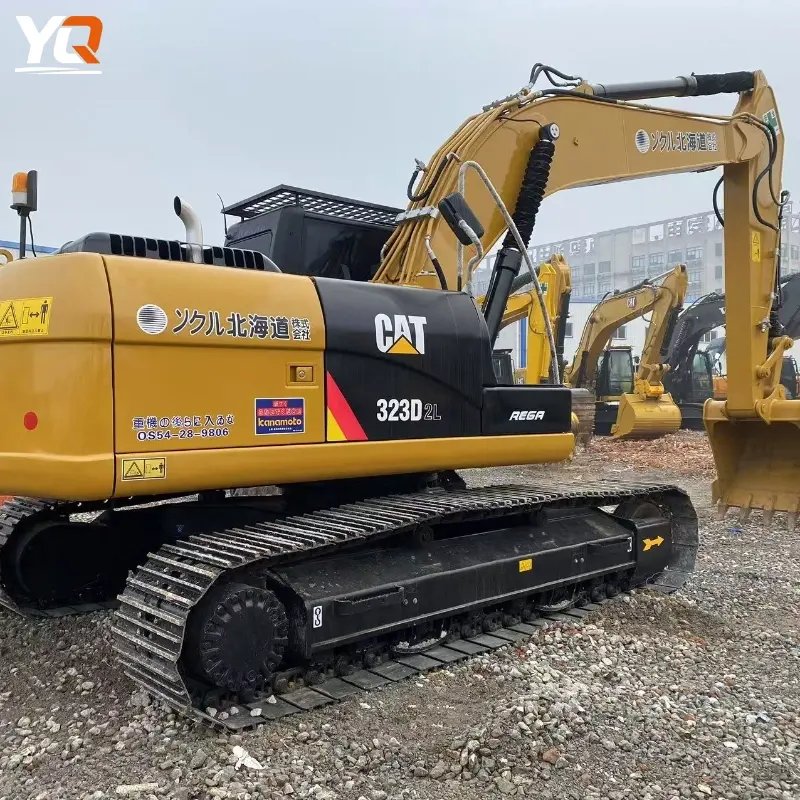

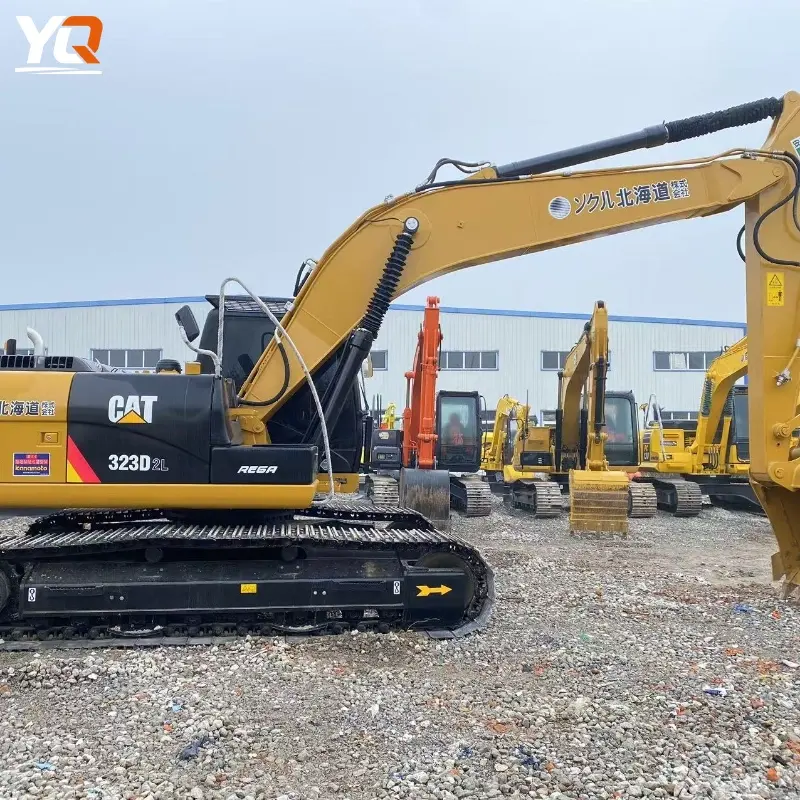

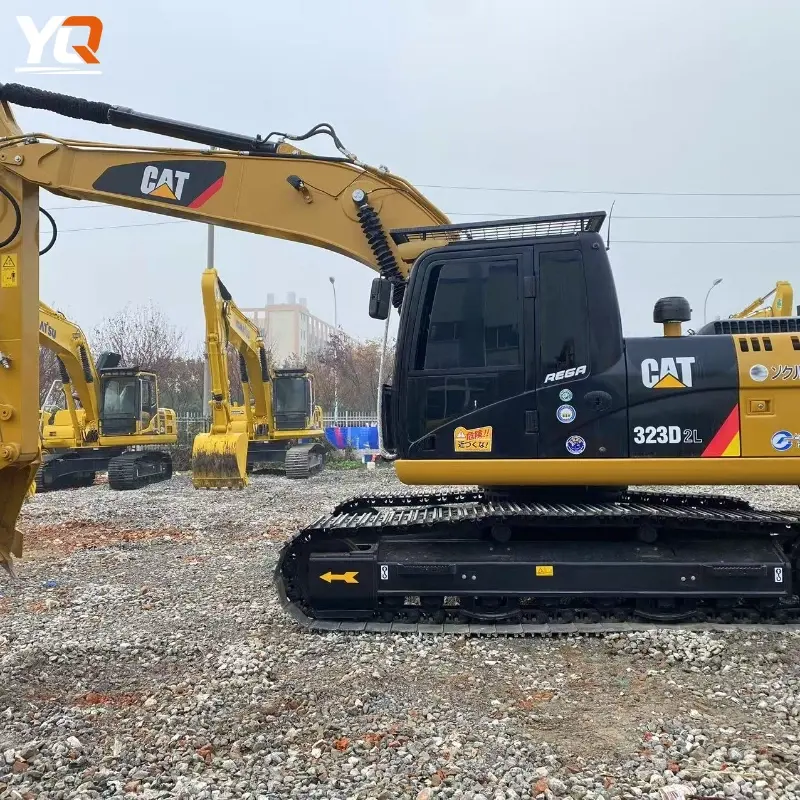

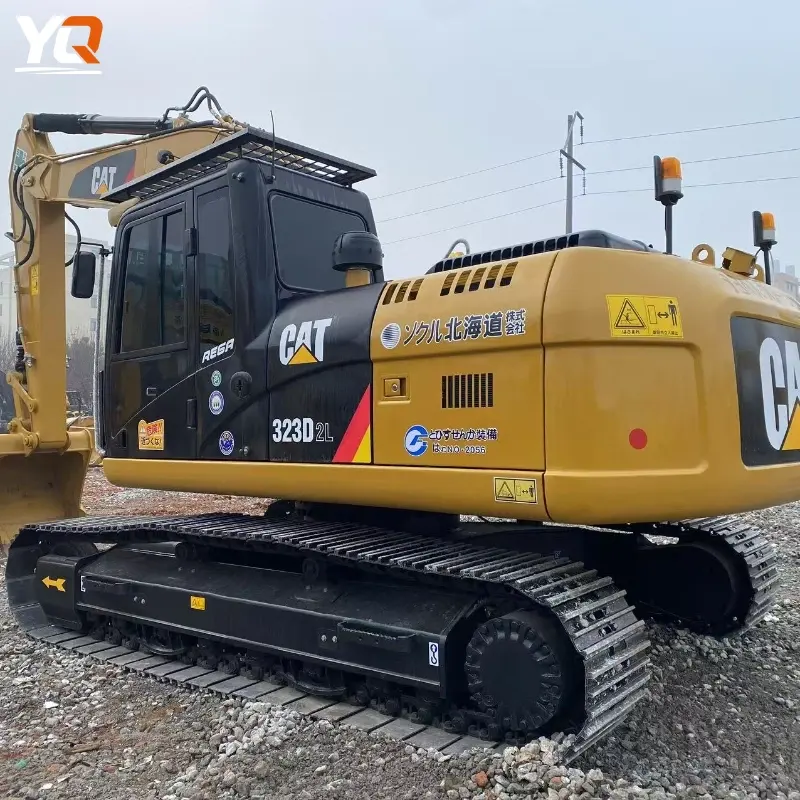

Heavy Duty Used CAT 323D Excavator Large Digging Force Sale

Description

Here is the translation of the specifications into English, maintaining the technical format.

General Specifications

• Model Name (Example Basic Version): Caterpillar 323
• Operating Weight: ~22,900 kg (50,500 lb)
• Engine Model: Cat® C7.1 Turbocharged Diesel Engine
• Net Power (ISO 9249): ~157 hp / 117 kW
• Max. Digging Depth: ~6,730 mm (22.1 ft)
• Fuel Tank Capacity: ~345 L

Note: Parameters for the 323D may vary across different markets or configurations (e.g., 323D L Long Undercarriage version, 323D3 Improved version, etc.). The above data represents generally accepted basic standards.

⚙️ Engine & Power

Parameter	Value
Engine Model	Cat® C7.1
Displacement	7.01 L
Net Power (ISO 9249)	~117 kW / 157 hp
Emission Standards	Tier 3 / Stage IIIA equivalent (varies by regional sales standards)
Biodiesel Compatibility	Compatible with up to B20 fuel

🏗️ Operating Performance

Parameter	Typical Value
Max. Digging Depth	~6,730 mm (22.1 ft)
Max. Depth for 2440 mm (8 ft) Level Bottom	~6,560 mm (21.6 ft)
Max. Cutting Height	~9,450 mm (31 ft)
Max. Loading Height	~6,480 mm (21.3 ft)
Max. Reach at Ground Level	~9,870 mm (32.4 ft)
Max. Vertical Wall Digging Depth	~5,620 mm (18.5 ft)
Bucket Digging Force (ISO)	~140 kN
Stick (Arm) Digging Force (ISO)	~107 kN

💧 Hydraulic System

Item	Value
Max. Hydraulic System Flow	~429 L/min
Max. Equipment Pressure	~35,000 kPa
Travel Pressure	~34,300 kPa
Swing Pressure	~27,500 kPa

🔄 Swing & Travel

Parameter	Value
Swing Speed	~11.25 rpm
Max. Swing Torque	~82 kN·m

Note: Specific values such as travel speed may vary depending on configurations like undercarriage size and track shoe width. It is recommended to confirm based on the specific version.

📏 Key Dimensions

Dimensions/Parameter	Typical Value
Shipping Height (Top of Cab)	~2,960 mm
Shipping Length (Boom/Stick attached)	~9,530 mm
Tail Swing Radius	~2,830 mm
Ground Clearance	~470 mm
Track Length (On Ground)	~4,450 mm
Track Gauge	~2,380 mm
Transport Width	~2,980 mm

⛽ Service Refill Capacities (Approx.)

System	Capacity
Fuel Tank	~345 L
Cooling System	~25 L
Engine Oil	~25 L
Swing Drive	~12 L
Final Drive (Each)	~4–5 L
Hydraulic System (Including Tank)	~234 L
Hydraulic Tank	~115 L
