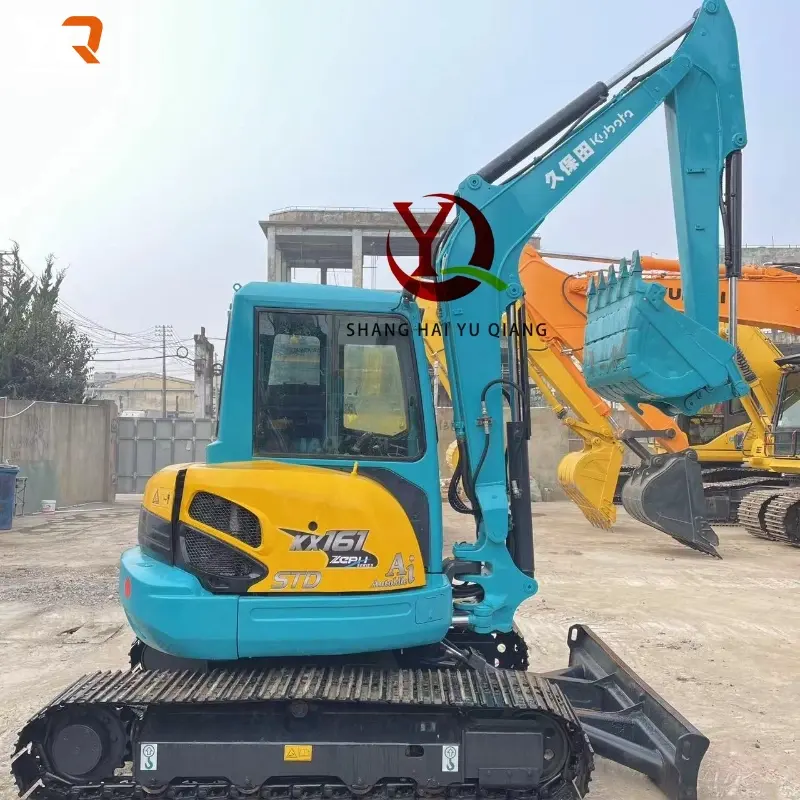

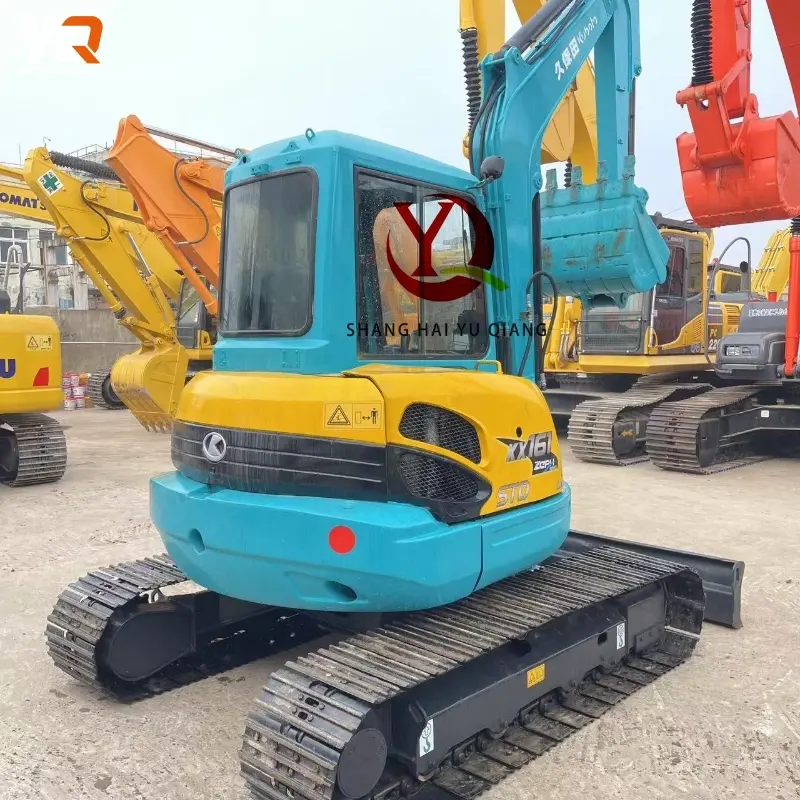

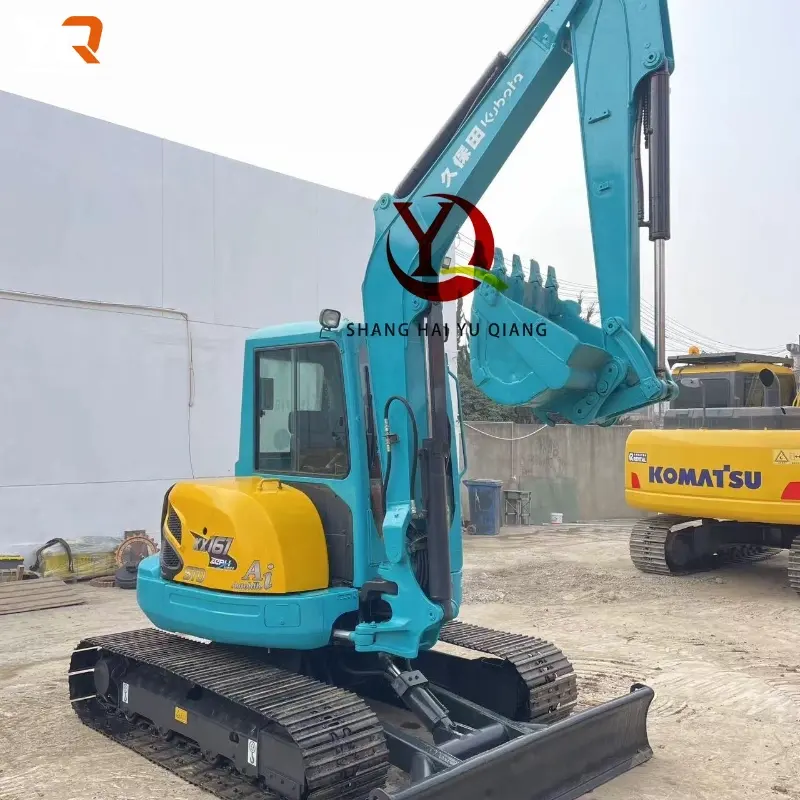

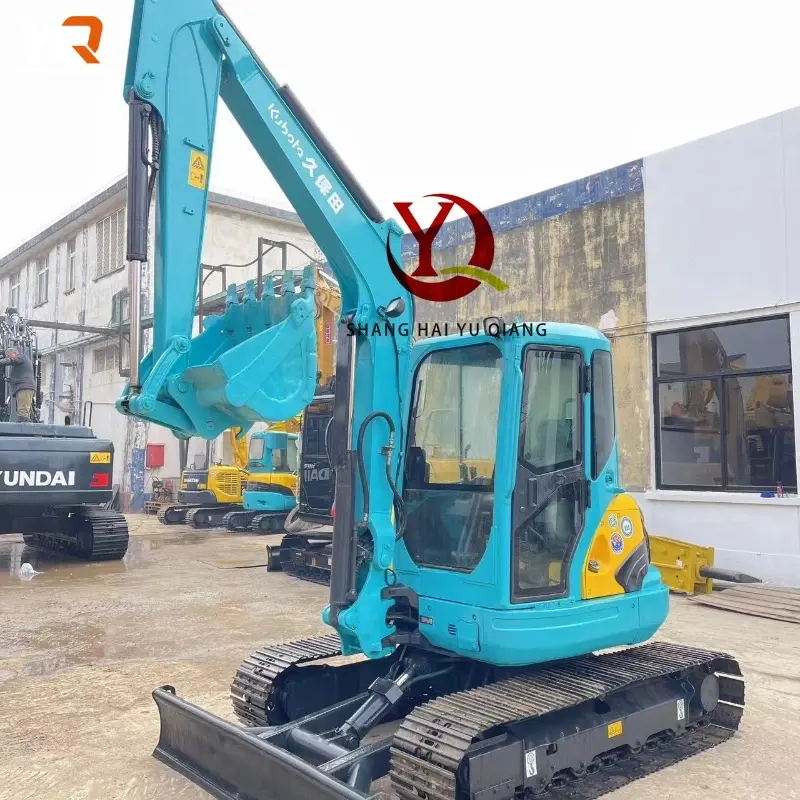

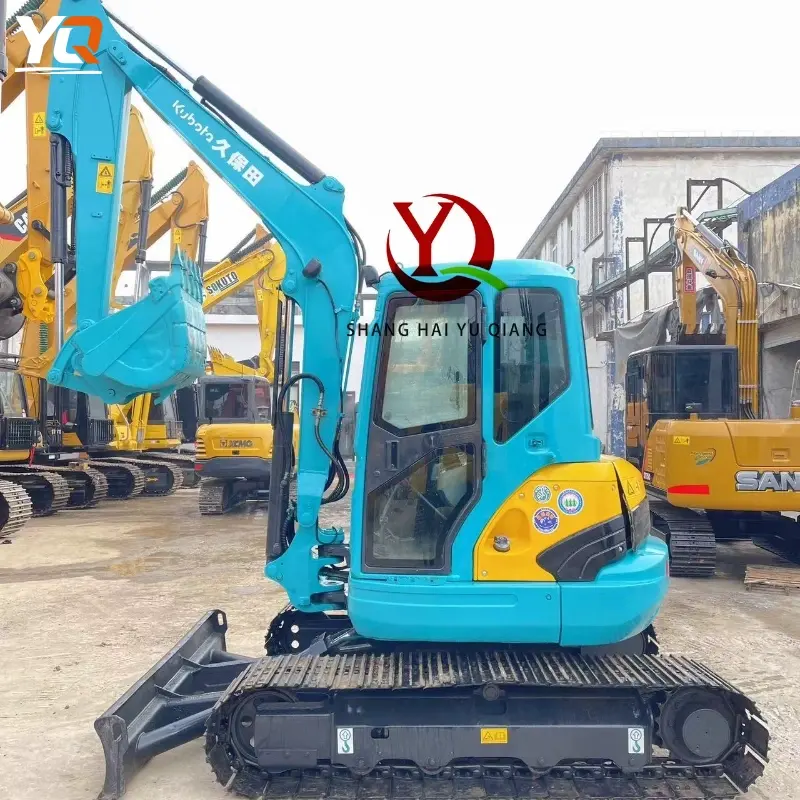

Well-maintained Used Kubota KX161 Mini Digger Low Working Hours

I. Basic Specifications

Item Parameter
Model Kubota KX161 (e.g., KX161-3 / KX161-3S)
Working Weight ≈ 5,675 kg (approx. 5.7 t)
Bucket Capacity 0.22 m³
Power Type: Diesel Engine
Application: General earthmoving, medium-scale construction

II. Engine Parameters

Parameter Value
Engine Brand/Model: Kubota V2403-M
Rated Power: 34.6 kW @ 2,200 rpm (approx. 47 hp)
Displacement: 2.434 L
Cooling Method Liquid Cooling

Operating Performance

Indicators Value
Maximum Digging Depth: ~3,860 mm
Maximum Digging Radius: ~6,290 mm
Maximum Digging Height: ~5,770 mm
Maximum Unloading Height: ~4,125 mm
Maximum Vertical Digging Depth: ~2,995 mm
Bucket Digging Force ~39 kN (approx. 3,980 kgf)

Travel and Turning
Indicators Values
Travel Speed ​​(High/Low) ~4.6 / 2.5 km/h
Turn Speed ​​~9.3 rpm
Climbing Ability: ~30% (Some data may be expressed as higher)

Dimensions (Transportation Condition)
Item Values
Overall Length: ~5,540 mm
Overall Width ~2,110 mm
Overall Height: ~2,540 mm
Track Length: ~2,500 mm
Minimum Ground Clearance: ~320 mm
Track Shoe Width Approx. 550 mm
Minimum Turning Radius: ~2,420 mm
Rear Turning Radius: ~1,090 mm

Hydraulics and Fuel Tank
System Parameters
Main Pump Type: Variable Pump + Gear Pump (Some Versions)
Hydraulic Breaker Line Standard (Some Market Versions)
Fuel Tank Capacity Approx. 70 L
